GENERAL TORQUE
SPECIFICATIONS
This chart specifies torque for standard fasten-
ers with standard I.S.O. pitch threads. Torque
specifications for special components or as-
semblies are included in the applicable sections
of this book. To avoid warpage, tighten multi-
fastener assemblies in a crisscross fashion, in
progressive stages, until full torque is reached.
Unless otherwise specified, torque specifica-
tions call for clean, dry threads. Components
should be at room temperature.

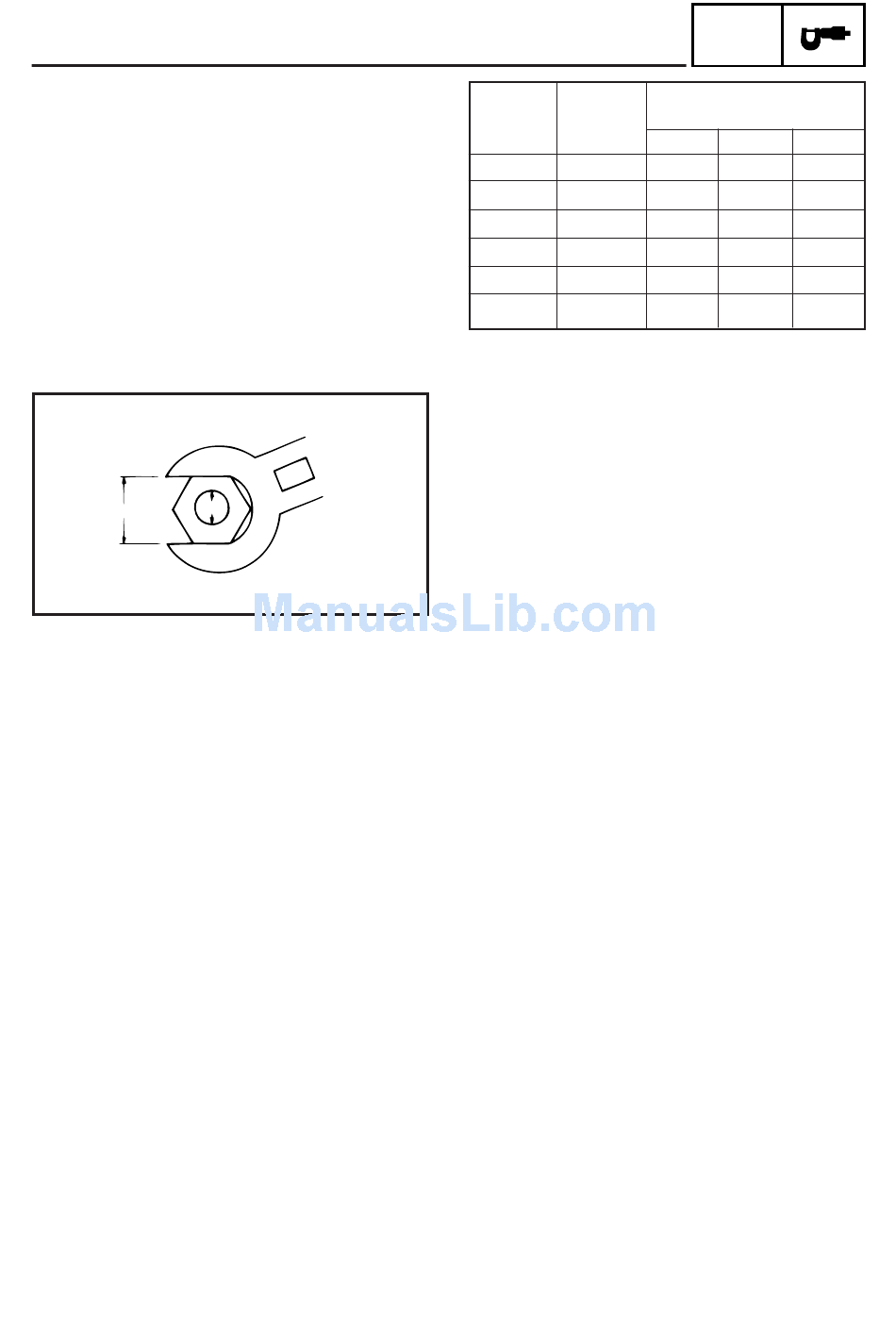

A
A: Distance across flats
B: Outside thread diameter

GENERAL TORQUE SPECIFICATIONS

B
A B
(Nut) (Bolt)
10 mm 6 mm
12 mm 8 mm
14 mm 10 mm
17 mm 12 mm
19 mm 14 mm
22 mm 16 mm
2-11
SPEC
General torque
specifications
Nm m•kg ft•lb
6 0.6 4.3
15 1.5 11
30 3.0 22
55 5.5 40
85 8.5 61
130 13.0 94
