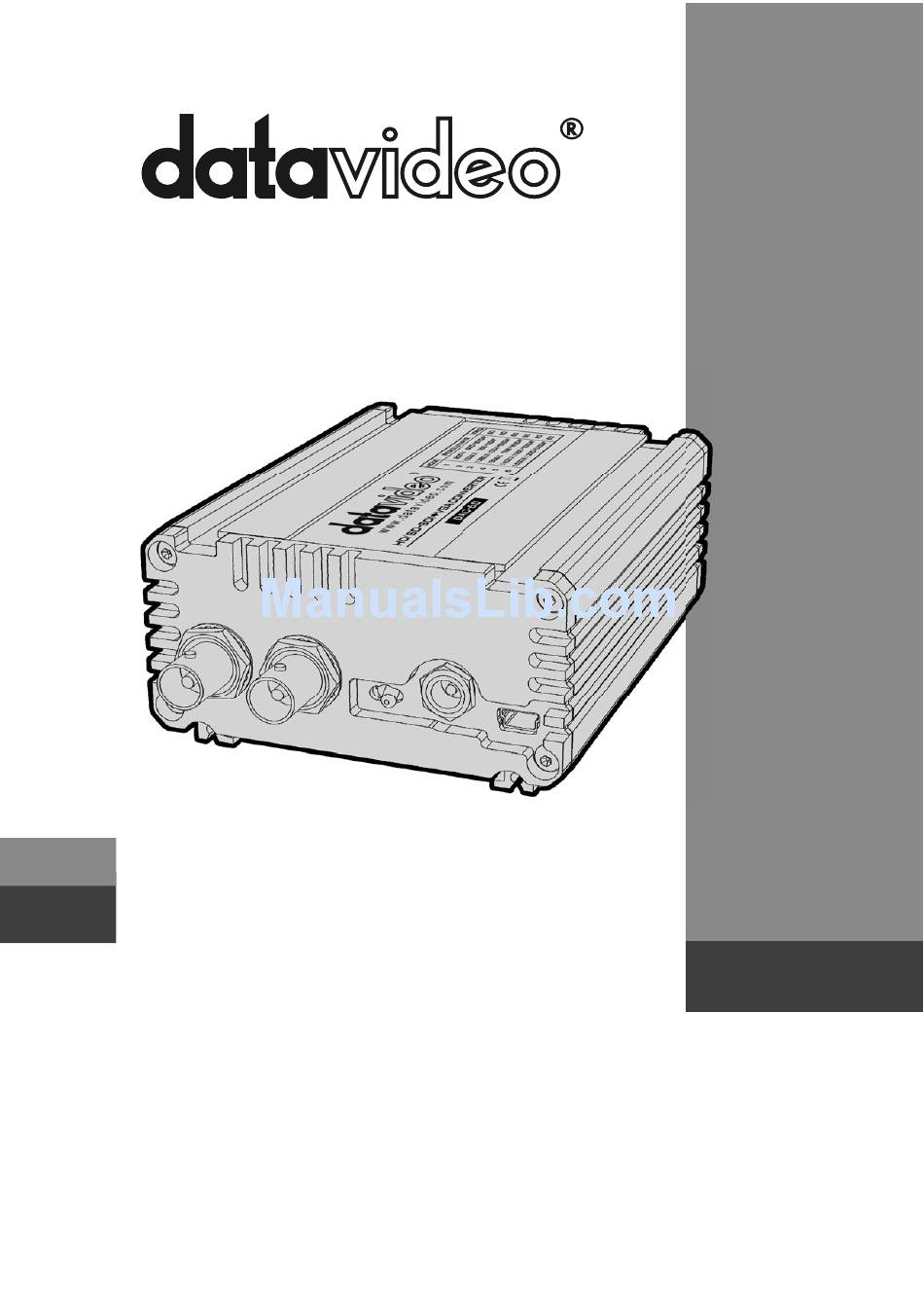

HD/SD-SDI TO VGA
CONVERTER
DAC-60

Quick Start Guide

w w w . d a t a v i d e o . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAC-60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Datavideo DAC-60

Summary of Contents for Datavideo DAC-60

  • Page 1: Quick Start Guide

    HD/SD-SDI TO VGA CONVERTER DAC-60 Quick Start Guide w w w . d a t a v i d e o . c o m...

  • Page 2: Warranty

    DVD Drives, Hard Drives are only covered for the first 10,000 hours, or 1 year (whichever comes first). Any second year warranty claims must be made to your local Datavideo office or one of its authorized Distributors before the extended warranty expires.

  • Page 3: Packing List

    Packing List DAC-60 Switching Adaptor 12V/500mA DAC-60 Quick Start Guide User Adjust Tool CD Front Panel HD/SD - SDI IN / OUT HD/SD - SDI input and pass-through output connectors. Power Switch Switches the power On / Off. DC In Socket Connects the supplied 12V PSU to this socket.

  • Page 4: Rear Panel

    Rear Panel VGA Output Connects your VGA equipment to this connector The LEDs indicate VGA output format Mode Select Selects VGA Output Format (Please see the Page 9 for more details). Press and hold down this button for 3 second into TV SCREEN MODE, and then press this button again to switch screen ratio mode.
  • Page 5 DAC-60 has Full Screen, Dot by Dot and Optimal Ratio 3 kind aspect ratio modes (Mini Switch) Source = 1920x1080 (16:9) Full Screen Mode Source = 1920x1080 (16:9) Output = 800x600 (4:3)
  • Page 6 Dot by Dot Mode A. Source = 1920 x 1080 (16:9) Output = 800 x 600 (4:3) B. Source = 720 x 480i 60 Output = 800 x 600 (4:3)
  • Page 7 3. Optimal Ratio Mode Source = 1920 x 1080 (16:9) Output = 800 x 600 (4:3)

  • Page 8: Dac-60 Installation

    DAC-60 installation 1. First make sure your equipment is not connected to power or disconnect all power connectors before connecting the video equipment. 2. Connect Video Source (SDI) to the BNC input connector. 3. Connect VGA equipment to the VGA connector.

  • Page 9: Led Indication

    LED Indication DAC-60 can work with nine presets, which can be selected by pressing the menu button. Resolution LED Indication ●○○ 800 x 600 60Hz ○○○ ○●○ 1024 x 768 60Hz ○○○ ○○● 1280 x 800 60Hz ○○○ ○○○ 1280 x 1024 60Hz ●○○...

  • Page 10: Firmware Upgrade

    Firmware Upgrade Firmware is upgradable in the field using the integrated USB port. Step 1- Connect DAC-60 to PC by USB cable. Connects the supplied 12V PSU to DC in socket and turn off power. Step 2- Open upload firmware program tools.exe and turn on DAC- 60 power.
  • Page 11 Step 6 - close upload firmware program tools Note: The latest Firmware updates and Software applications for DAC-60 can be obtained by contacting your local Datavideo office or dealer. A list of regional Datavideo offices is provided at the rear of this manual.
  • Page 12 Please copy the DAC-60 Center.exe utility software from the supplied CD to your Windows computer. Now connect the DAC-60 by USB cable to the same computer. Switch on the DAC-60 and then launch the DAC-60 Center utility software. Note: When the application is on, the first priority is PC.
  • Page 13 2.1 Click on the Video tab to enter the video setup. 2.2 Set the aspect ratio and output format then click Apply. 3.1 Click the Proc AMP tab to adjust the picture settings. 3.2 Set the Brightness, Contrast, Hue and Saturation values.
  • Page 14 4.1 Click the Setting tab to access the restore factory defaults window. 4.2 Set the OSD Hide Function Enable/ Disable. 4.3 Click the Factory Default button to reset the DAC-60 to factory defaults.

  • Page 15: Specifications

    Specifications SD - 720 x 480 i / 720 x 576 i HD - 1280 x 720 50p/60p/59.94p Supported Input 1920 x 1080 50i/60i/59.94i Video Formats 1920 x 1080 24p/25p/30p 3G - 1920 x 1080 50p/60p/59.94p SD-SDI (SMPTE 259M) SDI Formats HD-SDI (SMPTE 292M) 3G-SDI (SMPTE 494M/495M) 800 x 600...
