Summary of Contents for Monoprice 11750

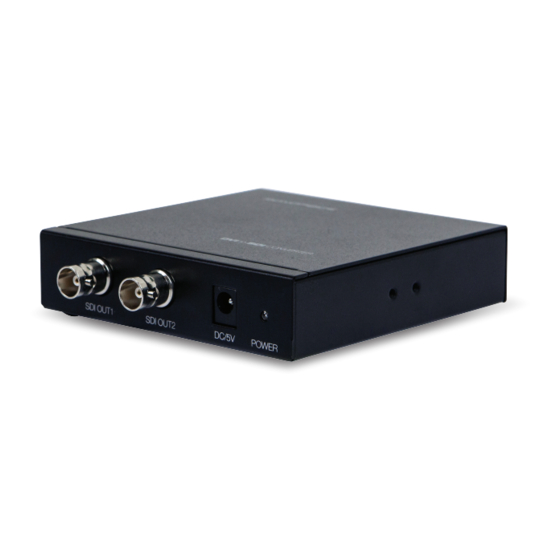

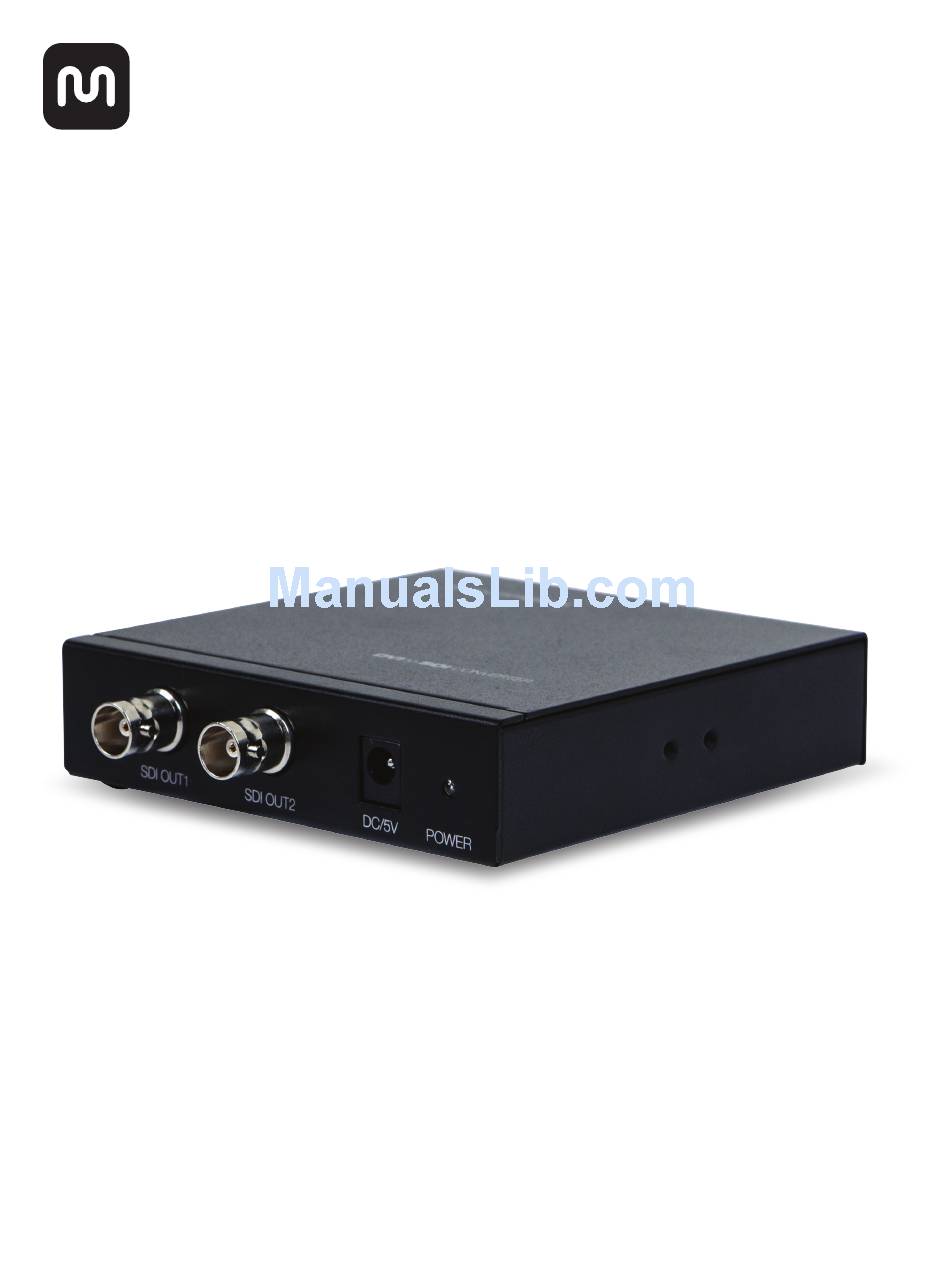

- Page 1 SDI Converter PID: 11750 USER’S MANUAL...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... -
Page 3: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website (www.monoprice.com) during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-6pm PT) or via email at support@monoprice.com... -
Page 4: Product Overview
PRODUCT OVERVIEW 1. Left Audio Input Jack: Use an RCA cable (not included) to connect the left channel audio. 2. Right Audio Input Jack: Use an RCA cable (not included) to connect the right channel audio. 3. DVI Video Input: Use a DVI-D cable (not included) to connect a digital DVI video source. -
Page 5: Installation
INSTALLATION Perform the following steps to connect the converter to a DVI video source, an analog audio source, and one or more SDI output devices. 1. Ensure that your SDI display(s), or other device(s), your DVI video source device, and your analog audio source device are powered OFF. 2. -
Page 6: Troubleshooting
Try using different audio cables. TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 7: Specifications
SPECIFICATIONS Input Connectors 1x DVI-D video (female) 2x RCA audio (female) Output Connectors 2x SDI BNC (female) Maximum Resolution 1920 x 1080p @50/60 Hz Deep Color Support 8-, 10-, and 12-bits/channel Supported Color Spaces RGB sampled, YCbCr 4:4:4 sampled, YCbCr 4:2:2 sampled Audio Support Up to 8 channels of 48k sampling rate digital audio... -
Page 8: Regulatory Compliance
Consult the dealer or an experienced radio/television technician for help. Modifications: Any modifications made to this device that are not approved by Monoprice, Inc. may void the authority granted to the user by the FCC to operate this equipment.
