Summary of Contents for Monoprice 15260

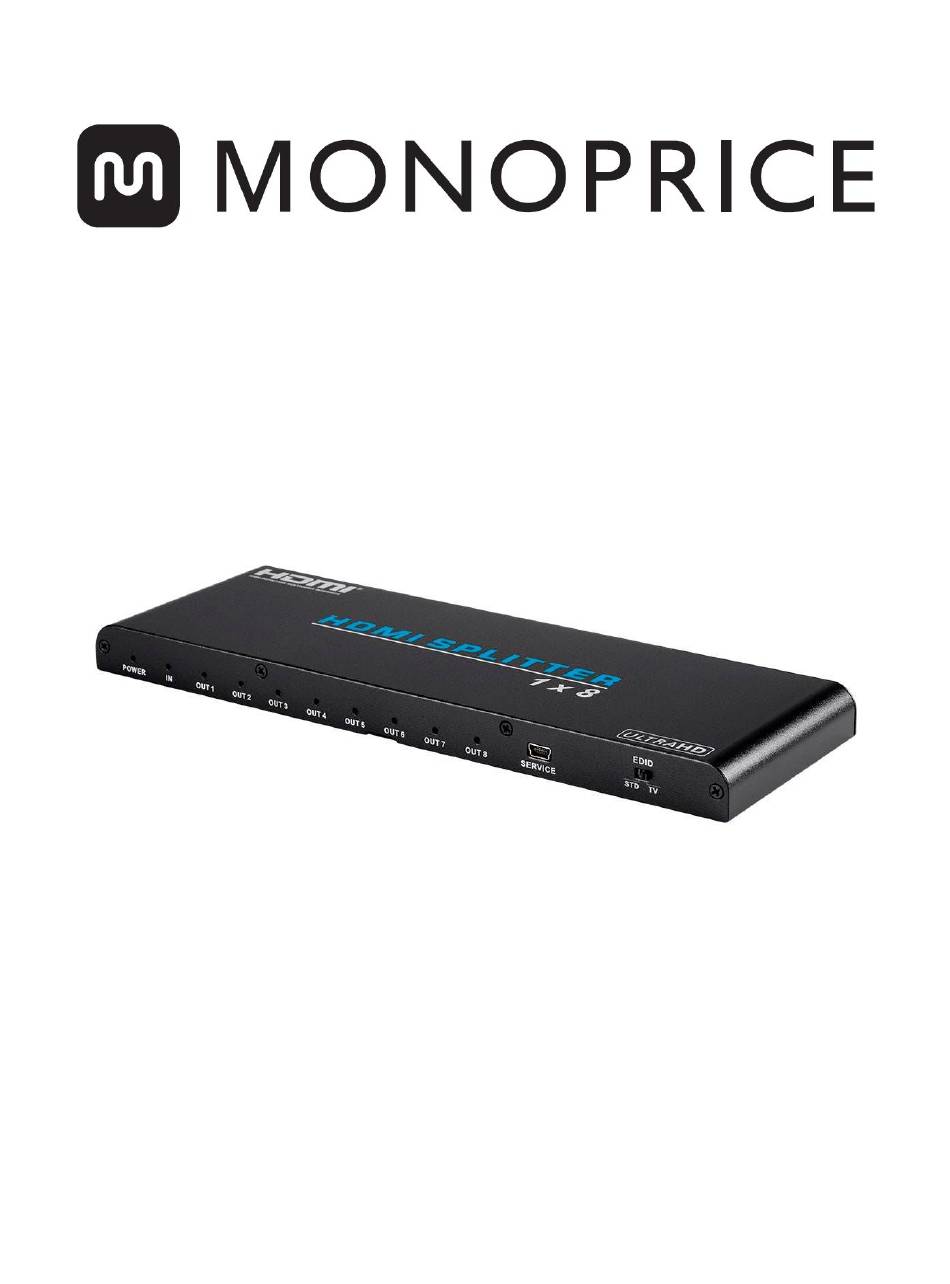

- Page 1 Blackbird™ 4K Pro 1x8 HDMI® Splitter P/N 15260 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... -
Page 3: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 4: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x Blackbird 4K Pro 1x8 HDMI® splitter... - Page 5 OUT 5: The LED illuminates when an active HDMI® display is connected to the HDMI OUT 5 connector. OUT 6: The LED illuminates when an active HDMI display is connected to the HDMI OUT 6 connector. OUT 7: The LED illuminates when an active HDMI display is connected to the HDMI OUT 7 connector.
-
Page 6: Edid Settings
HDMI OUT 8: HDMI® connector for connecting an HDMI display. HDMI IN: HDMI connector for connecting an HDMI video source device. DC 5V: DC barrel connector for connecting the included AC power adapter. EDID SETTINGS The EDID switch on the front panel allows you to determine which EDID® information the splitter will transmit to the video source device. -
Page 7: Technical Support
AC power outlet. TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. -
Page 8: Specifications
SPECIFICATIONS Mode 15260 Inputs 1x HDMI® Outputs 8x HDMI Maximum Video Resolution 4K@60Hz Supported Color Spaces (4K@30Hz) 24-bit RGB/YCbCr 4:4:4/YCbCr 4:2:2 Supported Color Spaces (4K@60Hz) 12-bit YCbCr 4:4:4 Video Bandwidth 18 Gbps HDMI Version 2.0b HDCP Version Supports High Dynamic Range (HDR) -
Page 9: Regulatory Compliance
Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. - Page 10 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Blackbird™ is a trademark of Monoprice Inc. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
