MONOPRICE

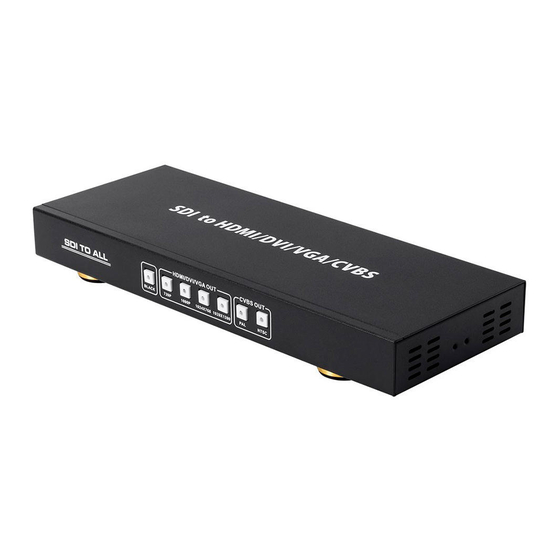

SDI to Multiformat Video Converter with Scaler
P/N 15776
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15776 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Monoprice 15776

  • Page 1 MONOPRICE SDI to Multiformat Video Converter with Scaler P/N 15776 User's Manual...
  • Page 2: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES  This device is intended for indoor use only.  Do not expose this device to water or moisture of any kind. Do not place drinks or other containers with moisture on or near the device. If moisture does get in or on the device, immediately unplug it from the power outlet and allow it to fully dry before reapplying power.
  • Page 3 INTRODUCTION Thank you for purchasing this SDI to Multiformat Video Converter with Scaler! This video converter accepts an SDI audio/video input with SD, HD-SDI, and 3G-SDI video signals and outputs to consumer grade video devices, such as computer monitors and HDTVs. Separate analog stereo audio outputs for the DVI, VGA, and Composite video outputs allow you to produce audio for the associated video device.
  • Page 4: Customer Service

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-...
  • Page 5: Product Overview

    PRODUCT OVERVIEW Front Panel BLACK: Press the BLACK button to generate a black screen without audio for output to the connected video devices. HDMI/DVI/VGA OUT: Press one of these buttons to select the video resolution for the HDMI®, DVI, and VGA outputs. You can select the 720p, 1080p, 1024x768, and 1920x1200 resolutions.
  • Page 6: Installation

    Note that none of the cables or devices mentioned in this section are included, unless specifically noted. All cables mentioned are available at www.monoprice.com 1. Ensure that all equipment to be connected is powered off and unplugged from its power source prior to making any connections.
  • Page 7: Troubleshooting

    6. Using a 3.5mm TRS stereo audio cable, plug one end into the audio input on your display or powered speakers, then plug the other end into the AUDIO OUTPUT connector in the VGA section on the converter. 7. Using a three conductor RCA audio/video cable, plug one end into the RCA composite video and stereo audio inputs on your display, then plug the other end into the RCA CVBS, L, and R OUTPUT connectors on the converter.
  • Page 8: Technical Support

    TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.
  • Page 9: Specifications

    SPECIFICATIONS Input 1x SDI BNC 1x SDI BNC 1x HDMI® Outputs 1x DVI with 3.5mm TRS audio 1x VGA with 3.5mm TRS audio 1x Composited RCA with L/R RCA audio 2.970 Gbps and 2.970/1.001 Gbps (3G-SDI) SDI Transmission Rates 1.485 Gbps and 1.485/1.001 Gbps (HD-SDI) 270 Mbps (SD-SDI) SMPTE Standards 425M level A &...
  • Page 10: Regulatory Compliance

    Modifying the equipment without Monoprice’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
  • Page 11 Notice for Industry Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
