Summary of Contents for Monoprice 14599

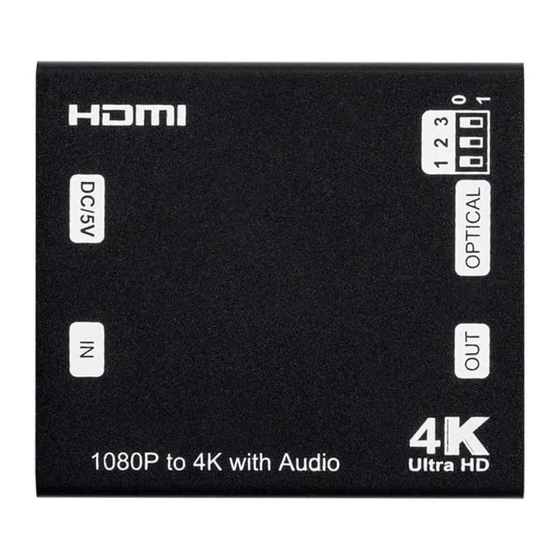

- Page 1 MONOPRICE HDMI® 1080p to 4K Upscaler with Digital Optical Audio Splitter Model 14599 User's Guide...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES This device is intended for indoor use only. Do not expose this device to water or moisture of any kind. Do not place drinks or other containers with moisture on or near the device. If moisture does get in or on the device, immediately unplug it from the power outlet and allow it to fully dry before reapplying power. - Page 3 INTRODUCTION Thank you for purchasing this HDMI® Scaler! This device accepts a High Speed HDMI signal at up to 1080p resolution (1920x1080p) and upscales it to 4K @ 24/30Hz (3840x2160p) for display on 4K monitors or UHD televisions. The output is switchable between a pass-through signal, which outputs the original video without modification, unscaled with different audio options, or scaled.
-
Page 4: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-... - Page 5 EDID DIP SWITCH SETUP The DIP switches on the side are used to set the Extended Display Identification Data, which is used to inform the source device of the display capabilities of the output device. This scaler uses DIP switches to manually set the EDID value. Before making any changes to the DIP switch settings, unplug the scaler from its power source.
- Page 6 CONNECTION 1. Ensure that all devices that will be connected are powered off and unplugged from their power sources. EDID DIP SWITCH SETUP 2. Refer to the section above and set the DIP switches for the desired output. 3. Using a High Speed HDMI® Cable (not included), plug one end into the HDMI input on your 4K monitor or UHD television.
-
Page 7: Troubleshooting
000. TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 8: Specifications
SPECIFICATIONS Inputs 1x High Speed HDMI® 1x High Speed HDMI Outputs 1x S/PDIF digital optical audio Maximum Input Resolution 1920x1080p@30Hz Pass-Through Output Resolution 1920x1080p@30Hz Maximum Scaled Output Resolution 3840x2160p@24/30Hz Bandwidth 10.2Gbps Maximum Transmission Distance 20 meters using 26AWG passive HDMI cable Input Power 5 VDC, 1A AC Adapter Input Power... - Page 9 Modifying the equipment without Monoprice’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
