FEATURES
Supports HDMI® resolutions up to 4K@30Hz
Supports high definition digital audio formats, including LPCM 7.1, DTS®, DSD, DTS-HD, AC3, and
Dolby TrueHD™
Supports automatic and manual switching
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have all the items listed below. If anything is
missing or damaged, please contact Monoprice Customer Service for a replacement.
1x 2x4 HDMI® splitter and switch
1x 5 VDC, 1A AC power adapter
1x User's manual
SPECIFICATIONS
Inputs
Outputs
Maximum Resolution
Video Bandwidth
Input Power
AC Adapter Input Power
Operating Temperature
Storage Temperature
Operating Humidity
Dimensions
Weight
Regulatory Compliance

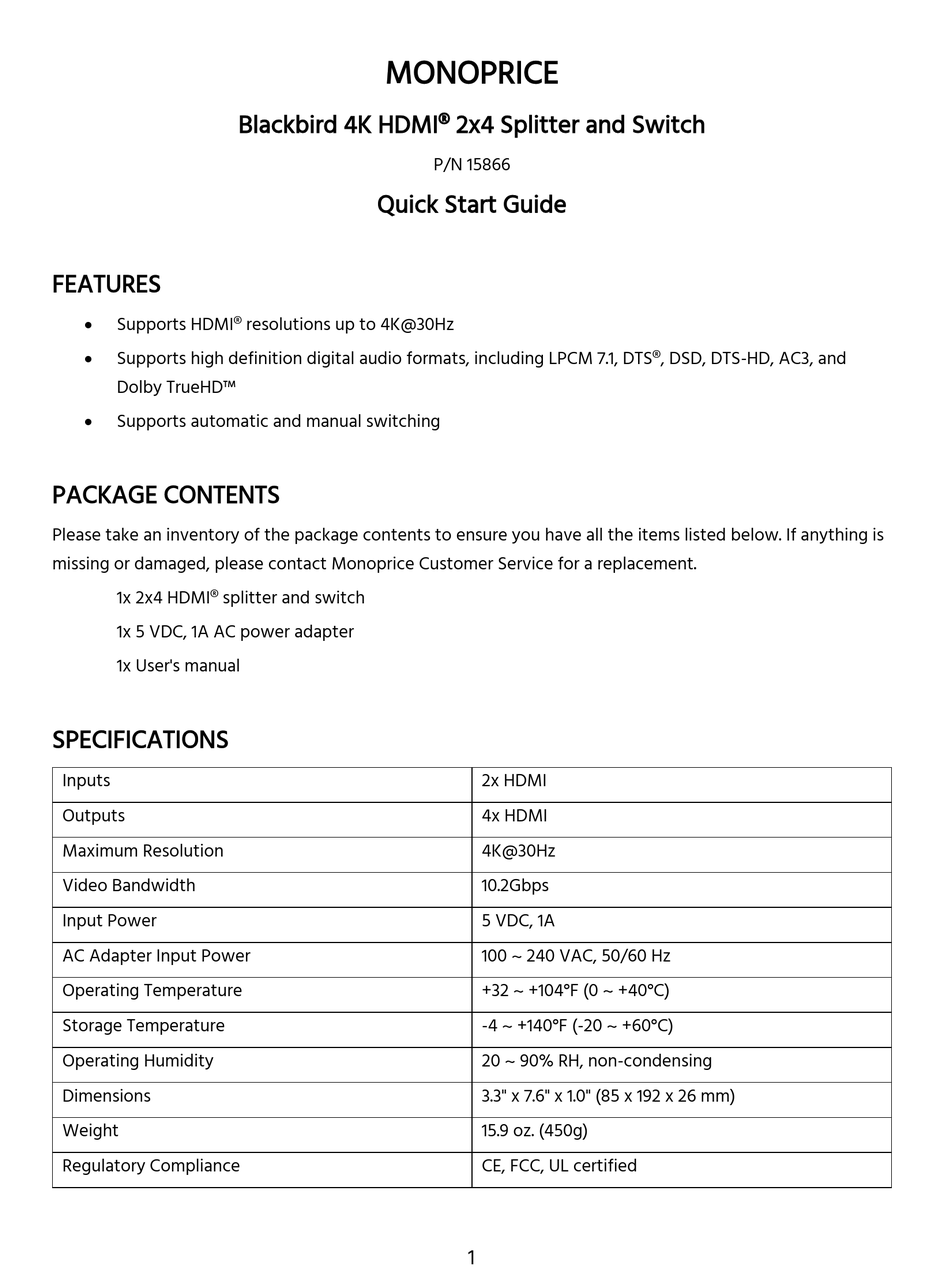

MONOPRICE
Blackbird 4K HDMI® 2x4 Splitter and Switch
Quick Start Guide
P/N 15866
2x HDMI
4x HDMI
4K@30Hz
10.2Gbps
5 VDC, 1A
100 ~ 240 VAC, 50/60 Hz
+32 ~ +104°F (0 ~ +40°C)
-4 ~ +140°F (-20 ~ +60°C)
20 ~ 90% RH, non-condensing
3.3" x 7.6" x 1.0" (85 x 192 x 26 mm)
15.9 oz. (450g)
CE, FCC, UL certified
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Monoprice 15866
Summary of Contents for Monoprice 15866
-
Page 1: Quick Start Guide
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x 2x4 HDMI® splitter and switch 1x 5 VDC, 1A AC power adapter... -
Page 2: Product Overview

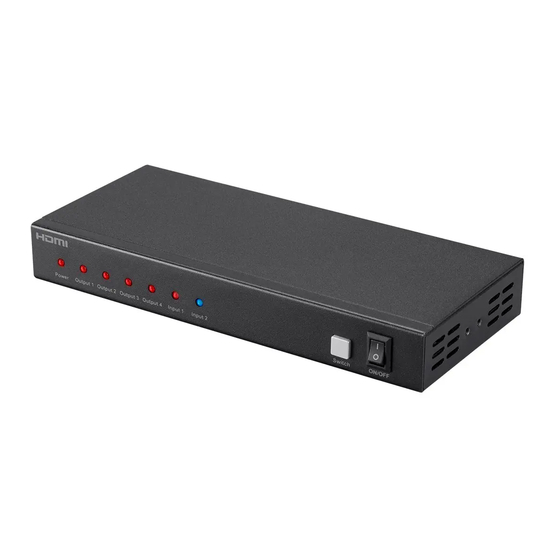

PRODUCT OVERVIEW Front Panel Output LEDs: Each LED illuminates red when there is a valid connection to an active HDMI display. Input LEDs: These LEDs illuminate blue when a valid connection to an HDMI source and the input is selected. They illuminate red when there is a valid connection, but the input has not been selected. Switch Button: Press this button to toggle between the two inputs.
