Advanced Pet-Immune PIR Motion Detector
)($785(6
N
Uses TSI™ (Target Specific Imaging) technology for
distinction between humans and pets
N
Immunity to pets weighing up to 36 kg (80 lb)
N
Integral swivel bracket for wall or ceiling installation
N
Sealed chamber protects the optical system
N
Programmable pulse counter (1, 2 or 3 pulses)
N
Three-position vertical adjustment scale
N
Low current consumption
N
Temperature compensation
N
Terminal for connecting an E.O.L. resistor
N
White light protection
N
Elegantly styled, sturdy case
N
Keyhole-shaped slot for easy removal of PCB
63(&,),&$7,216
OPTICAL
Max. Coverage Range: 12 x 12 m (40 x 40 ft) / 90
Pet Immunity: Immune to pets weighing up to 36 kg (80 lb)
Vertical Adjustment: 3-position adjustment scale: 1.8 m (6 ft),
2.1 m (7 ft) and 2.4 m (8 ft).
ELECTRICAL
Input Voltage: 9 to 16 VDC
Current @ 12 VDC: 10 mA standby, 18 mA on alarm (LED ON)
Alarm Relay: Normally closed (fail-safe) contacts with 18-ohm
resistor in series. Rating - 0.1 A resistive / 30 VDC.
Tamper Output: Normally closed contacts rated at 50 mA
resistive / 30 VDC.
Alarm Period: 2-3 seconds.
Pulse Counter: 3 position selector - 1, 2 or 3 pulse operation.
LED Control: Walk test enabled / disabled by internal link
Detector Type: Dual element low-noise pyroelectric sensor.
,167$//$7,21
,QVWDOODWLRQ+LQWV
Important! The detector is immune to 36 kg
(80 lb) animals moving on the floor or
climbing on furniture as long as the activity
takes place below 1 m (3 ft). Above the 1 m
(3 ft) height limit, the detector is immune to
18 kg (40 lb) pets, but the pet immunity will
decrease as the pet gets closer to the detector. It is therefore
recommended to select a mounting location that minimizes
potential close proximity of animals.

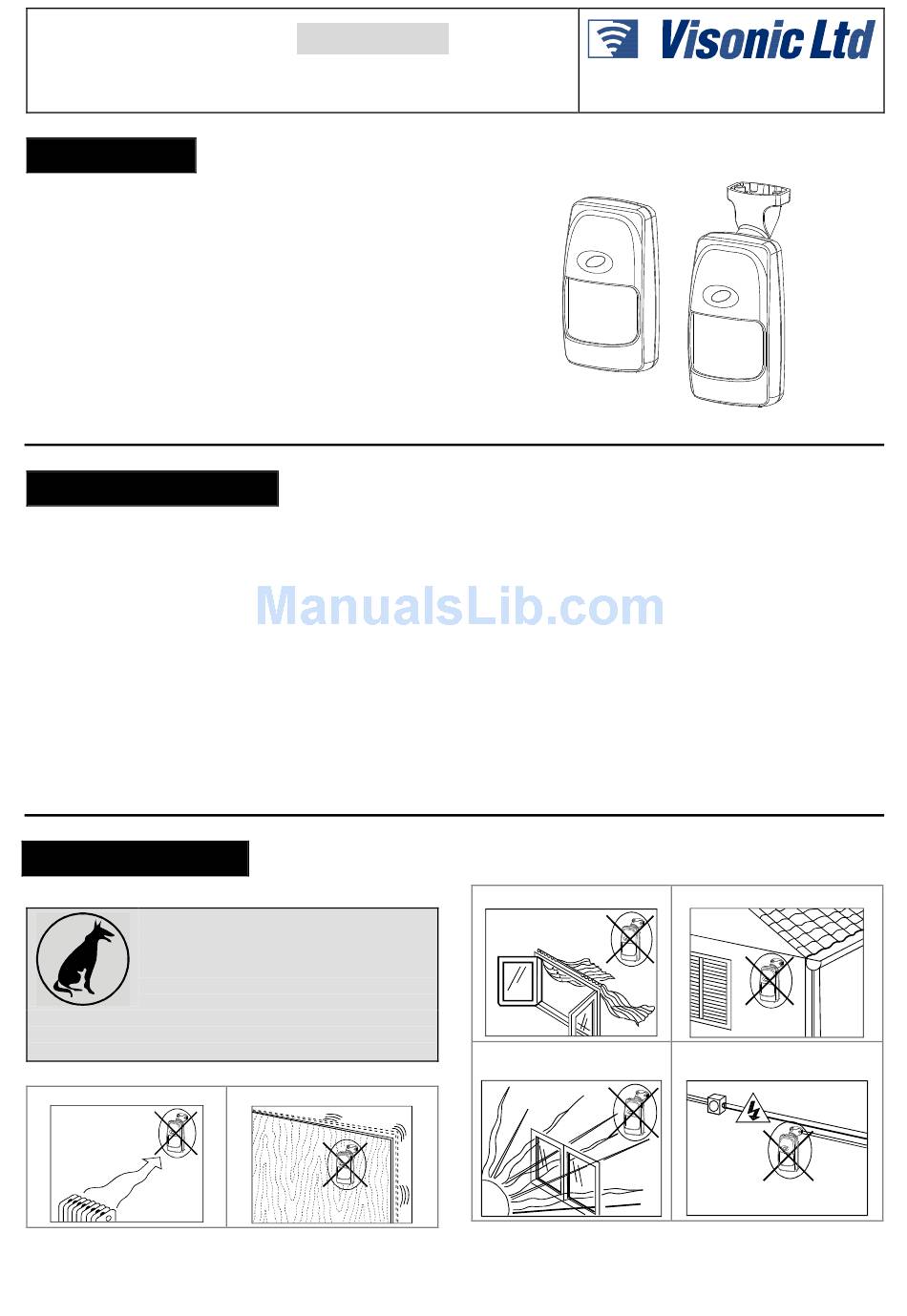

To minimize false alarms, refer to Figure 2 below:
Do not aim at heat sources
DE1270
Preliminary
S
Mount on solid, stable surfaces
Installation Instructions

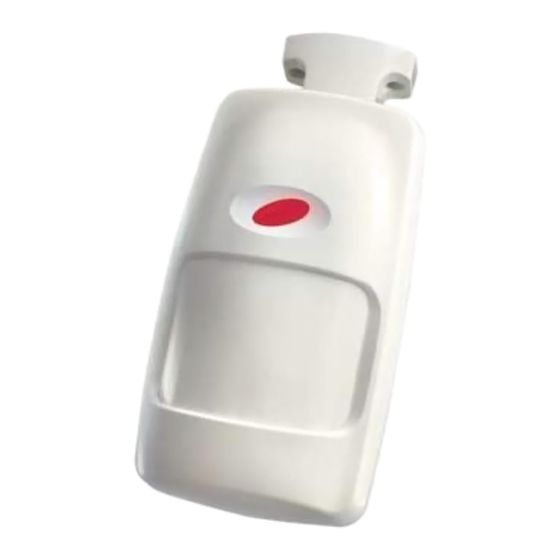

Figure 1. The K-980 Detector
MOUNTING
Height: Up to 2.4 m (8 ft)
Installation Options: Surface or corner (without bracket);
surface or ceiling (with bracket).
Bracket Adjustment: 20
S
applications), 20
S
left and right.
ENVIRONMENTAL
RFI Protection: >30 V/m up to 1000 MHz.
Operating Temperatures: -10
Storage Temperatures: -20
Compliance with Standards: This device complies with the
European Council Directive EMC 89/336/EEC & 92/31/EEC, and
bears the CE mark and certification.
PHYSICAL
Dimensions (H x W x D): 117 x 65 x 47 mm.
(4-5/8 x 2-9/16 x 1-7/8 in.).
Weight: 98 g (3.4 oz) without bracket, 113 g (4 oz) with bracket.
Do not expose to air drafts
Prevent direct sunlight from
reaching the detector
downward (only in non-pet immune
S
C to 50
S
C (14
S
F to 122
S
F).
S
C to 60
S
C (-4
S
F to 140
S
F).
Do not install outdoors
Keep wiring away from
electrical power cables
1
