Visonic K-980MCW Installation Instructions

Visonic K-980MCW Installation Instructions

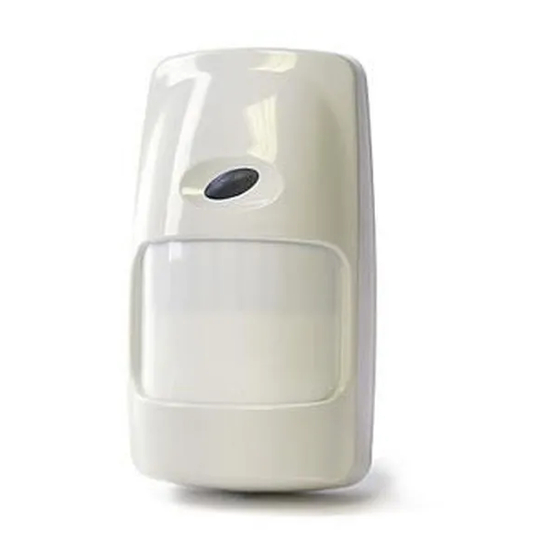

Pet-immune powercode wireless pir detector

Advertisement

Quick Links

K K K K -980
-980MCW
MCW
-980
-980
MCW
MCW

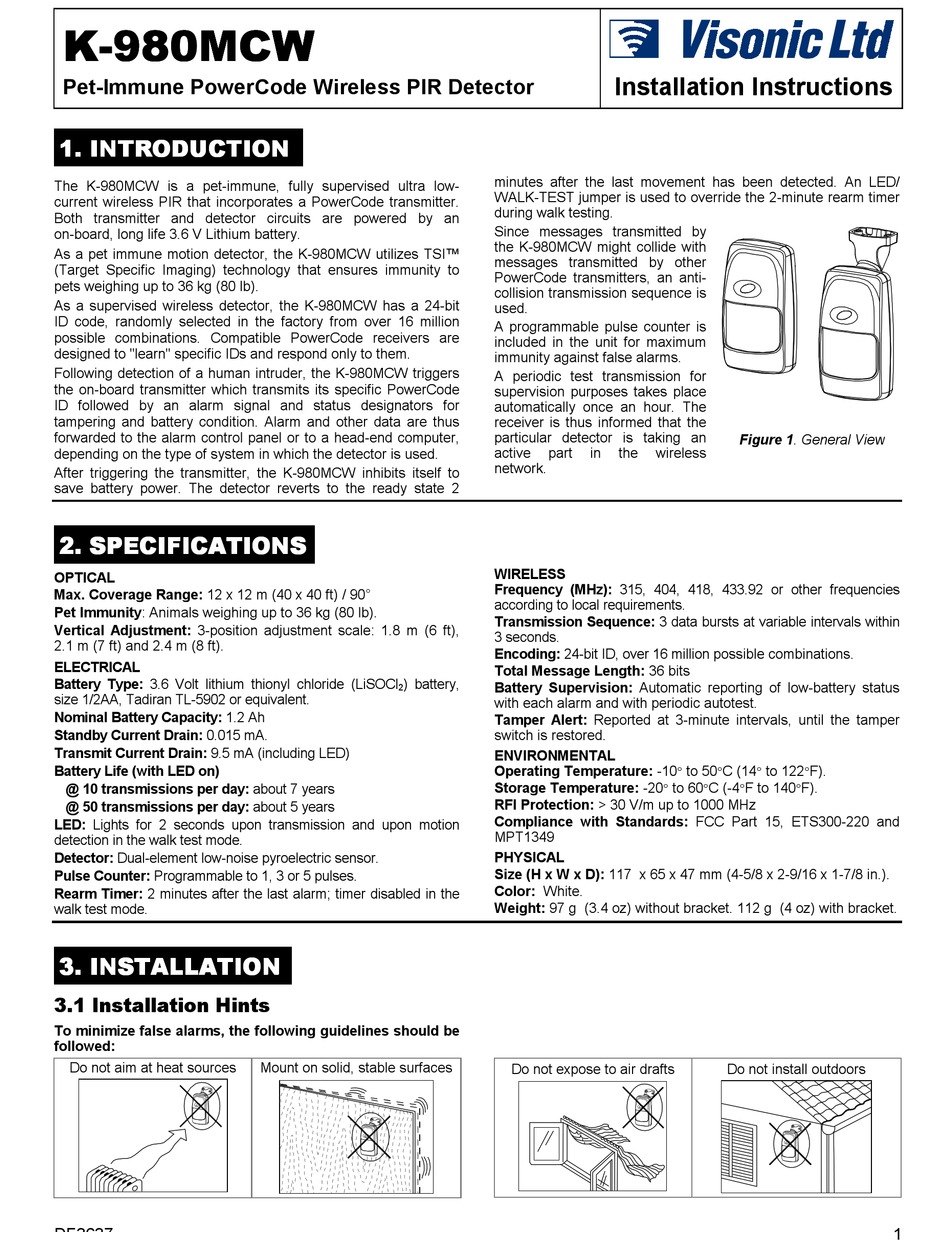

Pet-Immune PowerCode Wireless PIR Detector
1 1 1 1 . INTRODUCTION
. INTRODUCTION
. INTRODUCTION
. INTRODUCTION
The K-980MCW is a pet-immune, fully supervised ultra low-
current wireless PIR that incorporates a PowerCode transmitter.
Both transmitter and detector circuits are powered by an
on-board, long life 3.6 V Lithium battery.
As a pet immune motion detector, the K-980MCW utilizes TSI™
(Target Specific Imaging) technology that ensures immunity to
pets weighing up to 36 kg (80 lb).
As a supervised wireless detector, the K-980MCW has a 24-bit
ID code, randomly selected in the factory from over 16 million
possible combinations. Compatible PowerCode receivers are
designed to "learn" specific IDs and respond only to them.
Following detection of a human intruder, the K-980MCW triggers
the on-board transmitter which transmits its specific PowerCode
ID followed by an alarm signal and status designators for
tampering and battery condition. Alarm and other data are thus
forwarded to the alarm control panel or to a head-end computer,
depending on the type of system in which the detector is used.
After triggering the transmitter, the K-980MCW inhibits itself to
save battery power. The detector reverts to the ready state 2
2 2 2 2 . SPECIFICATIONS
. SPECIFICATIONS
. SPECIFICATIONS
. SPECIFICATIONS
OPTICAL
Max. Coverage Range: 12 x 12 m (40 x 40 ft) / 90°
Pet Immunity: Animals weighing up to 36 kg (80 lb).
Vertical Adjustment: 3-position adjustment scale: 1.8 m (6 ft),
2.1 m (7 ft) and 2.4 m (8 ft).
ELECTRICAL
Battery Type: 3.6 Volt lithium thionyl chloride (LiSOCl
size 1/2AA, Tadiran TL-5902 or equivalent.
Nominal Battery Capacity: 1.2 Ah
Standby Current Drain: 0.015 mA.
Transmit Current Drain: 9.5 mA (including LED)
Battery Life (with LED on)
@ 10 transmissions per day: about 7 years
@ 50 transmissions per day: about 5 years
LED: Lights for 2 seconds upon transmission and upon motion
detection in the walk test mode.
Detector: Dual-element low-noise pyroelectric sensor.
Pulse Counter: Programmable to 1, 3 or 5 pulses.
Rearm Timer: 2 minutes after the last alarm; timer disabled in the
walk test mode.
3 3 3 3 . INSTALLATION
. INSTALLATION
. INSTALLATION
. INSTALLATION
3.1 Installation Hints
To minimize false alarms, the following guidelines should be
followed:
Do not aim at heat sources
DE3637
) battery,
2
Mount on solid, stable surfaces
Installation Instructions
minutes after the last movement has been detected. An LED/
WALK-TEST jumper is used to override the 2-minute rearm timer
during walk testing.
Since messages transmitted by
the K-980MCW might collide with
messages transmitted by other
PowerCode transmitters, an anti-
collision transmission sequence is
used.
A programmable pulse counter is
included in the unit for maximum
immunity against false alarms.
A periodic test transmission for
supervision purposes takes place
automatically once an hour. The
receiver is thus informed that the
particular detector is taking an
active
part
in
the
wireless
network.
WIRELESS
Frequency (MHz): 315, 404, 418, 433.92 or other frequencies
according to local requirements.
Transmission Sequence: 3 data bursts at variable intervals within
3 seconds.
Encoding: 24-bit ID, over 16 million possible combinations.
Total Message Length: 36 bits
Battery Supervision: Automatic reporting of low-battery status
with each alarm and with periodic autotest.
Tamper Alert: Reported at 3-minute intervals, until the tamper
switch is restored.
ENVIRONMENTAL
Operating Temperature: -10
Storage Temperature: -20
°
to 60
RFI Protection: > 30 V/m up to 1000 MHz
Compliance with Standards: FCC Part 15, ETS300-220 and
MPT1349
PHYSICAL
Size (H x W x D): 117 x 65 x 47 mm (4-5/8 x 2-9/16 x 1-7/8 in.).
Color: White.
Weight: 97 g (3.4 oz) without bracket. 112 g (4 oz) with bracket.
Do not expose to air drafts
Figure 1. General View
to 50
C (14
to 122
F).
°
°
°
°
°
C (-4
°
F to 140
°
F).
Do not install outdoors
1
