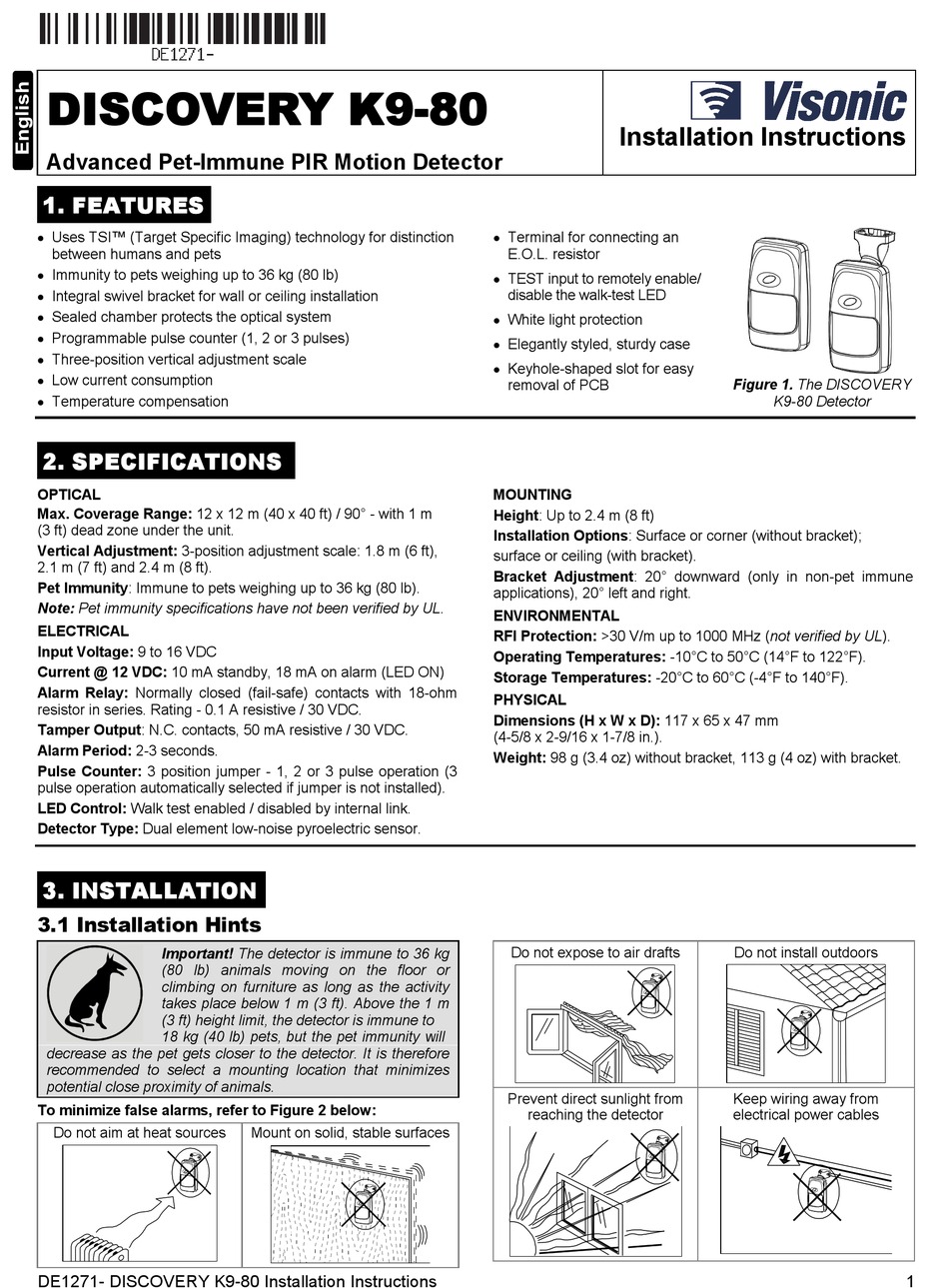

Visonic DISCOVERY K9-80 Installation Instructions

DISCOVERY K9-80
Advanced Pet-Immune PIR Motion Detector
1. FEATURES
 Uses TSI™ (Target Specific Imaging) technology for distinction
between humans and pets
 Immunity to pets weighing up to 36 kg (80 lb)
 Integral swivel bracket for wall or ceiling installation
 Sealed chamber protects the optical system
 Programmable pulse counter (1, 2 or 3 pulses)
 Three-position vertical adjustment scale
 Low current consumption
 Temperature compensation
2. SPECIFICATIONS
OPTICAL
Max. Coverage Range: 12 x 12 m (40 x 40 ft) / 90° - with 1 m
(3 ft) dead zone under the unit.
Vertical Adjustment: 3-position adjustment scale: 1.8 m (6 ft),
2.1 m (7 ft) and 2.4 m (8 ft).
Pet Immunity: Immune to pets weighing up to 36 kg (80 lb).
Note: Pet immunity specifications have not been verified by UL.
ELECTRICAL
Input Voltage: 9 to 16 VDC
Current @ 12 VDC: 10 mA standby, 18 mA on alarm (LED ON)
Alarm Relay: Normally closed (fail-safe) contacts with 18-ohm
resistor in series. Rating - 0.1 A resistive / 30 VDC.
Tamper Output: N.C. contacts, 50 mA resistive / 30 VDC.
Alarm Period: 2-3 seconds.
Pulse Counter: 3 position jumper - 1, 2 or 3 pulse operation (3
pulse operation automatically selected if jumper is not installed).
LED Control: Walk test enabled / disabled by internal link.
Detector Type: Dual element low-noise pyroelectric sensor.
3. INSTALLATION
3.1 Installation Hints
Important! The detector is immune to 36 kg
(80 lb) animals moving on the floor or
climbing on furniture as long as the activity
takes place below 1 m (3 ft). Above the 1 m
(3 ft) height limit, the detector is immune to
18 kg (40 lb) pets, but the pet immunity will
decrease as the pet gets closer to the detector. It is therefore
recommended to select a mounting location that minimizes
potential close proximity of animals.
To minimize false alarms, refer to Figure 2 below:
Do not aim at heat sources
DE1271- DISCOVERY K9-80 Installation Instructions
Mount on solid, stable surfaces
Installation Instructions
 Terminal for connecting an
E.O.L. resistor
 TEST input to remotely enable/
disable the walk-test LED
 White light protection
 Elegantly styled, sturdy case
 Keyhole-shaped slot for easy
removal of PCB
MOUNTING
Height: Up to 2.4 m (8 ft)
Installation Options: Surface or corner (without bracket);
surface or ceiling (with bracket).
Bracket Adjustment: 20° downward (only in non-pet immune
applications), 20° left and right.
ENVIRONMENTAL
RFI Protection: >30 V/m up to 1000 MHz (not verified by UL).
Operating Temperatures: -10°C to 50°C (14°F to 122°F).
Storage Temperatures: -20°C to 60°C (-4°F to 140°F).
PHYSICAL
Dimensions (H x W x D): 117 x 65 x 47 mm
(4-5/8 x 2-9/16 x 1-7/8 in.).
Weight: 98 g (3.4 oz) without bracket, 113 g (4 oz) with bracket.
Do not expose to air drafts
Prevent direct sunlight from
reaching the detector
Figure 1. The DISCOVERY
K9-80 Detector
Do not install outdoors
Keep wiring away from
electrical power cables
