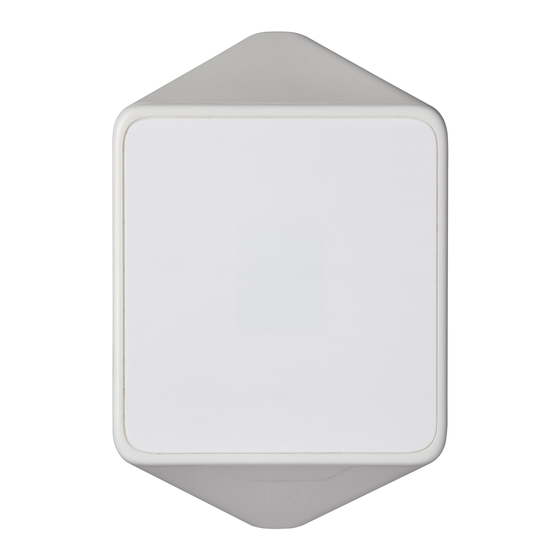

Visonic MP-841 Installation Instructions

MP-841
ZigBee Home Automation 1.2
Wireless Digital Pet Immune PIR Detector

1. INTRODUCTION

The MP-841 pet immune detector is a microprocessor-controlled wireless digital PIR detector supported by ZigBee Home Automation 1.2.
The detector has the following features:
•
Detection distance up to 15 meters (49.2 ft.).
•
Uniform Detection.
•
White light immunity
•
Enhanced Pet immunity up to 85Ibs (Target Specific Imaging™ (TSI) technology patented).
•
Enhanced false alarm rejection (The advanced True Motion Recognition™ algorithm patented).
•
No vertical adjustment is needed.
•
In normal mode, after detection, the detector goes to sleep to save battery power. It wakes again and reverts to a ready state, if there is no
subsequent detection throughout the following 2-minute period.
•
Temperature compensation.
•
Front tamper protection.
•
Black mirror technology provides excellent white light protection.
•
Elegantly styled, sturdy case.
2 . SPECIFICATIONS
Dual element low-noise pyro electric sensor
Detector Type
27 "far" parabolic black mirrors (54 "beams")
Optical Data
9 "near" cylinder black mirrors (18 "curtains")
Pet immune protection is provided by a specific
optical attenuator on the mirror
15 x 15 m, (49.2 x 49.2 ft.) / 90°
Max. Coverage
Up to 38 kg (85 lb.) Pet immunity of 85 lb. is up
Pet Immunity
to 30 ft. (10 m) range.
ELECTRICAL
Two 3V Lithium batteries, type CR-123A. For
Internal Batteries
UL installations, use Panasonic and GP only
1400 mAh
Nominal Battery
Capacity
8 years of typical use.
Battery Life
Note: Inability to connect with wireless network,
or wireless link quality no higher than 20%
may significantly reduce the expected
battery life.
Performed immediately upon battery insertion
Battery Power
and periodically every several hours.
Test
FUNCTIONAL
3 seconds
Alarm Period
D-306173 MP-841 FLAT PIR

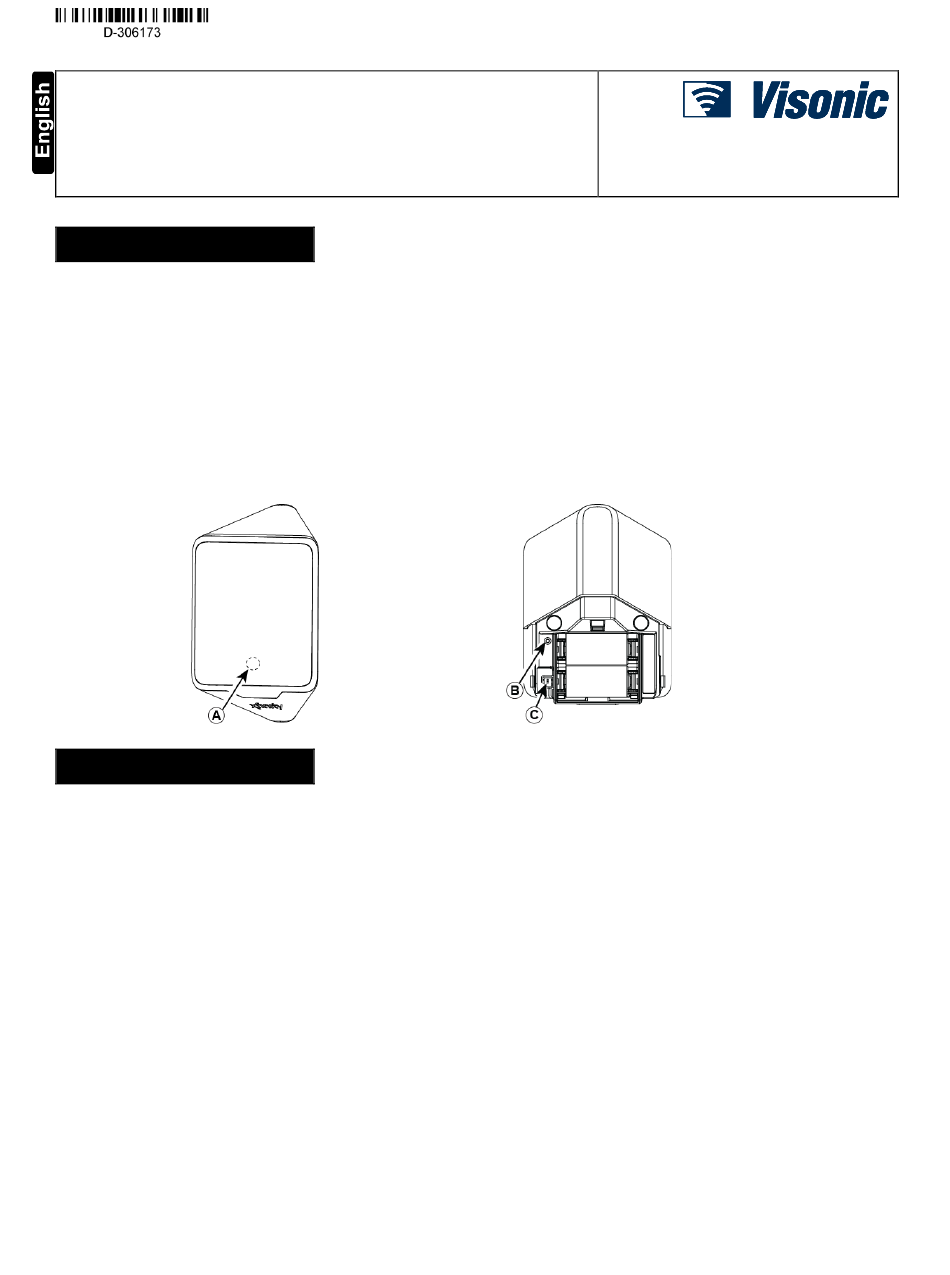

Figure 1 - MP-841
Visual Indications
Rearm Timer
WIRELESS
Supported
Network
Frequency
Tamper Alert
MOUNTING
Height
Installation
Options
Installation Instructions
A. Red LED
B. Green LED
C. Tamper Switch
Red LED lights for about 3 seconds during
transmission of alarm or tamper messages and
when motion is detected in walk test mode
only.
Red LED flashes during the power-up
stabilization period, or after restoring
(pressing) the tamper switch.
Red LED does not light during transmission of
supervision messages or alarm detection after
termination of walk test mode.
Rearms the detector 2 minutes after the last
alarm. Timer disabled in the walk test mode.
ZigBee H.A 1.2
2.405 – 2.480 Ghz as per IEEE 802.15.4
Reported when a tamper event occurs and in
any subsequent message, until the tamper
switch is restored
1.8-2.4 m (6 - 8 ft.). For pet rejection, the
optimal height is 2.1 m (7 ft.)
Surface or corner
