Visonic NEXT K9-85 MCW Installation Instructions

NEXT
®
Wireless PowerCode Pet-Immune PIR Detector

1. INTRODUCTION

The NEXT K9-85 MCW is a pet-immune microprocessor-controlled
wireless digital PIR detector, designed for easy installation, free of
vertical adjustment. It features a cylindrical lens with uniform
detection sensitivity throughout its operating range, up to 12 meters
(40 ft), with immunity to pets weighing up to 38 kg (85 lb).
NEXT is a registered mark of Visonic Ltd.
The advanced True Motion Recognition™ algorithm (patented)
allows the NEXT K9-85 MCW to distinguish between the true
motion of an intruder and any other disturbances which may cause
false alarms. In addition, Target Specific Imaging™ (TSI)
technology is employed for distinction between human beings and
pets.
An on-board motion event jumper determines whether 1 or 2
consecutive motion events trigger an alarm.
The NEXT K9-85 MCW includes the following features:
• Incorporates a fully supervised PowerCode transmitter
• Patented sophisticated motion analysis algorithm - True Motion
Recognition (TMR™)
• Sophisticated frequency domain digital signal processing
• No vertical adjustment is needed
• Programmable motion event counter
• After detection, the detector disarms itself to save battery
power. It rearms (reverts to the ready state) if there is no
subsequent detection throughout the following 2-minute period.
• An optional version provides better protection for systems
compliant with DD243. After initial detection, the detector is
capable of 7 additional detections for a period of 5 minutes.
Further detection is possible only if no movement occurs during
the following 2 minutes. The detector will revert to the initial
state if there is no movement for an additional 5 minutes.

2. SPECIFICATIONS

OPTICAL
Detector Type: Dual element low-
noise pyroelectric sensor.
Lens Data
No. of Curtain Beams: 9
Max. Coverage: 12 x 12 m (40
x 40 ft) / 90°
Pet Immunity: Up to 38 kg (85 lb).
ELECTRICAL
Internal Battery: 3V Lithium battery,
type CR-123A. For UL installations,
use Panasonic or Sanyo only.
Nominal Battery Capacity:
1450 mA/h.
Standby Current Drain: approx.
0.025 mA.
Transmit Current Drain: 20 mA
(including LED).
Battery Life (with LED on):
Typically over 3 years.
Battery Power Test: Performed immediately upon battery
insertion and periodically after every several hours.
FUNCTIONAL
True Motion Event Verification: 2 position selector - 1 (OFF) or
2 (ON) motion events.
Alarm Period: 3 seconds.
Visual Indications:
LED Lights for about 3 seconds upon transmission of alarm &
tamper messages and upon motion detection in the walk test
mode.
DE3592
K9-85 MCW
Figure 3.
Coverage Pattern

Installation Instructions

• Very low current consumption
• Microprocessor-controlled temperature compensation
• Sealed chamber protects the optical system
• Front cover tamper switch
• Back tamper switch (option)
• White light protection
• Elegantly styled, sturdy case

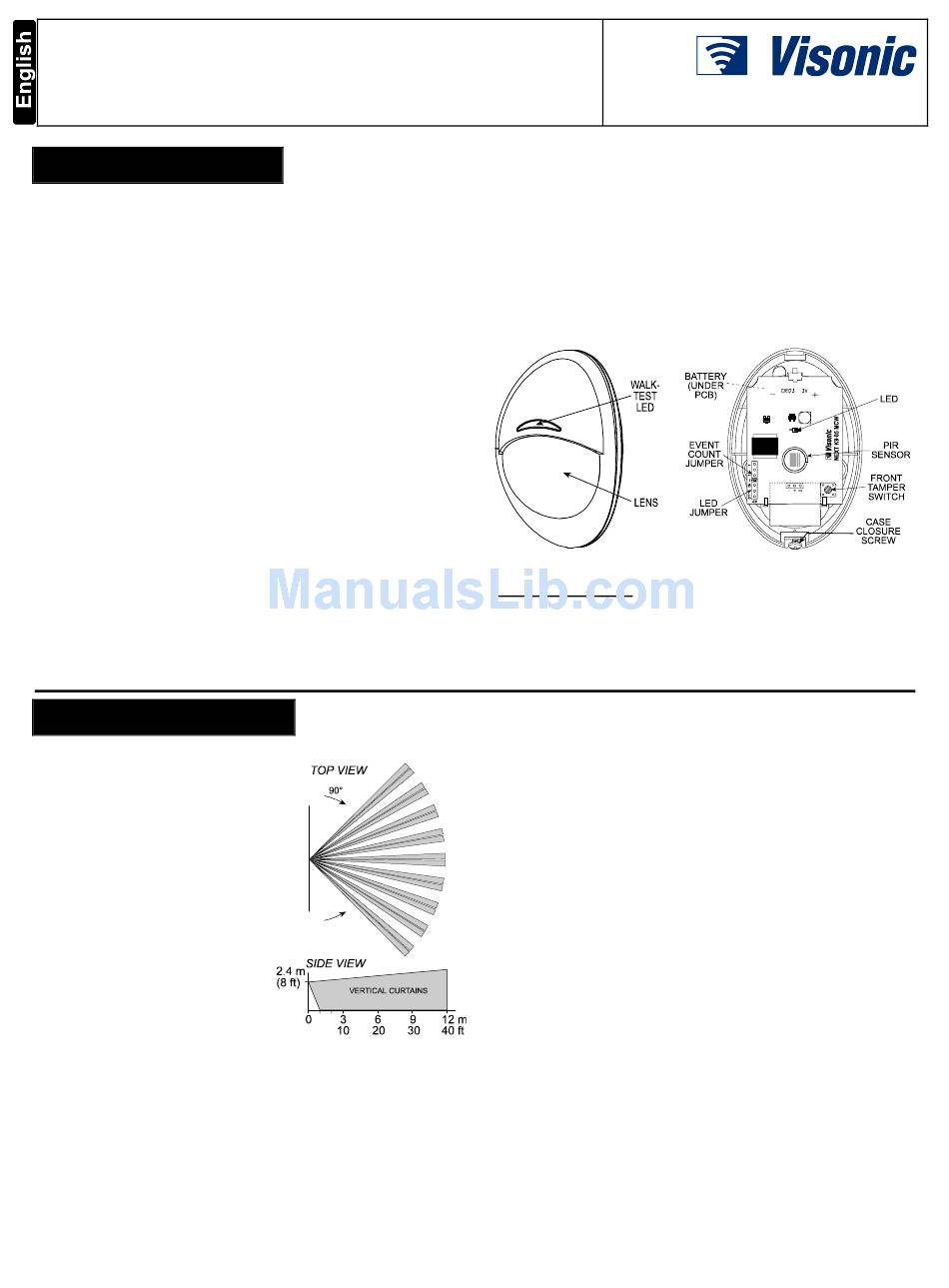

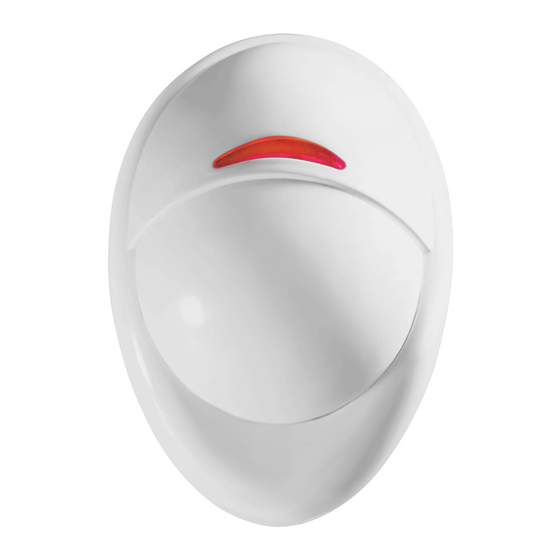

Figure 1. General View
For UL installations:
a. The detector is for use with UL listed control unit PowerMax+ only.
b. Pet immunity has not been evaluated by UL.
LED Flashes during the power-up stabilization period, or after
restoring (pressing) the tamper switch.
LED Does not light upon transmission of supervision
messages.
Rearm Timer: Rearms the detector 2 minutes after the last alarm.
Timer disabled in the walk test mode – not applicable for the
DD243 version (see section 1).
WIRELESS
Frequency (MHz): 315 (U.S. version), 433.92, 868.95, 869.2625
or other frequencies according to local requirements.
Transmission Sequence: 3 data bursts at variable intervals
within 3 seconds.
Encoding: 24-bit ID, over 16 million possible combinations.
Total Message Length: 36 bits.
Tamper Alert: Reported when a tamper event occurs and in any
subsequent message, until the tamper switch is restored.
Supervision Message: Signaling at 60 minutes interval (U.S.
version), 15 minute interval (UK version) or according to local
standards.
MOUNTING
Height: 1.8 - 2.4 m (6 - 8 ft). Recommended height up to 2.1 m (7 ft)
Installation Options: Surface or corner.
ACCESSORIES:
BR-1: Surface mounted swivel bracket, adjustable 30° down and
45° left/45° right.
BR-2: BR-1 with a corner adapter
BR-3: BR-1 with a ceiling adapter
Figure 2. Inside View
1
