Visonic NEXT K9-85 Installation Instructions

Visonic NEXT K9-85 Installation Instructions

Wireless pet tolerant pir motion detector

Advertisement

Quick Links

NEXT K9-85
NEXT K
NEXT K
NEXT K
Pet-Immune Digital PIR with TMR
1 1 1 1 . INTRODUCTION
. INTRODUCTION
. INTRODUCTION
. INTRODUCTION
The NEXT K9-85 is a pet-immune microprocessor-controlled PIR
detector, designed for easy installation, free of vertical adjustment.
It features a cylindrical lens with uniform detection sensitivity up to a
distance of 12 meters (40 ft), and immunity to pets weighing up to
38 kg (85 lb).
Advanced True Motion Recognition™ algorithm allows the NEXT
K9-85 to distinguish between the true motion of an intruder and any
other disturbances, which cause false alarms. In addition, Target
Specific Imaging™ (TSI) technology is employed for distinction
between human beings and pets.
A TST (Test) input permits switching the detector to the walk test
mode remotely without removing the front cover. An on-board
motion event jumper determines whether 1 or 2 consecutive
motion events would trigger an alarm.
2 2 2 2 . SPECIFICATIONS
. SPECIFICATIONS
. SPECIFICATIONS
. SPECIFICATIONS
Input Voltage: 9 to 16 VDC
Current Drain: About 8 mA @
12 VDC
OPTICAL (see Figure 3)
Lens Data
No. of Curtain Beams: 9
Max. Coverage: 12 x 12 m
(40 x 40 ft) / 90°
Pet Immunity: Up to 38 kg (85 lb).
ALARM and TAMPER
Alarm Output: Solid-state relay,
N.C., up to 100 mA / 30 V, ~30 Ω
internal resistance. Circuit opens
for 2-3 seconds upon alarm.
Alarm Indication: LED lights for
2-3 seconds.
Event Counter: Selectable, 1 or 2 motion events
Tamper Contacts: Normally closed, 50 mA resistive / 30 VDC
3 3 3 3 . INSTALLATION
. INSTALLATION
. INSTALLATION
. INSTALLATION
3.1 General Guidelines
Do not aim at heat
Do not expose to
sources
air drafts
Important! The detector is immune to 38 kg
(85 lb) animals moving on the floor or climbing
on furniture as long as the activity takes place
below 1 m (3 ft). Above the 1 m (3 ft) height
limit, the detector is immune to 19 kg (42 lb)
pets, but the pet immunity will decrease as
the pet gets closer to the detector. It is
therefore recommended to select a mounting
location
proximity of animals.
DE1274
9-85
9-85
9-85
Figure 3. Coverage Pattern
Do not install
outdoors
that
minimizes
potential
Signal Processing

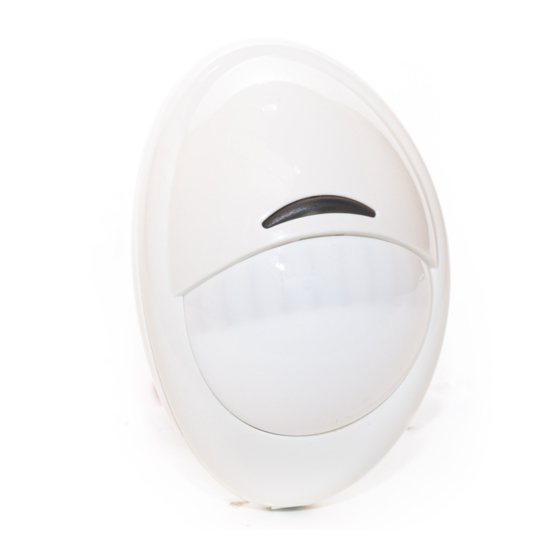

Figure 1. General View
MOUNTING
Surface or corner, at the height of 1.8 to 2.4 m (6 to 8 ft)
Note: Base allows single-sided corner mount at 45° to wall.
ACCESSORIES:
BR-1: Surface mounted swivel bracket, adjustable 30° down and
45° left/45° right.
BR-2: BR-1 with a corner adapter
BR-3: BR-1 with a ceiling adapter
ENVIRONMENTAL
Operating Temperature: –10°C to 50°C (14°F to 122°F)
Storage Temperature: –20°C to 60°C (–4°F to 140°F)
RFI Protection: Greater than 20 V/m (20 MHz to 1000 MHz)
PHYSICAL
Size (H x W x D): 94.5 x 63.5 x 49.0 mm (3-11/16 x 2-1/2 x 1-15/16")
Weight: Approximately 50 g (1-3/4 oz)
PATENTS: U.S. Patents 5,693,943 ! 6,211,522 ! D445,709
(another patent pending)
Avoid direct
Keep wiring away
sunlight
from power cables
close
Installation Instructions
Figure 2. Inside View
Do not install
behind partitions
Correct use of the optional brackets:
With pets: in pet immune applications,
optional brackets should be used for
horizontal alignment only - the detector
should remain vertical (perpendicular to the
ground).
Without pets: To obtain the best possible
coverage where no pets are present, use a
bracket and tilt the detector 20º down.
Mount on solid,
stable surfaces
1
