Visonic DISCOVERY K9-80 MCW - INSTALLER GUIDE Installation Instructions

DISCOVERY K9-80 MCW
Wireless PowerCode PIR Detector
1. FEATURES
• Uses TSI™ (Target Specific Imaging) technology for distinction
between humans and pets
• Immunity to pets weighing up to 36 kg (80 lb)
• Includes a fully supervised PowerCode transmitter
• Patented sophisticated motion analysis algorithm - True Motion
Recognition (TMR™)
• Three-position vertical adjustment scale
• Integral swivel bracket for wall or ceiling installation
• Programmable motion event counter - ON (default) or OFF
• Front tamper switch
• Back tamper switch (option)
• Full stabilization achieved 30 seconds after power up
• After detection, the detector disables itself to save battery
power. It reverts to the ready state if there is no subsequent
detection throughout the following 2-minute period
• An optional version provides better protection for systems
compliant with DD243. After initial detection, the detector is
capable of 6 additional detections for a period of 5 minutes.
2. SPECIFICATIONS
OPTICAL
Max. Coverage Range: 12 x 12 m
(40 x 40 ft) / 90°.
For Belgium 10x10m / 90°
Pet Immunity: Animals up to 36 kg
(80 lb)
Vertical Adjustment: 3-position
adjustment scale: 1.8 m (6 ft),
2.1 m (7 ft) and 2.4 m (8 ft).
ELECTRICAL
Internal Battery: 3V
battery, type CR-2.
Nominal Battery Capacity: 750
mAh
Standby Current Drain: 0.015 mA
Transmit Current Drain: 20mA
(including LED)
Battery Life Expectancy (with LED jumper in ON position):
Typically over 3 years (regular version); 2 years (DD243 version).
Battery Supervision: Automatic reporting of battery status with
each alarm and with periodic supervision message.
FUNCTIONAL
True Motion Event Verification: 2 position selector - 1 (OFF) or
2 (ON) motion events.
Alarm Period: 3 seconds
Visual Indications:
LED lights for about 3 seconds upon transmission of alarm &
tamper messages and upon each motion detection in the walk test
mode.
LED flashes during the power-up stabilization period, or after
restoring (pressing) the tamper switch.
LED does not light upon transmission of supervision messages.
3. INSTALLATION
3.1 Installation Hints
Important! The detector is immune to 36 kg
(80 lb) animals moving on the floor or
climbing on furniture as long as the activity
takes place below 1 m (3 ft). Above the 1 m
(3 ft) height limit, the detector is immune to
18 kg (40 lb) pets, but the pet immunity will
DE3638
TOP VIEW
90°
Lithium
SIDE VIEW
2.4m
(8 ft)
VERTICAL CURTAINS
0 3 6
10 20
Figure 2.
Coverage Pattern
Further detection is possible only if no movement occurs during
the following 2 minutes. The detector will revert to the initial
stateif there is no movement for 5 minutes
• Automatic termination of walk-
test after 15 minutes
• Low current consumption
• Full temperature compensation.
• Microprocessor-controlled
temperature compensation
• Sealed chamber protects the
optical system
• White light protection
• Elegantly styled, sturdy case
• Keyhole-shaped slot for easy
removal of PCB
Rearm Timer (regular version only): Rearms the detector 2
minutes after the last alarm. Timer disabled in the walk test mode.
WIRELESS
Frequency (MHz): 315 (U.S. version), 433.92, 868.95, 869.2625
or other frequencies according to local requirements.
Transmission Sequence: 3 data bursts at variable intervals
within 3 seconds.
Encoding: 24-bit ID, over 16 million possible combinations.
Total Message Length: 36 bits.
Tamper Alert: Reported when a tamper event occurs and in any
Max. for
subsequent message, until the tamper switch is restored.
Belgium
Supervision Message: Signaling at 60 minutes interval (U.S. version),
15 minute interval (UK version) or according to local standards.
MOUNTING
Height: Up to 2.4 m (8 ft)
10 12 m
33 40 ft
Installation Options: Surface or corner (without bracket);
surface or ceiling (with bracket)
Bracket Adjustment: 20° downward (only in non-pet immune
applications), 20° left and right
ENVIRONMENTAL
RFI Protection: >30 V/m up to 1000 MHz.
Operating Temperatures: -10°C to 50°C (14°F to 122°F).
Storage Temperatures: -20°C to 60°C (-4°F to 140°F).
Compliance with Standards: Designed to meet FCC Part 15
and Directive 1999/5/EC of the European Parliament. EN50131-1
Grade 2 (without bracket), Grade 1 (with bracket), Class II.
EN50131-2-2.
PHYSICAL
Dimensions (H x W x D): 117 x 65 x 47 mm.
(4-5/8 x 2-9/16 x 1-7/8 in.).
Weight: 92 g (3.25 oz) without bracket, 107 g (3.75 oz) with bracket.
Color: White
PATENTS: U.S. Patent No. 5,693,943
decrease as the pet gets closer to the detector. It is therefore
recommended to select a mounting location that minimizes
potential close proximity of animals.
Installation Instructions

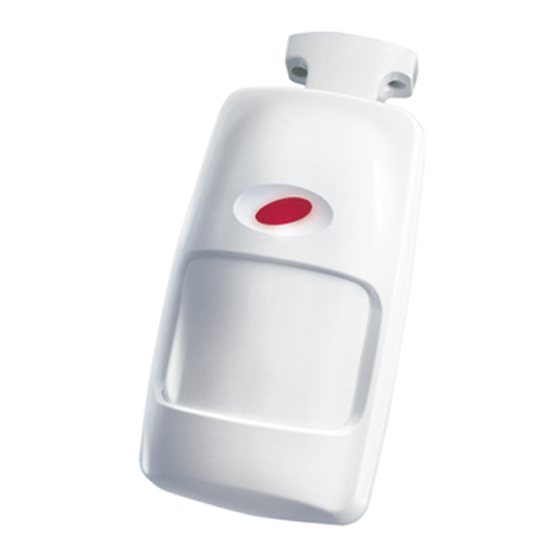

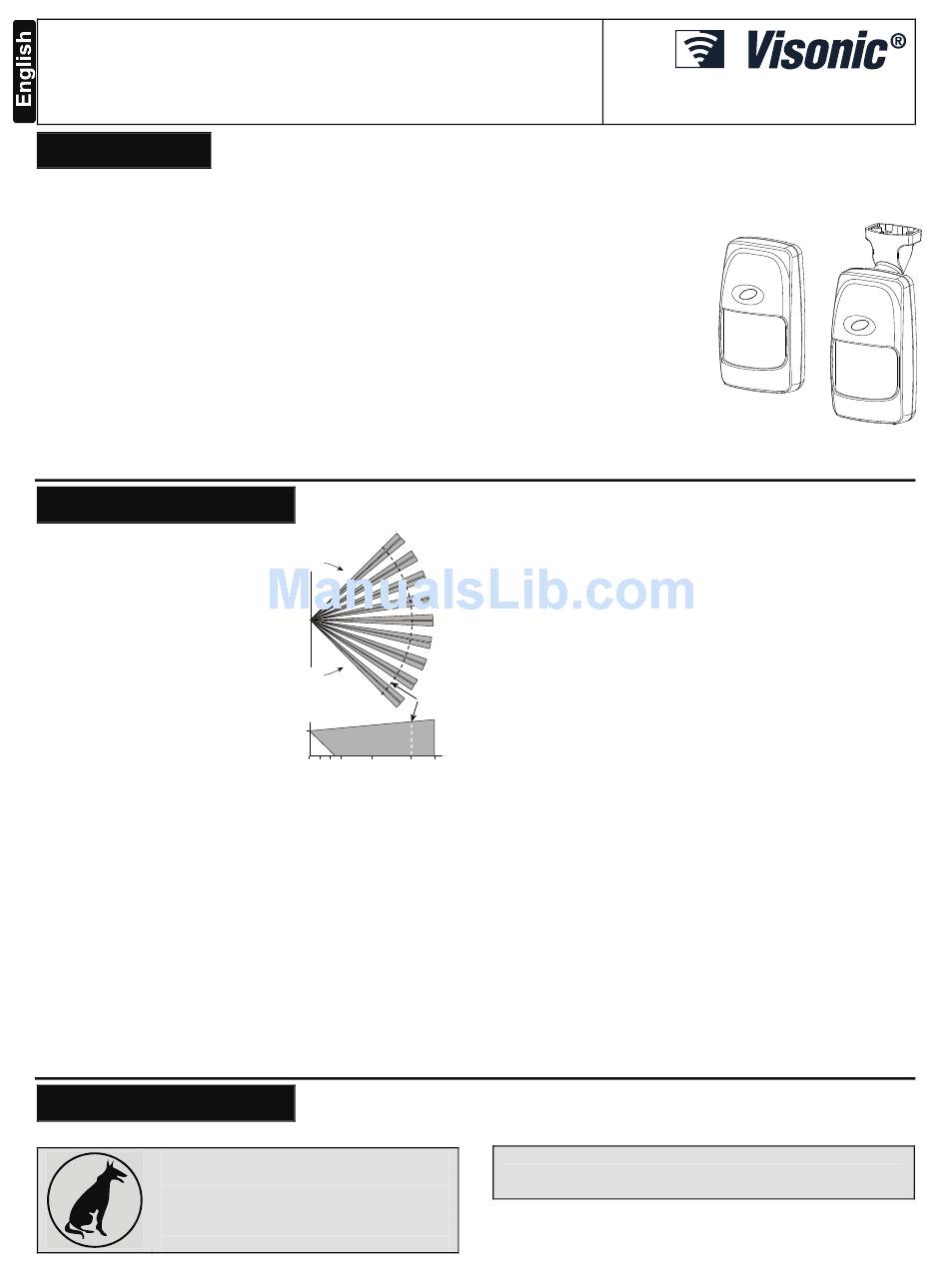

Figure 1. General View
