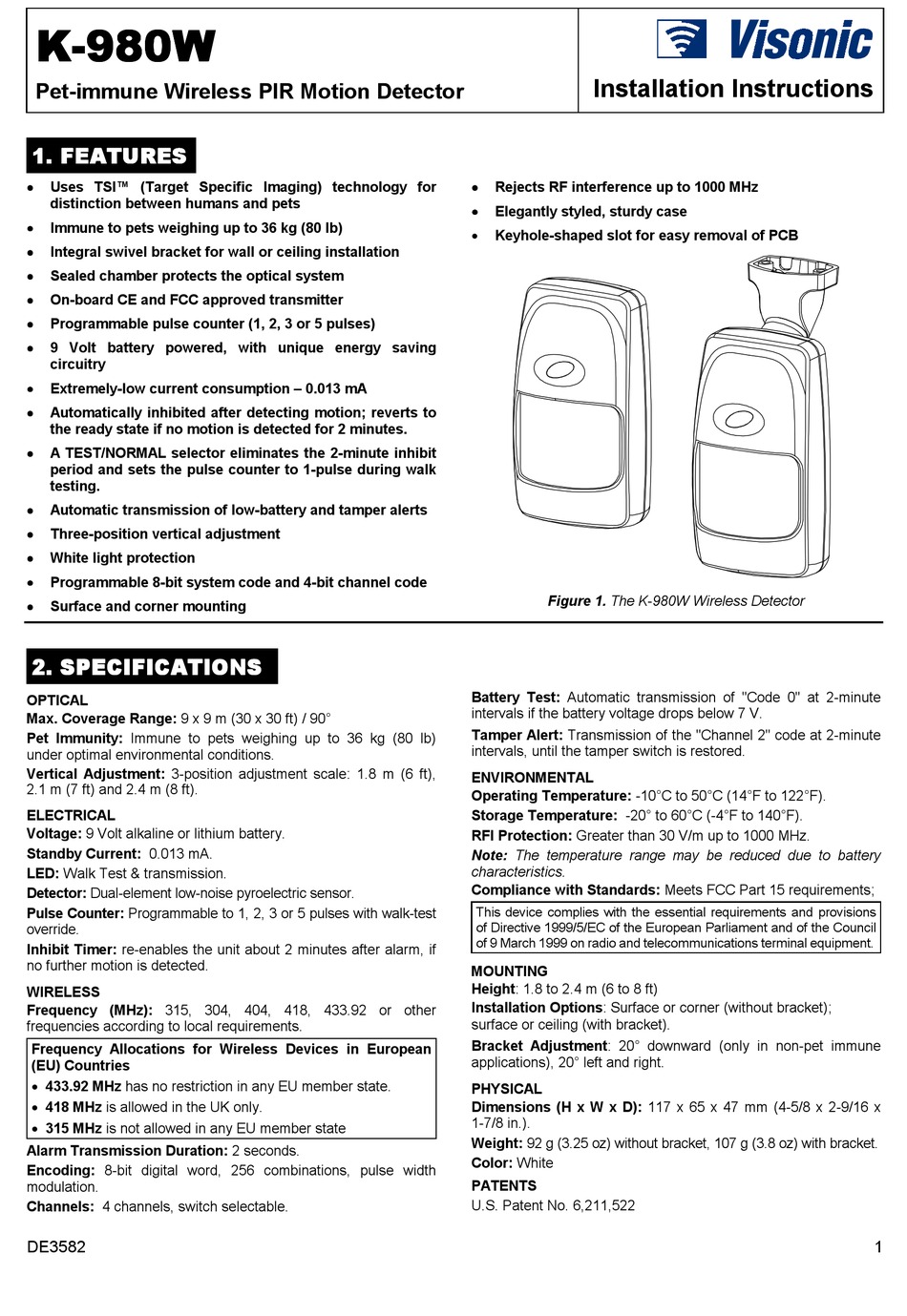

Visonic K-980W Installation Instructions

K K K K -980 -980W W W W
-980 -980
Pet-immune Wireless PIR Motion Detector
1 1 1 1 . FEATURES . FEATURES
. FEATURES . FEATURES
• • • •
Uses TSI™ (Target Specific Imaging) technology for
distinction between humans and pets
• • • • Immune to pets weighing up to 36 kg (80 lb)
• • • • Integral swivel bracket for wall or ceiling installation
• • • •
Sealed chamber protects the optical system
• • • •
On-board CE and FCC approved transmitter
• • • •
Programmable pulse counter (1, 2, 3 or 5 pulses)
• • • • 9 Volt battery powered, with unique energy saving
circuitry
• • • •
Extremely-low current consumption – 0.013 mA
• • • •
Automatically inhibited after detecting motion; reverts to
the ready state if no motion is detected for 2 minutes.
• • • • A TEST/NORMAL selector eliminates the 2-minute inhibit
period and sets the pulse counter to 1-pulse during walk
testing.
• • • •
Automatic transmission of low-battery and tamper alerts
• • • • Three-position vertical adjustment
• • • •
White light protection
• • • •
Programmable 8-bit system code and 4-bit channel code
• • • •
Surface and corner mounting
2 2 2 2 . SPECIFICATIONS . SPECIFICATIONS . SPECIFICATIONS . SPECIFICATIONS
OPTICAL
Max. Coverage Range: 9 x 9 m (30 x 30 ft) / 90°
Pet Immunity: Immune to pets weighing up to 36 kg (80 lb)
under optimal environmental conditions.
Vertical Adjustment: 3-position adjustment scale: 1.8 m (6 ft),
2.1 m (7 ft) and 2.4 m (8 ft).
ELECTRICAL
Voltage: 9 Volt alkaline or lithium battery.
Standby Current: 0.013 mA.
LED: Walk Test & transmission.
Detector: Dual-element low-noise pyroelectric sensor.
Pulse Counter: Programmable to 1, 2, 3 or 5 pulses with walk-test
override.
Inhibit Timer: re-enables the unit about 2 minutes after alarm, if
no further motion is detected.
WIRELESS
Frequency (MHz): 315, 304, 404, 418, 433.92 or other
frequencies according to local requirements.
Frequency Allocations for Wireless Devices in European
(EU) Countries
• 433.92 MHz has no restriction in any EU member state.
• 418 MHz is allowed in the UK only.
• 315 MHz is not allowed in any EU member state
Alarm Transmission Duration: 2 seconds.
Encoding: 8-bit digital word, 256 combinations, pulse width
modulation.
Channels: 4 channels, switch selectable.
DE3582
Installation Instructions
• • • •
Rejects RF interference up to 1000 MHz
• • • •
Elegantly styled, sturdy case
•
Keyhole-shaped slot for easy removal of PCB
Figure 1. The K-980W Wireless Detector
Battery Test: Automatic transmission of "Code 0" at 2-minute
intervals if the battery voltage drops below 7 V.
Tamper Alert: Transmission of the "Channel 2" code at 2-minute
intervals, until the tamper switch is restored.
ENVIRONMENTAL
Operating Temperature: -10°C to 50°C (14°F to 122°F).
Storage Temperature: -20° to 60°C (-4°F to 140°F).
RFI Protection: Greater than 30 V/m up to 1000 MHz.
Note: The temperature range may be reduced due to battery
characteristics.
Compliance with Standards: Meets FCC Part 15 requirements;
This device complies with the essential requirements and provisions
of Directive 1999/5/EC of the European Parliament and of the Council
of 9 March 1999 on radio and telecommunications terminal equipment.
MOUNTING
Height: 1.8 to 2.4 m (6 to 8 ft)
Installation Options: Surface or corner (without bracket);
surface or ceiling (with bracket).
Bracket Adjustment: 20° downward (only in non-pet immune
applications), 20° left and right.
PHYSICAL
Dimensions (H x W x D): 117 x 65 x 47 mm (4-5/8 x 2-9/16 x
1-7/8 in.).
Weight: 92 g (3.25 oz) without bracket, 107 g (3.8 oz) with bracket.
Color: White
PATENTS
U.S. Patent No. 6,211,522
