14
15
15
14
15

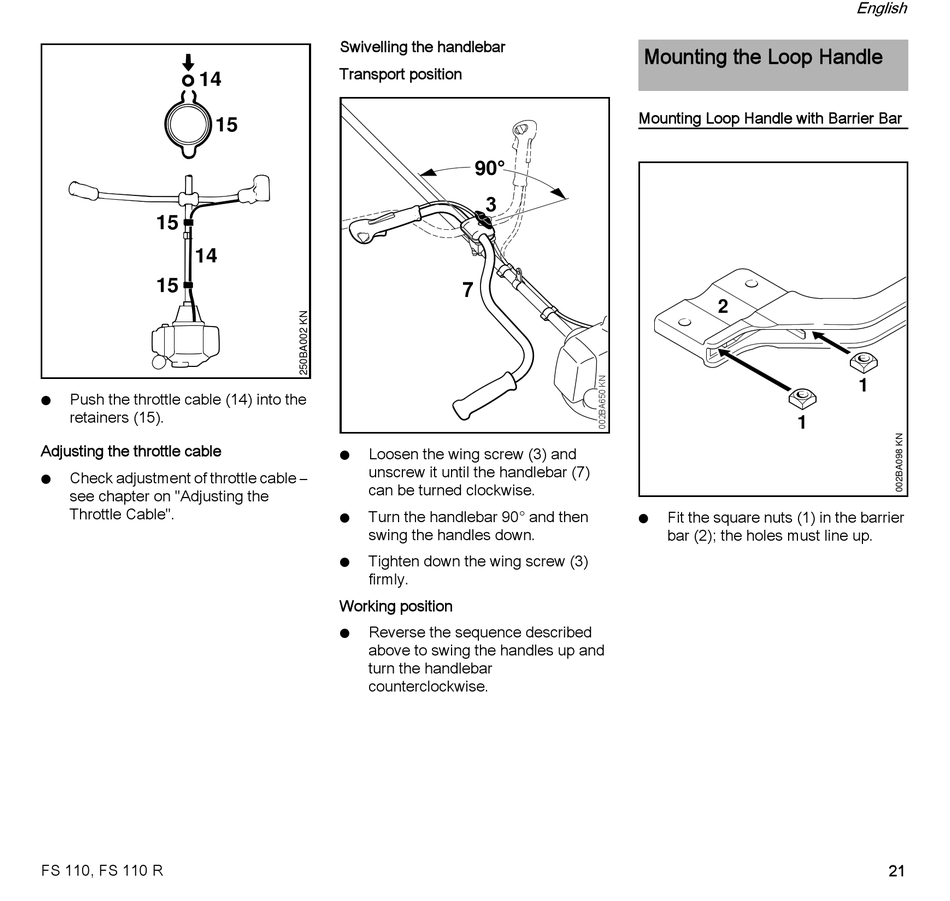

Push the throttle cable (14) into the
N
retainers (15).
Adjusting the throttle cable
Check adjustment of throttle cable –
N
see chapter on "Adjusting the
Throttle Cable".
FS 110, FS 110 R
Swivelling the handlebar
Transport position
3
7
Loosen the wing screw (3) and
N
unscrew it until the handlebar (7)
can be turned clockwise.
Turn the handlebar 90° and then
N
swing the handles down.
Tighten down the wing screw (3)
N
firmly.
Working position
Reverse the sequence described
N
above to swing the handles up and
turn the handlebar
counterclockwise.

Mounting the Loop Handle

Mounting Loop Handle with Barrier Bar
2
1
Fit the square nuts (1) in the barrier
N
bar (2); the holes must line up.
English
1
21
