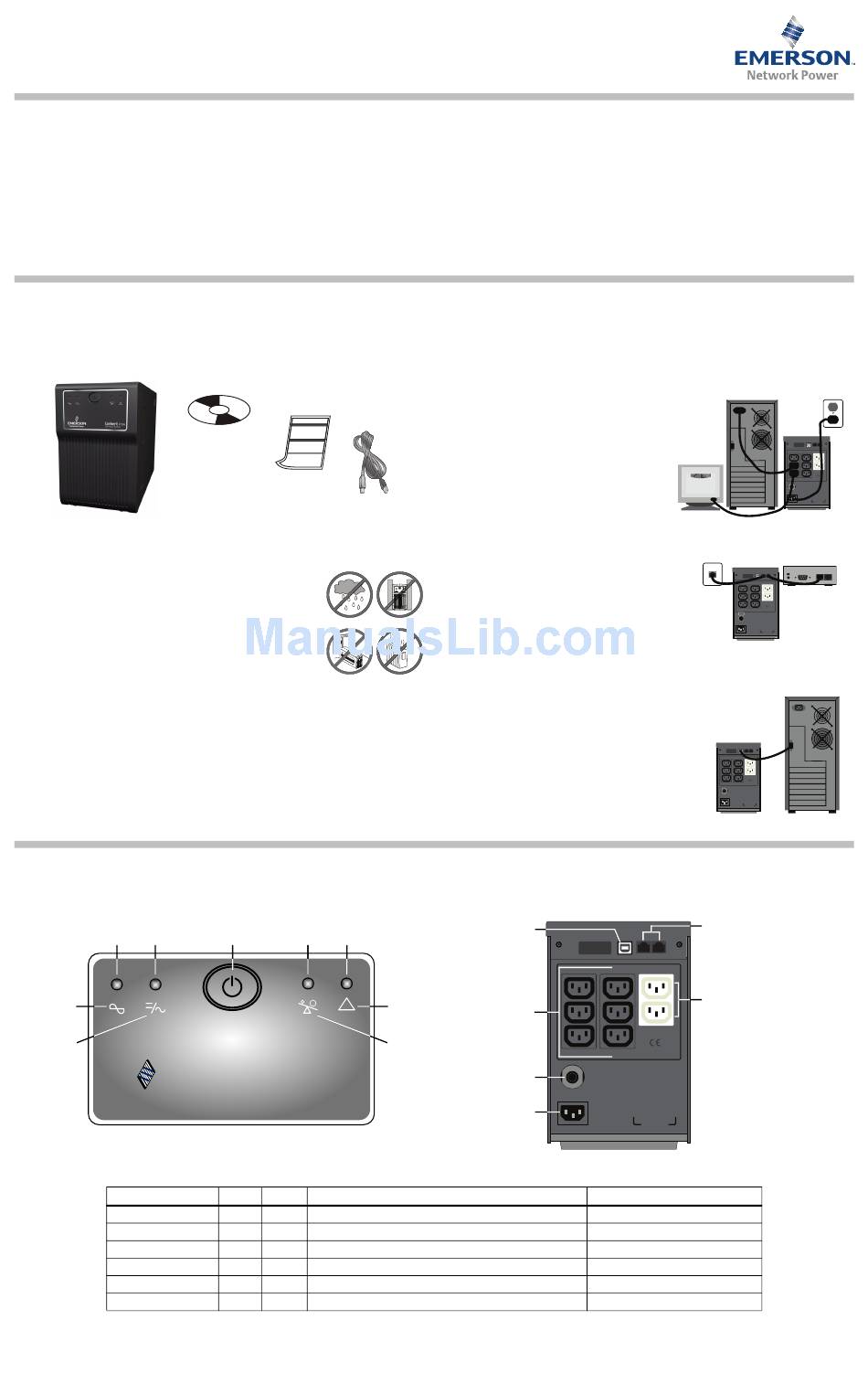

Emerson Liebert PSA 1000VA Quick Start Manual

I S
MPORTANT AFETY
• Do not connect equipment that may overload the UPS or demand half-wave
rectification, such as a laser printer.
• Connect the UPS only to an earthed / grounded socket that meets electrical safety
guidelines.
• Locate the UPS near a wall socket. Do not use an extension cord between the UPS and
the socket.
• Use CE-marked cables only for connections between mains, the UPS and equipment.
• The Liebert PSA has been designed for small office/home office use only; it is NOT
recommended for use in life-support applications.
S
ETUP
Step 1 Inspect the Package
Inspect the package and the UPS upon receipt. Notify the carrier and dealer of visible
damage.
UPS
Step 2 Decide Where to Place the UPS
The UPS must be placed indoors, protected from water, direct
sunlight and excessive heat.
Provide at least 100mm (4") of clearance on all sides of the unit
for proper ventilation.
Step 3 Charge the UPS Battery Before
Use
The UPS battery is not charged before shipping. It MUST be charged before use.
• Connect a user-supplied power cord from the UPS to a wall socket and charge for at
least eight hours.
Note: If battery is placed in storage, charge the battery every six months if kept at
-15°C to +29°C (5°F to 85°F)—or every three months if kept at 30°C (86°F) or higher.
UPS C
ONTROLS AND
Figure 1 - Front Panel LEDs
LED 1 LED 2
(green) (amber)
Mains
symbol
Battery
symbol
EMERSON
Network Power
UPS Status, Alarm Conditions and Alerts
Condition
Normal Mode
Battery Mode
Battery Low
Overload
Battery Replacement
Fault
Liebert
Quick-Start Guide - 1000VA/1500VA, 230V
I
NSTRUCTIONS
Liebert
shutdown
software
CD
Quick-start
guide
C
ONNECTIONS
On/Off LED 3 LED 4
button (amber) (red)
!
Liebert
PSA
™ ®
AC Power System
LED Color
LED 1 Green Solid (steady glow)
LED 2 Amber Flashes every 3 seconds
LED 2 Amber Flashes every 1 second till end of discharge (EOD)
LED 3 Amber Solid (steady glow) until load drops or breaker trips
LED 4 Red Flashes every 1 second for 5 seconds only
LED 4 Red Solid (steady glow) until UPS shuts down after 5 seconds
PSA
®
• In the event of an emergency, press the OFF button and disconnect the power cord
from the AC mains to properly disable the UPS.
• Do not attach power strips or surge suppressors to the UPS.
• Do not attempt to service any parts inside the UPS except the batteries. Failure to adhere
to this could cause personal injury or equipment malfunction and void the warranty.
• For technical support:
• Visit www.liebert.com
• Send an e-mail to upstech@emersonnetworkpower.com.
Step 4 Start the UPS
After the battery is fully charged:
• Turn on the UPS by pressing the On/Off button (see Figure 1 below).
LED 1 should be illuminated (green), indicating the UPS is operating in Normal Mode.
Step 5 Connect the Loads
The UPS has three battery backup sockets that
provide power when the UPS operates on bat-
tery (see Figure 2 below).
• Plug the loads into the battery backup sockets
on the rear of the UPS.
USB
Caution: Do not connect a laser printer to the
cable
UPS.
Step 6 Connect the Network Surge Protection
The UPS has two RJ-45 jacks for network lines (see
Figure 2 below).
• Connect a single-line network cable into the RJ-45
network surge protection IN jack on the rear of the
UPS.
• Connect an RJ-45 cable from the OUT jack on the
rear of the UPS to a port on a PC or network device such as a router.
Step 7 Set Up Liebert shutdown software
To start using the Liebert shutdown software:
• Install the Liebert shutdown software. See the software
user manual for installation instructions.
• Connect one end of the USB cable (supplied) to the
USB port on the rear of the UPS. Connect the other end
to a USB port on the computer. See the software user
manual for operating instructions.
USB
interface
Battery backup
Fault
sockets (6)
symbol
IEC 320 C13
Overload
symbol
Mains
breaker
AC mains
inlet
Solid/Flashing
™
or
Figure 2 - Rear Panel
USB
IN OUT
Full Time Surge Protection
Battery Power Supply
AC OUTPUT
Audible Alarm
(None)
Every 3 seconds
Every 1 second
Continuous
Every 1 second for 5 seconds only
Continuous until UPS shuts down
USB
IN OUT
Full Time Surge Protection
Battery Power Supply
AC OUTPUT
AC INPUT
USB
IN OUT
Full Time Surge Protection
Battery Power Supply
AC INPUT AC OUTPUT
FUSE
AC INPUT
USB
IN OUT
Full Time Surge Protection
Battery Power Supply
AC OUTPUT
AC INPUT
RJ-45 jacks (2) - network
protection
Surge sockets (2)
IEC 320 C13
