• Quick-Start guide
• PowerSure family user manual
on CD (also at www.liebert.com)
• Warranty card
• USB cable (PAXXX-230U models only),1.8m (6ft.)
• RJ-11 cord, 2.1m (7 ft.)
• Two (2) 10A output power cords, 2.0m (6.6 ft.)
For more details, refer to the PowerSure user manual on CD.
Pour de plus amples informations, voir le manuel
d'utilisateur de la gamme des produits PowerSure sur CD.
Para una información más detallada, consulte el manual del
usuario de la familia PowerSure en el CD.
Per informazioni ulteriori e più particolareggiate, consultare
il manuale dell'utente delle attrezzature PowerSure
contenuto sul CD.
Ausfuhrlichere Informationen finden Sie im Benutzerhandbuch der PowerSure-Familie auf CD.
I
NSTALLATION
Read all safety, installation and operating instructions in the PowerSure family user
manual on the included CD or at
to all warnings on the unit and in the manual.
1. Install the UPS indoors in a controlled environment, where it cannot be accidentally turned
off. Place it in an area of unrestricted airflow around the unit, away from water, flammable
liquids, gases, corrosives and conductive contaminants. Maintain an ambient temperature
range of 0°C to 40°C (32°F to 104°F).
2. Connect equipment to the receptacles on the back of the PST with one of the two supplied
output cables. Computers and monitors should be connected to the orange receptacles for
battery backup and surge protection; other office machines that do not exceed the capac-
ity of the UPS may be plugged into either of the two black receptacles, which provide
surge protection only.
3. Connect an input cable removed from the load equipment to the PowerSure PST and to
the mains supply socket.
4. Connect Phone/Fax/DSL/Internet/Modem devices to data line connectors.
5. Press and release the ON/OFF/Alarm Silence button to turn on the UPS. The UPS will beep and the Mains Indicator will illuminate (green).
6. Turn on connected equipment.
C I
ONTROLS AND NDICATORS
This button controls output power to
the connected load and has three
functions:
•Turns the PowerSure PST ON
•Turns the PowerSure PST OFF
•Silences PowerSure PST alarms
TURN THE UPS ON: Press and release the
main ON/OFF button to start the UPS. An
audible alarm will sound briefly.
TURN THE UPS OFF: When the PST is ON,
hold the main ON/OFF button down for more
than 2 seconds to shut it down. An audible
alarm will sound briefly.
SILENCE AN ALARM: When a UPS alarm is
active, press and release the main ON/OFF
button to silence the audible alarm (Excep-
tions: low battery, overload and overtempera-
ture). DO NOT hold the button down for more
than 2 seconds or the PST will shut down.
CHECK THE PST'S CONDITION: Three sta-
tus indicators on the front of the UPS illumi-
nate to specify the status of the UPS (see
Troubleshooting section for details).
C
OMMUNICATIONS
The PowerSure PST has a USB interface port
for communication that will work with the built-
in Microsoft Power Manager software on the
user's PC, if the PC is so equipped. It will pro-
vide UPS status and manages the automatic,
orderly shutdown of the computer. The UPS
(USB) communications meets HID standard,
version 1.11. All USB models are compatible
with Microsoft Windows 2000, Windows XP
and Mac OS 10.2 or later. All USB models ship
with a 6 ft. (1.8m) USB cable.

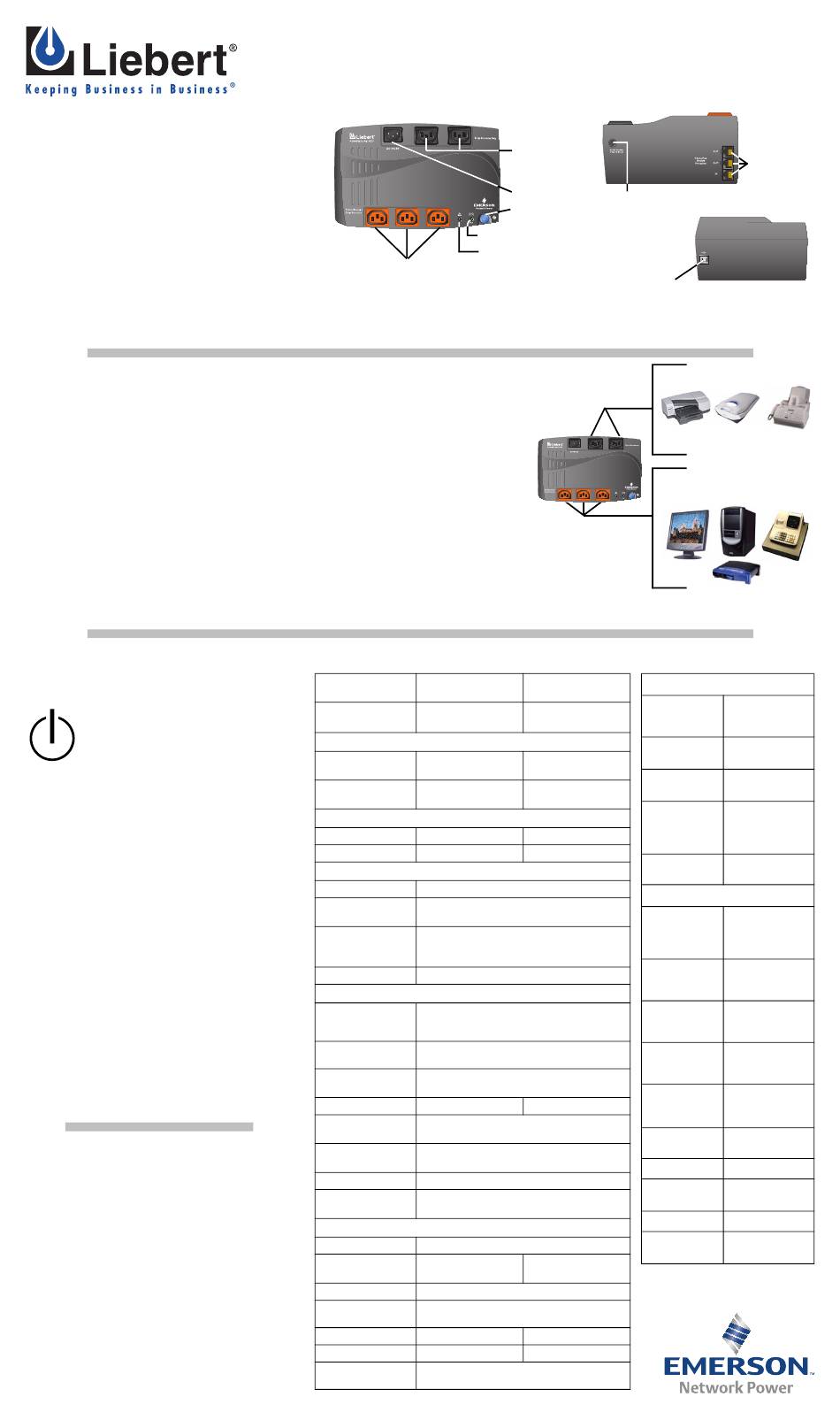

PowerSure
Quick-Start Guide for 500-650VA; 230V
TOP OF UPS
** Orange output recep-
tacles (battery backup
and surge protection)
www.liebert.com before operating the UPS. Adhere
S
PECIFICATIONS
Model Number
Model Rating
VA / W
DIMENSIONS: mm (in.)
Unit
W x D x H
Shipping
W x D x H
WEIGHT: kg (lbs)
Unit
Shipping
INPUT AC PARAMETERS
Surge Protection
Rated Input
Voltage
Voltage Range
Without
Battery Operation
Frequency
OUTPUT AC PARAMETERS
Output
Receptacles
Output Cord
Voltage (Battery
Mode)
Output Current
Waveform (Battery
Mode)
Frequency
(Battery Mode)
Overload Warning
Overload
Shutdown
BATTERY PARAMETERS
Type
Quantity x Voltage
x Rating
Transfer Time
Back-up Time:
Full load
Half load
Recharge Time
™
** Black output
receptacles
(surge protec-
tion only)
** AC Inlet
* Power ON/OFF/
Alarm Silence
Mains/Battery Indicator (Green) *
Fault Indicator (Red/Green) *
For details, see
* Controls and Indicators
** Installation
*** Communications
PA500-230U PA650-230U
PA500-230 PA650-230
500 / 300 650 / 360
168 x 250 x 95 168 x 250 x 95
(6.6 x 9.8 x 3.7) (6.6 x 9.8 x 3.7)
238 x 350 x 142 238 x 350 x 142
(9.4 x 13.8 x 5.6) (9.4 x 13.8 x 5.6)
4.7 (10.4) 5.7 (12.5)
5.7 (12.5) 6.7 (14.8)
220J
230VAC
180VAC - 264VAC (±6VAC)
47 - 63 Hz (±0.4 Hz)
(3) IEC-320-C13 (orange)
battery backup+surge protection
(2) IEC-320-C13 (black) surge protection
2m (6.6 ft) detachable, w/IEC-320 (Wire
2
Type: 1mm , H05W-F 3G)
230VAC (±8%)
2.9 A 4.2 A
Stepped Sinewave
50/60 Hz (±1 Hz)
>100%
>110%
Valve-regulated, nonspillable, lead acid
1 x 12V x 5 Ah 1 x 12V x 7 Ah
4 – 6 ms typical
At 25°C (77°F), resistive loading,
w/ fully charged batteries:
2 minutes 1 minute
8 minutes 8 minutes
12 hours to 90% rated capacity, after full
discharge into resistive load
PST
LEFT SIDE
OF UPS
Data Line **
Protection
Refer to Bottom for Connectors
Cautionary Markings
Circuit
RIGHT SIDE OF UPS
protector
***USB port
(for PAXXX-230U models only)
Plug this type of equipment
into black receptacles ONLY
Scanners
Inkjet
printers
machines
Plug computers, monitors,
routers and cash registers into
orange receptacles
ENVIRONMENTAL
0°C to +40°C
Operating
(+32°F to +
Temperature
104°F)
Storage
-15°C to +50°C
Temperature (+5°F to + 122°F)
Relative
0% to 95%,
Humidity non-condensing
Up to 3000 m
Operating
(10,000 ft.) at
Elevation
35°C (95°F)
w/o derating
< 40 dBA, at
Audible Noise
1 meter
AGENCY
EN50091-1-1,
TUV/GS listed,
Safety
CE Compliance
Mark
EN61000-4-5,
Surge
Level 3,
Criteria A
EN61000-4-2,
ESD
Level 3,
Criteria A
EN61000-4-3,
Susceptibility
Level 2,
Criteria A
Electrical Fast
EN61000-4-4,
Transient/
Level 3,
Criteria A
Burst
EN50091-2,
Emissions
Class B
Harmonics
EN61000-3-2
Conducted
EN61000-4-6
Immunity
Flicker EN61000-3-3
ISTA
Transportation
Procedure 1A
Fax
