Emerson Liebert PowerSure PST PA350-120U Quick Start Manual

• Quick-Start guide
• PowerSure family user manual on CD (also
at www.liebert.com)
• Warranty card
• RJ-11 cord, 7 ft. (2.1 m)
• USB cable, 6 ft. (1.8m)
For more details, refer to the PowerSure user
manual on CD.
Para una información más detallada, consulte
el manual del usuario de la familia PowerSure
en el CD.

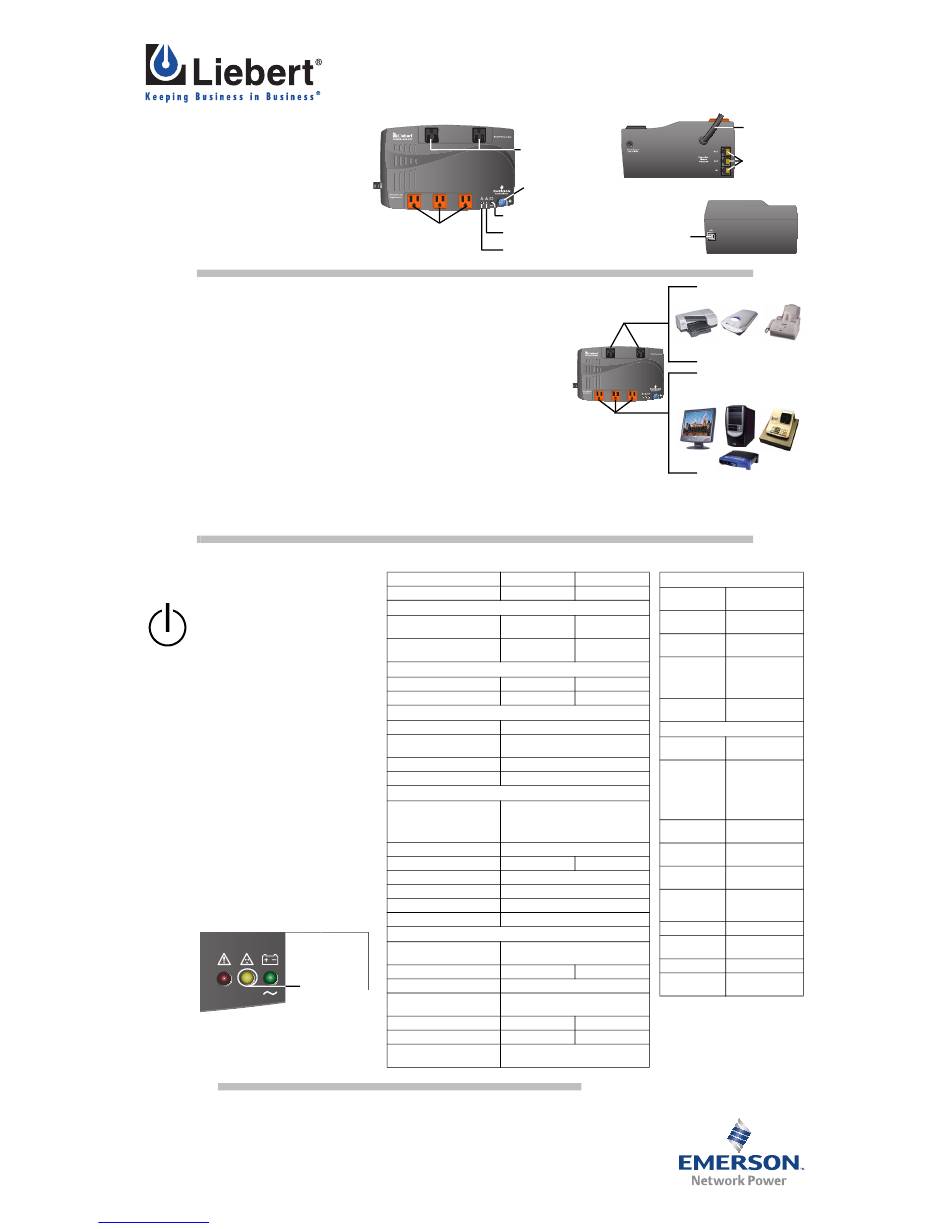

I
NSTALLATION
Read all safety, installation and operating instructions in the PowerSure family user
manual on the included CD or at
to all warnings on the unit and in the manual.
1. Install the UPS indoors in a controlled environment, where it cannot be accidentally
turned off. Place it in an area of unrestricted airflow around the unit, away from
water, flammable liquids, gases, corrosives and conductive contaminants. Maintain
a minimum clearance of 4 inches (100mm) on each side of the UPS. Maintain an
ambient temperature range of 32°F to 104°F (0°C to 40°C).
2. Plug the PST's power cord into an AC outlet. Check the Site Wiring Fault Indicator
on the rear; if it is illuminated, refer to the Troubleshooting section.
3. Plug any computers and monitors into the orange receptacles for battery backup
and surge protection; other office machines that do not exceed the capacity of the
UPS may be plugged into either of the two (2) black receptacles, which provide
surge protection only.
4. Connect Phone/Fax/DSL/Internet/Modem devices to data line connectors.
5. Press and release the ON/OFF/Alarm Silence button to turn on the UPS. The UPS will beep and the Utility Indicator will illuminate (green).
6. Turn on connected equipment.
C
ONTROLS AND
TURN THE UPS ON: Press and release the
main ON/OFF button to start the UPS. An
audible alarm will sound briefly.
TURN THE UPS OFF: When the PST is ON,
hold the main ON/OFF button down for more
than 2 seconds to shut it down. An audible
alarm will sound briefly.
SILENCE AN ALARM: When a UPS alarm is
active, press and release the main ON/OFF
button to silence the audible alarm (Excep-
tions: low battery, overload and overtempera-
ture). DO NOT hold the button down for more
than 2 seconds or the PST will shut down.
CHECK THE PST'S CONDITION: Three sta-
tus indicators on the front of the UPS illumi-
nate to specify the status of the UPS (see
Troubleshooting section for details).
SITE WIRING FAULT INDICATOR (AMBER)
The Site
Wiring
Fault Indi-
cator on
the top of
thePST,
as shown,
illumi-
nates amber when the UPS detects a line-
neutral reversal or a poor neutral-ground.
(See Troubleshooting Chart if indicator is
illuminated.)
C
OMMUNICATIONS
The PowerSure PST has a USB interface port for communication that will work with the built-in Microsoft
Power Manager software on the user's PC, if the PC is so equipped. It will provide UPS status and man-
ages the automatic, orderly shutdown of the computer. The UPS (USB) communications meets HID stan-
dard, version 1.11. All USB models are compatible with Microsoft Windows 2000, Windows XP and Mac
OS 10.2 or later. All USB models ship with a 6 ft. (1.8m) USB cable.
Get user manuals: See SafeManuals.com
Quick-Start Guide for 350-500VA; 120V
W ' I T B
HAT S N HE OX
www.liebert.com
I
NDICATORS
This button controls output power to
the connected load and has three
functions:
•Turns the PowerSure PST ON
•Turns the PowerSure PST OFF
•Silences PowerSure PST alarms
Top of UPS
Site Wiring
Fault
Indicator
(Amber)
PowerSure
TOP OF UPS
Output receptacles
(surge protection
only)
Power ON/OFF/
Alarm Silence
Utility Indicator*
(Green)
Output receptacles
Site Wiring Fault Indicator
(battery backup and
(Red)
surge protection)
Fault Indicator* (Red/Green)
before operating the UPS. Adhere
S
PECIFICATIONS
Model Number PA350-120U
Model Rating VA / W 350/225
DIMENSIONS: in (mm)
6.6 x 9.8 x 3.7
Unit W x D x H
(168 x 250 x 95)
9.4 x 13.8 x 5.6
Shipping W x D x H
(238 x 350 x 142)
WEIGHT: lbs (kg)
Unit 11.7 (5.3)
Shipping 12.1 (5.5)
INPUT AC PARAMETERS
Surge Protection 603J
Voltage Range Without
98VAC - 140VAC ±3VAC
Battery Operation
Frequency 57 - 63 Hz (±0.4Hz)
Input Power Cord 6.5 ft.attached, w/ NEMA 5-15 P
OUTPUT AC PARAMETERS
(3) NEMA 5-15R (orange) battery
backup+surge protection
Output Receptacles
(2) NEMA 5-15R (black) surge
protection
Voltage (Battery Mode) 120VAC ±8%
Output Current 2.9 A
Waveform (Battery Mode) Stepped Sinewave
Frequency (Battery Mode) 60Hz ±1Hz
Overload Warning >100%
Overload Shutdown >110%
BATTERY PARAMETERS
Valve-regulated, nonspillable, lead
Type
Quantity x Voltage x Rating 1 x 12V x 5 Ah
Transfer Time 4 – 6 ms typical
At 77°F (25°C), resistive loading, w/
Back-up Time:
fully charged batteries:
Full load 5 minutes
Half load 16 minutes
12 hours to 90% capacity, after full
Recharge Time
discharge into resistive load
™
PST
LEFT SIDE OF UPS
Power cord
6.5 ft. (2m)
Data Line
Protection
Connectors
Refer to Bottom for
Cautionary Markings
Circuit
RIGHT SIDE OF UPS
protector
USB port
Plug this type of equipment
into black receptacles ONLY
Scanners
Inkjet
printers
Plug computers, monitors,
routers and cash registers into
orange receptacles
PA500-120U ENVIRONMENTAL
500 / 300
Operating +32°F to + 104°F
Temperature (0°C to +40°C)
Storage +5°F to + 122°F (-
6.6 x 9.8 x 3.7
Temperature 15°C to +50°C)
(168 x 250 x 95)
Relative 0% to 95%, non-
9.4 x 13.8 x 5.6
Humidity condensing
(238 x 350 x 142)
Up to 10,000 ft.
Operating (3000 m) at 86°F
Elevation (30°C) w/o
13.5 (6.1)
13.9 (6.3)
< 40 dBA, at 1
Audible Noise
AGENCY
UL 1778, c-UL
Safety
ANSI C62.41,
Category A, Level
3, (IEEE 587,
Surge
Category A);
EN61000-4-5,
Level 3, Criteria A
EN61000-4-2,
ESD
Level 3, Criteria A
EN61000-4-3,
Susceptibility
Level 2, Criteria A
4.2 A
Electrical Fast EN61000-4-4,
Transient/Burst Level 3, Criteria A
FCC Part 15,
Emissions Subpart B,
Harmonics EN61000-3-2
Conducted
EN61000-4-6
Immunity
acid
Flicker EN61000-3-3
1 x 12V x 7 Ah
ISTA Procedure
Transportation
3 minutes
15 minutes
Fax
machines
derating
meter
Listed
Class B
1A
