Step 5 Connect the Loads
The UPS has six battery backup outlets that provide power
when the UPS operates on battery. (See Figure 2 on next page)
Step 6 Connect Modem/Phone/Network for Surge Protection
The UPS has two RJ-45 jacks for modem/phone/network.(See Figure 2 on next page)
Connect a single modem/phone line into
surge-protected "IN" outlet on the back panel
of the UPS unit.
Connect from "OUT" outlet
to the computer with
another phone line cable.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Emerson Liebert itON BX
Summary of Contents for Emerson Liebert itON BX

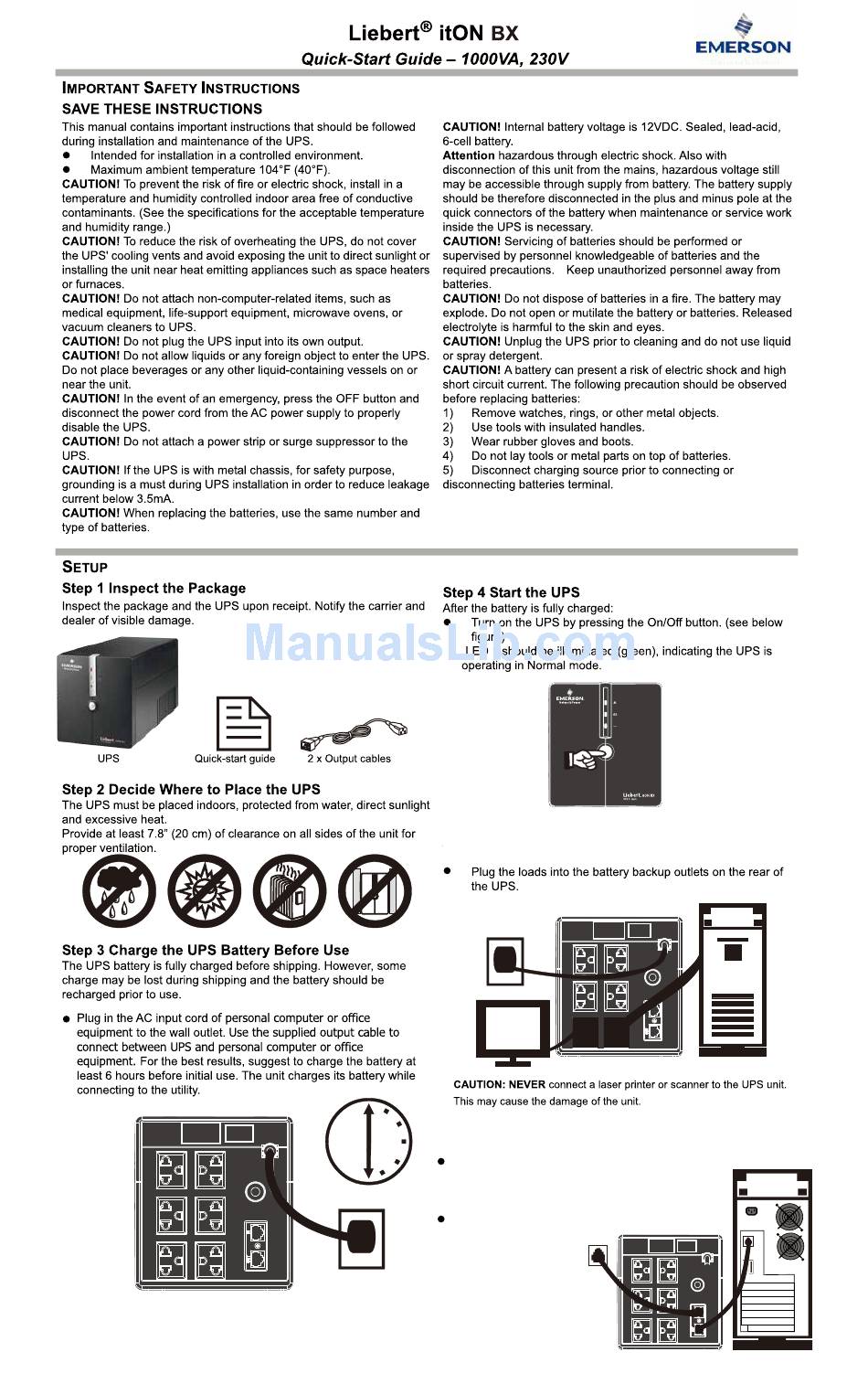

- Page 1 Step 5 Connect the Loads The UPS has six battery backup outlets that provide power when the UPS operates on battery. (See Figure 2 on next page) Step 6 Connect Modem/Phone/Network for Surge Protection The UPS has two RJ-45 jacks for modem/phone/network.(See Figure 2 on next page) Connect a single modem/phone line into surge-protected “IN”...
