Hyundai H-LCD800 Instruction Manual

Portable lcd color tv
Hide thumbs

Advertisement

Quick Links

Download this manual
H-LCD800
Portable LCD Color TV
Instruction manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-LCD800 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai H-LCD800

Summary of Contents for Hyundai H-LCD800

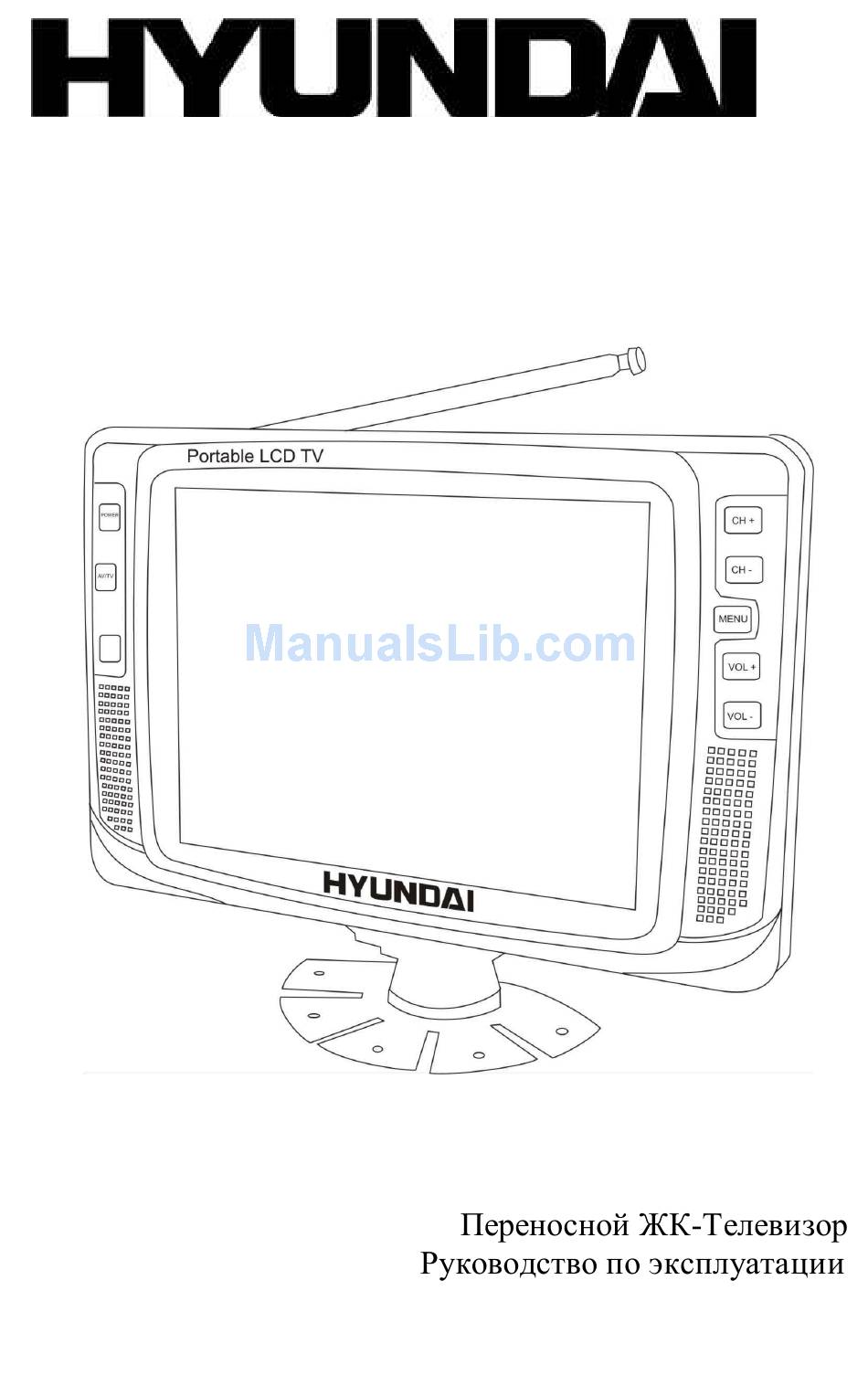

  • Page 1 H-LCD800 Portable LCD Color TV Instruction manual...

  • Page 2: Table Of Contents

    Dear consumer! Thank you for purchasing the TFT-LCD color television. To enjoy the features of this unit and to ensure safety and years of trouble-free operation, be sure to carefully read this manual and follow the instructions contained herein Contents Contents..................2 Caution ..................3 Aspect ...................3...

  • Page 3: Caution

    Caution Never attempt your own maintenance. If something appears strange, please turn the TV off and consult your TV dealer. The TV is composed of many delicate electronic components that can be damaged or broken if you open the TV or attempt to modify it.
  • Page 4 Power ON/OFF button TV/AV/S-video selecting button Remote sensor LCD panel Volume adjusting buttons Menu button Channel up and dowm buttons Speakers BACK External antenna jack 10. A/V input jack 11. Earphone jack 12. S-video input jack 13. Rod antenna 14. Set stand 15.

  • Page 5: Remote Control

    Remote control Mute button Volume increase/decrease Menu button Channel increase/decrease Digital channel selection AV/TV/S-video selecting button OSD button Power switch sound system selecting button 10. Flash back button Returns to previous channel 11. Sleep timer button 12. Picture button Power Selection 220V AC adapter AC adapter (refer to product tag attached to the AC adapter) supplies power to the television from 220V alternating current.
  • Page 6 Sound Volume Press the VOL (+) to increase sound volume. The segment of indicator increases. Press the VOL (-) to decrease sound volume. The segment of indicator decreases. To mute sound Press the MUTE to temporarily turn off the sound. Screen display MUTE MARK. Press the MUTE or VOL (+)/(-) to turn the sound back to the previous level.
  • Page 7 Menu operation This LCD TV set allows you to adjust the picture and set the channels and other features using the on screen Display. Select the desired menu item by i following the steps below and then refer to the indicated page for details. 1.
  • Page 8 Notes: 1. When starting the Auto searching after setting, the color system and sound system for all channels are stored into memory. 2.Unused channels are automatically skipped. Preset function adjustment (manual search) 1. Press the MENU twice, the channel menu screen appears. 2.
  • Page 9 Adjusting The Sleep Timer Settings 1. Press the SLEEP key to display the sleep time screen. 2.Press the VOL (+)/(-) to set the sleep time (in minutes). The setting can be set in 10, 20, 30, 60, 90, 120, 180, 240 minutes Listening With A Earphone Plug the earphone mini-plug into the earphone jack located on the rear side of the set.

  • Page 10: Before You Request Repair Service

    Before you request repair service The following occurrences do not indicate that the television is faulty. Before you request repair, follow the listed methods to check the device. Occurrences Possible reasons No picture and sound Battery pack is exhausted or not making contact, AC adapter or automobile adapter is not properly connected.

  • Page 11: Specification

    Specification Product name: 8" automobile portable LCD color television Receivable channels: VHF-L: 48.25Mhz-91.75Mhz VHF-H: 168.25Mhz-222.75Mhz UHF: 417.25Mhz-869.75Mhz System: PAL/SECAM B.G. D. K. I. Display component: color TFT-LCD Screen dimensions: 8 inches Pix: 921600 pxls VGA Brightness: 250 300 cd /m² Contrast: 150 Tuning: D/K, I, B/G Effective dimension :...
  • Page 12 ................12 ............13 ..............13 ...................15 ............15 ..............16 ........20 ............21...
  • Page 13 40° . 20° 60° .
  • Page 14 TV/AV/S-Video (A/V) S-Video (DC 12V)
  • Page 15 TV/AV. (SLEEP).
  • Page 16 TV/AV/S-Video SOURCE TV/AV S-video. S-video VOL (+) VOL (-) MUTE MUTE MARK. MUTE VOL (+)/(-) POWER. POWER (0-135). , 6). 0+0+6, , 26) 2 + 6 0+2+6, , 135) 1 + 3 + 5.
  • Page 17 CH (+)/(-) CH (+), 3 .133 2 .. CH (-), 134 ..3 MENU MENU CH (+)/(-) VOL (+)/(-) MENU CH (+)/(-) VOL (+)/(-) VOL (-) VOL (+)
  • Page 18 MENU CH (+)/(-) VOL (+)/(-). 1-135. MENU CH (+)/(-) VOL (+)/(-) CH (+)/(-) VOL (+)/(-), 2,3,4,5 MENU CH (+)/(-) VOL (+)/(-)
  • Page 19 SLEEP VOL (+)/(-) : 10, 20, 30, 60, 90, 120, 180, 240...
  • Page 20 TV/AV? « »...
  • Page 21 : VHF-L:CH1~5 48,25 91,75 VHF-H:CH6~12 168,25 222,75 UHF:CH13~57 417,25 869,75 : PAL/SECAM B.G.D.K.I. : D/K, I, B/G TFT-LCD : 921600 : 250 300 ² : 150 : 163 : 0,3 2 40 (12 ) , AV-...
