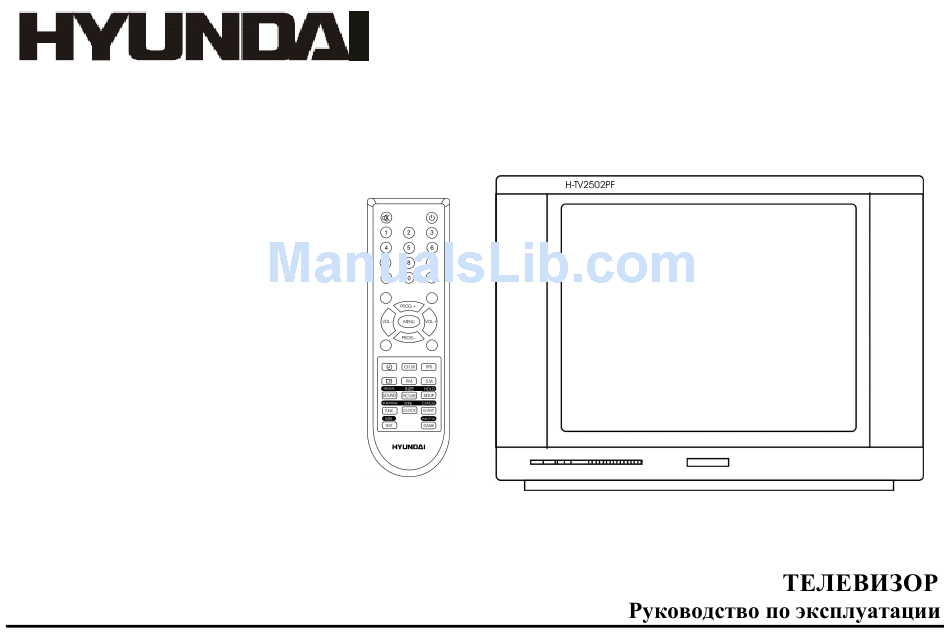

  • Page 1 H-TV2502PF COLOUR TELEVISION Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for buying a HYUNDAI television. Before operating the unit please read this manual thoroughly and retain it for future reference. Table of contents Table of contents..........................................2 Important safeguard ........................................3 Colour TV features ........................................4 Preparation.............................................

  • Page 3: Important Safeguard

    Important safeguard · Before the first connecting of the appliance check that voltage indicated on the rating label corresponds to the mains voltage in your home. · Do not use the color television for any other purposes than those described in this instruction manual. ·...

  • Page 4: Colour Tv Features

    Colour TV features · Modern ergonomic design · Pure Flat picture tube · Child lock function · 200 program memory · Auto & manual programmable scan · Improved picture contrast · Clock · Sleep timer with 10 minutes intervals up to 180 minutes ·...
  • Page 5 Connecting to an aerial or cable television network To view television channels correctly, a signal must be received by the set from an outdoor aerial. 1. Connect the aerial to the coaxial socket on the rear of the television. 2. Insert the plug into the power supply. 3.
  • Page 6 Input and output terminals S-Video IN It can be connected to the following appliances: Home Theatre, DVD-player, video-tape recorder, video camera, tape recorder and audio amplifier, etc..*Please keep AC cord unplugged when connecting TV system. *Do not Connect AV IN 1(VIDEO) and S-VIDEO together.

  • Page 7: Control Location

    Control location 1. Main Switch 2. Power Indicator 3. Remote Sensor 4. Program Down/Up Button 5. Volume Down/Up Button 6. Menu Button 7. SLEEP Button 8. MUTE Button 9. AV/TV Button 10. Speakers 11. Side AV In (Option) 12. AV In (Scart Jack) 13.

  • Page 8: Remote Control

    Remote control POWER Power (Stand By) button Press this button to turn the TV on/off. Press any Number Button or Program Up/Down Button, picture and sound will appear on within a few seconds. MUTE Mute button Press once to mute the sound, press again to return to previously set sound level. Sound system button When the sound system is incorrect, press this button to select the correct sound system.
  • Page 9 S.M. Sound Mode Button Press this button to select the desired sound mode, USER. SPEECH. THEATER and MUSIC can be selected cyclically. P.M. Picture Mode Button Press this button to select the desired picture mode, RICH.USER.SOFT and STANDARD can be selected cyclically.
  • Page 10 TUNE Tune Menu Button (TUNE/SUB. PAGE) In TV mode, used as TUNE menu command; In TELETEXT mode, used as SUB.PAGE key. TUNE: Press this button to enter into the TUNE menu directly. SUB.PAGE: Some pages attach sub-page, Page number may contain several subpages, which are automatically paged by the TV station.

  • Page 11: Operation Instructions

    Operation instructions WARNING: The main power switch ( 1 of the control location page ) is the manually operated mechanical switch . The remote control can not cut off power supply to the TV set. For safety purpose, push main switch to the OFF position and make sure the power indicator go out when not use for long time.

  • Page 12: Sound Menu

    Sound menu 1.You can select the VOLUME.BASS.TREBLE.BALANCE.TRUBASS.SURROUND item with the PROG+/- buttons or the (GREEN) / (BLUE) buttons. 2.You can adjust VOLUME. BASS. TREBLE item with VOL+/- buttons or (RED) / (YELLOW) buttons. 3.You can turn the TRUBASS. SURROUND item ON or OFF with VOL+/- buttons or (RED) / (YELLOW) buttons. *TRUBASS item is optional.

  • Page 13: Setup Menu

    Setup menu You can select the item by pressing PROG+/- buttons or (GREEN)/ (BLUE) Buttons. Then you can adjust it by Vol+/- buttons or (RED)/(YELLOW) buttons. 1.LANGUAGE You can select the on-screen display language. 2.BACK GROUND Press VOL+/- buttons or (RED) /(YELLOW) buttons to set it ON or OFF. For BACKGROUND, only when no signal is input in TV mode.

  • Page 14: Tune Menu

    Tune menu You can select the item by press the PROG+/- buttons or the (GREEN) / (BLUE) buttons, move to the menu you select and then do as follows. 1.COLOUR SYS Press VOL+/- buttons or (RED) / (YELLOW) buttons to set the colour system. 2.SOUND SYS Press VOL+/- buttons or (RED) / (YELLOW) buttons to set the sound system.

  • Page 15: The Causes Of Interference

    The causes of interference Incorporated in your TV receiver are the most up to-date devices to eliminate interference. Local radiation however, can create disturbances which visibly affect your picture. Proper installation, a good aerial are your best safe-guards against these disturbances. RF INTERFERENCE Moving ripples across the screen are caused by nearby transmitting or receiving-short-wave radio equipment.

  • Page 16: Troubleshooting Guide

    Troubleshooting guide · Before requesting servicing, check following points please. Malfunction Check and adjustment No picture, no sound Try different channel, if OK probably station trouble. Check aerial connections on back of set. Check aerial for broken wires. Adjust fine tuning control. Check if system switch is correct.
  • Page 17 Check if system switch is correct. Double image Try different channel, if OK probably station trouble. Check aerial connections on back of set. Check aerial for broken wires. Re-orient aerial (if indoor type). Adjust fine tuning control. Lines in picture Try different channel, if OK probably station trouble.

  • Page 18: Cleaning

    Adjust fine tuning control. Adjust brightness control. Adjust contrast control. Adjust color control. Check if system switch is correct. No color Try different channel, if OK probably station trouble. Check aerial connections on back of set. Check aerial for broken wires. Re-orient aerial (if indoor type).

  • Page 19: Specifications

    Specifications Color picture tube 25 (63 cm) Receiving and playback system PAL/SECAM, BG/DK Play back system NTSC 3.58, NTCS 4.43 Antenna input 75 Ohms Audio/Video side input AV Stereo Audio/Video back input 21 pin SCART, S-Video Sound Power 2 x 12 W Operating temperature 40 C Operating humidity...
  • Page 20 HYUNDAI..........................................20 ........................................21 ....................................... 22 ..........................................22 ................................... 25 ................................... 26 ........................................30 ........................................30 ..........................................30 ............................................31 ......................................... 32 ........................................... 32 ......................................... 33 ..........................................33 .......................................... 34 ...................................... 35 ..........................................37 ....................................38...
  • Page 21 · · · · · · · · 5º 40º . · · · · · · · · · · · · ·...
  • Page 22 · · · · · · · · · · · · · « » · · · · · 260 , 50/60 · · ·...
  • Page 23 PROG+, PROG- PROG-, PROG+, 0,1,..., 9 · · · AV/TV VCR ( 1,5 ,...
  • Page 24 S-Video AV1 ( S-Video.
  • Page 25 SLEEP MUTE AV/TV 12. AV- SCART) Peritelevision (SCART) S-Video...
  • Page 26 POWER MUTE PROG +/- PROG.+, PROG.-, VOL+/- CH I/II I/II STEREO.MONO CH I/II. DUAL-1, DUAL-2 CH I/II. : FM: STEREO: MONO: DUAL-1: DUAL-2:...
  • Page 27 « » S.M. . (USER: (SPEECH), (THEATER) (MUSIC) P.M. (RICH), . (USER: (SOFT), (STANDARD). AV/TV AV/TV LANG. LANG.: MENU MENU. INDEX. INDEX: INDEX, - - /- - - «--/---», «-», «--/---», «--», «--/---», «1--», 199. SOUND (SOUND/ RECALL) (REVEAL). SOUND: (SOUND).
  • Page 28 PICTURE (PICTURE/SIZE) SIZE ( PICTURE: (PICTURE). SIZE: SETUP (SETUP/HOLD) HOLD. SETUP: HOLD: HOLD, HOLD TUNE (TUNE/SUB. PAGE) SUB.PAGE. TUNE: SUB.PAGE: 0001. ****. CLOCK (CLOCK/TYPE) TYPE. CLOCK: TYPE: (Q.VIEW/CANCEL) Q.VIEW Q.VIEW. CANCEL. Q.VIEW: CANCEL: CANCEL. CANCEL,...
  • Page 29 TEXT (TEXT/MIX) RGB- SCART- RGB- GAME « » (GAME/SUB.TITLE) SUB.TITLE. GAME: PROG-, PROG+. VOL-, VOL+. SUB.TITLE: SUB.TITLE,...
  • Page 30 OFF ( «ON/OFF» ( ON ( « ». MENU, PROG.+/- VOL.+/- PROG+/- NTSC. S-VIDEO. PROG+/- VOL+/- VOL+/- SRS Labs., Inc.
  • Page 31 PROG+/- VOL+/- CLOCK, PROG+/- VOL+/- VOL+ PROG+/- VOL+/- PROG+/- PROG+/- VOL+/- VOL+/-...
  • Page 32 PROG+/- VOL+/- 1. LANG. ( VOL +/- « » VOL+/- VOL +/- VOL +/- VOL+/- PROG+/- MENU,...
  • Page 33 PROG+/- VOL +/- VOL +/- VOL +/- VHF-L., VHF-H. UHF. VOL +/- VOL +/- VOL +/- VOL +/- VOL +/- COLOUR SYS. PROG+/- VOL +/- VOL +/- VOL +/-...
  • Page 34 » »...
  • Page 38 (25 ) PAL/SECAM BG/DK NTSC 3.58, NTSC 4.43 V stereo SCART, S-Video 2 12 35% 80% 90 260 , 50/60 733 485 529...
