Hyundai H-LCD703 Instruction Manual

Portable lcd color tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

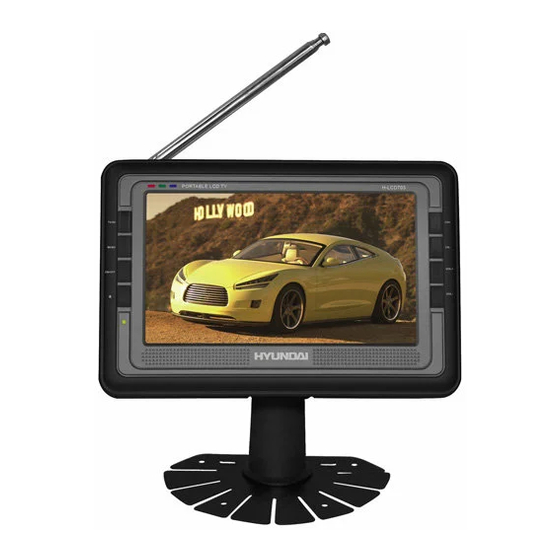

H-LCD703
Portable LCD Color TV
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-LCD703 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai H-LCD703

Summary of Contents for Hyundai H-LCD703

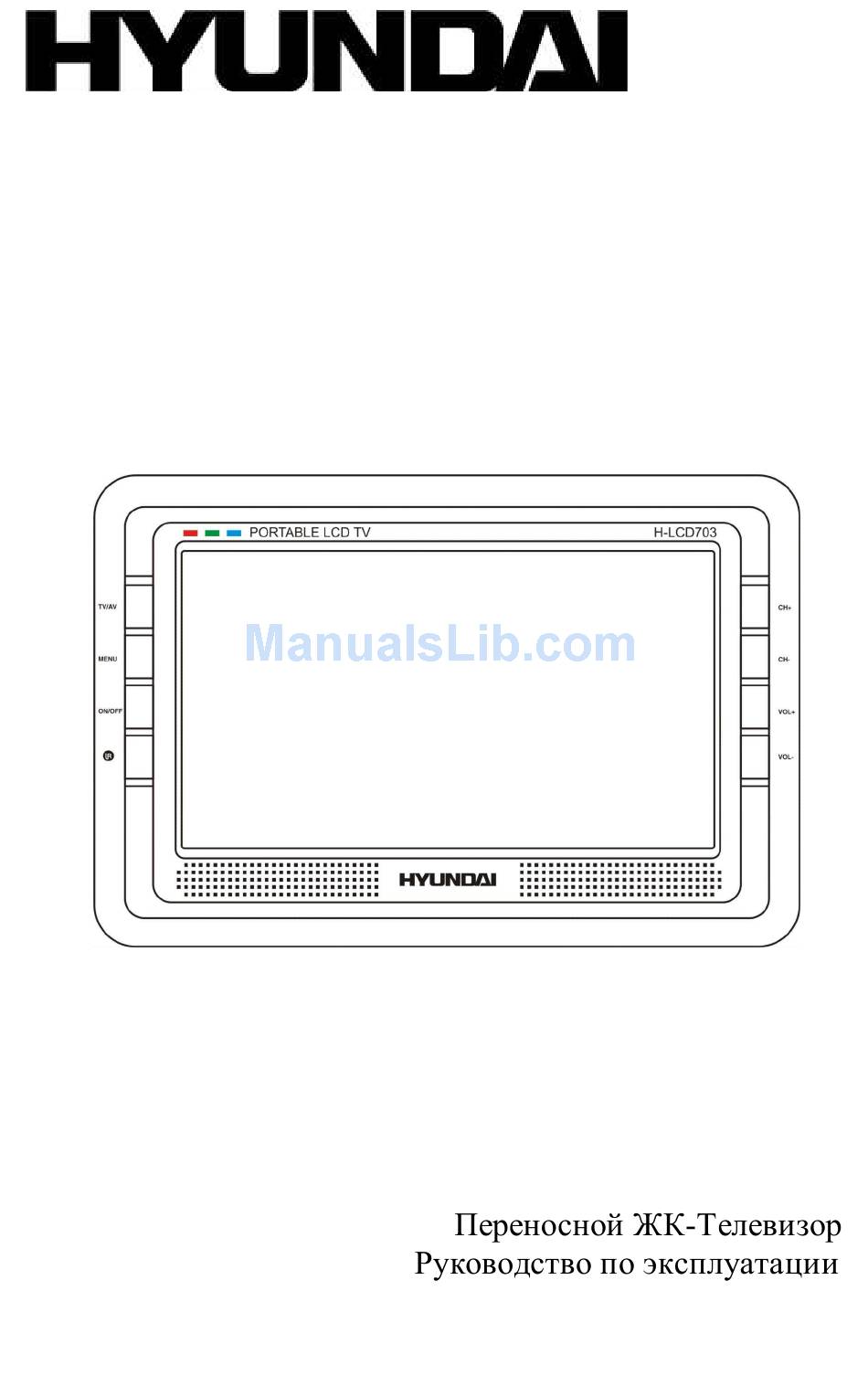

  • Page 1 H-LCD703 Portable LCD Color TV Instruction manual...

  • Page 2: Table Of Contents

    Dear consumer! Thank you for purchasing the TFT-LCD color television. To enjoy the features of this unit and to ensure safety and years of trouble-free operation, be sure to carefully read this manual and follow the instructions contained herein Contents Contents..................2 Caution ..................3 Accessories..................3...

  • Page 3: Caution

    Caution Never attempt your own maintenance. If something appears strange, please turn the TV off and consult your TV dealer. The TV is composed of many delicate electronic components that can be damaged or broken if you open the TV or attempt to modify it.

  • Page 4: Aspect

    Double-side adhesive tape for base support Car adaptor Remote control Antenna cable (75Ohm) Aspect Main Part FRONT 1. TV/AV Shift 2. Menu 3. Standby Power on/off 4. Remote receiving window 5. Power indicator 6. Telescopic antenna 7. TFT-LCD screen 8. Channel+ option 9.

  • Page 5: Remote Control

    BACK 13.Loudspeaker 14.Antenna IN jack 15.Earphone jack 16.AV OUT jack 17.AV IN jack 18.12V DC IN jack Remote control 1. Menu 2. Volume control 3. Mute 4. Picture mode 5. Channel key 6. Channel shift 7. Horizontal 8. Vertical 9. Channel select 10.
  • Page 6 (Channel selection) Press CH , the number of TV channel increases. Press CH , the number of TV channel decreases. VOL - / + (Volume adjust) Press VOL - , the volume of TV set decreases. Press VOL + , the volume of TV set increases. MODE (Mode): By pressing this button, users can realize the five picture mode of Standard, Soft, Vivid, Light and Personal.

  • Page 7: Power Selection

    Power Selection 220V AC adapter AC adapter (refer to product tag attached to the AC adapter) supplies power to the television from 220V alternating current. Automobile storage battery with 12V DC Use automobile adapter (suitable for vehicles with negative grounding) to supply power to the television from the automobile's storage battery.
  • Page 8 Connection Method of AV Input 1.Insert the external video cord into the yellow port of the AV exchange head, the left sound track into the white port and the right sound track into the red port. Then plug the AV exchange head in AV1/IN jack. 2.Insert the external video cord into the yellow port of the AV exchange head, the left sound track into the white port and the right sound track into the red port.

  • Page 9: Menu Operation

    Menu operation Connect the power and turn on the power switch. Extend the antenna. Use the CH +/CH - buttons to find the necessary channel. Use the VOL +/VOL- button to regulate the volume level. Press the MENU button on the unit or remote control to select among different Menu pages, i.
  • Page 10 Game: Press VOL +/VOL - to enter the game. VOL- - leftwards, VOL+ - rifgrwards, CH-+ - rotate the game by 360 degrees. Press POWER ON/OFF to exit game and resume to picture or video status. Note: When play games under weak or no signal, the game bar will twist slightly. It is recommended to switch to video status before play the game again.
  • Page 11 Menu System Press CH +/CH - to select and press VOL +/VOL - to change setting. Color-Sys: select color system in your country as follows: AUTO, PAL, SECAM. Note: Please choose carefully this system correctly. Otherwise, it may cause athromatic or inferior color. It is recommend to select on AUTO position. Sound-Sys: Select appropriate sound system in your country as follows: BG5.5 m, I6.0 m, DK6.5 m and L6.5 m.

  • Page 12: In Order To Receive Clearer Picture

    choose target channel (it means the channel has been chosen, when the color of the channel number's change to red), press VOL +/VOL - to add or reduce the number, then press CH +/CH - to choose current channel number, press VOL +/VOL- to realize the function.

  • Page 13: Before You Request Repair Service

    Before you request repair service The following occurrences do not indicate that the television is faulty. Before you request repair, follow the listed methods to check the device. Occurrences Possible reasons No picture and sound Battery pack is exhausted or not making contact, AC adapter or automobile adapter is not properly connected.

  • Page 14: Specification

    Specification Product name: 7" portable LCD color television Receivable channels: 48.25 MHz - 863.25 MHz Resolution: 1440(H) x 234(V) Brightness: 300 cd /m² Contrast: 150:1 Audio input: 0.3W Response Speed (ms): R: 30 / F: 50 View Angle: 120 (V), 120 (H) Connectors: external antenna input jack, stereo earphone jack, audio/video input jack, external power input jack.
  • Page 15 ................15 ............16 .................16 ..................17 ...............18 ............20 ..............20 ................22 ......25 ........26 .............27...
  • Page 16 40° . 20° 60° .
  • Page 17 TV/AV TFT-LCD 12. .
  • Page 18 AV OUT AV IN 12V DC IN AV/TV Power CH+, CH-. ((0-9) - / - - ): «- / - -»,...
  • Page 19 VOL - / + ( VOL - VOL + MODE ( POWER ( MENU ( MUTE ( VOL+/ VOL- CALL (Call): TIMER ( LANG ( CALE ( / CH , VOL+/ VOL- AV ( TV / AV): TV / AV. AUTO ( : 16:9, 4:3.
  • Page 20 220 AC DC12V.
  • Page 21 AV1/IN AV2/IN Power CH-/CH+ TV/ AV (ON/OFF)
  • Page 22 CH +/- MENU « » MENU, « ». CH +/-, VOL +/-, CH +/-, VOL +/- CH +/-, VOL +/- CH +/-, VOL +/- CH +/-, VOL +/- NTSC « » MENU, « ». CH +/-, VOL +/-, CH +/-, VOL +/-, CH +/-,...
  • Page 23 VOL +/-, VOL +/-, VOL+ - VOL- - . CH+ - 360. POWER ON/OFF, « » MENU, « ». CH +/-, VOL +/-, VOL +/-, CH +/-, VOL + - VOL +/-, +/-, VOL + - CH +/-, VOL +/-, «00:00», VOL +, VOL -,...
  • Page 24 CH +/-, VOL +/-, « » MENU, « ». CH +/-, VOL +/-, CH +/-, VOL +/-, : AUTO, PAL, SECAM. CH +/-, VOL +/-, (BG5.5 m, I6.0 m, DK/L6.5 m). « ». VOL +/-, +/-, VOL +/-, : 16:9, 4:3. «...
  • Page 25 VOL+/- : V-L, V-H, UHF. +/-, CH +/-, VOL +/-, CH +/-, VOL +/-, CH +/-, VOL +/-, CH +/-, VOL +/-, VOL +/-, VOL +/- MENU, CH +/-, NTSC. VOL +/-. CATV.
  • Page 26 TV/AV? « »...
  • Page 27 : 7" : 48.25 - 863.25 : 1440 ( ) x 234 ( ) : 300 / ² : 150:1 ( ): R: 30 / F:50 : 120 ( ), 120 ( ) (12 ) : 210 x 139 x 26...
