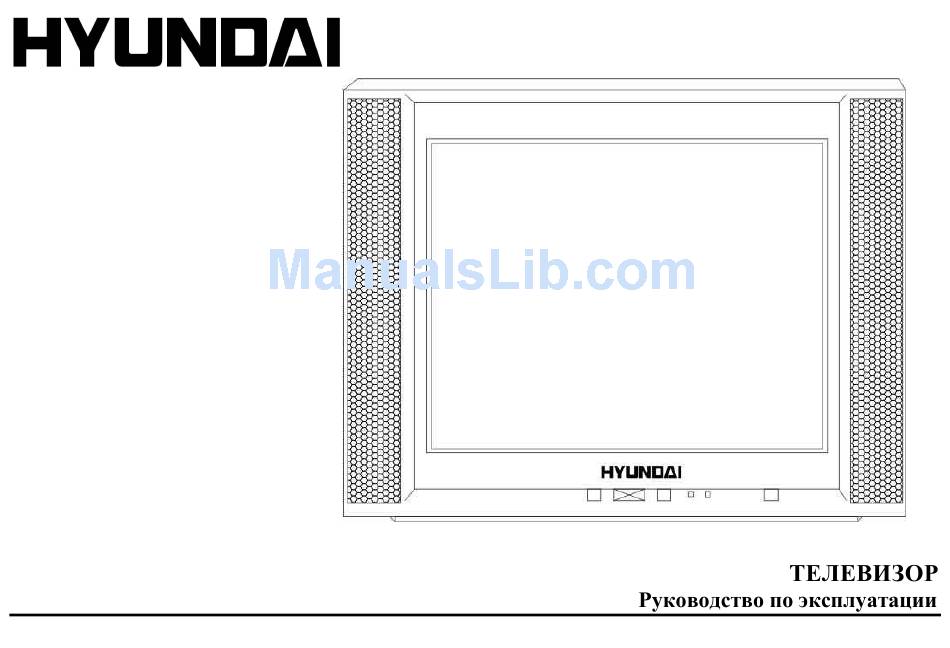

  • Page 1 H- TV2100PF COLOUR TELEVISION Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for buying a HYUNDAI television. Before operating the unit, please read this manual thoroughly, and retain it for future reference. Table of contents Table of contents ................................... 2 Important safeguards ..................................3 Colour TV features..................................3 Preparation ....................................

  • Page 3: Important Safeguards

    Important safeguards · Before the first connecting of the appliance check that voltage indicated on the rating label corresponds to the mains voltage in your home. · Do not use the color television for any other purposes than those described in this instruction manual. ·...

  • Page 4: Preparation

    · Real time On/Off programmable timer · 2 front speakers · Multifunctional colored Russian / English OSD · Hyperband CATV tuner · "Blue screen" function · Adjustment resume function Preparation Connecting to an aerial or cable television network To view television channels correctly, a signal must be received by the set from one of the following sources: - an outdoor aerial;...
  • Page 5 Input and output terminals...

  • Page 6: Remote Control

    Remote control Power (Stand By) button POWER Press this button to tern the TV on/off. Press any Number PROG-, PROG+ Button, picture and sound will come on within a few seconds. MUTE Mute button Press once to mute the sound, press again to return to previously set sound level. Sound system button Press this button to select the correct sound system.
  • Page 7 Lock button LOCK The key is to prevent a child watching the TV. Q.VIEW Press this button to return to the previously viewed program. AV button Press this button to display external video signal such as VCR or CD video player. AV will be displayed on the screen.

  • Page 8: Front Panel Controls (Depending On The Model)

    RED* GREEN* Color buttons YELLOW* In Teletext mode, the same color page number which is on the bottom of screen will BLUE* respond to pressing these color keys. (Option) NOTE: * - these buttons are applicable only to Teletext models. Front panel controls (depending on the model) If you lose the remote control or if remote control is broken, you can use the front panel controls, that: ·...

  • Page 9: Picture Menu

    6. SEARCH Press VOL+ or VOL- buttons to start searching. The VOL- button searches for lower-numbered channels. When a TV station signal is received, the searching will stop. 7. ASM Press VOL+ or VOL- buttons, then the TV set will automatically search from V-L band to U band. Picture menu ·...

  • Page 10: Selecting Program

    If you set the item is TIMING ON, you can set the time of TV ON and TV OFF. 3. TV ON Set the time when the TV set turn on. 4. TV OFF Set the time when the TV set turn off. 5.

  • Page 11: Troubleshooting Guide

    The information is divided into numbered page (see diagram): Part Contents Selected page number Current page number or search indications Broadcasting channel identity Date and time Text Status information To activate the Teletext mode and display the contents page, follow the instructions below: 1.
  • Page 12 Check aerial for broken wires. Adjust fine tuning control. Check if system switch is correct. Check if on/off switch is on . Try different channel, if OK probably station trouble. Poor sound, picture OK Re-orient aerial (if indoor type). Probably local interference, such as an appliance. Adjust fine tuning control.
  • Page 13 Adjust fine tuning control. Try different channel, if OK probably station trouble. Check aerial for broken wires. Distorted picture Re-orient aerial (if indoor type). Adjust fine tuning control. Check if system switch is correct. Try different channel, if OK probably station trouble. Weak reception on some channels Check aerial connections on back of set.

  • Page 14: Cleaning

    Check if station is broadcasting color. Adjust color control. Check if system switch is correct. Malfunctions of Remote control Check batteries in Remote control. No remote control Check batteries in Remote control. On Screen Display Control outside Check if system switch is correct. the screen Cleaning 1.
  • Page 15 Power supply 150-260 V, 50/60 Hz Power 80 W Weight 22.9 kg Dimensions (W H D) 602 mm 488 mm 457 mm Remote control (1 pc) Supplied accessories Batteries (2 pcs)
  • Page 16 HYUNDAI....................................16 ................................17 ..............................18 ....................................18 ............................20 )..... 22 ..................................23 ................................23 ..................................23 .................................... 24 ..................................24 ................................. 24 )...................... 25 ........................26 ..................................29 ..............................29...
  • Page 17 · · · · · · · · 5º 40º . · · · · · · · · · · · · · ·...
  • Page 18 · · · · · · · · · · · · · « » · PROG+, PROG- PROG-, PROG+, 0,1,..., 9 · · ·...
  • Page 19 VCR (...
  • Page 20 POWER MUTE 5.5M 6.0M 4.5M 6.5M -/-- 99 - PROG +/- PROG+ PROG- VOL+/- P.P.
  • Page 21 « » SLEEP Q.VIEW VCR ( MENU REAVEAL* CONCEAL MODE REAVEAL MODE . REVEAL MODE CONCEAL MODE CONCEAL REAVEAL . SIZE* HOLD* INDEX* MIX* TELETEXT ON MIX MODE TELETEXT OFF...
  • Page 22 SUBPAGE* «0001», 0-9. «****». SUBPAGE : * - · · PROG+ PROG-) · VOL+ VOL-) · MENU). · TV/AV) · MUTE) PROG+ PROG-. VOL+ VOL-.
  • Page 23 VOL+ VOL- ( VOL+ VOL- 6,0 , 4,5 , 6,5 5,5 . VOL+ VOL-. VOL- VOL+ VOL- · PROG+ PROG- VOL+ VOL-. · NTSC SECAM. VOL+ VOL-...
  • Page 24 4. C VOL+ VOL-. 12:00, 11:58:00. 12:00:00. · 0-9. -/-- , · PROG+ PROG-. PROG + PROG- · LOCK LOCK...
  • Page 25 · · · · · ON/MIX 100). 1...9 OFF. · ON/MIX · REVEAL...
  • Page 26 · · STOP · SIZE ·...
  • Page 29 21² (54c ) PAL/SECAM BG/DK NTSC 3,58, NTSC 4,43 RCA ( SCART ( 5º 40º...
  • Page 30 35% - 80% 150-260 , 50/60 22.9...
