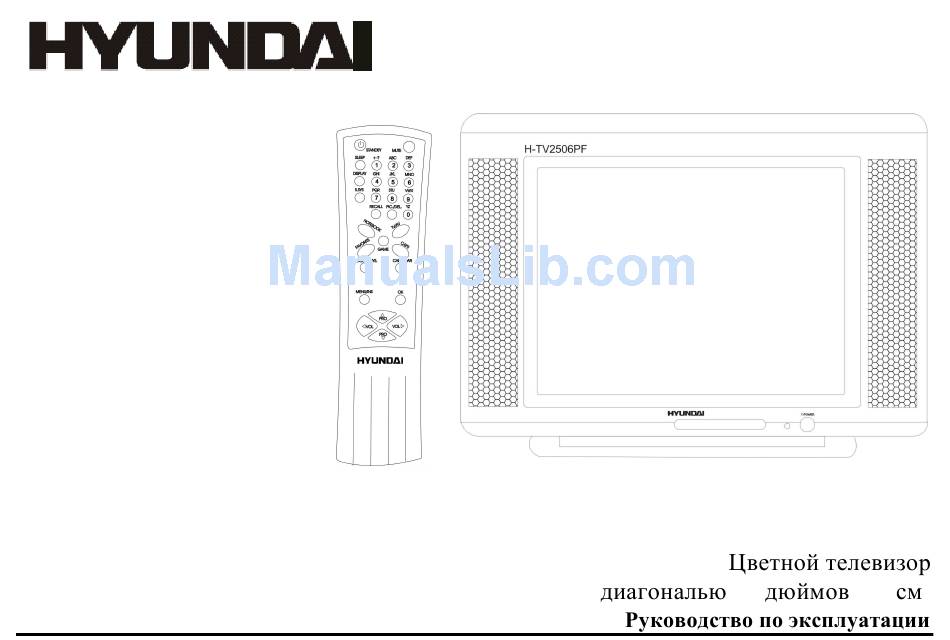

  • Page 1 H-TV2506PF 25"(63 cm) COLOUR TELEVISION Instruction manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ....................................... 2 IMPORTANT SAFEGUARD ......................................3 COLOR TV FEATURES....................................... 4 1. DESCRIPTION AND PREPARATION................................... 5 2. OPERATION OF REMOTE CONTROL ................................. 9 3. MENU OVERVIEW......................................12 4. TV OPERATION........................................13 5. ADVANCED FUNCTIONS ....................................21 6.

  • Page 3: Important Safeguard

    IMPORTANT SAFEGUARD WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION To reduce the risk of electric shock, do not attempt to open the cabinet. There are no parts inside you can service yourself. Refer all servicing to qualified personnel.

  • Page 4: Color Tv Features

    COLOR TV FEATURES Color systems - PAL, SECAM, NTSC3.58 &NTSC4.43 Sound systems - DK,BG Sound Effect - B.E, Treble, Bass, Balance, S.E Preset Programs - 100 Preset Method - Auto Search, Manual Store, Fine Tune Tuning Method - Voltage Synthesized Frequency Range - Hyper Band Tuner Voltage Range...

  • Page 5: Description And Preparation

    1. DESCRIPTION AND PREPARATION 1.1 INSTALLATION OF ANTENNA Connect the 75 OHM coaxial cable from the antenna to the antenna jack on the rear panel, as shown above. NOTE: For better reception, especially in outlying area or where ghost or interference happens, an external roof-mounted antenna is recommended. For UHF TV reception, use the specified UHF antenna.
  • Page 6 1.3 EXTERNALCONNECTION NOTE: The S-video input and video input 1 are sharing the same channel, therefore cannot based simultaneously. The AUDIO/VIDEO input terminals on the side panel (if provided) and rear terminals can be connected to VCR AV, LD player, VCD player or the satellite receiver/decoder output terminals. The AUDIO/VIDEO output can be connected to other TV monitor or VCR for video monitoring or Recording.

  • Page 7: Front Panel

    1.4 FRONT PANEL 1. POWER BUTTON To turn ON/OFF the TV set. 2. REMOTE SENSOR To receive the infra-red signals from remote handset. 3. PROGRAM( ) BUTTONS Select program number cyclically. To turn on the TV when it is in standby mode.
  • Page 8 1.5 REAR TERMINAL & SIDE AV 1. 75 OHMANTENNA INPUT 2. SCART AV INPUT/OUTPUT 3. AV 1 INPUT 4. S-VIDEO INPUT...

  • Page 9: Operation Of Remote Control

    2 OPERATION OF REMOTE CONTROL 2.1 DESCRIPTION OF REMOTE CONTROL KEYS INTRODUCTION OF KEY FUNCTION This TV features with a full-function remote control handset. For a more compact remote unit design, some of the keys are multiple with more than one function.
  • Page 10 12. (0-9) DIGIT KEYS To select program number directly. To select 0-9 digits, A-Z(or a-z) letters, common marks and punctuation marks when writing data or information to be stored in notebook. 13. PICTURE/ DELETE BUTTON Cyclically select the default setting level of picture. Within the on-screen menu of FAV.CH, press to delete the undesired channel NO. In notebook mode, to delete the word or symbols previously stored.
  • Page 11 The lifetime of the batteries may last up to one year, depending on how often the remote control is used. For the best performance, the batteries should be replaced on a yearly basis, or when remote operation becomes erratic. Be sure to place the batteries in the correct direction. Do not mix old and new batteries, or different types.

  • Page 12: Menu Overview

    3. MENU OVERVIEW MAIN MENU SUB-MENU SUB-MENU ENTRY CONT BRIGHT COLOR PICTURE TINT ± 00 SHARP PIC.M DYNAMIC/PERSONAL/MILD/STANDARD ON/OFF SOUND BASS ± 00 TREBLE ± 00 BALANCE ± 00 NATURAL/NEWS/SPACIAL/PERSONAL ON/OFF COLOR AUTO/443PAL/SECAM/443NTSC/358NTSC SOUND BG/DK LANGUAGE ENGLISH / RUSSIAN SETTING AUTO SLEEP PRESENT STORE TO...

  • Page 13: Tv Operation

    MAIN MENU SUB-MENU SUB-MENU ENTRY CLOCK 0:13 OFF TIMER OFF/ONCE/DAILY 0:00 TIMER ON TIMER OFF/ONCE/DAILY 0:00 POSITION POSITION BAND VHFL/VHFH/UHF PRESET MANUAL UP/DOWN SKIP ON/OFF FINE UP/DOWN AUTO MEMORY 4. TV OPERATION 4.1 BASIC OPERATION 4.1.1 POWER ON Press POWER button on the main unit to turn on/off the TV set. If the standby indicator lights up, TV is in standby mode.

  • Page 14: Sound Adjustments

    Then press VOLUME UP/DOWN button on the set or remote control, you can move the yellow cursor right or left for selecting other pull-down menus in the main menu bar. 4.1.4 SELECT MENU ENTRIES After selecting function menu, press PROGRAM UP/DOWN button to move cursor up/down to select the menu entries (e.g.

  • Page 15: Channel Preset

    4.2.2 BASS, TREBLE, BALANCE Activate SOUND menu. Press PROGRAM UP/DOWN button to select BASS. Press VOLUME UP/DOWN to adjust for your favorable sound, e.g., adjust BASS to +30. The same adjusting procedure is applicable to treble and balance. BASS: Decrease the low frequency (bass) by adjusting toward -50, increase the low frequency (bass) by adjusting toward +50. TREBLE: Decrease the high frequency (treble) by adjusting toward -50,increase the high frequency (treble) by adjusting toward +50.

  • Page 16: Manual Search

    Press the OK button to start the auto searching, and then all available channels will be stored from No.1 and upward in order. Auto-searching will stop after all the frequency bands are searched, and the program of the first searched, channel 1, will show. If you want to exit auto search, just pressing the VOLUME DOWN button.

  • Page 17: Channel Adjustment

    4.3.4 CHANNEL ADJUSTMENT After the auto or manual search, you may want to rearrange the program numbers in which the channels are stored, channel adjustment function may be useful to you. Activate FEATURE menu. Press the PROGRAM UP/DOWN button to select CH. ADJUST. Press the OK button to display CH ADJUST menu entries as shown.

  • Page 18: System Setting

    Press the PROGRAM UP/DOWN button to select FAV. CH3, then press the VOLUME UP/DOWN button to select program number you want to store into this position, such as 08. Repeat the above procedure to set other five favorite channels. You can delete the undesired channel No. with the DELETE button and reset another favorite channel No. The menu will time out and disappear from the screen when you finish, or you can press the MENU button to clear the menu from the screen.

  • Page 19: Selecting Channels

    4.5 OPERATION OF WATCHING TELEVISION 4.5.1 SELECTING CHANNELS Press PROGRAM UP/DOWN button to change the channel ascendingly / descendingly; Use the digit keys on the remote control directly to select the channel. 4.5.2 PICTURE ADJUSTMENT Adjust the level of CONTRAST, BRIGHTNESS, COLOR, SHARPNESS, and TINT to get the most favorable picture Activate the PICTURE menu.

  • Page 20: Off Timer

    Press the VOLUME UP/DOWN button to select among OFF, ONCE, DAILY. If you select DAILY or ONCE, press PROGRAM DOWN button to 0:00,then press the VOLUME UP/DOWN button to set the ON time, e.g. 22:59. Press PROGRAM DOWN button to select POSITION, then Press VOLUME UP/DOWN button to select your desired channel No., e.g. 11. NOTES: OFF: The On Timer is set to off and will not operate.

  • Page 21: Advanced Functions

    4.8 PICTURE MODE SELECTION There are four choices for picture modes. Picture mode can be set by user according to his personal preference. SHORT-CUT OPERATION Press the PICTURE button on the remote control, the current picture mode will display on the screen, for example, the STANDARD picture mode.
  • Page 22 After having pushing all the box into , and all the boxes change into apples as shown, you win the game for this level, it will enter next higher level automatically. If you finish the game of level 20, it will return to level 1 again. NOTES: Playing the game for the first time, only level 1 can be selected and played.
  • Page 23 1. Press the CAPS button on the remote control to turn the capital function off, the color of CAPS on the screen will turn into blue; 2. Press" 2" key twice to input the letter" a"; pressing" 2"key repeatedly can cyclically input" 2, a, b" and" c". The same procedure is applicable to other digit or small letters input.

  • Page 24: Biological Clock

    5.4 BIOLOGICAL CLOCK This function can make you know about the low tide, high tide and critical stage of you intellect, emotion and force at a certain day so as to live harmony with the rhythms of environment. Activate FEATURE menu. Press the PROGRAM UP/DOWN button to select Biological Clock.

  • Page 25: Troubleshooting

    6. TROUBLESHOOTING 6.1 PROBLEMS OF PICTURE The most common types of picture problems are as follows: IGNITION Black spots or horizontal streaks appear, or the picture flutters or drifts. This is usually caused by interference from car ignition system, neon lamps, electric drills, or other electrical appliances. GHOSTS Ghosts are caused by the television signal following two paths.

  • Page 26: Problems In Operation

    6.2 PROBLEMS IN OPERATION If this unit does not seem to operate properly, check the POSSIBLE CAUSES below. SYMPTOM POSSIBLE CAUSES NO POWER The power cord is not connected. The POWER BUTTON on the main unit is off. NO TV RECEPTION The antenna connector is not connected, or wires are broken.

  • Page 27: Specifications

    7. SPECIFICATIONS MAIN UNIT TV Receiving System PAL, SECAM, BG, DK AV Color System PAL, SECAM, NTSC 3.58 & 4.43 Tuner HYPER BAND TUNER Number of Preset Program 100 (0-99) Channel Indicator On screen display Function Adjust Indicator Menu display Language of OSD English, Russian RF Aerial Input...
  • Page 28 ..........................................28 ........................................29 ............................................. 30 ........................31 ........................................35 ........................................38 ..................................... 39 ....................................49 ................................... 53 ....................................55...
  • Page 30 PAL, SECAM, NTSC3.58. NTSC4.43 DK, G Hyper Band 180-240 B, ~50 1 AV 1 S-Video 1 AV SCAR " " ( 1 0 - 120 » (...
  • Page 31 « » 300- 180-240 ,...
  • Page 32 / DVD- S-Video AUDIO/ VIDEO , LD- VCD- AUDIO/ VIDEO Video 1, Video 2 TV/ AV...
  • Page 33 TV/AV...
  • Page 34 1. 75- SCART AV S-VIDEO...
  • Page 35 MUTE TV/AV COLOR SYS DISPLAY CALENDAR « » « » « » SLEEP SLEEP », SLEEP, «OFF». GAME NOTEBOOK...
  • Page 36 12. (0 9) 0 9, A-Z ( a-z), PICTURE/*DEL FAV.CH ( RECALL MENU SOUND SYS CAPS...
  • Page 38 ± 00 ± 00 ± 00 ± 00 DK/BG ENGLISH / RUSSIAN...
  • Page 39 0:13 0:00 0:00 4.1.1 POWER TV/AV 4.1.2 POWER 4.1.3 MENU...
  • Page 40 4.1.4 4.1.5 65%. MENU, 4.1.6 DISPLAY DISPLAY 4.1.7 MUTE «MUTE». MUTE...
  • Page 41 4.2.1 « ». « 00». 4.2.2 « ». +30. + 50. + 50. (-50) (+50). 4.2.3 « »...
  • Page 42 4.2.4 SURROUND SURROUND OFF SIMULATED SURROUND 1 SURROUND 2 SIMULATED . SURROUND 1 SURROUND 2 4.3.1 VOL-. MENU, 4.3.2 ., 30.
  • Page 43 VOL- VOL+ MENU, 4.3.3 MENU, 4.3.4 ., 30. ., 22, MENU,...
  • Page 44 4.3.5 ., 18. VOL-, MENU, 4.3.6 FAVORITE. ., 8. MENU,...
  • Page 45 4.4.1 . (1) . (2). VOL+, , 443PAL, SECAM, 443NTSC 358NTSC. « »,...
  • Page 46 4.5.1 4.5.2 NTSC...
  • Page 47 4.6.1 ., 12:15. 4.6.2 PRO. 0:00, ., 22:59. PRO. ., 11.
  • Page 48 4.6.3 PRO. 0:00, ., 22:59. 4.7 TV/AV TV/AV S-Video S-Video S-Video PICTURE PIC.M.
  • Page 49 MENU, MENU 5.1. GAME « », « », « » 12 (13 20)
  • Page 50 CALENDAR CALENDAR MENU. 1900 2099. NOTEBOOK 0 9. : aBc@21cn.com. CAPS CAPS «2» « ». «2» «2, , b» «c». CAPS CAPS...
  • Page 51 «2» « ». «2» «2, , » « ». « », «@» «1», «@». «1» «+ - . , : ; ( = ) @ % $ # ! ?». DELETE INSERT (MENU) OVER «SAVING» ( : «Give your mother a call». 0:00 OFF, ., 17:40.
  • Page 52 MENU, VIDEO 1, 4.2)
  • Page 53 « ». « »...
  • Page 54 POWER VOL. MUTE. COLOR SYS.
  • Page 55 PAL SECAM, BG, DK PAL SECAM, NTSC 3.58&4.43 HYPER BAND TUNER 100 (0 99) , 1.0Vp-p, RCA , 0.5 Vrms , 0.5 Vrms 180 240 , 50 25 (63 700X473X550 DC 3 (2...
