H-TV1403
COLOUR TELEVISION
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-TV1403 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai H-TV1403

Summary of Contents for Hyundai H-TV1403

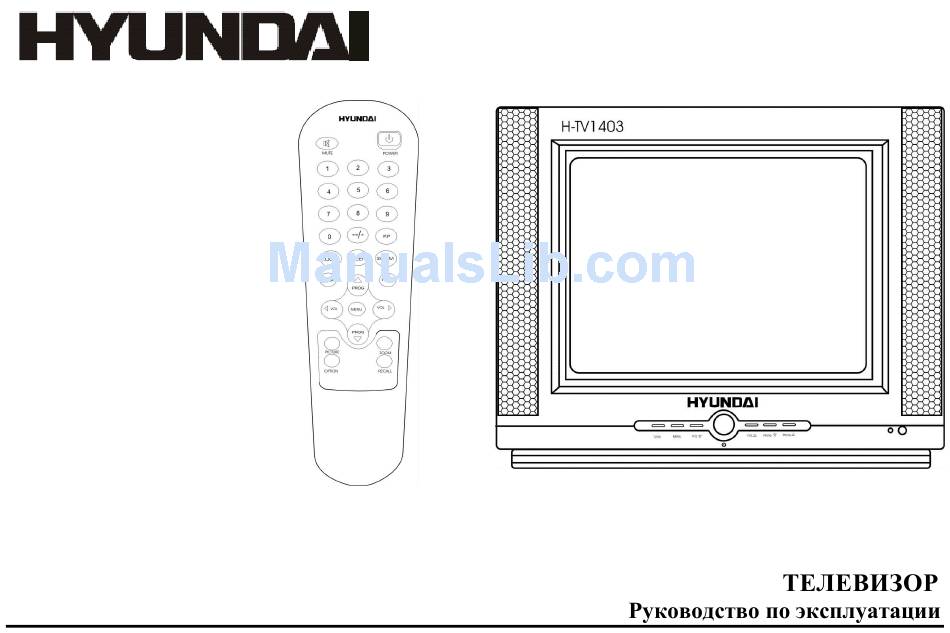

  • Page 1 H-TV1403 COLOUR TELEVISION Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for buying HYUNDAI color TV. Before operating the unit please read this manual thoroughly and retain it for future reference. Table of contents Table of contents..........................................2 Important safeguard ........................................3 Colour TV features ........................................4 Preparation.............................................

  • Page 3: Important Safeguard

    Important safeguard · Before the first connecting of the appliance check that voltage indicated on the rating label corresponds to the mains voltage in your home. · Do not use the color television for any other purposes than those described in this instruction manual. ·...

  • Page 4: Colour Tv Features

    Colour TV features · 14 (37 cm) · PAL/SECAM BG/DK receiving and playback · NTSC 3,58 & 4,43 playback only · 2 front speakers · Stereo, maximum output power 2x1.5 W · 255 program memory · Auto & manual programmable scan ·...
  • Page 5 Inserting the batteries in the remote control 1. Detach the battery cover on the rear of the remote control and insert two batteries size AAA according to the diagram in the battery compartment. Note: 1.The batteries will last at least one year under normal operation. 2.If you do not intend to use the remote controller for a long period of time, remove them to avoid damage due to leakage.
  • Page 6 Input and output terminals Side AV jacks...

  • Page 7: Control Location

    Rear AV jacks Control location 1. Remote Sensor 2. Power Indicator 3. AV/TV Button 4. Menu Button 5. Volume Down Button 6. Power Switch 7. Volume Up Button 8. Program Down/Up Buttons...

  • Page 8: External Connection

    External connection VTR, DVD connection · To view the program played on VTR, connect the VIDEO OUT and AUDIO OUT of the VTR to the VIDEO IN jack (VIDEO), AUDIO IN (AUDIO) jacks on the rear panel of the unit respectively. This unit has AV inputs, AV IN on the rear Cabinet are for VIDEO mode using. ·...

  • Page 9: Remote Control

    Remote control...
  • Page 10 POWER Power (Stand By) button Press this button to turn the TV on/off. Press this button or Program Button, picture and sound will come on within a few seconds. MUTE Mute button Press this button to mute the sound, red MUTE will display on the screen. Press it again of press VOL to return to previously set sound level.
  • Page 11 LOCK Lock button The key is to prevent a child watching the TV. Press this button to display password menu. Input your correct password to enter LOCK menu. Set CHANNEL LOCK ON or OFF to lock or unlock current channel. Set AV LOCK ON or OFF to lock or unlock all AV.

  • Page 12: Basic Operation

    Basic Operation Power ON/ OFF Connect to the mains Insert the mains plug of the unit into 110~240V AC mains outlet, unplug it when the unit will not be used for a long period of time. How to power on/off 1.
  • Page 13 After presetting: Press PROG. button to check every channel, if the image or sound of one channel is abnormal, please press SYSTEM button to enter SYSTEM menu and adjust colour or sound . Search preset 1. Use PROG. button or number buttons to select one channel you desired. 2.

  • Page 14: Picture Menu

    3. Press PROG. button to select REMEMBER ON. 4. Press VOL button to set REMEMBER to OFF. 5. Press MENU button to exit menu, and when you press PROG. button to select program to watch, this program you have set will be skipped. 6.

  • Page 15: Audio Menu

    ITEM VOL- VOL+ BRIGHT DARK BRIGHT CONTRAST LIGHT HEAVY COLOR WEAK STRONG SHARP HIGH 3. Color temperature has three modes: Normal/Cool/Warm, it is usually set to Standard mode. 4. Press MENU button sequentially to return to the normal picture. Audio menu Sound control 1.

  • Page 16: Clock Menu

    Clock menu Function Selection CLOCK setup 1. Press MENU button four times to enter CLOCK menu as the figure shown. 2. Use PROG. button to select the item you need to change, then use VOL button to set the clock. You can set minutes with VOL button and set hour with VOL button.
  • Page 17 2. Press PROG. button to select the item you need to change, then use VOL button to adjust the settings or enter the next OSD. 3. You can select OSD language in English/Turkish/Russian/Arabic/Persian. 4. When you set SCREEN SAVER to ON, screen will display a lovely pet when there is no signal transmission. When SCREEN SAVER is set to OFF, screen will display black or snowy picture when there is no signal.

  • Page 18: System Menu

    System menu System Setup 1. Press MENU button five times or SYSTEM button directly to enter SYSTEM menu as the figure shown. 2. Press PROG. button to select the item you need to change, then use VOL button to adjust the item. 3.

  • Page 19: The Causes Of Interference

    The causes of interference Incorporated in your TV receiver are the most up to-date devices to eliminate interference. Local radiation however, can create disturbances which visibly affect your picture. Proper installation, a good aerial are your best safe-guards against these disturbances. RF INTERFERENCE Moving ripples across the screen are caused by nearby transmitting or receiving-short-wave radio equipment.

  • Page 20: Troubleshooting Guide

    Troubleshooting guide · Before requesting servicing, check following points please. Malfunction Check and adjustment No picture, no sound Try different channel, if OK probably station trouble. Check aerial connections on back of set. Check aerial for broken wires. Adjust fine tuning control. Check if system switch is correct.
  • Page 21 Check if system switch is correct. Double image Try different channel, if OK probably station trouble. Check aerial connections on back of set. Check aerial for broken wires. Re-orient aerial (if indoor type). Adjust fine tuning control. Lines in picture Try different channel, if OK probably station trouble.

  • Page 22: Cleaning

    Adjust fine tuning control. Adjust brightness control. Adjust contrast control. Adjust color control. Check if system switch is correct. No color Try different channel, if OK probably station trouble. Check aerial connections on back of set. Check aerial for broken wires. Re-orient aerial (if indoor type).

  • Page 23: Specifications

    Specifications Color picture tube 14 (37 cm) Receiving and playback system PAL/SECAM, BG/DK Play back system NTSC 3.58, NTCS 4.43 Antenna input 75 Ohms Audio/Video side input AV Stereo Audio/Video back input/output AV Stereo Sound Power 2 x 1.5 W Operating temperature 40 C Operating humidity...
  • Page 24 HYUNDAI..........................................24 ........................................25 ....................................... 26 ..........................................27 ................................... 30 ..................................... 31 ................................... 32 ........................................35 ................................... 35 ........................................37 ..........................................38 ..........................................39 ..........................................39 ......................................... 41 .......................................... 42 ...................................... 43 ..........................................45 ....................................46...
  • Page 25 · · · · · · · · 5º 40º . · · , 10 · · · · · · · · · · ·...
  • Page 26 · · · · · 14" (37 · PAL / SECAM BG / DK · NTSC 3,58 4,43 · · 2 1,5 · · · 4 · · · · · · · AV · ·...
  • Page 27 300- 75-300 300- 75-300...
  • Page 28 1,5 ,...
  • Page 30 AV/TV...
  • Page 31 · ·...
  • Page 33 POWER MUTE SYSTEM -/--, PROG PROG. PROG. (STANDART, SOFT, VIVID, LIGHT) (PERSONAL). MENU RECALL SLEEP « » : 10 20 30 - « »,...
  • Page 34 LOCK « », « », « », « »; « », «2173» TV/AV TV/AV TV AV. DISPLAY « » ( « » PICTURE (PICTURE). OPTION ZOOM...
  • Page 35 110~240 . « ». POWER POWER POWER PROG. MENU 6 PRESET: PROG. AUTO-SEARCH. MENU.
  • Page 36 PROG. SYSTEM, SYSTEM PROG. MENU 6 PRESET. PROG. (SEARCH). MENU. MENU, 1-6. PROG. MENU 6 PRESET. PROG. (FINE). VOL , MENU, 1-6. PROG. MENU 6 PRESET.
  • Page 37 PROG. REMEMBER ON. REMEMBER OFF. MENU, REMEMBER ON. MENU PICTURE PROG. PICTURE...
  • Page 38 ITEM VOL- VOL+ MENU, MENU 2 VOL- VOL+ PROG. MENU,...
  • Page 39 MENU 4 PROG. MENU, MENU OPTION,...
  • Page 40 PROG. « » PROG. DISPLAY, MENU, RECALL RECALL DISPLAY, POWER « », 2 (888): RECALL, DISPLAY, . "123","321"),...
  • Page 41 MENU 5 SYSTEM, PROG. /PAL/N3.58/N4.43/SECAM ( : 4.5M/5.5M/6.0M/6.5M ( SYSTEM, «--» MENU,...
  • Page 42 » »...
  • Page 46 (14 ) PAL/SECAM BG/DK NTSC 3.58, NTSC 4.43 V stereo V stereo 2 1,5 35% 80% 150 240 , 50/60 412 370 331...
