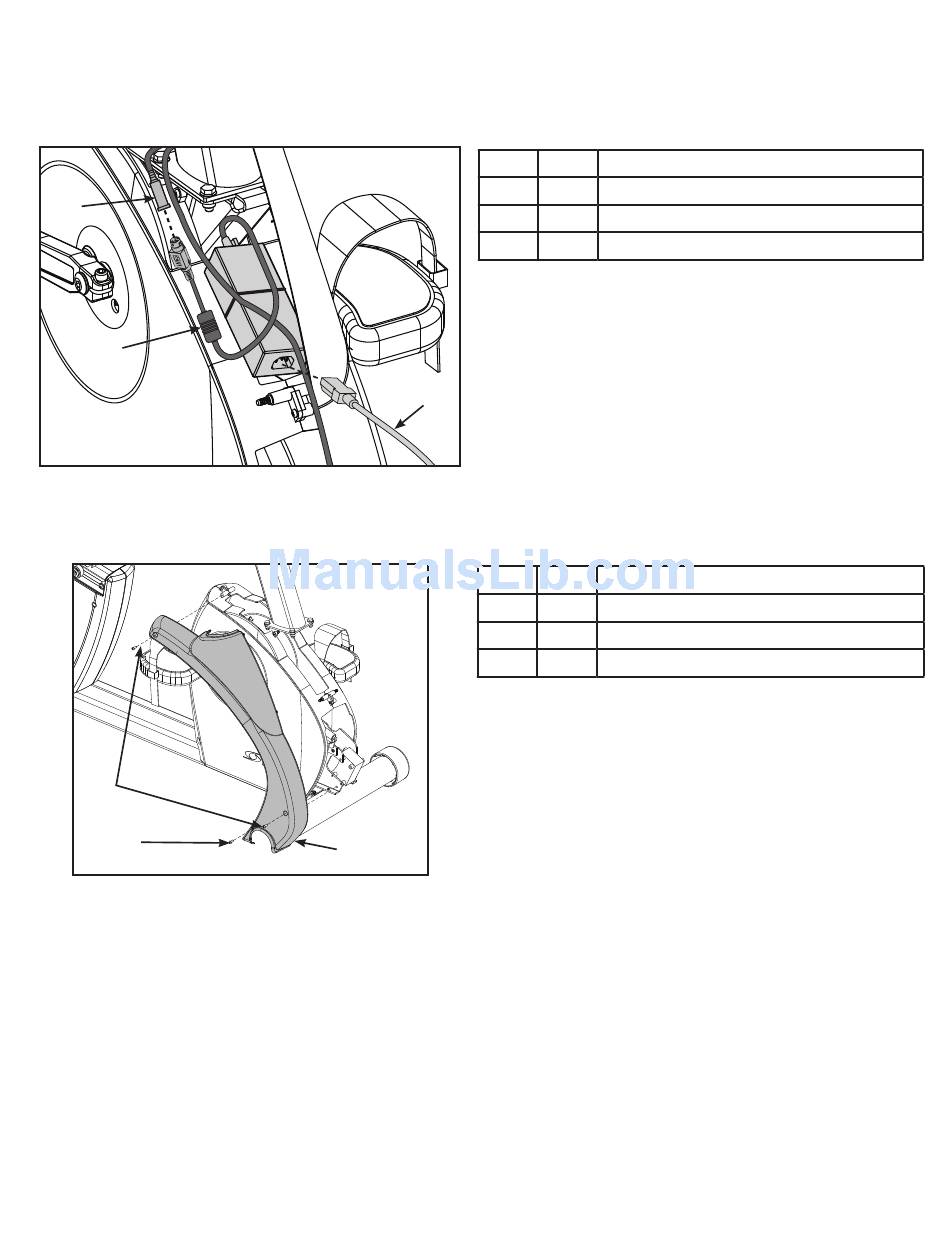

8. Connect the console cable's DIN connector to the power supply output. Make sure the two
connectors snap firmly together and can not be pulled apart without pulling the sleeve back to
release it.
1
2
Install the front covers.
1. Install front right cover with three screws using a Phillips screwdriver.
1
2
In addition to three mounting screws per front cover, there are five plastic connectors that secure the
front covers together. Ensure that all four plastic connectors are inserted properly in each front cover.
Cybex Owner's Manual
1
2
3
3
1
2
3
3
24
Item Description
Power Supply Output
Console Cable DIN Connector
11 Power Cord
Item Description
15 Screw, 8-16 x .50" (3)
16 Screw, 8-16 x .75" (1)
4 Front Right Cover
