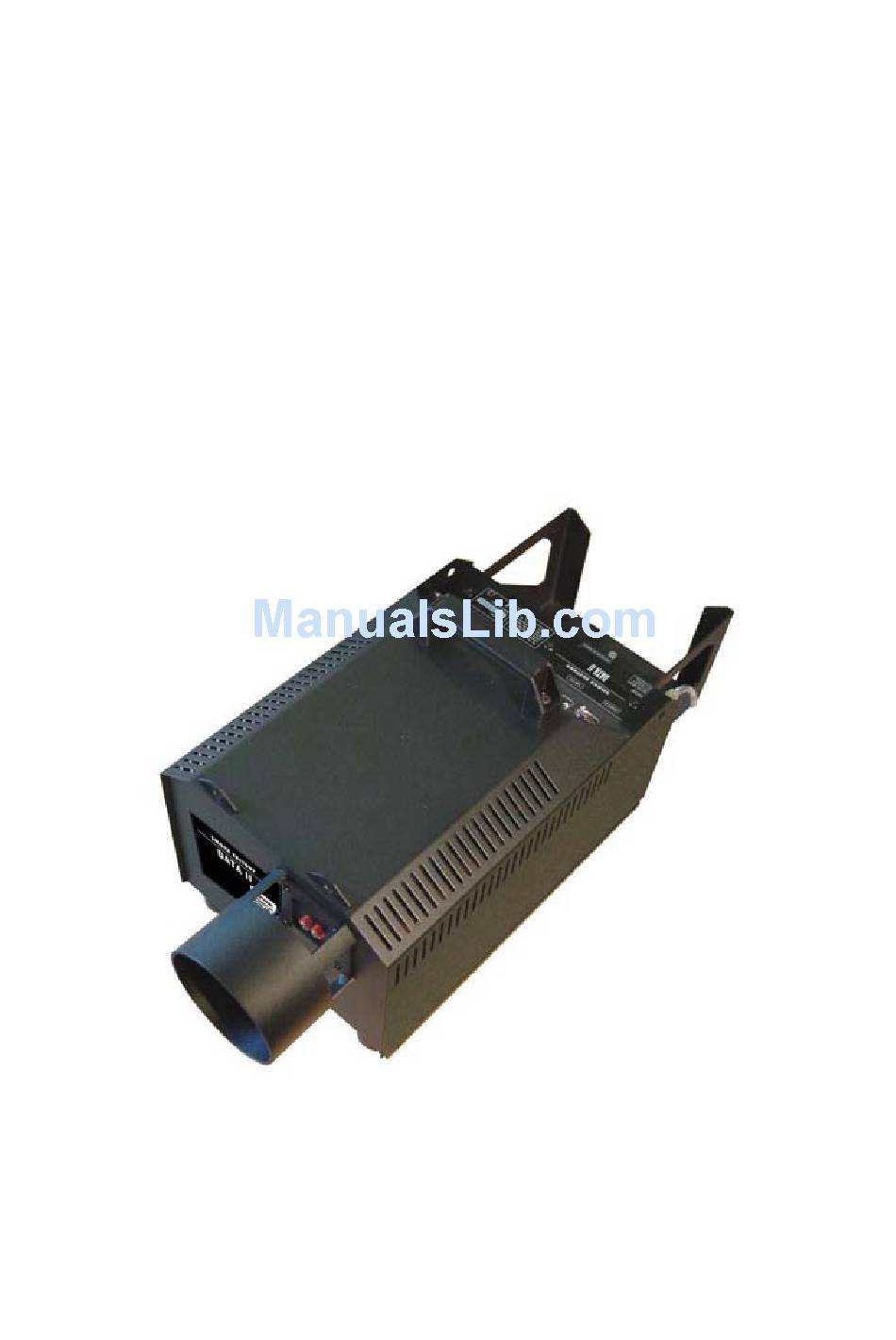

SMOKE FACTORY
Operating Instructions
DATA II

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Data ll and is the answer not in the manual?

Questions and answers

Related Manuals for Smoke Factory Data ll

Summary of Contents for Smoke Factory Data ll

  • Page 1 SMOKE FACTORY Operating Instructions DATA II...

  • Page 2: Table Of Contents

    Wiring of DMX und Analog 0-10V DC ............10 ................11 PERATING WITH INTERNAL IMER ......................12 UTOSTART CLEANING, CARE AND MAINTENANCE.............. 12 TROUBLE-SHOOTING ....................13 SPECIFICATIONS......................14 WARRANTY CONDITIONS ..................15 SMOKE FACTORY issue 1.0 Page: 2 of. 15 FOG GENERATORS NEBELMASCHINEN...

  • Page 3: Introduction

    • Spilled fluid or splashed fluid droplets can cause slip hazard. Mop up the fluid and dispose of it according to regulations SMOKE FACTORY fog fluids is an enviromentally safe product and it can be recycled biologically. • Artificially-made fog can be produced in many different ways. The method used here to produce fog, with a device which works according to the vaporizer principle, is the most harmless one.

  • Page 4: Description Of Parts

    • XLR socket 0-10 v (+) DC and radio remote • Fuse for external fan • Socket for external fan • Main cable • Fluid bottle holder • • Fluid tube with quick coupler SMOKE FACTORY issue 1.0 Page: 4 of. 15 FOG GENERATORS NEBELMASCHINEN...

  • Page 5: Front View

    SMOKE-FACTORY – DATA II Operating Instructions 3.1 Front view: • Handle • Tube connector and nozzles SMOKE FACTORY issue 1.0 Page: 5 of. 15 FOG GENERATORS NEBELMASCHINEN...

  • Page 6: Operating The Data Ii

    Push the brass coupling into the brass collar until you hear a click.The brass collar is now locked firmly. 4.3 Fog fluids The DATA II has been designed to be used with SMOKE FACTORY fog fluids. • FAST-FOG Thick fog, very quickly dispersing.

  • Page 7: Operating The Data Ii

    Please note that the Mode button is not designed to scroll between the different menus. If you press the mode button longer than 2 sec. the display will change into the timer menue. SMOKE FACTORY issue 1.0 Page: 7 of. 15 FOG GENERATORS NEBELMASCHINEN...

  • Page 8: Control Choices

    Now the pump and the fan can be adjusted via the desk. When you switch off the DMX signal, the machine will be switched off automatically after 15 seconds. SMOKE FACTORY issue 1.0 Page: 8 of. 15 FOG GENERATORS NEBELMASCHINEN...

  • Page 9: Stand-Alone

    Adjust the fan output with the Up/Down-buttons (0-99%). Press the Enter-button once to start the fan.The output can be changed during the process. The fan will work until the Enter-button is pressed again SMOKE FACTORY issue 1.0 Page: 9 of. 15 FOG GENERATORS NEBELMASCHINEN...

  • Page 10: Operating Cable Remote And 0-10V (+) Dc

    Pin 1 = Ground (Masse), Pin 2 = DMX-, Pin 3 = DMX+, Pin 4 und 5 = nc 3pol-XLR (analog): Pin 1 = Ground (Masse), Pin 2 = 0-10 V + DC in, Pin 3 = 12 V + DC out, max. 50mA SMOKE FACTORY issue 1.0 Page: 10 of. 15 FOG GENERATORS NEBELMASCHINEN...

  • Page 11: Operating With Internal Timer

    Please note that with beginning of the fogging process the external fan also will start . Pressing the Mode button once, will bring you to „Escape“ SMOKE FACTORY issue 1.0 Page: 11 of. 15 FOG GENERATORS NEBELMASCHINEN...

  • Page 12: Autostart

    • For cleaning the surface the device use a suitable, solvent-free cleaner. • The differens between DATA II/pump and fluid bottle shut not mor than 1,5m. SMOKE FACTORY issue 1.0 Page: 12 of. 15 FOG GENERATORS NEBELMASCHINEN...

  • Page 13: Trouble-Shooting

    Solution: Disconnect the machine from the main supply for a moment and then re-connect it. E-1/E-2/E-3 appears on the LED display • Please send the machine to the service-station or your local dealer. SMOKE FACTORY issue 1.0 Page: 13 of. 15 FOG GENERATORS NEBELMASCHINEN...

  • Page 14: Specifications

    Fuse external fan: 5 Ampere slow blow Dimension (L x B x H ): 55 x 32 x 47 cm Weight without Fluid: 20 kg Options: Cable remote Radio remote Tube SMOKE FACTORY issue 1.0 Page: 14 of. 15 FOG GENERATORS NEBELMASCHINEN...

  • Page 15: Warranty Conditions

    DATA II Operating Instructions 9 Warranty conditions For the fog machine DATA II SMOKE FACTORY guarantee is: 1. Free of charge, subject to the following conditions (No. 2 - 6) we will repair any defect or fault in the unit if it is caused by a proven factory fault and has been advised immediately after appearance and within 24 month of delivery to the end user.
