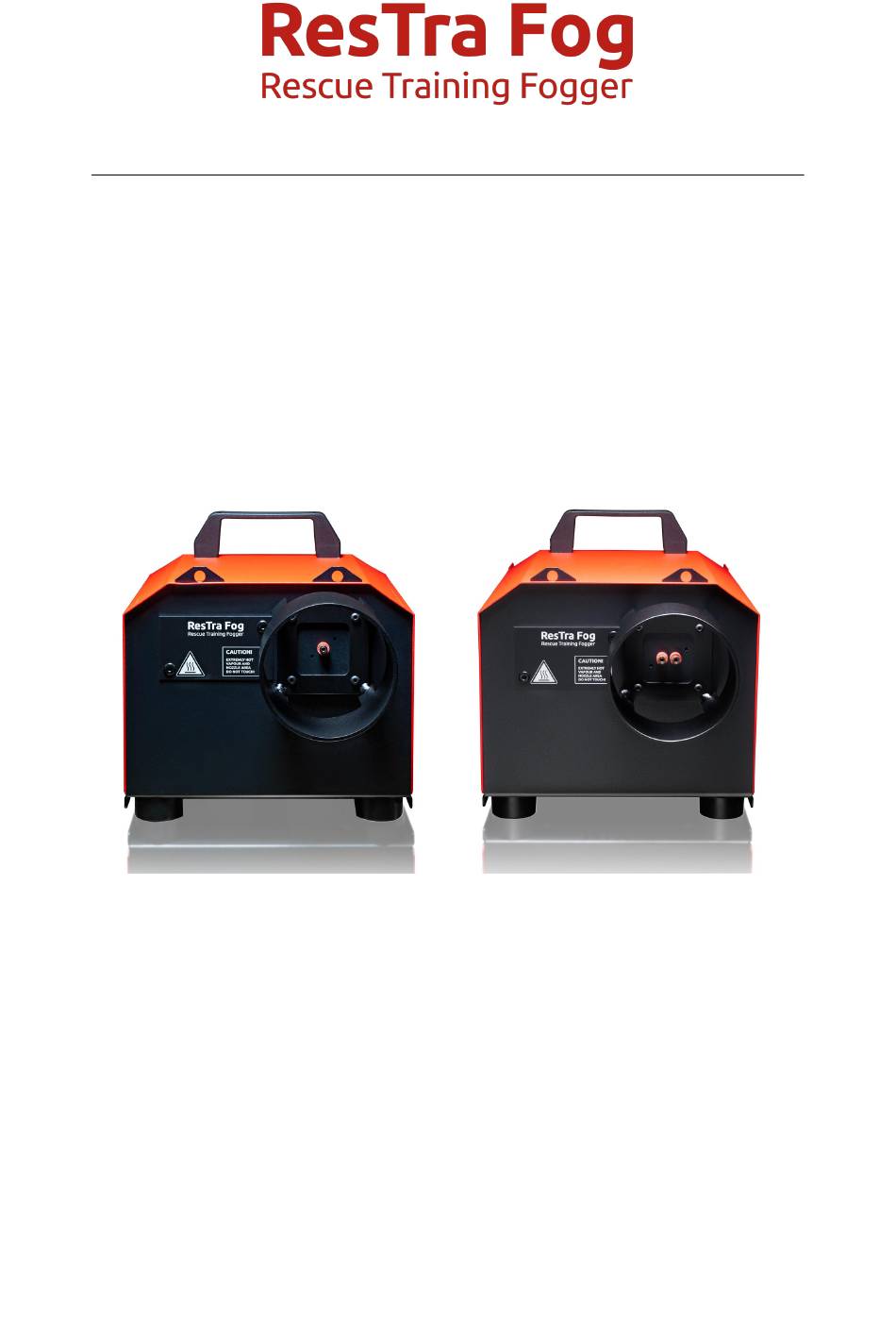

  • Page 1 RTF-1300 / RTF-2600 Operating Manual Stand: November 11, 2024 ResTraFog by Smoke Factory GmbH Schulze-Delitzsch-Str. 8A 30938 Burgwedel Germany...
  • Page 2 Contents Contents 1. Preambel 2. Scope of Delivery 3. General Information 4. Technical Specifications 4.1. Dimensions and Weight ......4.1.1.
  • Page 3 Contents 12. Warranty Conditions 13. Contact A. List of Figures B. Document Changes...
  • Page 4 1 PREAMBEL 1. Preambel All Smoke Factory fog machines are quality products at the cutting edge of technol- ogy. Our many years of experience, the continuous development and optimization of our products, especially from a practical point of view, have made us one of the leading manufacturers of fog machines in the field of stage technology.
  • Page 5 3 GENERAL INFORMATION 2. Scope of Delivery • 1 RTF-1300 / RTF-2600 • 1 Canister lid for a 5 L canister 3. General Information This document contains the operating manual for the machines „RTF-1300 / RTF-2600“, which will be referred to as „the machine“. If there are differences between the two models, they will be specified separately.
  • Page 6 4 TECHNICAL SPECIFICATIONS 4. Technical Specifications 4.1. Dimensions and Weight The following section provides the dimensions and weights of the two fog machines listed separately. 4.1.1. RTF-1300 • Procedure: Fog generation based on the vaporizer principle • Power: 1300 Watts •...
  • Page 7 4 TECHNICAL SPECIFICATIONS 4.1.2. RTF-2600 • Procedure: Fog generation based on the vaporizer principle • Power: 2600 Watts • Supply Voltage: 240 V / 50 Hz • Tank Capacity: 5 L • Fog Output: Adjustable from 1% to 99% in 1% increments •...
  • Page 8 4 TECHNICAL SPECIFICATIONS – Pin 2 = 0-10 V+ DC in – Pin 3 = 12 V+ DC out – max. 50 mA • DMX512 Port: 5-pin in / out – Pin 1 = Ground – Pin 2 = DMX- –...
  • Page 9 5 SAFETY INSTRUCTIONS 5. Safety instructions • Caution, hot vapour! • Keep a safe distance of at least 1.50 m from the mist outlet for people and heat- sensitive objects. • It is strictly forbidden to handle the mist outlet during operation! A minimum dis- tance of 60 cm must be maintained with flammable materials.
  • Page 10 6 DEVICE IDENTIFICATION 6. Device Identification • [1] Fog Outlet • [2] Control Panel • [3] Analog Port • [4] DMX in/out • [5] Fluid Hose • [6] Power Cable • [7] Fluid Canister Holder • [8] Handle • [9] TIMER LED •...
  • Page 11 7 COMMISSIONING Figure 2: RTF-1300 / RTF-2600 Back Figure 3: RTF-1300 / RTF-2600 Display board 7. Commissioning • Plug the power cable into a grounded outlet. • Observe the operating voltage! • The illuminated digital display on the control panel will show a "P" followed by two numbers.
  • Page 12 7 COMMISSIONING WARNING! Ensure the fluid tank is kept clean to prevent the pump from drawing in contaminants. Even minor impurities can cause the device to clog. 7.1. Location Selection The location of the RTF-1300 / RTF-2600should meet the following criteria: •...
  • Page 13 8 OPERATING THE RTF-1300 / RTF-2600 7.3. Fluid WARNING! The RTF-1300 / RTF-2600must only be operated with the following Rescue Training Fogger Fluids: • Basic Fluid • Premium Fluid Using non-original fog fluids or additives will clog the heating element and void the warranty.
  • Page 14 8 OPERATING THE RTF-1300 / RTF-2600 Note DMX always takes priority. This means that control via DMX 512 takes precedence over all other control options. 8.2.1. Operation via Analog Input Connect the fog machine to a 3-pin XLR socket with an analog console or with the optional cable remote control.
  • Page 15 8 OPERATING THE RTF-1300 / RTF-2600 Setting the DMX Start Address • Mode: Press until 3 numbers appear on the display. • Up/Down: Set the desired DMX start address. • Enter: Save. Setting the Pump Value • When operating via DMX, the pump values can be set directly on the console. Setting the Fan Value •...
  • Page 16 8 OPERATING THE RTF-1300 / RTF-2600 • The pump output settings can be adjusted at any time during operation by press- ing the Up/Down buttons. 8.2.5. Operation via Timer With the internal timer, the fog time in seconds (1 - 99), pause time in minutes (0.1 - 99), and pump output in percent (1 - 99) can be programmed.
  • Page 17 9 SHUTTING DOWN • Mode: Press briefly to adjust the fog time. • Up/Down: Set the desired fog time. Figure 6: Setting the fog time in seconds (1 - 99). • Enter: Starts the timer with the current settings. Exiting the Timer Mode •...
  • Page 18 10 CARE AND MAINTENANCE 10. Care and Maintenance • Ensure that the ventilation slits do not become clogged with dust. Clean them if necessary. • Avoid overheating the device by adhering to the operating and ambient tempera- ture specifications. Do not direct heat sources directly at the device. •...
  • Page 19 11 TROUBLESHOOTING 11. Troubleshooting The RTF-1300 / RTF-2600is not producing fog • Check external control connections. • Verify the power source. • Check fluid levels. • Ensure a secure connection between the fluid tank and canister lid. • Check the fluid hose for leaks. •...
  • Page 20 12 WARRANTY CONDITIONS Error message E-4 on display • The RTF-1300 / RTF-2600is overheating, and the heater will shut down to cool off. • Unplug the power cable, wait approximately 10 minutes, then reconnect. Error message E-1 on display • Please send the RTF-1300 / RTF-2600to a service center for inspection. 12.
  • Page 21 In case you do send the machine in for warranty repairs, please make sure that the fluid is removed from the bottle. 13. Contact Rescue Training Fogger (ResTraFog) by Smoke Factory GmbH Schulze-Delitzsch-Str. 8A 30938 Burgwedel Tel.: +49 (0) 5139 - 951 42 - 0 E-mail: info@restrafog.com...
  • Page 22 List of Figures RTF-1300 / RTF-2600 Front ......10 RTF-1300 / RTF-2600 Back ......11 RTF-1300 / RTF-2600 Display board .
  • Page 23 B DOCUMENT CHANGES B. Document Changes Table 1: Document Changes Date Changes Editor 11.11.2024 Initial Release...
