- Page 1 WHITE...
-
Page 3: Table Of Contents
User Manual Inspire White HD-SDI DVR Range Contents • Logging in to DVR • Using the front panel • Using infrared remote • Using a mouse • Mouse playback toolbar • Timebar • Live view • Playback • Quickplay • Browse playback •... -
Page 4: User Manual
User Manual Inspire White HD-SDI DVR Range Logging into the DVR A user may be required to login to the DVR to be able to use any of the features. To do this follow the procedure below:- • Front panel Press Menu button Enter password (Default 888888) • Mouse Right click... -

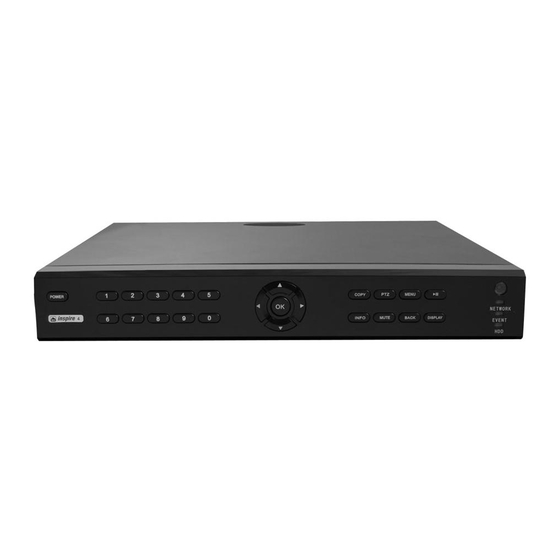

Page 5: Using The Front Panel
User Manual Inspire White HD-SDI DVR Range Using the front panel The front panel functions are common for all types of Inspire DVR. 04-WhiteHD MENU POWER COPY NETWORK INFO MUTE BACK DISPLAY EVENT 08-WhiteHD and 16-WhiteHD DISPLAY MENU BACK MUTE POWER COPY INFO... -
Page 6: Using Infrared Remote
User Manual Inspire White HD-SDI DVR Range Using infrared remote The IR remote functions are common for all types of Inspire DVR. Navigation buttons Move around menu screen, control PTZ cameras OK button Confirm and accept options Power button Switch on / off DVR (requires password) Play &... -
Page 7: Using A Mouse
User Manual Inspire White HD-SDI DVR Range Using a mouse The mouse functions are common for all types of Inspire DVR. A mouse can be used to control all functions of the DVR. Left mouse button Double click to zoom to full screen Right mouse button Display mouse tool bar (requires password) Mouse tool bar... -
Page 8: Mouse Playback Toolbar
User Manual Inspire White HD-SDI DVR Range Mouse Playback Toolbar There are two types of mouse playback toolbars available, Basic and Timebar. Basic mouse toolbar Switch to single channel view Switch to 4 channel view Switch to 9 channel view Switch to 16 channel view Decrease playback speed Change playback direction to backward... -
Page 9: Timebar
User Manual Inspire White HD-SDI DVR Range Timebar Channel number Playback area (double click to switch playback to this time) Zoom out time bar Restore time bar to 24 hour Zoom in time bar Navigate across time bar Switch to full screen video Input specific playback time and date Current playback time Select record types to display in time bar... -
Page 10: Live View
User Manual Inspire White HD-SDI DVR Range Live View To change the multiscreen view on the display press the “Display” key. Pressing the display key multiple times will cycle through all the available screen layouts. If using the USB mouse right click the mouse button and select the desired multiscreen view from the mouse menu. -
Page 11: Playback
User Manual Inspire White HD-SDI DVR Range Playback To enter the playback menu press the “Play/Pause” button on the DVR front panel or IR remote. If using USB mouse right click to display the mouse toolbar and click the “Play” button. -
Page 12: Quickplay
User Manual Inspire White HD-SDI DVR Range Quickplay The quickplay feature is a playback method designed to make playing back footage from a short time ago faster. The default setting for quickplay is 5 minutes, this can be changed from 1-99. If the minutes are changed the DVR will remember this setting until a power off has occurred. -
Page 13: Browse Playback
User Manual Inspire White HD-SDI DVR Range Browse Playback The browse playback feature will playback from midnight on a chosen date. The default setting for browse playback is the current date. If the date is changed the DVR will remember this setting until a power off has occurred. Front panel IR Remote Use Up and Down arrow keys to navigate to... -
Page 14: Playback By Time
User Manual Inspire White HD-SDI DVR Range Playback by Time The Playback by Time feature can be used to playback a specific time and date. The default setting for playback by time is the current date. If the date is changed the DVR will remember this setting until a power off has occurred. DVR Front Panel Press Arrow keys to navigate menu Press Number keys to input desired time and date Highlight Play button and press OK to playback time... -
Page 15: Playback By Event
User Manual Inspire White HD-SDI DVR Range Playback by Event The Playback by Event feature will list events such as Motion detect, Video loss and Alarm input triggers recorded on the DVR. DVR Front Panel Press Arrow keys to navigate menu Press Number keys to input desired start and end time to search Press OK key on Event Type to display drop down list Select which Event Type to search and click OK... -
Page 16: Playback By Timebar
User Manual Inspire White HD-SDI DVR Range Mouse Click time and date boxes to bring up virtual keyboard. Use vitural keyboard to input desired start and end times Click Event Type option to select event type to search. Click View Log button to display results. Double click Left mouse button on event file to playback. -
Page 17: Playback Control
User Manual Inspire White HD-SDI DVR Range Playback Control To control the various playback functions, you can use the following steps: Press Arrow keys to change playback speed and direction. DVR Front Panel Press Display keys to cycle through multiscreen views Press Number keys to display channel full screen With video paused press Left and Right arrow buttons to step by frame When in full screen on single camera press OK key to enter digital... -
Page 18: Copy To Cd/Dvd Or Usb
User Manual Inspire White HD-SDI DVR Range Copy to CD/DVD or USB The DVR is capable of copying recorded footage to the internal CD/DVD or to a USB memory stick, HDD or external CD/DVD writer. Copy by Time DVR Front Panel Press Arrow keys to navigate menu Use Number keys to input desired date Use Number keys to inputs time range to copy in Start and End time... - Page 19 User Manual Inspire White HD-SDI DVR Range Copy by Event Press Arrow keys to navigate menu DVR Front Panel Press Number keys to input desired start and end time to search Press OK key on Event Type to display drop down list Select which Event Type to search and click OK Use Arrow keys to highlight View Log Press OK key to display results...
- Page 20 User Manual Inspire White HD-SDI DVR Range Mouse Click time and date boxes to bring up virtual keyboard. Use vitural keyboard to input desired start and end times Click Event Type option to select event type to search. Click View Log button to display results. Click Left mouse button on event file to mark for copying.
- Page 21 User Manual Inspire White HD-SDI DVR Range Starting the Copy Multiple time ranges can be added to the list and copied at the same time. DVR Front Panel Press Arrow keys to navigate menu Select device to copy to (use Arrow keys and OK key) Select file type (use Arrow keys and OK key) Select desired cameras to copy (use Arrow keys and OK key) Highlight Copy button and press OK to start the copy...
- Page 22 User Manual Inspire White HD-SDI DVR Range Copy Player This option will only appear when performing a Sub Stream backup, you choose whether to copy the Cop Player 2 software or not. Select Camera Select which camera to copy Position number of the copy entries in the queue. Start Time The time the copy will start for each copy entry in the queue End Time...
-
Page 23: Using Cop Player 2 Software
User Manual Inspire White HD-SDI DVR Range Using COP player 2 software When making a backup to CD/DVD or via USB media if the file format chosen is Cop then the Cop Player 2 software is vital in order to playback the recordings. After inserting the disk or USB media containing the copied recordings into a PC double click the Cop Player 2 icon. - Page 24 User Manual Inspire White HD-SDI DVR Range To bring a camera up full-screen, double click on desired camera or use the full-screen icon on the right hand side of the viewer. If required, the recordings can be converted to AVI format, this will enable them to be played back in most viewing applications such as Windows Media Player.
-
Page 25: Smartphone Viewing Setup
User Manual Inspire White HD-SDI DVR Range Smartphone viewing setup All Inspire DVRs can be viewed on smartphones if they are connected to the internet. Requirements Apple iPhone /iPad or smartphones using Android operating system GPRS, 3G or Wi-fi connection DVR connected to the internet Access to phone App store Connecting Connect the DVR to the internet. -
Page 26: Smartphone Viewing
User Manual Inspire White HD-SDI DVR Range Smartphone viewing Viewing the DVR This guide shows how to connect using an Android smartphone, but all smartphone apps require the same information to connect to the DVR. Start TMeye App Press Settings button Start App Press Settings... -
Page 27: Application Controls
User Manual Inspire White HD-SDI DVR Range Application Controls PTZ control Select channel to view Start live view Take a snapshot Settings F. App information View next/previous channels... -
Page 28: Connecting Via Pc
User Manual Inspire White HD-SDI DVR Range Connecting via PC Note: Viewing on a Apple Mac currently not supported. Connecting via Windows PC To start, open up Internet Explorer and type the DVR IP address into the address bar and press enter. -
Page 29: Dvr Settings
User Manual Inspire White HD-SDI DVR Range Live Images Once logged into the DVR the user will be presented with the live images screen. I J K L M N O P Q R S A. Relay Control K. 4 channel view B. -
Page 30: Dvr Log
User Manual Inspire White HD-SDI DVR Range DVR log The DVR keeps a log of events such as illegal power downs, motion detection events, alarm input triggers and more. The user can search for specific times or type of events using the options at the top of the window. The log can also be exported to the remote PC as a html file. This enables the user to be able to copy the log to a removable device or even email it. Note: Searching the full or large sections of the log may take several minutes dependant on amount of event entries. -
Page 31: Copy Over Network
User Manual Inspire White HD-SDI DVR Range Copy over network If there are recordings on the DVR HDD(s) that need to be retrieved remotely this can be done using the copy feature. To use the copy feature: Enter playback mode Select camera, date and click “Query”... -
Page 32: Playback Over Network
User Manual Inspire White HD-SDI DVR Range Playback over network The viewing of recordings stored on the DVR HDD(s) can be done using the Playback feature. Camera Selection Available Times Select Date Playback Controls Timebar To playback images select a camera to play from the camera selection panel. Select a date from the calendar, Highlighted dates indicates that there is recorded footage available, no highlight indicates there is no recordings available. -
Page 33: Talkback
User Manual Inspire White HD-SDI DVR Range Talkback Duplex Talkback The DVR features a full duplex talkback system. When a microphone is connected to the Line Input and a broadcast unit is connected to the audio output of the DVR click the Talkback button. Once Talkback has been selected the audio stream from the DVR Line Input will be played through speakers or a headset connected to the remote PC. -
Page 34: Ptz Control
User Manual Inspire White HD-SDI DVR Range PTZ control The DVR web browser supports control of PTZ cameras if connected and programmed in the DVR. To use the PTZ feature single click on desired camera. It is recommended to only use PTZ control when viewing the Sub Stream. PTZ Speed Select the speed in which the PTZ camera moves Note: This may be limited by the capabilities of the PTZ camera connected...
