I N S P I R E
v2
DVR RANGE
U S E R M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Inspire Blue V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for COP Security Inspire Blue V2

Summary of Contents for COP Security Inspire Blue V2

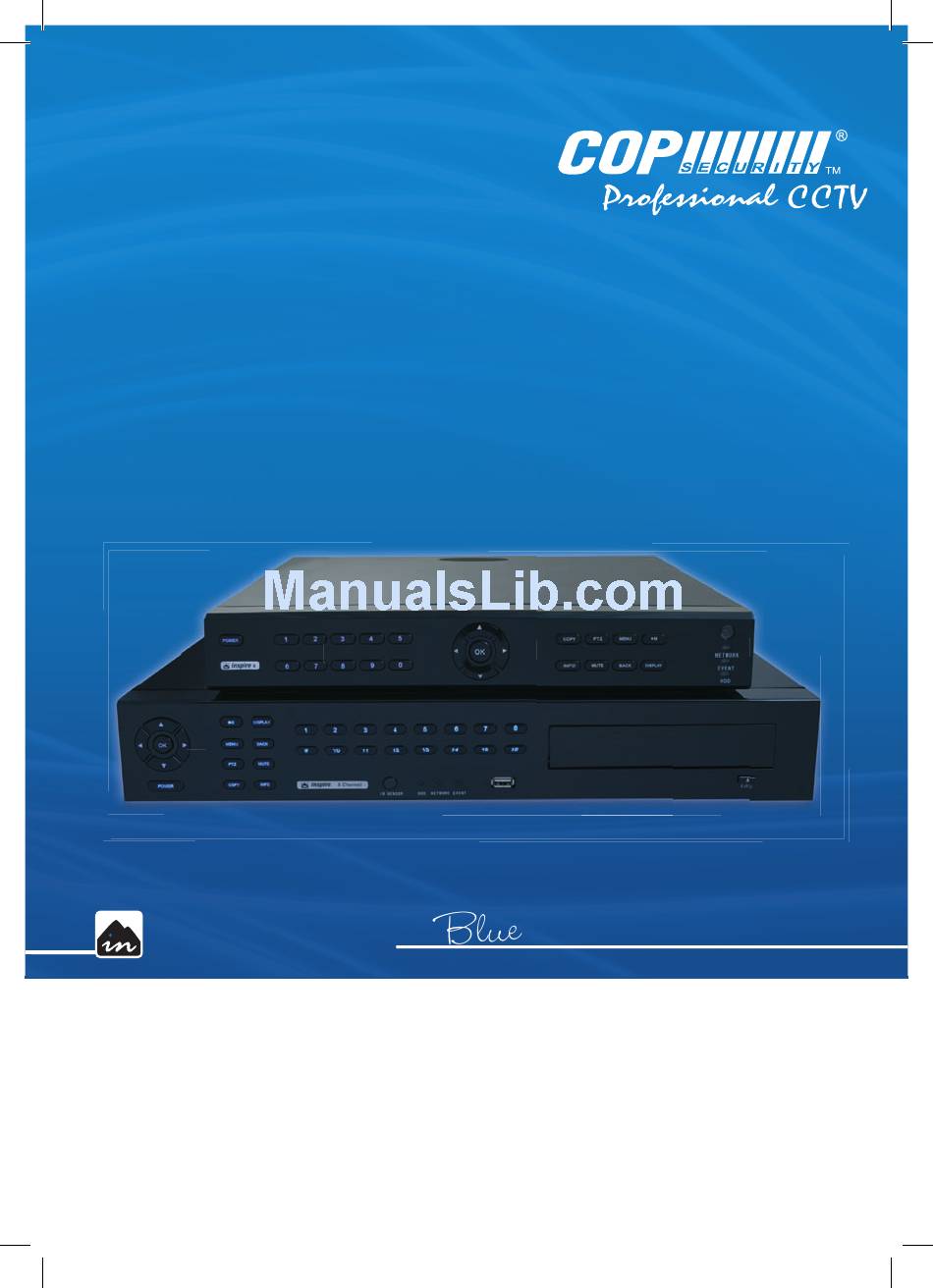

  • Page 1 I N S P I R E DVR RANGE U S E R M A N U A L...

  • Page 3: Table Of Contents

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Contents • Logging into the DVR • Mouse menu • Live viewing • Playback • Smartphone viewing setup • Smartphone viewing • Copy to USB/Disc • Using Cop player 2 playback software • Using internet explorer web browser •...

  • Page 4: Logging Into The Dvr

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Logging into the DVR For a user to be able to use any of the DVR features the user must be logged into the DVR. To log into the DVR use follow the steps: Using DVR Front Panel Press OK key Use ◄...

  • Page 5: Mouse Menu

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Mouse Menu To access mouse menu, click right mouse button. Hide mouse tool bar Access engineer menu Access playback menu Access the copy menu Enable / disable PTZ mode Audio on/off / Mute alarm Display installer information Display single channel full screen Display 4 channels...

  • Page 6: Live Viewing

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Live View Changing Display To change the camera display on the monitor, press “Display” key. Pressing the “Display” key multiple times will cycle through all the available screen layouts. If using the mouse press the right mouse button and select the desired multi screen view from the mouse menu.

  • Page 7: Playback

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Playback Playback By Time To access Playback enter the Playback menu and select required time. DVR Front Panel • Press key to enter search menu • Press ◄►▲▼ keys to navigate • Enter desired time and date using number keys •...
  • Page 8 User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Playback Event To access Playback By Event menu enter the Playback By Time menu and select Playback By Event. Maximum of 200 events listed per search DVR Front Panel • Press key to enter search menu •...
  • Page 9 User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Remote Keyboard • Press key to enter search menu • Press ◄►▲▼ keys to navigate to Playback By Event and press Enter key • Enter desired Start and End Times using ◄►▲▼ to navigate and number keys to enter individual values (Must remember to press enter after each number) •...
  • Page 10 User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Playback Control To control the various playback functions, you can use the following steps: Front Panel • Press ◄►▲▼ keys to change playback speed and direction • Press Display key to cycle through quad screens or full screen cameras •...

  • Page 11: Smartphone Viewing Setup

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Smartphone Viewing Setup All Inspire DVRs can be viewed on smartphones if they are connected to the internet. Requirements Apple iPhone /iPad or smartphones using Android, Symbian or Windows operating systems GPRS, 3G or Wi-fi connection DVR connected to the internet Access to phone App store Connecting...

  • Page 12: Smartphone Viewing

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Smartphone Viewing Viewing the DVR This guide shows how to connect using an iPhone, but all smartphone apps require the same information to connect to the DVR. • Start vMeye App • Press Settings button •...
  • Page 13 User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Application Controls Select channel to view PTZ Control Select next channels Connect/Disconnect Take a snapshot and save to iPhone photos Settings App Information...

  • Page 14: Copy To Usb/Disc

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Copy To Disk Or USB The DVR is capable of copying recorded footage to the internal CD/DVD or via USB to a memory stick, external HDD or external CD/DVD disk drive. Copy By Time DVR Front Panel •...
  • Page 15 User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Remote Keyboard • Press Copy key • Press ◄►▲▼ keys to navigate • Enter desired time and date using number keys • Select desired cameras to be copied • Select desired File Type (◄► to select) •...
  • Page 16 User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Copy By Event Front Panel • Press Copy key on front panel • Press ◄►▲▼ keys to navigate • Highlight Copy By Event and press OK • Enter desired Start and End Times using ◄►▲▼ to navigate and number keys to enter individual values •...
  • Page 17 User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Remote Keyboard • Press COPY key • Press ◄►▲▼ keys to navigate • Highlight Copy By Event and press Enter • Enter desired Start and End Times using ◄►▲▼ to navigate and number keys to enter individual values (remember to press enter after each value) •...

  • Page 18: Using Cop Player 2 Playback Software

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Using COP Player 2 Software When making a backup to CD/DVD or via USB media if the file format chosen is Cop then the Cop Player 2 software is vital in order to playback the recordings. After inserting the disk or USB media containing the copied recordings into a PC double click the Cop Player 2 icon.
  • Page 19 User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 To bring a camera up full-screen, double click on desired camera or use the full-screen icon on the right hand side of the viewer. If required, the recordings can be converted to AVI format, this will enable them to be played back in most viewing applications such as Windows Media Player.

  • Page 20: Using Internet Explorer Web Browser

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Connecting via PC or Apple Mac Connecting via Apple Mac Enter the Mac app store and search for “MeyePro”, once installed refer to page 10 “Smartphone Viewing” for app connection settings. Note: Viewing on a Apple Mac currently only supports live viewing of the DVR, the features listed below for Windows PC’s are not currently available for Apple Mac.

  • Page 21: Dvr Settings

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Live Images Once logged into the DVR the user will be presented with the live images screen. Camera selection Playback Current view mode Talkback Mute audio PTZ control DVR settings DVR log Local record Copy Remote alarm relays Screen view selection...

  • Page 22: Dvr Log

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 DVR Log The DVR keeps a log of events such as illegal power downs, motion detection events, alarm input triggers and more. The user can search for specific times or type of events using the options at the top of the window.

  • Page 23: Copy Over Network

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Copy Over Network If there are recordings on the DVR HDD(s) that need to be retrieved remotely this can be done using the Copy feature. To use the Copy feature: • Click Copy •...

  • Page 24: Playback Over Network

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Playback Over Network Playback by Time The viewing of recordings stored on the DVR HDD(s) can be done using the Playback feature. To playback images enter the desired time into the Play Time field on the right side of the browser and click play.

  • Page 25: Talkback

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 Talkback Duplex Talkback The DVR features a full duplex talkback system. When a microphone is connected to the Line Input (plus model, or audio input 1 on standard unit), and a broadcast unit is connected to the audio output of the DVR click the Talkback button at the top of the browser.

  • Page 26: Ptz Control

    User Manual INS-DVR04V2 INS-DVR08V2 INS-DVR04PV2 INS-DVR08PV2 INS-DVR16PV2 PTZ Control PTZ Control The DVR web browser supports control of PTZ cameras if connected and programmed in the DVR. To use the PTZ feature single click on desired camera (green border highlights selected camera) then press the PTZ button.
