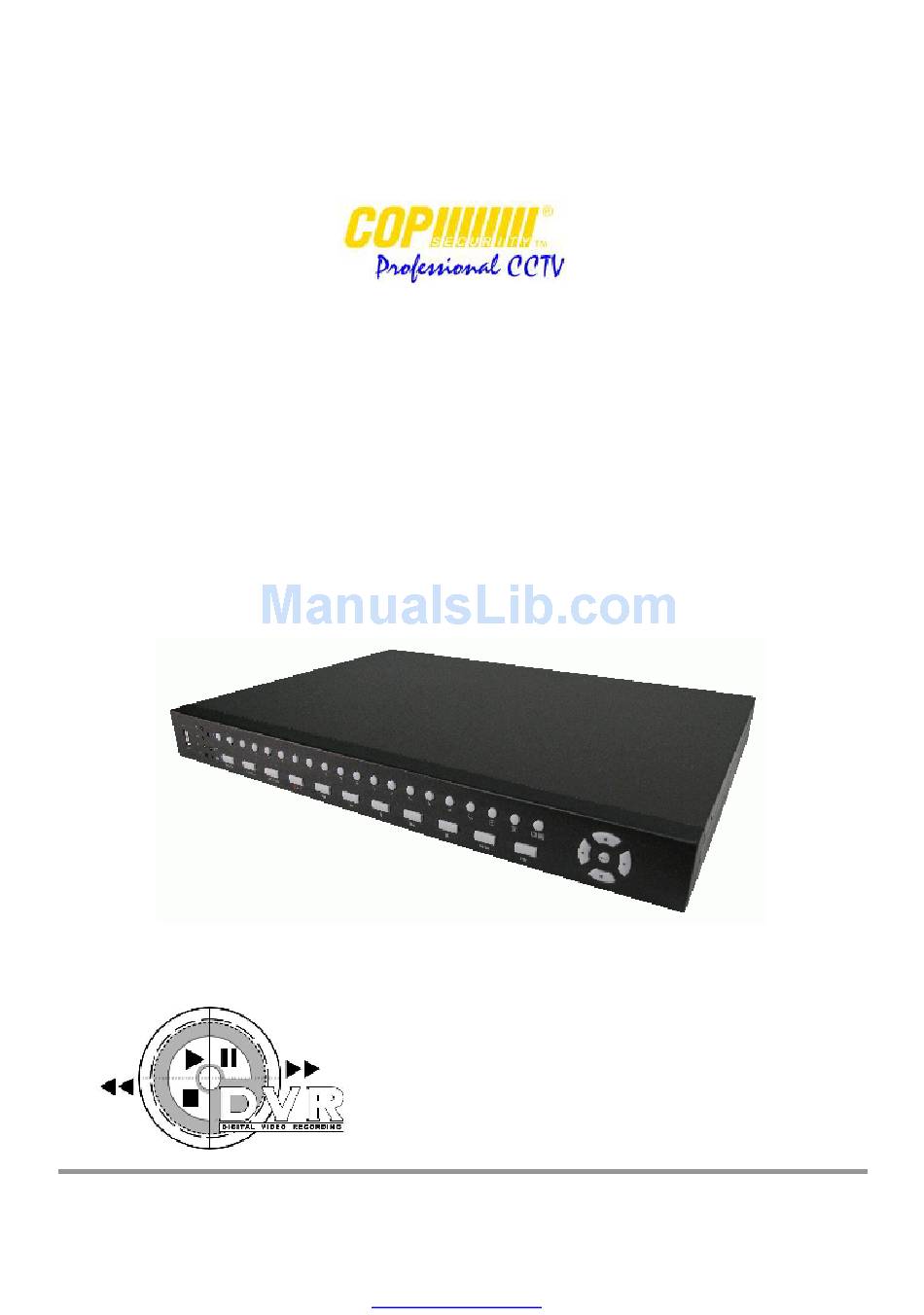

  • Page 1 15-WP16-USB 16CH Digital Video Recorder User’s Manual Version_1.0 May, ‘2005 PDF created with pdfFactory trial version www.pdffactory.com...
  • Page 2 SAFETY PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This label may appear on the rear of the unit due to space limitations. The lightning flash with arrow point symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...

  • Page 3: Table Of Contents

    Table of Contents I. Introduction 1. Package Contents 2. Features 3. Front Panel and Rear Panel Connection II. Installation 1. Front Panel 2. Rear Panel 3. Menu Tree III. Main MENU Programming 1. Overview Main Menu 2. SYSTEM SETUP 3. DISPLAY SETUP 4.

  • Page 4: Introduction

    Introduction 1. Package Content Verify that the following contents are contained. 1 x 16CH DVR 1 x Adapter (12V/5A) 2 x Rack Mount Bracket 1 x User’s manual 1 x Remote controller 1 x Install CD 2 x 8CH BNC cable harness for loop through video output. 1 x 250MB Memory Stick 16CH DVR User...

  • Page 5: Features

    2. Features This DVR provides recording capabilities for 16 camera inputs. It provides playback or live display and network function while in recording mode. And also it offers the following features: u 16 Composite Input Connectors/ 16 Loop-Through Video Connectors - Compatible with Color ( PAL) and B&W (CCIR) Video u Display and Record Video Resolution - Display Resolution: PAL (720x288) real time display...

  • Page 6: Front Panel And Rear Panel Connection

    3. Front Panel and Rear Panel Connection Remote controller USB Memory Drive Sensor Alarm Microphone Input Output Cameras Adaptor • • • • • (12V/ 5A) Video Out (16CH) for Loop Through Pan / Tilt / Zoom 75 Ohm Terminator Monitor &...

  • Page 7: Installation

    II. INSTALLATION Front Panel 1. USB port A USB port is provided to connect external USB memory drive for archiving video. 2. Video Display Channel Selection buttons Channel button from CH1 to CH16 is to select video channel displayed on monitor. 3.
  • Page 8 4. FUNCTION The main picture in 1+7, 2+8 display of 16 picture display mode can be changed by the combination of FUNCTION and channel selection button. Main picture can be changed by channel selection button from CH1 to CH16 after pressing FUNCTION button. 5.
  • Page 9 15. Direction button and Enter Button Direction buttons are used to move LEFT, RIGHT, UP and DOWN in menu. They also can be used to input password. ENTER button is used to save parameter, to select parameter in the menu. And also in playback it is used to select one of listed file for playback after searching recorded files by all, time, alarm, motion, manual and so on.

  • Page 10: Rear Panel

    Rear Panel 1. 16CH Video Input: 16 channel composite video inputs with BNC connectors Since this DVR automatically detects video format (NTSC or PAL) as soon as power is ON, NTSC or PAL video sources can be connected in DVR. But NTSC and PAL video sources for 16CH video inputs can not be mixed.
  • Page 11 6. Alarm input and relay output: (16 alarm inputs and 4 relay output with NO, NC) To make secure connections on the Alarm Connector Strip, press and hold the button and insert the wire in the hole below of connector pin. After releasing the pin, pull gently on the wire to make certain it is connected.
  • Page 12 Remote Controller < Remote Controller buttons > < Button Description > Description Button Name Recording Start/ Stop button Button LOCK Enable/Disable LOCK Archiving Start button Video CH selection buttons 1,2,3,…,0, +10 1) Sequential display button Video Picture Display mode 2) QUAD display button 3) 9 picture display button 4) 16/ 8/ 10 picture display button...

  • Page 13: Menu Tree

    Menu Tree DISPLAY SETUP SYSTEM SETUP MAIN MENU ADJUST CHANNEL LANGUAGE SYSTEM SETUP BRIGHTNESS VIDEO FORMAT DISPLAY SETUP CONTRAST PASSWORD RECORDING SETUP PTZ TYPE ADMIN LOCK ALARM SETUP SEQ DWELL TIME TIME FORMAT SPOT DWELL DATE FORMAT MOTION SETUP TIME/DATE OSD DATE/TIME SET WEEKLY SCHEDULE CAM NUMBER OSD...

  • Page 14: Main Menu Programming

    III. Main Menu Programming 1. Overview Main Menu Before using your DVR for the first time, you will want to establish the initial settings. This includes items such as time and date, password, display, record mode, network and so on. In order to program Main Menu, first press MENU button of front panel in DVR.

  • Page 15: System Setup

    2. SYSTEM SETUP To access SYSTEM SETUP, press ENTER button after moving highlight bar to SYSTEM SETUP in MAIN MENU. Below menu will appear on monitor. SYSTEM SETUP LANGUAGE : ENG/CHN VIDEO FORMAT : NTSC PASSWORD : **** ADMIN LOCK : YES TIME FORMAT : 24HOURS...
  • Page 16 SYSTEM SETUP PASSWORD **** Input old password. (Factory Default is “Pressing “1” button four times”.) SYSTEM SETUP Input new password. Enter the password by PASSWORD **** pressing the appropriate combination of four number, “1”, “2”, “3”, “4” buttons. SYSTEM SETUP Input new password again to confirm new PASSWORD ****...
  • Page 17 SYSTEM SETUP DATE/TIME SET Year is changed by DOWN or UP button. 2004:01:11 10:50:11 By LEFT or RIGHT button. SYSTEM SETUP DATE/TIME SET Month is changed by DOWN or UP button. 2004:01:11 10:50:11 LEFT or RIGHT button. SYSTEM SETUP DATE/TIME SET Date is changed by DOWN or UP button.

  • Page 18: Display Setup

    3. DISPLAY SETUP DISPLAY SETUP ADJUST CHANNEL CH1, CH2, …, CH16 BRIGHTNESS 1-99 % CONTRAST 1-99 % PTZ TYPE SEQ DWELL TIME NONE, 1-60 SEC SPOT DWELL 1-60 SEC TIME/ DATE OSD ON/ OFF CAM NUMBER OSD ON/ OFF VIDEO LOSS OSD ON/ OFF POP-UP DISPLAY ON/ OFF...
  • Page 19 In order to control PTZ of the camera from remote area by network viewer software, proper PTZ TYPE should be selected in here. Your DVR supports over ten PTZ cameras. According to customer requirements, PTZ control will be added in it. * NOTE: PTZ stands for pan, tilt and zooming.

  • Page 20: Recording Setup

    4. RECORDING SETUP RECORDING SETUP QUALITY : HIGH FRAME RATE : 60/ IPS AUDIO : OFF STOP KEY : DISABLE CAMERA NUM : CH01-16 RECORD : ENABLE ▲ ▼ ◀ ▶ ENTER EXIT To access RECORDING SETUP, press ENTER when RECORDING SETUP in MAIN MENU using DOWN or UP is highlighted with blue color.

  • Page 21: Alarm Setup

    5. ALARM SETUP ALARM SETUP FRAME RATE : 60/ IPS DURATION : 3 MIN SENSOR TYPE : NONE/ N.O/ N.C ALARM INPUT : 01 to 16 TRIGGER OUT : DISABLE, 1 to 4 BUZZER ALERT : DISABLE ▲ ▼ ◀ ▶ ENTER EXIT To access ALARM SETUP, press ENTER when ALARM SETUP in MAIN MENU using...

  • Page 22: Motion Setup

    6. MOTION SETUP MOTION SETUP SENSITIVITY : Normal FRAME RATE : 60/ IPS DURATION : 1 MIN CAM NUM : CH1 – CH16 AREA SETTING : DISABLE, ALL, SETUP TRIGGER OUT : DISABLE, 1 to 4 BUZZER ALERT : DISABLE ▲...
  • Page 23 4) CAM NUM: CH1 – CH16 AREA SETTING : DISABLE/ ALL/ SETUP Motion Enable/Disable, Motion zone can be selected separately for each of sixteen cameras using LEFT or RIGHT button. DISABLE means that function of motion detection isn’t utilized. ALL means that entire image area is selected for motion detection. SETUP can be selected in order to select given image area which want to monitor motion detection.
  • Page 24 7. WEEKLY SCHEDULE WEEKLY SCHEDULE WEEK START DURATION 00: 00 00: 00 00: 00 00: 00 00: 00 00: 00 00: 00 00: 00 00: 00 00: 00 00: 00 00: 00 00: 00 00: 00 HOLIDAY NONE NONE ▲ ▼ ◀ ▶ ENTER EXIT To setup WEEKLY SCHEDULE, press ENTER when WEEKLY SCHEDULE in MAIN...
  • Page 25 For example, the blue bar movement by LEFT or RIGHT Button like this; WEEKLY SCHEDULE WEEKLY SCHEDULE START DURATION START DURATION 00: 00 00: 00 00: 00 00: 00 WEEKLY SCHEDULE WEEKLY SCHEDULE START DURATION START DURATION 00: 00 00: 00 00: 00 00: 00 WEEKLY SCHEDULE...

  • Page 26: Network Setup

    8. NETWORK SETUP NETWORK SETUP CONNECT : STATIC/ DHCP IP ADD : 192. 168. 123. 171 SUB NET : 255. 255. 255. 000 GATE WAY : 192. 168. 123. 254 : 168.126.063.001 PORT : 5000 NTP TIME : OFF/ON TIME ZONE : GMT + 08:00 DDNS STATUS : NONE/OK/ERR...
  • Page 27 6) PORT : Port number for TCP/IP connection in DVR Net-Viewer should have same port Number to access remote DVR through network. (Ex. 80 TCP www-http World Wide Web HTTP ) (Ex 123 UDP NTP Network Time Protocol ) Default Port No. is 5000. If Port is set as 5000, port number of from 5000 to 5002 is used in DVR.

  • Page 28: Archiving

    9. ARCHIVING ARCHIVING ARCHIVING TYPE : SINGLE/ MOTION ARCHIVING TIME : 1 to 60 SEC ARCHIVE INFO NAME: TOTAL: FREE: ARCHIVE LOG : NONE ▲ ▼ ◀ ▶ ENTER EXIT 1) ARCHIVE TYPE: SINGLE or MOTION For archiving data via USB port, first set-up ARCHIVING TYPE and ARCHIVING TIME which you want to have using LEFT or RIGHT Button.
  • Page 29 4) ARCHIVE LOG: NONE or ENTER All of log information including DVR power ON/ OFF, recording time, event time and so on can be backup through USB Memory drive. After backup log file, you can see backup log information using WORD-PAD of PC. For ARCHIVE LOG, first select ENTER using LEFT or RIGHT Button.
  • Page 30 < NetViewer Program > NOTE: On the viewer program buttons in Viewer GUI 1. Search Button: This Search Button can be used to find archived image in USB Memory drive. After searching the image files, double-click the file. And then it will be playbacked. 2.

  • Page 31: Hdd Information

    < Example; USB Memory Drive will usually be recognized as removable Disk in PC > Removable Disk 10. HDD INFORMATION HDD INFORMATION HARD DISK : WDC WD1200 TOTAL : 111GB FREE : 111GB FORMAT HDD : NO OVERWRITE : OFF ▲...

  • Page 32: Search List

    11. Search List The number of recorded files SEARCH LIST 10/ 10 LIST TYPE 10-15-2004 10-15-2004 10:20 10-15-2004 11:20 10-15-2004 12:20 10-15-2004 13:20 10-15-2004 13:20 10-15-2004 14:20 10-15-2004 14:20 10-15-2004 15:20 10-15-2004 16:20 10-15-2004 17:20 10-15-2004 18:20 10-15-2004 18:50 10-15-2004 19:20 10-15-2004 19:25 10-15-2004 20:20 10-15-2004 20:25...

  • Page 33: Display Mode

    NOTE: 1. If PLAY button be pressed two times successively, latest recorded file could be playbacked soon. 2. The example for searching recorded files by TIME. Search list by TIME can be selected from ALL/ TIME/ MANUAL/ ALARM/ MOTION/ SCHEDULE using DOWN or UP button. After moving 11-20-2004 date area using LEFT or RIGHT Button (and then related date character would be turned into bold character), the date which want to search can be selected by using DOWN or UP button.
  • Page 34 12-1. Picture Display Mode A) Full Picture If each video channel selection is pressed, the channel will be displayed as full screen. The video channel from CH11 to CH16 in remote controller can be selected with “10 digit” button and “1 digit”...

  • Page 35: Recording Mode

    13. RECORDING Mode There are several kinds of recording modes such as Manual, Schedule, Alarm event, Motion. Recording quality including high, standard plus, standard, low for all of recording is decided by the QUALITY setting in RECORDING SETUP Menu. Frame rate, recording time can be separately selected in each of RECORDING SETUP Menu.
  • Page 36 15. PTZ Control Procedure a) Select the camera (which PTZ camera is connected) to control PTZ using UP(▲), RIGHT(▶), DOWN(▼), LEFT(◀) buttons of front panel in your DVR. b) Press ENTER button to select PTZ mode. PTZ MODE OSD will be displayed on upper right corner of monitor.

  • Page 37: Appendix 1. Specification

    APPENDIX 1. Specification (1/2) Video Input 16 Ch, NTSC/PAL, 1V peak-to-peak, 75 Ohm, BNC Audio Input/ Output 1 Ch Input/ 1 Ch Output Video Output 1CH for Monitor, 1CH for Spot, 16Ch loop-through Output Display Resolution Display Resolution (PAL: 720x576 ) Display Mode Single, QUAD, Octal, Hex and Sequential image Recording Resolution...
  • Page 38 APPENDIX 1. Specification (1/2) HDD Management One or Two (EIDE, ATA-6, 3.5 inch, 7200rpm) Back-up Archiving : USB Storage Class Key for data backup Firmware upgrade, System log file Pan/Tilt/Zoom RS485 (Controlled by button, Viewer S/W) Power 12V DC/ 5A Adaptor Mechanical Unit dimension 44(W) x31.5(D) x4.4(H) (17.3 in.

  • Page 39: Pin Description Of Connectors

    APPENDIX 2. Pin Description of connectors 1. USB Pin Descriptions 2. LAN port (RJ-45) Pin Descriptions Pin NO. Pin description TXD+ Pin NO. Pin description TXD- RXD+ D- (TX-) No connected D+(TX+) No connected RXD- SHIELD No connected No connected 3.
  • Page 40 4. Alarm Input & Outputs Pin Descriptions < Alarm Input Pin > < Alarm Output Pin > Pin NO. Pin description Pin NO. Pin description Ground (Common) Relay output NO1 Ground (Common) Relay output NC1 Sensor input 01 Ground (Common) Sensor input 02 Relay output NO2 Sensor input 03...
