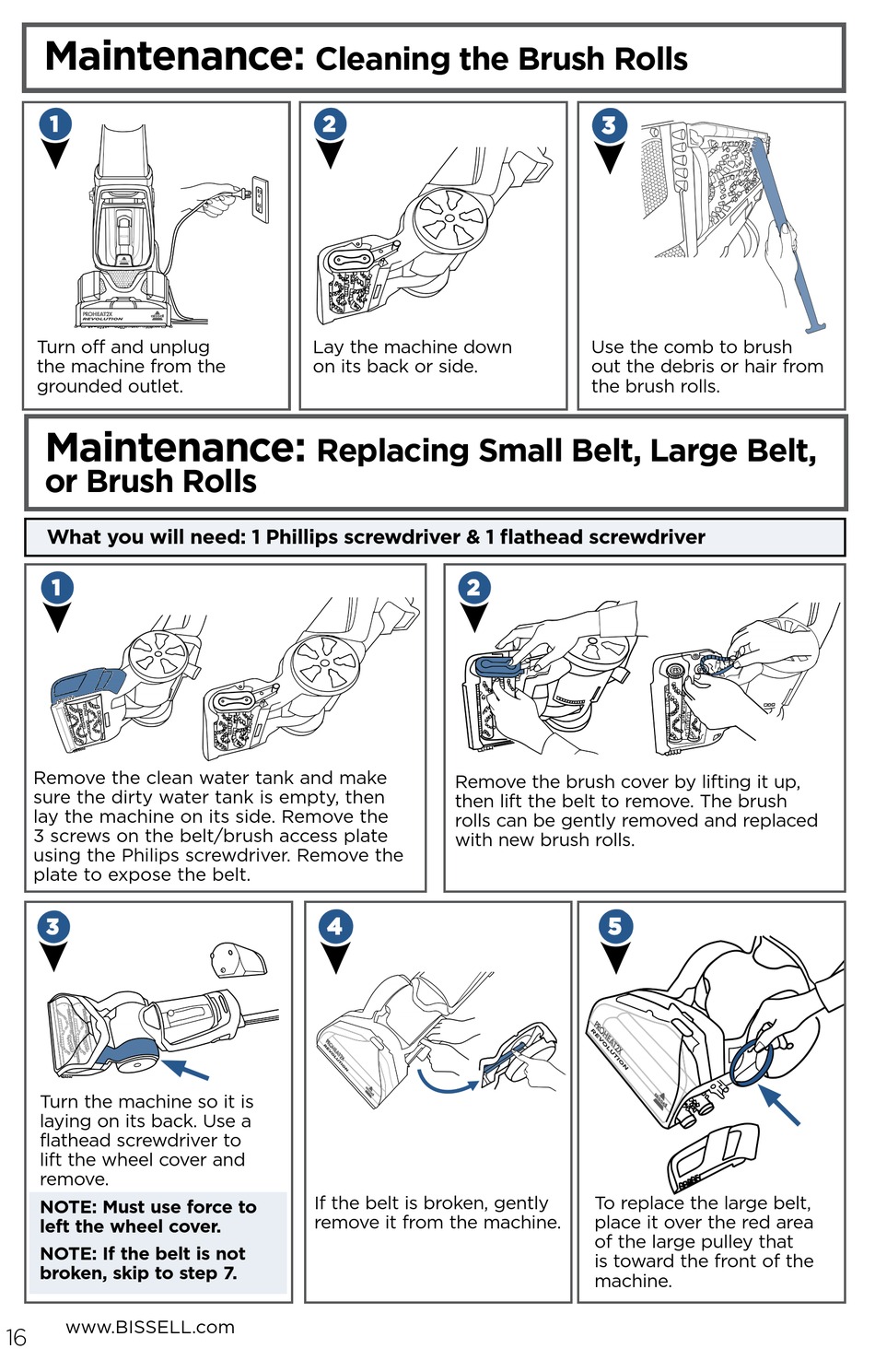

Maintenance:
1
Turn off and unplug
the machine from the
grounded outlet.
Maintenance:
or Brush Rolls
What you will need: 1 Phillips screwdriver & 1 flathead screwdriver
1
Remove the clean water tank and make
sure the dirty water tank is empty, then
lay the machine on its side. Remove the
3 screws on the belt/brush access plate
using the Philips screwdriver. Remove the
plate to expose the belt.
3
Turn the machine so it is
laying on its back. Use a
flathead screwdriver to
lift the wheel cover and
remove.
NOTE: Must use force to
left the wheel cover.
NOTE: If the belt is not
broken, skip to step 7.
www.BISSELL.com
16

Cleaning the Brush Rolls

2
Lay the machine down
on its back or side.
Replacing Small Belt, Large Belt,
2
Remove the brush cover by lifting it up,
then lift the belt to remove. The brush
rolls can be gently removed and replaced
with new brush rolls.
4
If the belt is broken, gently
remove it from the machine.
3
Use the comb to brush
out the debris or hair from
the brush rolls.
5
To replace the large belt,
place it over the red area
of the large pulley that
is toward the front of the
machine.
