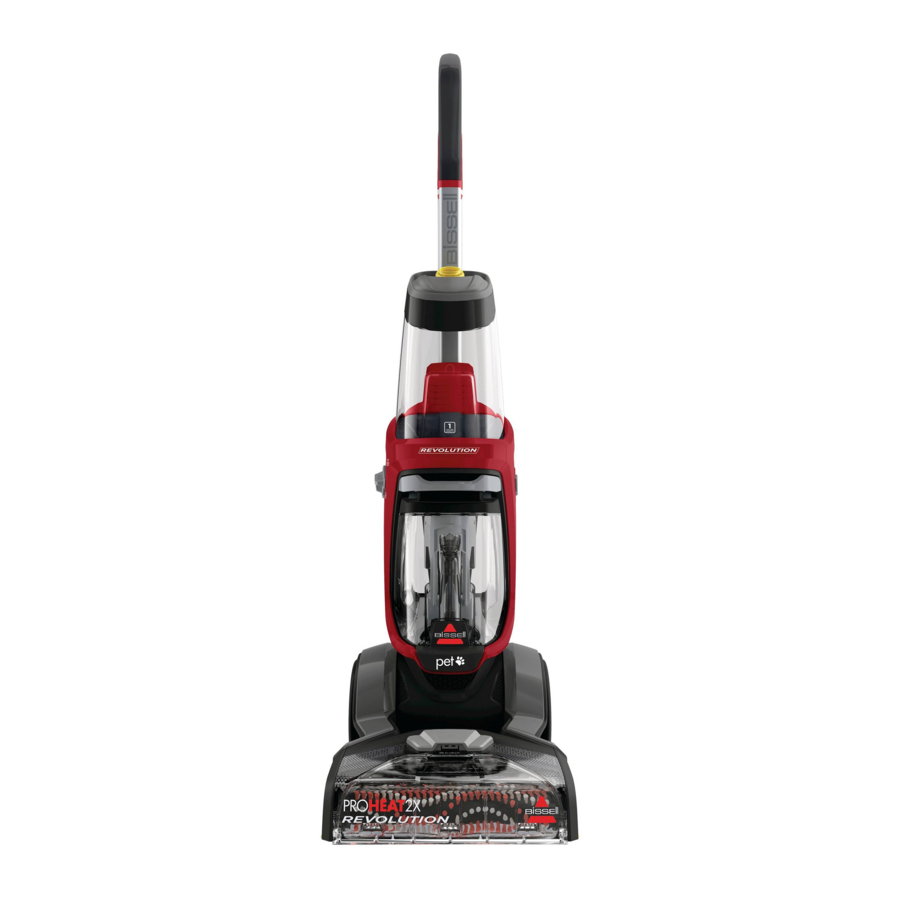

Bissell ProHeat 2X Revolution, 1548 / 1550 / 1551 Series Manual

Package Contents

1. Upper Handle
2. 1 Screw attached to Upper Handle
3. Base with Dirty Water Tank
4. Clean Water Tank
5. Carry Handle
6. BISSELL Professional Deep Cleaning Formula
7. BISSELL Deep Clean + Antibacterial Formula
8. Accessory Bag & Hose
9. Attachments/Accessories (vary by model)
10. Nozzle Clean Out Tool

NOTE: Standard accessories may vary by model. To identify what should be included with your purchase, please refer to the "Carton Contents" list located on the carton top flap.

Getting to Know Your Product

1. Upper Handle
2. Easy Fill/Formula Cap
3. Clean Water Tank (1 Gallon Capacity)
4. Power Switch
5. Float Stack
6. Dirty Water Tank
7. B elt Access Door
8. Foot
9. Spray Trigger
10. In-Use Cord Clip
11. Cleaning Mode Switch
12. Accessory Hose Door
13. Belt/Brush Access Plate
14. EdgeSweep Brushes
15. Carry Handle
16. Rubber Tab (on Dirty Water Tank)
17. Quick Release Cord Wrap
18. Recline Pedal

Assembly

Do not plug in your deep cleaner until you are familiar with all instructions and operating procedures.

Your deep cleaner comes in four easy-to-assemble components and an accessory bag.

• Base
• Upper Handle
• Clean Water Tank
• Carry Handle

In Step 3 you will need a Phillips-head screwdriver.

1. First, insert the Upper Handle at the top of the base until you hear a "click".

2. Next, align the Carry Handle with the slots on either side of the base (behind the Power Switch and Cleaning Mode Switch). The Carry Handle will "click" into place.

3. Using a Phillips-head screwdriver, secure the Carry Handle and the Upper Handle with the screw that's taped to the Upper Handle.

4. Wrap the cord around the Carry Handle and Quick Release Cord Wrap.

5. At the bottom of the Upper Handle, align the Clean Water Tank with the grooves and slide the tank into place.


Cleaning Formulas

To reduce the risk of fire and electric shock due to internal component damage, use only BISSELL cleaning formulas intended for use with the deep cleaner.

Keep plenty of genuine BISSELL 2X* formula on hand so you can clean and protect whenever it fits your schedule.
Always use genuine BISSELL deep cleaning formulas. Non-BISSELL cleaning formulas may harm the machine and may void the warranty.

ONLY BISSELL Protects from future stains with Scotchgard Protector.
*2.5 fl. oz. of 2X concentrated formula is equivalent to 5.0 fl. oz. of non-concentrated formula.

Tips Before Carpet Cleaning

• If cleaning an entire room, consider moving your furniture to another area.
• Use a dry vacuum cleaner over area before using your deep cleaner.
• Pretreat stains with BISSELL Pretreat to improve performance on coffee stains and ground-in dirt.
• Please reference "Cleaning Your Carpet" section for important tips on cleaning carpet and area rugs.

Customize Your Clean & Maximize Your Results

For Antibacterial Clean
Use BISSELL Deep Clean + Antibacterial formula
Use BISSELL Deep Clean + Antibacterial with the Deep Clean Mode of your machine to achieve antibacterial results.

To Clean Dark Stains
Remove stains permanently!
Use BISSELL Deep Clean + Oxy formula or add BOOST OXY to any of your favorite BISSELL formulas to maximize the stain removal power.

To Refresh Your Home
Choose your favorite scent!
Pair your carpet cleaner with BISSELL Febreze formulas to give your home a clean and refreshing scent.

For Pet Stains & Odors
Erase pesky stains & remove odors!
Pretreat pesky pet stains with BISSELL Pretreat spray before using your deep cleaner. Choose a BISSELL pet formula for your deep cleaner and clean as directed.

To Remove Ground-In Dirt
Renew your carpet!
Pretreat ground-in dirt with a BISSELL Pretreat Spray.
Choose BISSELL Professional Deep Cleaning formula and pair with a BISSELL Boost to enhance your cleaning.

To Prevent Future Stains
Protect your newly cleaned carpets!
Prevent stains from setting in by deep cleaning with BISSELL Deep Clean + Protect plus Scotchgard Protector.
Add BISSELL Boost Prevent for enhanced performance.

Pretreat Pesky Stains
Pretreat stains for improved deep cleaning performance.
Stains may include but are not limited to:

• coffee
• dirt
• oil
• makeup
• pet messes

Choose Your Formula
Prepare your deep cleaner using the dosing instructions or fill lines.
ONLY BISSELL protects from future stains with Scotchgard Protector.
2.5 fl. oz. is equivalent to 5.0 fl. oz of nonconcentrated formula.

BOOST Your Deep Clean
Designed to maximize the performance of deep cleaning machines.
BISSELL Oxy Boost
Life makes messes, especially on carpet. Oxy Boost removes those stains from your life – permanently. Tough stains are no match for this oxygen formula.
BISSELL Prevent Boost
Add stain-resisting power to your carpet every time you deep clean. Prevent Boost repels future stains from soaking into carpet.
BISSELL Renew Boost
With Renew Boost, you can say goodbye to those heavily-soiled, high-traffic areas. Bring new life to dingy, matted carpet.
BISSELL Pet Oxy Boost
Pet Oxy Boost removes pet stains and odors permanently. Enjoy a stain and odor-free life with your pet!

BISSELL Deep Clean + Antibacterial
Fill your Clean Water Tank with the prescribed amount of water and BISSELL Deep Clean + Antibacterial formula and deep clean as directed.

Always use genuine BISSELL deep cleaning formulas. Non-BISSELL cleaning formulas may harm the machine and may void the warranty.

Filling Your Clean Water Tank

easyfill formula

1. The Clean Water Tank is at the top of the machine.

2. Lift the Clean Water Tank straight up to remove from the machine.

3. Unscrew the cap from the Clean Water Tank. Add hot tap water to the water fill line.

4. With Trial Size Antibacterial Formula: Pour into the Clean Water Tank up to the EasyFill line. Twist the cap back onto the tank.

5. At the bottom of the Upper Handle, align the Clean Water Tank with the grooves and slide the tank into place.


For Future Use with Full Size Antibacterial Formula:
After filling the Clean Water Tank with hot tap water, twist the yellow cap back onto the tank. Firmly insert the full size formula bottle into the cap on the Clean Water Tank and squeeze until formula reaches the EasyFill line.

A few notes about filling the Clean Water Tank:

• Fill with hot (140°F/60°C MAX) tap water and add the appropriate BISSELL formula. DO NOT USE BOILING WATER. DO NOT HEAT WATER OR TANK IN MICROWAVE.
• When using BISSELL Deep Clean + Antibacterial formula: Only fill your Clean Water Tank with the recommended amount of water and formula to achieve antibacterial benefits.

NOTICE
BISSELL Deep Clean + Antibacterial formula is only for BISSELL machines with EasyFill System.

ATTENTION
Do not overwet carpet. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure.

BISSELL 2X Concentrated Formula

1. The Clean Water Tank is at the top of the machine.

2. Lift the Clean Water Tank straight up to remove from the machine.

3. Unscrew the cap from the Clean Water Tank. Add hot tap water to the water fill line. Next, reference the chart below for formula amounts to add to the tank. Twist cap back into place.

4. At the bottom of the Upper Handle, align the Clean Water Tank with the grooves and slide the tank into place.


NOTE: Fill with hot (140°F/60°C MAX) tap water and add the appropriate BISSELL formula. DO NOT USE BOILING WATER. DO NOT HEAT WATER OR TANK IN MICROWAVE. Do not substitute BISSELL 2X Formula with other household cleaning products.

Pour in more power with BISSELL Boosts

• Fill tank with water and 2X formula (step 3 above).
• Add 2 ounces of any BISSELL Boost per 1-gallon of water.
• The ProHeat 2X Revolution has a 1 gallon Clean Water Tank.

Cleaning Your Carpet

1. Plug into a properly grounded outlet.

2. Select Cleaning Mode


Max Clean

• Provides a heavy cleaning for your dirtiest carpets.
• Dry Time: About 8 hours.

Deep Clean

• Delivers a deep clean to your carpet.

Express Clean

• Provides a lighter clean.
• Dry Time: About 30 minutes.
• Recommended Cleaning Pace: 12 inches per second

3. Press the Power Switch to turn the machine ON. To recline your machine for use, press the recline pedal with your foot.

4. Max Clean & Deep Clean Modes:


Standard Cleaning

1. Press the Spray Trigger to apply solution while making 2 slow, wet passes (1 forward, 1 back).
2. Release the Spray Trigger.
3. Make 2 slow, dry passes (1 forward, 1 back) to suck up the dirty solution. Do not hold down the trigger for this step.

Using BISSELL Deep Clean + Antibacterial Formula

1. Press the Spray Trigger to apply solution while making 3 slow, wet passes (1 forward, 1 back, and 1 forward again).
2. Release the trigger.
3. Make 1 slow, dry pass back to suck up the dirty solution. Do not hold down the trigger for this step.

Express Clean Mode:

1. Press the Spray Trigger to apply solution while making 2 wet passes (1 forward, 1 back).
2. Release the Spray Trigger.
3. Make 2 dry passes (1 forward, 1 back) to suck up the dirty solution. Do not hold down the trigger for this step.

CLEANING TIPS:

• To prevent damage to Berber carpets, avoid repeated strokes in the same area.
• For best cleaning performance, clean with your machine in Deep Clean Mode.
• Choose Deep Clean Mode and use BISSELL Deep Clean + Antibacterial to deliver antibacterial benefits.
• Max Clean Mode is intended for your dirtiest carpeted areas. Dry time is an estimated 8 hours. To expedite the drying process, place a fan in the room or near the carpet.
• In Express Clean Mode, the Dirty Water Tank will not get as full as when cleaning with Deep or Max Clean Mode.
• It is common to refill the Clean Water Tank and empty the Dirty Water Tank multiple times during the cleaning process. Room size and the speed at which you clean both affect how often the tank may need to be refilled and/or emptied.

Cleaning Area Rugs

Please check manufacturer's tag before cleaning area rugs for any specialized cleaning instructions. We do not recommend deep cleaning delicate, silk, wool, antique, or area rugs without a manufacturer's tag.

Regularly clean your high-traffic area rugs in Express Clean Mode:

• Check the manufacturer's tag.
• Select Express Clean Mode.
• When cleaning area rugs, place the rug on a sealed surface to test for colorfastness in an inconspicuous area. Your cleaner should not be used on unsealed surfaces.
•
  Keep the foot of the deep cleaner perpendicular to the rug's edge with each cleaning pass to prevent damage.

Cleaning with Hose and Tool

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts. The Brush Roll continues to rotate when in the upright position.
• The Brush Roll continues to turn while product is turned on and handle is in upright position. To avoid damage to carpet, rugs, furniture, and flooring, avoid tipping cleaner or setting it on furniture, fringed area rugs or carpeted stairs during tool use.
• With Brush Roll on, do not allow cleaner to sit in one location for an extended period of time, as damage to floor can result.

1. Lift the Accessory Hose Door on top of foot on the front of the machine. The door flips toward the machine to open.

2. Insert the hose and snap into place. Be sure the colored hose release clip is facing out, away from machine.

3. Attach the tool to the end of the hose. (Tools may vary by model.) Press the Power Switch to turn machine ON.

4. Press the Spray Trigger button to spray the soiled area, then slowly move tool back and forth over the area. Release the trigger to suck up the dirty solution. Work in small sections until the area is clean. When finished cleaning, turn the machine ON to suction up warm clean water to rinse the inside of the hose and tool. Detach the hose and tool and close the Accessory Hose Door. Let the hose and tool air dry before storing.


NOTE: If using the Mini Deep Reach Tool, be sure the needles of the tool are pressed down into the carpet so the spray gets into the carpet fibers.

Cleaning with the Bare Floor Tool

*The Bare Floor Tool that is compatible with the ProHeat 2X Revolution is not included. It is available for purchase by contacting our team by phone or visting us online at BISSELL.com.

1. With the machine unplugged, attach the Bare Floor Tool to the bottom of the machine by lining the tool to the edge of the nozzle. Rotate down until it clicks into place.
   Follow filling instructions and switch Cleaning Mode to Express Clean.

2. Plug into a properly grounded outlet and press the Power Switch.
   Clean by pressing the trigger for 1 wet pass forward, 1 wet pass back. Then release the trigger and make 1 dry pass forward, 1 dry pass back.
   Recommended Pace: 12 inches per second

3. When finished, unplug the machine and remove the Bare Floor Tool by rotating the tool up to unhook from the nozzle.
   Rinse and let dry before storing. Refer to "Emptying the Dirty Water Tank". Refer to "Cleaning Machine After Use".


To reduce the risk of fire and electric shock when cleaning a hard floor, the BISSELL Bare Floor Tool (1606611) must be used and is only to be used with BISSELL Hard Floor Formulas intended for use with this appliance.

Emptying the Dirty Water Tank

To reduce the risk of fire, electric shock or injury, turn power OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting.

1. To release Dirty Water Tank, press down on the colored tank Handle.

2. Tilt the tank slightly toward you. Grab the handle and tank with both hands.

3. Pull Dirty Water Tank up and away to remove.

4. For quick empty: Pull the rubber tab (located in the middle of the tank) and tilt to pour.
   When closing the rubber tab, make sure all edges are sealed tight.


For final clean and rinse: Unscrew the ring at the bottom of tank.
Gently remove the Float Stack, rinse, and clean.
Once clean, return Float Stack into the tank by lining up the arrows so they point at each other. This is the only way the Float Stack will fit into the tank.
With the arrows aligned, the Float Stack should lock into place.
Return the ring and twist to lock. Water may leak if the ring is not fully tightened.

5. Clean the red filter below the Dirty Water Tank by wiping off any remaining dirt or debris.

6. To return the Dirty Water Tank: Angle the tank and insert bottom first. Then tilt the tank toward the machine and push the top in until it clicks into place.


Did You Know?
The Float Stack is what prevents your Dirty Water Tank from overflowing.

Cleaning Machine After Use

To reduce the risk of fire, electric shock or injury, turn power OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting.

1. Rinse the Clean Water Tank with warm tap water. Fill the tank with warm tap water, twist the cap on and return the tank to the machine. Twist cap back on tightly.
   To flush and rinse machine turn it ON and press the Spray Trigger for 15 seconds while making forward and backward passes on carpet. Release the trigger and suck up water.
   See "Emptying the Dirty Water Tank" to clean the Dirty Water Tank from the water that was just sucked up. Empty the Clean Water Tank and let dry before storing. Wipe your machine's exterior with a soft cloth.


NOTE: Be sure to clean the Brush Rolls and Nozzle before storing your machine. Follow these steps if your Nozzle becomes clogged with hair or debris.

NOTICE
To reduce the risk of a leaking condition, do not store unit where freezing may occur. Damage to internal components may result.

Cleaning the Nozzle

1. If pet hair or debris become clogged in the nozzle, it can be cleaned out of the nozzle with the Nozzle Clean Out Tool.
   Turn OFF and unplug the machine.

2. Remove the nozzle from the foot: flip the Accessory Hose Door open and lift up on the nozzle and Accessory Hose Door.

3. Hold the nozzle and insert the Nozzle Clean Out Tool into the thin slot at the front of the nozzle where it touches the floor. Clean until free of pet hair or debris.

4. Return the nozzle back to the foot of the machine. Line up the three hooks on the nozzle to the bottom of the foot (see arrows for location).
   Rotate the nozzle up and click into place. Close the Accessory Hose Door.


Cleaning the Brush Rolls

1. Turn OFF and unplug the machine.

2. Lay the machine down on its back or side.

3. Use the comb to brush out the debris or hair from the Brush Rolls.


Replacing Belts or Brush Rolls

What you will need: 1 Phillips-head screwdriver & 1 flat-head screwdriver

1. Unplug the machine. Remove both tanks from the machine. Press the recline pedal and lay the machine on its back. Use a flat-head screwdriver to help lift and remove the Belt Access Door.

2. Here you should see one (1) belt. This is the Flat Pump Belt. If the Flat Pump Belt is broken, gently remove it from the machine. We will replace this belt in Step 5.

3. Turn the machine on its side. The Power Switch should be facing up. Remove the 3 screws on the Belt/Brush Access Plate using a Phillips-head screwdriver. Remove the Access Plate to expose the Brush Cover and Cogged Large Pump Belt.

4. Remove the Brush Cover by lifting straight up. Remove the Cogged Large Pump Belt. The Brush Rolls can be replaced or cleaned at this time, if needed.

5. Now, if the Flat Pump Belt was broken, place a new Flat Pump Belt around the red area of the large pulley. Then use your thumb to stretch it toward the back of the machine and transfer it onto the metal axle.

6. Spin either brush. If they both spin, continue to Step 7.
   If only one spins, the opposite belt is broken and you must remove both brushes and replace the Small Cogged Brush Belt.
   Place the new belt around both brush gears and slide them onto the thin metal axles.

7. To replace the Cogged Large Pump Belt, make sure your deep cleaner is completely reclined. Begin by wrapping the Cogged Large Pump Belt around the small metal-toothed pulley. While wrapped around the pulley, stretch and wrap around the nearest brush gear.

8. Return the Brush Cover. Make sure that the brushes are aligned and the cover is secure.

9. Return the Belt/Brush Access Plate to the end of the Brush Rolls by securing with the 3 screws.

10. Lastly, slide the Belt Access Door back into place. You should hear it "click" into place.


Troubleshooting

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR DEEP CLEANER.

Unplug from outlet when not in use and before conducting maintenance. When using an electrical appliance, basic precautions should be observed, including the following:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Connect to a properly grounded outlet only. See grounding instructions. Do not modify the 3-prong grounded plug.
• Do not leave appliance when it is plugged in. Unplug from outlet when not in use and before servicing.
• Use indoors only.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Do not use for any purpose other than described in this user guide. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
• Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn OFF all controls before plugging or unplugging appliance.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use in areas where they may be present.
• Do not use appliance in an enclosed space filled with vapors given off by oil-based paint, paint thinner, some moth-proofing substances, flammable dust, or other explosive or toxic vapors.
• Do not use to pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
• Use only BISSELL cleaning products intended for use with this appliance to prevent internal component damage. See the "Cleaning Formulas" section of this guide.
• Do not immerse. Use only on surfaces moistened by the cleaning process.
• Keep appliance on a level surface.
• Do not carry the appliance while in use.
• Always install float before any wet pick-up operation.
• Plastic film can be dangerous. To avoid danger of suffocation, please keep away from children.

SAVE THESE INSTRUCTIONS
FOR FUTURE USE
This model is for household use only. Commercial use of this unit voids the manufacturer's warranty.

Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician or service person if you aren't sure if the outlet is properly grounded. DO NOT MODIFY THE PLUG. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is designed for use on a nominal 120-volt circuit, and has a grounding attachment plug that looks like the plug in the illustration. Make certain that the appliance is connected to an outlet having the same configuration as the plug. No plug adapter should be used with this appliance.

GROUNDING INSTRUCTIONS
This appliance must be connected to a grounded wiring system. If it should malfunction or break down, grounding provides a safe path of least resistance for electrical current, reducing the risk of electrical shock. The cord for this appliance has an equipment-grounding conductor and a grounding plug. It must only be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Service

Please do not return this product to the store.
Other maintenance or service not included in the manual should be performed by an authorized service representative

If your BISSELL product should require service:
Contact BISSELL Consumer Care to locate a BISSELL Authorized Service Center in your area. If you need information about repairs or replacement parts, or if you have questions about your warranty, contact BISSELL Consumer Care.

Website:
www.BISSELL.com/service-centers
E-mail:
www.BISSELL.com/email-us
Call:
BISSELL Consumer Care
1-800-237-7691
Monday – Friday: 8am - 10pm ET
Saturday: 9am - 8pm ET
Sunday: 10am - 7pm ET

Register your product today!
Registering is quick, easy and offers you benefits over the lifetime of your product.
You'll receive:
BISSELL Rewards Points
Automatically earn points for discounts and free shipping on future purchases.
Faster Service
Supplying your information now saves you time should you need to contact us with questions regarding your product.
Product Support Reminders and Alerts
We'll contact you with any important product maintenance reminders and alerts.
Special Promotions
Optional: Register your email to receive notice of offers, contests, cleaning tips, and more!

Visit www.BISSELL.com/registration!

Visit the BISSELL website: www.BISSELL.com
When contacting BISSELL, have model number of cleaner available.

NOTE: Please keep your original sales receipt. It provides proof of purchase date in the event of a warranty claim.

Parts & Supplies
For Parts and Supplies, go to www.BISSELL.com and enter your model number in the search field.

Love your BISSELL product?
Don't keep it a secret.
Let us, and millions of others, know what you think!
Leave your star-rating on www.BISSELL.com

BISSELL Homecare, Inc
Grand Rapids, Michigan
Visit our website at: www.BISSELL.com

More of a video person? Go online for an instructional how-to video at
www.BISSELL.com

Documents / Resources

References

• Ask a Question
• http://www.bissell.com/registration!
• http://www.bissell.com
• http://bissell.com

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Bissell ProHeat 2X Revolution, 1548 / 1550 / 1551 Series Manual
