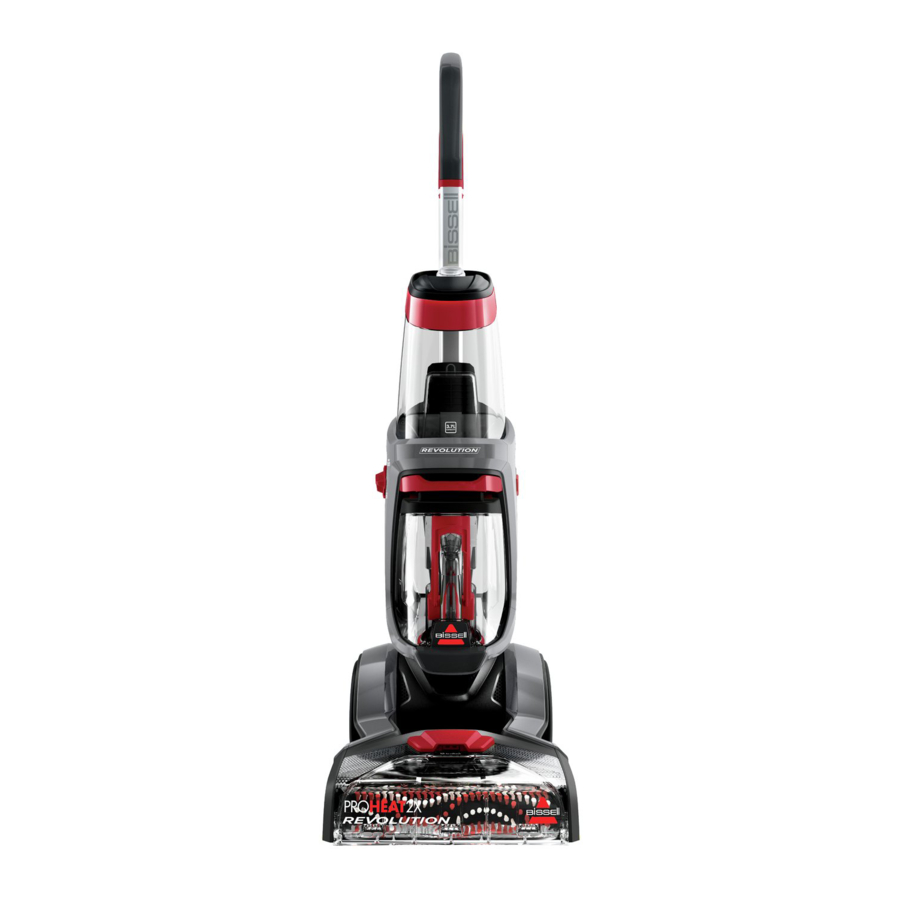

Bissell PROHEAT 2X REVOLUTION 1548 SERIES Quick Start Manual

QUICK START GUIDE
PROHEAT 2X

Assembly Instructions

click
1. Slide the upper handle
into the top of the unit.
The upper handle will "click"
when inserted correctly.
PARTS INCLUDED
1. Upper Handle
2. 1 Screw attached to Upper Handle
3. Base with Dirty Water Tank
4. Clean Water Tank
5. Carry Handle
6. BISSELL Professional Deep Clean Formula
161-8605 10/18
REVOLUTION
®
Side View
2. Align the carry handle 3. Use a Phillips-head screw-
with the slots on either side driver to secure the carry
of the machine (behind the handle with the screw that's
power switch and cleaning taped to the upper handle.
mode switch). The carry The screw goes in the hole
handle will "click" into place. that is in the center of the
carry handle.
7. BISSELL Professional Deep Clean + Oxy Formula
8. BISSELL Deep Clean + Sanitize Trigger
(trigger not pictured)
9. Accessory Bag and Hose
10. Attachments/Accessories (vary by model)
11. Nozzle Clean Out Tool
DEEP CLEANER
®
screw
4. Wrap the cord around
the carry handle and the
lower cord wrap on the
back of the machine. The
carry handle also serves as
the upper cord wrap.
2.
1.
3. 4.
1548, 1550, 1551 SERIES
WARNING
Refer to the enclosed user guide for complete
instructions and important safety notices.
Side View
5. Align the Clean Water
Tank with the bottom of
the upper handle. The tank
is guided by the grooves
at the bottom of the upper
handle.
5. 9.
8.
6. 7. 10.
BISSELL BISSELL BISSELL
11.
