  • Page 1 code 720142006-A0-LM ed.3...
  • Page 2 CommsTel 607 Harbour Point Business Park, Little Island, Cork, Ireland. 021 2429474 info@commstel.ie...

  • Page 3: Table Of Contents

    Index_____________________________ 1. INTRODUCTION....................5 2. MAIN FEATURES ....................5 3. SAFETY........................6 4. CONFORMITY DECLARATION ..............6 5. ENVIRONMENTAL IMPACTS................7 .................7 ATTERIES RECYCLING 6. DESCRIPTION OF ZENYTH 650 ..............9 7. INSTALLATION....................10 .................10 ELEPHONE INSTALLATION ................11 ATTERY INSTALLATION 8. MAIN FEATURES ....................13 ....................13 HONE ETTING 8.1.1...
  • Page 4 8.1.4 Date/Time.....................13 8.1.5 LCD Contrast..................14 8.1.6 Babycall ....................14 8.1.7 Input Phone Book record ..............14 8.1.8 Edit Phone Book record...............14 8.2 O .................14 PERATION AT ON HOOK STATE 8.2.1 Receiving incoming FSK & DTMF caller ID ........14 8.2.2 Checking incoming caller ID ...............15 8.2.3 Re-dialing an incoming caller ID ............15 8.2.4...

  • Page 5: Introduction

    1. Introduction The ZENYTH 650 telephone set – is a custom-made analogue telephone for SELTA exchanges: it allows to use all the basic voice services of the SELTA communication systems and provides telephone book and call logs. 2. Main features...

  • Page 6: Safety

    4. Conformity declaration The Selta spa declares under its responsibility that the product ZENYTH 650 is conform to the EC directive 1999/05/EC of the European Parliament and the European Commission dated 9th of March 1999 for radio equipment and for telecommunications terminal equipment and the reciprocal recognition of their conformity.

  • Page 7: Environmental Impacts

    5. Environmental impacts The product, at the end of its life-cycle must not be disposed of in the environment; its disposal must occur according to article 13 of the Law Decree 25th July 2005, n. 151 “Implementation of the directive 2002/95/EC, 2002/96/EC and 2003/108/EC, relative to the reduction in the use of dangerous substances in electrical and electronic equipment, as well as the disposal of refuse”.
  • Page 8 2006/66/EC European Directive, the collection centers service must be free of charge.

  • Page 9: Description Of Zenyth 650

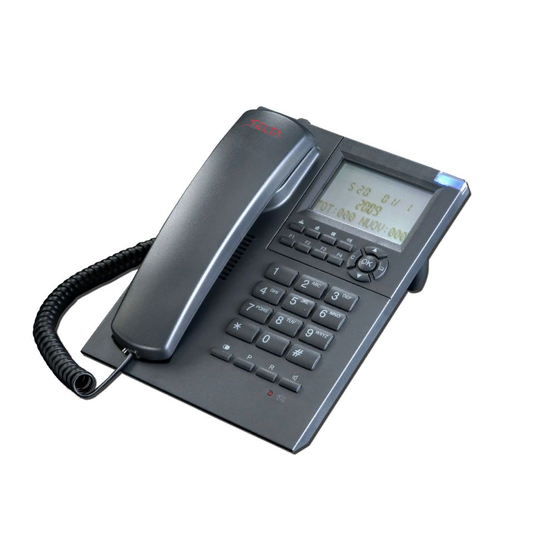

    6. Description of ZENYTH 650 HANDSET MICROPHONE COIL CORD HOOK SWITCH HANDSET GUIDE DISPLAY LCD MESSAGE LED MEMORY 10. MUTE 11. VOLUME 12. UP 13. OK 14. PHONE BOOK 15. DOWN 16. C (Cancel) 17. F4 18. F3 19. F2 20.

  • Page 10: Installation

    7. Installation Telephone installation 1. Connect one end of handset coil cord to the handset base and the other end to the base unit at (27). Connect one end of the telephone line cord to the base unit at (26), and the other end to the wall outlet. In case your house is not equipped with a compatible wall outlet, you may need an adaptor, or you should consult your distributor/retailer for assistance.

  • Page 11: Battery Installation

    For wall mounting works as follow: make on the wall n. 2 holes with a diameter of 5 mm each with an apart distance and minimum distance from the surrounding surfaces, as shown in Figure below, insert the 5 mm plugs into the holes fasten the screws to the plugs up to 5 mm from the surface of the wall position the telephone against the wall over the screws so that the screws heads insert in the larger part of the keyholes cutouts and...
  • Page 12 REMARKS: If the telephone line is disconnected, batteries are needed to maintain the clock, phone setup, outgoing call records and caller ID records. When the Battery Low Indicator appears on the LCD, you need to replace a new set of batteries. Or, that symbol may indicate that there is no battery in the phone.

  • Page 13: Main Features

    8. Main features Phone Setting At the on-hook or off-hook state, press OK key into the setting mode, and the LCD will display: VIEW MENU ↑↓. Use UP or DOWN key to select among different items. When you choose one item, press OK key again to go into its setting.

  • Page 14: Lcd Contrast

    8.1.5 LCD Contrast When the LCD displays: CONTRAST ADJUST , press OK key and then use UP or DOWN key to select among 5 different contrast levels the one that you prefer. The default setting is 3. 8.1.6 Babycall When the LCD displays BABYCALL , press OK key once and display BABYCALL OFF .

  • Page 15: Checking Incoming Caller Id

    display “OUT OF AREA”. An incorrect incoming signal will display “ERROR”. If it is a FSK format caller ID signal, the current month, date and time display will be updated (while the year remains unchanged). If there is no information from exchange, the name shown on the LCD will be same as that in the phone book.

  • Page 16: Phone Number Store

    When scrolling incoming calls, press C key to delete a phone number. The LCD will show DETELE, press OK key to confirm or press C key to quit. Press and hold C key for 4 seconds to delete all the incoming calls. The LCD will show DETELE, press OK key to confirm or press C key to quit.

  • Page 17: Dialing Centrex Keys

    8.3.3 Dialing Centrex keys Picks up the handset or press SPEAKER / key, and then press F1 to F4 key to dial out the specific tone for some PBX services only. 8.3.4 Dialing Two-touch memory Picks up the handset or press SPEAKER / key and press MEM key and N (N=1 ~ 9, 0, * or #).

  • Page 18: Two-Way Speaker Phone Operation

    8.4 Two-way speaker phone operation 8.4.1 Speaker mode To make a call, press SPEAKER key to activate the speaker phone. Press SPEAKER key to deactivate the speaker phone when the call is over. 8.4.2 Speaker volume control To change the speaker volume, press VOL key to adjust the volume levels during off-hook state.
  • Page 20 SELTA S.p.A. Via Emilia, 231 29010 Cadeo (PC) Tel. +39 05235016.1 fax +39 05235016.333 Web site: www.selta.it SELTA S.p.A. Via Nazionale, Km 404,500 64018 Tortoreto (TE) Tel. +39 0861772.511 fax +39 0861772.555 Web site: www.seltatel.it SELTA España,S.A. C/ Puerto Guadarrama, 50 Pol.
