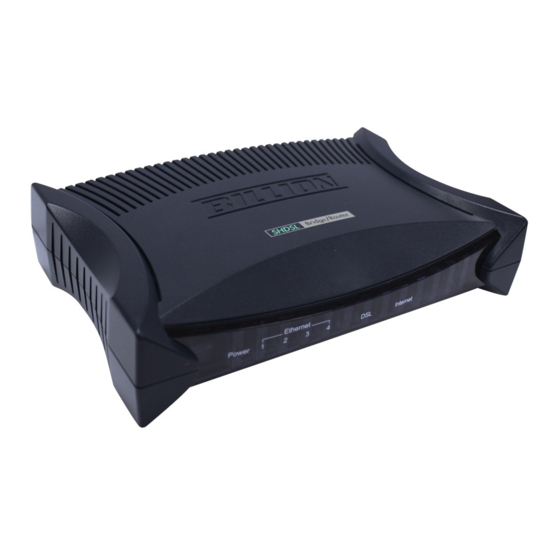

Billion BiPAC 8501 R3 Quick Start Manual

Shdsl.bis firewall bridge/ router
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

BiPAC 8501 R3/ 8521 R3
SHDSL.bis Firewall Bridge/ Router
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BiPAC 8501 R3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billion BiPAC 8501 R3

Summary of Contents for Billion BiPAC 8501 R3

  • Page 1 BiPAC 8501 R3/ 8521 R3 SHDSL.bis Firewall Bridge/ Router Quick Start Guide...
  • Page 2 Quick Start Guide...

  • Page 3: Package Contents

    RJ-11 SHDSL/ telephone Cable (Note: BiPAC 8521 R3 contains two RJ-11 cables) Ethernet (RJ-45) Cable Power adapter This Quick Start Guide Do not use the BiPAC 8501 R3/ 8521 R3 in high humidity or high temperatures. Do not use the same power source for this router as other equipment.

  • Page 4: Led Status

    Quick Start Guide The Front LEDs of BiPAC 8501 R3 Status Meaning Boot failure or in emergency mode Power Green System ready Green Transmission speed at 10/100Mbps Ethernet 1 ~ 4 (EWAN - LAN 4) Blinking Data being transmitted/received Green Blinking...
  • Page 5 Billion BiPAC 8501 R3/ 8521 R3 SHDSL.bis Firewall Bridge/Router The Front LEDs of BiPAC 8521 R3 Status Meaning Boot failure or in emergency mode Power Green System ready Green Transmission speed at 10/100Mbps Ethernet 1 ~ 4 (EWAN - LAN 4)

  • Page 6: Quick Start Guide

    Quick Start Guide Port Meaning Power Switch Power ON / OFF switch. Power Connect the supplied power adapter to this jack. After the device is powered on, press it seconds or above: to restore to factory Reset default settings (this is used when you cannot login to the router, e.g. forgot the password) Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when connecting to a PC or an office/home network of 10Mbps /100Mbps.
  • Page 7 Billion BiPAC 8501 R3/ 8521 R3 SHDSL.bis Firewall Bridge/Router Connecting Your SHDSL.bis Bridge/ Router 1. Connect the Router to an Ethernet (Local Area Network) and the DSL (SHDSL Line). 2. Power on the device. 3. Make sure the Power, DSL and Internet LEDs are lit steadily and that the relevant Ethernet...

  • Page 8: Factory Default Settings

    Quick Start Guide Factory Default Settings Before configuring the bridge/router, you need to know the following default settings. Device LAN IP settings IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0 DHCP server DHCP server is enabled. Start IP Address: 192.168.1.100 IP pool counts: 100 Web Interface: (Username and Password) Username: admin Password: admin...

  • Page 9: Troubleshooting

    Billion BiPAC 8501 R3/ 8521 R3 SHDSL.bis Firewall Bridge/Router Troubleshooting 1. None of the LEDs are on when you turn on the router. Check the connection between the adapter and the router. If the error persists, you may have a hardware problem. In this case you should contact technical support.

This manual is also suitable for:

Bipac8521 r3
