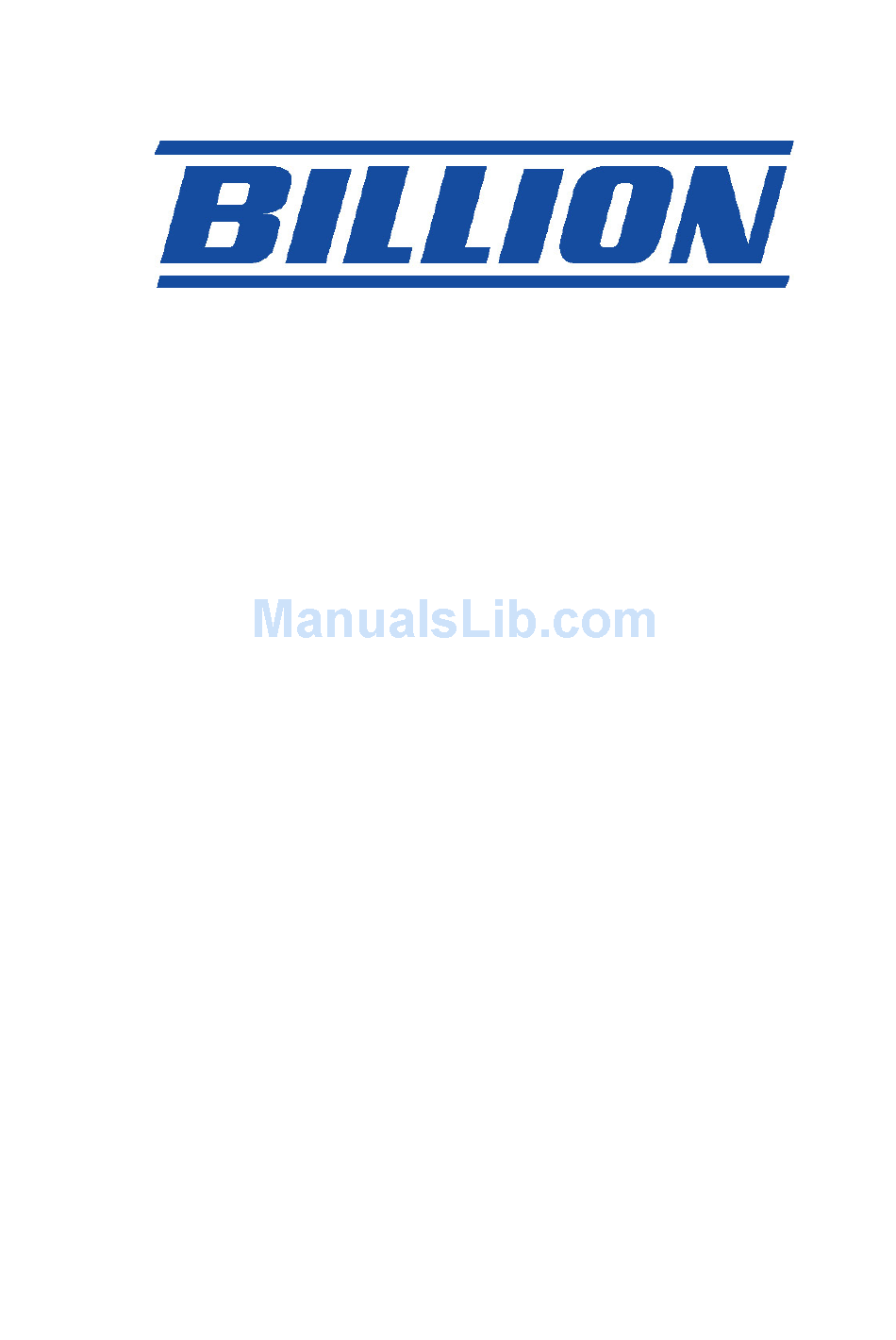

- Page 1 BIPAC- 8500 / 8520 SHDSL VPN Firewall Bridge / Router Quick Start Guide...
-
Page 3: Package Contents
Billion BIPAC-8500 / 8520 - SHDSL VPN Firewall Bridge / Router For more detailed instructions on configuring and using the SHDSL Firewall Bridge / Router, please refer to the on-line manual. Package Contents BIPAC-8500 / 8520 SHDSL Bridge / Router CD-ROM containing the online manual RJ-11 SHDSL / telephone Cable Ethernet (CAT-5 LAN) Cable... -
Page 4: The Front Leds
Quick Start Guide The Front LEDs Meaning Lit when successfully connected to SHDSL line and it is LINE 1 & 2 synchronized. Lit when connected to an Ethernet device. LAN Port Green for 100Mbps; Orange for 10Mbps. — Blinking when data is Transmitted / Received. (RJ-45 connector) Lit when the system is ready. -
Page 5: The Rear Ports
Billion BIPAC-8500 / 8520 - SHDSL VPN Firewall Bridge / Router The Rear Ports ＊ Only the BIPAC-8520 has two Line jack ports. BIPAC-8500 has one. Port Meaning Power Switch Power ON/OFF switch Connect the supplied power adapter to this jack. After the device is powered on, press it to reset the device or restore to factory default settings. - Page 6 Quick Start Guide Connecting Your SHDSL Bridge / Router 1. Connect the Router to a LAN (Local Area Network) and the SHDSL LINE. 2. Power on the device. 3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN and LINE LED are lit.
-
Page 7: Configuring Pc In Windows Xp
Billion BIPAC-8500 / 8520 - SHDSL VPN Firewall Bridge / Router Configuring PC in Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window, click Properties. -
Page 8: Configuring Pc In Windows 2000
Quick Start Guide Configuring PC in Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window click Properties. 4. -
Page 9: Configuring Pc In Windows 98/Me
Billion BIPAC-8500 / 8520 - SHDSL VPN Firewall Bridge / Router Configuring PC in Windows 98/Me 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2. Select TCP/IP -> NE2000 Compatible, or the name of your Network Interface Card (NIC) in your PC. - Page 10 Quick Start Guide Configuring PC in Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click OK.
- Page 11 Billion BIPAC-8500 / 8520 - SHDSL VPN Firewall Bridge / Router Configuring Your SHDSL VPN Firewall Bridge / Router To configure this device, you must have IE 5.0 / Netscape 4.5 or above installed Verifying Your Local Network Connection with the Device To see if this SHDSL Router is visible on the local network, go to Start / Run.
-
Page 12: Product Support And Contact Information
Quick Start Guide Connecting to the Bridge / Router Open the web browser and type http://192.168.1.254 in the browser’s address box. This number is the default IP address for this router. Press Enter. A user name and password window will appear. The default User Name and Password are “admin”...
