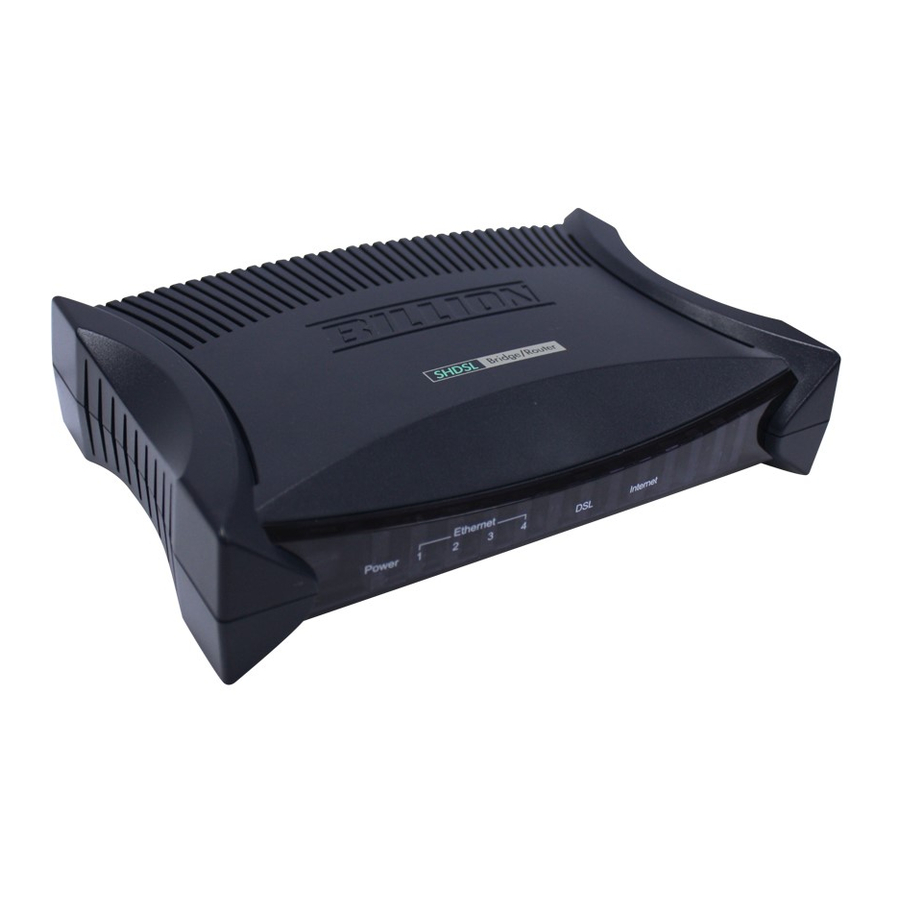

BiPAC 8501
SHDSL.bis VPN Firewall Bridge/Router
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8501 and is the answer not in the manual?

Questions and answers

Related Manuals for Billion 8501

Summary of Contents for Billion 8501

  • Page 1 BiPAC 8501 SHDSL.bis VPN Firewall Bridge/Router Quick Start Guide...

  • Page 3: Package Contents

    For more detailed instructions on configuring and using the Billion SHDSL.bis VPN Firewall Bridge/Router, please refer to the on-line manual. Package Contents SHDSL.bis VPN Firewall Bridge/Router CD-ROM containing the online manual RJ-11 SHDSL/telephone Cable Ethernet (CAT-5 LAN) Cable Console (PS2-RS232) Cable AC-DC power adapter (12VDC, 1A) This Quick Start Guide Do not use this router in high humidity or high temperatures.

  • Page 4: The Front Leds

    Quick Start Guide The Front LEDs LAN Port — (RJ-45 connector) LINE Meaning Lit when power is ON. Lit when the system is ready. Lit when connected to an Ethernet device. Green for 100Mbps; Orange for 10Mbps. Blinking when data is Transmitted / Received. Lit when successfully connected to SHDSL line and it is synchronized.

  • Page 5: The Rear Ports

    The Rear Ports Port Power Switch RESET — (RJ-45 connector) CONSOLE LINE Power ON/OFF switch Connect the supplied power adapter to this jack. After the device is powered on, press it to reset the device or restore to factory default settings. 1-3 seconds: reset the device 6 seconds above, and power off, power on the device: restore to factory default settings (this is used when you...
  • Page 6 Quick Start Guide Connecting Your SHDSL Bridge/Router 1. Connect the Router to a LAN (Local Area Network) and the SHDSL LINE. 2. Power on the device. 3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN and LINE LED are lit.

  • Page 7: Configuring Pc In Windows Xp

    Configuring PC in Windows XP 1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on Network Connections 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties.

  • Page 8: Configuring Pc In Windows 2000

    Quick Start Guide Configuring PC in Windows 2000 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections. 2. Double-click Local Area Connection. 3. In the Local Area Connection Status window click Properties. 4.

  • Page 9: Configuring Pc In Windows 98/Me

    Configuring PC in Windows 98/Me 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Configuration tab. 2. Select TCP/IP -> NE2000 Compatible, or the name of your Network Interface Card (NIC) in your PC. 3.
  • Page 10 Quick Start Guide Configuring PC in Windows NT4.0 1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and choose the Protocols tab. 2. Select TCP/IP Protocol and click Properties. 3. Select the Obtain an IP address from a DHCP server radio button and click OK.
  • Page 11 Configuring Your SHDSL Bridge/Router To configure this device, you must have IE 5.0 / Netscape 4.5 or above installed Verifying Your Local Network Connection with the Device To see if this ADSL Router is visible on the local network, go to Start / Run.

  • Page 12: Product Support And Contact Information

    Quick Start Guide Connecting to the Router Open the web browser and type http://192.168.1.254 in the browser’s address box. This number is the default IP address for this router. Press Enter. 2. A username and password window will appear. The default username and password are admin and admin.
