X10DRFR
X10DRFR-N
X10DRFR-NT
USER'S MANUAL
Revision 1.0b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X10DRFR and is the answer not in the manual?

Questions and answers

Related Manuals for Supero X10DRFR

Summary of Contents for Supero X10DRFR

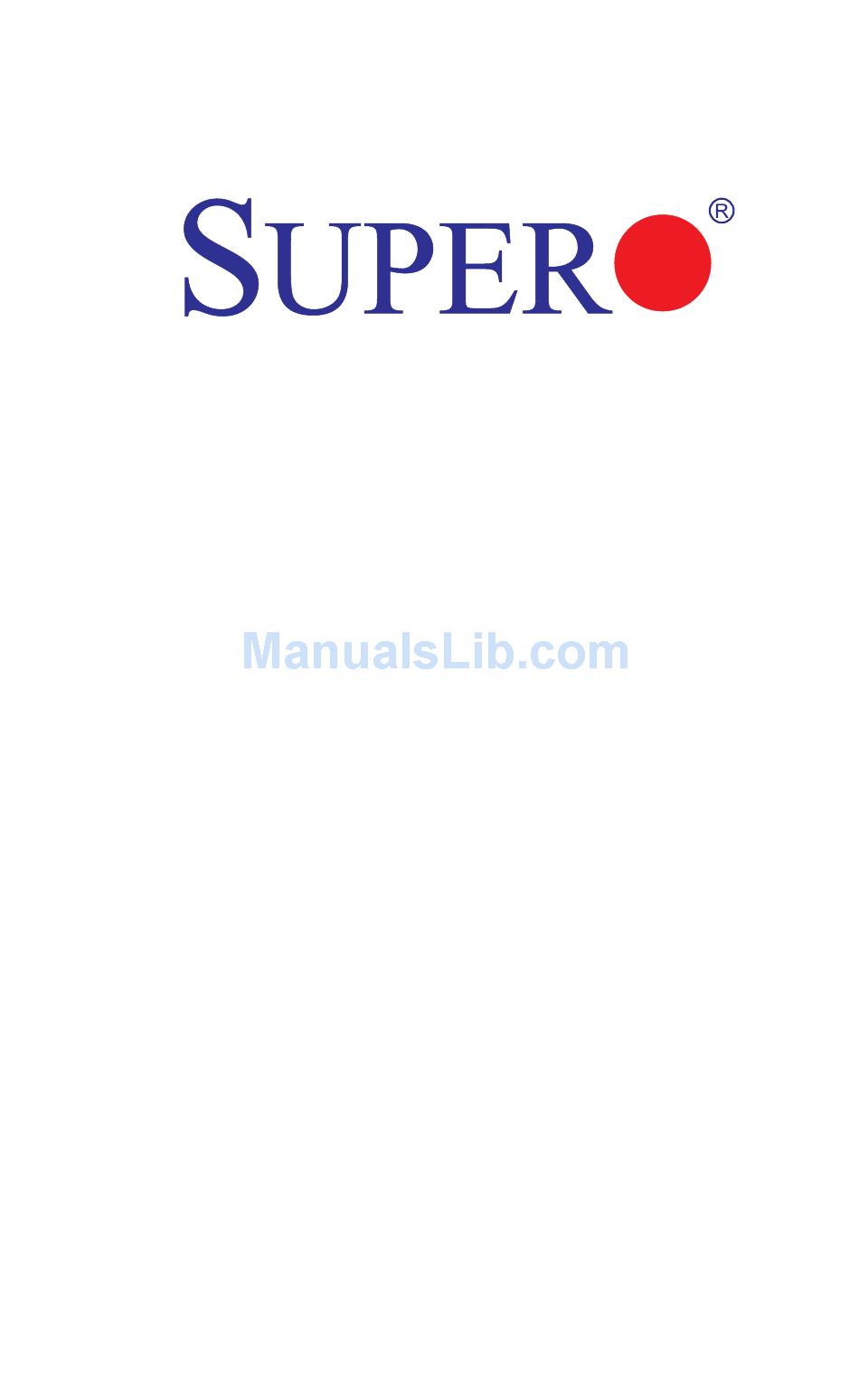

  • Page 1 X10DRFR X10DRFR-N X10DRFR-NT USER’S MANUAL Revision 1.0b...
  • Page 2 The information in this user’s manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

  • Page 3: About This Motherboard

    E5-2600(V3) Series processors (Socket R3) that offer Intel® QPI (QuickPath Inter- face) Technology, providing point-to-point connection with a transfer speed of up to 9.6 GT/s. With the PCH C612 built in, the X10DRFR(-N/-NT) motherboard supports Intel® Manageability Engine, Intel Rapid Storage Technology enterprise, Digital Media Interface, PCI-E Gen.

  • Page 4: Conventions Used In The Manual

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Conventions Used in the Manual Pay special attention to the following symbols for proper system installation and to prevent damage to the system or injury to yourself: Warning: Important information given to ensure proper system installation or to prevent...

  • Page 5: Contacting Supermicro

    Preface Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...

  • Page 6: Table Of Contents

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Table of Contents Preface Chapter 1 Overview Overview ......................1-1 Processor and Chipset Overview ..............1-11 Special Features ................... 1-12 System Health Monitoring ................1-12 ACPI Features ....................1-13 Power Supply ....................1-13 Advanced Power Management ..............1-14...
  • Page 7 Table of Contents TPM Header/Port 80 ................2-22 Non-Mask Interrupt Header ..............2-22 T-SGPIO 1/2 Headers ................2-23 NVM Express Connections (For X10DRFR-N/NT Only) ......2-23 Jumper Settings .................... 2-24 Explanation of Jumpers ................2-24 LAN Ports 1/2 Enable ................2-24 CMOS Clear .....................
  • Page 8 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Security Settings ................... 4-36 Boot Settings ....................4-37 Save & Exit ....................4-39 Appendix A BIOS Error Beep Codes BIOS Error Beep Codes .................A-1 Appendix B Software Installation Instructions Installing Software Programs ................B-1 Configuring SuperDoctor 5 ................B-2 Appendix C UEFI BIOS Recovery Instructions An Overview to the UEFI BIOS ..............C-1...

  • Page 9: Chapter 1 Overview

    Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. The X10DRFR(-N/-NT) motherboard was designed to be used with a Supermicro- proprietary chassis as an integrated server platform. It is not to be used as a stand- alone product and will not be shipped independently in a retail box.
  • Page 10 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. The motherboard you've received may or may not look exactly the same as the graphics...

  • Page 11: Motherboard Layout

    FAN4 CTRL JWD1 I-SATA3 JNMI1 Battery JBAT1 CPU1 CLOSE 1st OPEN 1st BAR CODE JPP0 X10DRFR JITP1 JPP1 Rev. 1.10 12V_IN CPU2 HDDPOWER1 HDDPOWER2 HDDPOWER3 JNVME2JNVME1 POWER BUTTON Notes: 1. For the latest CPU/Memory updates, please refer to our website at http:// www.supermicro.com/products/motherboard/ for details.

  • Page 12: Motherboard Quick Reference

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Motherboard Quick Reference JIPMB1 JPL1 IPMI_LAN JMLP_STBY1 LAN2 LAN1 JMLP_STBY2 FAN4 CTRL JWD1 I-SATA3 JNMI1 Battery JBAT1 CPU1 CLOSE 1st OPEN 1st BAR CODE JPP0 X10DRFR JITP1 JPP1 Rev. 1.10 12V_IN CPU2 HDDPOWER1 HDDPOWER2 HDDPOWER3 JNVME2JNVME1...
  • Page 13 JPTM1 TPM (Trusted Platform Module)/Port 80 JPWR9/JPWR10 8-pin Power Connector 9 (12V_in)/Power Connector 10 (Ground) JNVME1/2 NVM Express PCI-E 3.0 x4 ports 1/2 (for X10DRFR-N/NT only) JNVI System Management Bus (SMB) for NVM Express port (for X10DRFR-N/NT only) LAN1/2 Gigabit (GLAN) Ethernet ports 1/2 (for X10DRFR(-N),...
  • Page 14 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual I-SATA0-5 I-SATA connectors 0-5 (supported by Intel PCH) S-SATA0-3 S-SATA connectors 0-3, supported by Intel SCU (S-SATA2/3: used for Supermicro SuperDOMs (Devices-on-Module with built-in power pins) T-SGPIO 1/2 Serial_link General Purpose I/O headers 1/2 (T-SGPIO1: for I-SATA0-5, T-SGPIO2: for S-SATA0-3) USB0/USB1 (3.0)

  • Page 15: Motherboard Features

    CPU1 Slots • One (1) SXB1 PCI-Exp 3.0 x16 slot supported CPU1 • Two (2) NVMe Ports 1/2 (dual PCI-E 3.0 x 4 mini- SAS HD connectors) (X10DRFR-N/-NT) • Graphics ASpeed AST2400 BMC Controller • Network One Intel i350 Gigabit (10/100/1000 Mb/s) Ethernet...
  • Page 16 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual IPMI 2.0 • IPMI 2.0 supported by the ASpeed 2400 BMC Serial (COM) Port • One (1) Fast UART 16550 Connection: 9-pin RS- 232 port • Rear VGA Port Peripheral USB Devices Devices • Two (2) USB 3.0 ports on the rear I/O panel (USB0/ USB1) •...
  • Page 17 Chapter 1: Overview • Suspend-state LED • System PECI (Platform Environment Configuration Interface) Management 2.0 support • System resource alert via SuperDoctor® 5 • Thermal Monitor 2 (TM2) support • SuperDoctor® 5, Watch Dog, NMI • Chassis Intrusion Header and Detection •...

  • Page 18: System Block Diagram

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual #1-8 #2-8 #1-7 VR12.5 VR12.5 #2-7 #1-6 #2-6 5 PHASE 5 PHASE #1-5 #2-5 145W 145W #1-4 #2-4 #1-3 9.6G #2-3 #1-2 #2-2 Processor Processor #1-1 #2-1 DDR-IV DDR-IV DMI2 #1 #2 #3 DMI2 9.6G PVCCIO...

  • Page 19: Processor And Chipset Overview

    Processor and Chipset Overview Built upon the functionality and capability of the Intel E5-2600(V3) Series proces- sors (Socket R3) and the Intel C612 PCH, the X10DRFR(-N/-NT) motherboard provides the best-balanced solution for performance, power efficiency, and fea- tures to address the diverse needs of next-generation Enterprise (4U) FatTwin server platforms.

  • Page 20: Special Features

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Special Features Recovery from AC Power Loss The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off (in which case you must press the power switch to turn it back on), or for it to automatically return to the power-on state.

  • Page 21: Acpi Features

    Chapter 1: Overview ACPI Features ACPI stands for Advanced Configuration and Power Interface. The ACPI specifica- tion defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a computer system, including its hardware, operating system and application software. This enables the system to automatically turn on and off peripherals such as network cards, hard disk drives and printers.

  • Page 22: Advanced Power Management

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Advanced Power Management The following new advanced power management features are supported by the motherboard. Intel Intelligent Power Node Manager (NM) (Available ® when the Supermicro Power Manager [SPM] is installed) The Intel Intelligent Power Node Manager (IPNM) provides your system with ®...

  • Page 23: Chapter Installation

    Chapter 2: Installation Chapter 2 Installation Standardized Warning Statements The following statements are industry-standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assis- tance.
  • Page 24 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta.

  • Page 25: Product Disposal

    Chapter 2: Installation Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要が あり ます。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 26: Static-Sensitive Devices

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid pos- sible damage to your system board, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

  • Page 27: Motherboard Installation

    Location of Mounting Holes There are eleven (11) mounting holes on this motherboard indicated by the arrows. BAR CODE X10DRFR Rev. 1.10 Caution: 1) To avoid damaging the motherboard and its components, please do not use a force greater than 8 lb/inch on each mounting screw during motherboard installation.

  • Page 28: Installing The Motherboard

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Installing the Motherboard Note: Always connect the power cord last, and always remove it before adding, removing or changing any hardware components. Install the I/O shield into the chassis. 1. Locate the mounting holes on the motherboard.

  • Page 29: Processor And Heatsink Installation

    Chapter 2: Installation Processor and Heatsink Installation Warning: When handling the processor package, avoid placing direct pressure on the label area. Also, improper CPU installation or socket/pin misalignment can cause serious damage to the CPU or the motherboard that will require RMA repairs. Be sure to read and follow all instructions thoroughly before installing your CPU and heatsink.
  • Page 30 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual 2. Press the second load lever labeled 'Close 1st' to release the load plate that covers the CPU socket from its locking position. Press down on the Pull the lever away Load Lever labeled 'Close from the socket.
  • Page 31 Chapter 2: Installation 4. Using your thumb and the index finger, remove the 'WARNING' plastic cap from the socket. 5. Use your thumb and index finger to hold the CPU on its edges. Align the CPU keys, which are semi-circle cutouts, against the socket keys. Socket Keys CPU Keys 6.
  • Page 32 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual 7. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed. 8. Close the load plate with the CPU inside the socket. Lock the lever labeled 'Close 1st' first, then lock the lever labeled 'Open 1st' lever second.

  • Page 33: Installing A Passive Heatsink

    Chapter 2: Installation Installing a Passive Heatsink 1. Apply the proper amount of thermal grease to the heatsink. 2. Place the heatsink on top of the CPU so that the two mounting holes on the heatsink are aligned with those on the retention mechanism. 3.

  • Page 34: Removing The Passive Heatsink

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Removing the Passive Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to remove the heatsink, please follow the instructions below to uninstall the heatsink to avoid damaging the CPU or other components.

  • Page 35: Installing And Removing The Memory Modules

    2. Push the release tabs outwards on both ends of the DIMM slot to unlock it. Notches BAR CODE Release Tabs X10DRFR Rev. 1.10 3. Align the key of the DIMM module with the receptive point on the memory slot.
  • Page 36 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Memory Support for the X10DRFR(-N/-NT) Motherboard The X10DRFR(-N/-NT) motherboard supports up to 1024 GB of Load Reduced (LRDIMM), and up to 512 GB of Registered (RDIMM) DDR4 (288-pin) ECC 2133/1866/1600 MHz memory in 16 slots Note: Memory speed support is pending on the processors installed in the system.
  • Page 37 Chapter 2: Installation Populating DIMM Memory Modules Speed (MT/s), Slot per Channel (SPC) & DIMM per Channel (DPC) 2-15...

  • Page 38: Control Panel Connectors And I/O Ports

    1. Back panel USB 3.0 Port 0 2. Back panel USB 3.0 Port 1 3. Back panel VGA (Blue) 4. GLAN Port 1 (for X10DRFR(-N)), 10G-LAN (TLAN) Port 1 (for X10DRFR-NT) 5. GLAN Port 2 (for X10DRFR(-N)), 10G-LAN (TLAN) Port 1 (for X10DRFR-NT) 6.

  • Page 39: Universal Serial Bus (Usb)

    2. USB (3.0) 1 JIPMB1 JPL1 IPMI_LAN 3. VGA LAN2 LAN1 FAN4 CTRL JWD1 I-SATA3 JNMI1 Battery JBAT1 CPU1 CLOSE 1st OPEN 1st BAR CODE JPP0 X10DRFR JITP1 JPP1 Rev. 1.10 12V_IN CPU2 HDDPOWER1 HDDPOWER2 HDDPOWER3 JNVME2JNVME1 POWER BUTTON 2-17...

  • Page 40: Ethernet Ports

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Ethernet Ports LAN Ports Pin Definition Two Ethernet ports (LAN1/2) are Pin# Definition located on the I/O back panel P2V5SB SGND on the motherboard. These two TD0+ Act LED LAN ports support Gigabit LAN TD0- P3V3SB...

  • Page 41: Connecting Cables

    I-SATA3 JNMI1 JPWR_HDD2: D. HDDPOWER2 ( HDD power supply) Battery JPWR_HDD3: E. HDDPOWER3 ( HDD power JBAT1 supply) CPU1 CLOSE 1st OPEN 1st BAR CODE JPP0 X10DRFR JITP1 JPP1 Rev. 1.10 12V_IN CPU2 HDDPOWER1 HDDPOWER2 HDDPOWER3 JNVME2JNVME1 POWER BUTTON 2-19...

  • Page 42: Com Port Header

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual COM Port Header Serial Port Pin Definitions (COM1) A COM port header is located next to Pin # Definition Pin # Definition the LAN controller. See the table on the right for pin definitions. Ground SMB Header...

  • Page 43: Fan Headers

    JIPMB1 B. Fan2 JPL1 IPMI_LAN LAN2 LAN1 FAN4 C. Fan3 D. Fan4 CTRL JWD1 I-SATA3 JNMI1 Battery JBAT1 CPU1 CLOSE 1st OPEN 1st BAR CODE JPP0 X10DRFR JITP1 JPP1 Rev. 1.10 12V_IN CPU2 HDDPOWER1 HDDPOWER2 HDDPOWER3 JNVME2JNVME1 POWER BUTTON 2-21...

  • Page 44: Tpm Header/Port 80

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual TPM Header/Port 80 TPM/Port 80 Header Pin Definitions A Trusted Platform Module/Port 80 head- Pin # Definition Pin # Definition er is located at JTPM1 to provide TPM LCLK support and Port 80 connection. Use this LFRAME# <(KEY)>...

  • Page 45: T-Sgpio 1/2 Headers

    S-SATA0-3). See the table on the right for pin definitions. NVM Express Connections (For X10DRFR-N/NT Only) Two NVM Express ports are located on the motherboard. JNVME ports 1/2 pro- vide high-speed, low-latency PCI-Exp. 3.0 x4 connections directly from the CPU to NVMe Solid State (SSD) drives.

  • Page 46: Jumper Settings

    JPL1 is used to enable or disable onboard LAN1 Jumper Setting Definition and LAN2. LAN ports 1/2 support Gigabit LANs on Enabled (default) the X10DRFR(/-N), and support 10G-LANs on the Disabled X10DRFR-NT. See the table on the right for jumper settings. JIPMB1 JPL1 IPMI_LAN A. GLAN1/2 Enable (X10DRFR(/-N))

  • Page 47: Cmos Clear

    A. Clear CMOS JIPMB1 B. Watch Dog Enable JPL1 IPMI_LAN LAN2 LAN1 FAN4 CTRL JWD1 I-SATA3 JNMI1 Battery JBAT1 CPU1 CLOSE 1st OPEN 1st BAR CODE JPP0 X10DRFR JITP1 JPP1 Rev. 1.10 12V_IN CPU2 HDDPOWER1 HDDPOWER2 HDDPOWER3 JNVME2JNVME1 POWER BUTTON 2-25...

  • Page 48: Vga Enable

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual VGA Enable VGA Enable Jumper Settings Jumper JPG1 allows the user to enable Jumper Setting Definition the onboard VGA connector. The default Enabled (Default) setting is on pins 1/2 to enable the con- Disabled nection. See the table on the right for jumper settings.

  • Page 49: I 2 C Bus To Pci-Exp. Slots

    A. JI JIPMB1 JPL1 B. JI IPMI_LAN LAN2 LAN1 FAN4 C. JPME2 CTRL JWD1 I-SATA3 JNMI1 Battery JBAT1 CPU1 CLOSE 1st OPEN 1st BAR CODE JPP0 X10DRFR JITP1 JPP1 Rev. 1.10 12V_IN CPU2 HDDPOWER1 HDDPOWER2 HDDPOWER3 JNVME2JNVME1 POWER BUTTON 2-27...

  • Page 50: Onboard Led Indicators

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Onboard LED Indicators Activity LED Link LED LAN LEDs The LAN ports are located on the IO back Rear View (when facing the rear side of the chassis) panel on the motherboard. Each Ethernet GLAN Activity Indicator (Left) LAN port has two LEDs.

  • Page 51: Standby_Power Good Led

    A. Standby PWR Good LED B. BMC LED JIPMB1 JPL1 IPMI_LAN LAN2 LAN1 FAN4 CTRL JWD1 I-SATA3 JNMI1 Battery JBAT1 CPU1 CLOSE 1st OPEN 1st BAR CODE JPP0 X10DRFR JITP1 JPP1 Rev. 1.10 12V_IN CPU2 HDDPOWER1 HDDPOWER2 HDDPOWER3 JNVME2JNVME1 POWER BUTTON 2-29...

  • Page 52: System_Power Good Led

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual System_Power Good LED System PWR Good LED Status The System_Power Good LED is located State Description at LE2 on the motherboard. When LE2 System PWR is on, system power is normal. See the Normal table at right for more information.

  • Page 53: 2-10 Pci-Express And Serial Ata Connections

    JIPMB1 JPL1 CPU1 SXB2 PCI-E 3.0 x8 Slot IPMI_LAN LAN2 LAN1 FAN4 CTRL JWD1 I-SATA3 JNMI1 Battery JBAT1 CPU1 CLOSE 1st OPEN 1st BAR CODE JPP0 X10DRFR JITP1 JPP1 Rev. 1.10 12V_IN CPU2 HDDPOWER1 HDDPOWER2 HDDPOWER3 JNVME2JNVME1 POWER BUTTON 2-31...

  • Page 54: Serial Ata Ports

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Serial ATA Ports SATA 2/0/3.0 Pin Definitions Six Serial ATA Ports (I-SATA0-I-SATA5), supported by Intel PCH, Pin# Definition are located on the motherboard. I-SATA0-3 support SATA 2.0, and I-SATA4/5 support SATA3 ports. In addition, four S-SATA...

  • Page 55: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Note: Always disconnect the power cord before adding, changing or installing any hardware components.

  • Page 56: System Boot Failure

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual No Video 1. If the power is on, but you do not have video, remove all the add-on cards and cables. 2. Use the speaker to determine if any beep codes exist. Refer to Appendix A for details on beep codes.

  • Page 57: Memory Errors

    Chapter 3: Troubleshooting Memory Errors When a No_Memory_Beep_Code is issued by the system, check the following: 1. Make sure that the memory modules are compatible with the system and that the DIMM modules are properly and fully installed. (For memory compatibility, refer to the Memory Compatibility Chart posted on our website @ http://www.
  • Page 58 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual tings in the IPMI to make sure that the CPU and System temperatures are within the normal range. Also check the front panel Overheat LED, and make sure that the Overheat LED is not on. 5. Adequate power supply: Make sure that the power supply provides adequate power to the system.

  • Page 59: Technical Support Procedures

    Chapter 3: Troubleshooting Technical Support Procedures Before contacting Technical Support, please take the following steps. Also, please note that as a motherboard manufacturer, Supermicro also sells motherboards through its channels, so it is best to first check with your distributor or reseller for troubleshooting services.

  • Page 60: Battery Removal And Installation

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Battery Removal and Installation Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Locate the onboard battery as shown below. 3. Using a tool such as a pen or a small screwdriver, push the battery lock out- wards to unlock it.

  • Page 61: Frequently Asked Questions

    Chapter 3: Troubleshooting Frequently Asked Questions Question: What are the various types of memory that my motherboard can support? Answer: The motherboard supports DDR4 RDIMM/LRDIMM ECC modules. To enhance memory performance, do not mix memory modules of different speeds and sizes. Please follow all memory installation instructions given on Section 2-5 in Chapter 2.

  • Page 62: Returning Merchandise For Service

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your ven- dor for a Returned Merchandise Authorization (RMA) number. When returning the...

  • Page 63: Chapter 4 Bios

    BIOS Introduction This chapter describes the AMI BIOS setup utility for the X10DRFR(/-N/-NT). The ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter describes the basic navigation of the AMI BIOS setup utility screens.

  • Page 64: Main Setup

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual How to Start the Setup Utility Normally, the only visible Power-On Self-Test (POST) routine is the memory test. As the memory is being tested, press the <Delete> key to enter the main menu of the AMI BIOS setup utility. From the main menu, you can access the other setup screens.
  • Page 65 Day MM/DD/YYYY format. The time is entered in HH:MM:SS format. Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. Supermicro X10DRFR BIOS Version: This item displays the version of the BIOS ROM used in the system.

  • Page 66: Advanced Setup Configurations

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Advanced Setup Configurations Use the arrow keys to select Advanced setup and press <Enter> to access the submenu items: Warning: Take Caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction.

  • Page 67: Power Configuration

    Chapter 4: AMI BIOS Wait For 'F1' If Error Select Enabled to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. INT19 (Interrupt 19) Trap Response Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture"...

  • Page 68: Cpu Configuration

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual CPU Configuration  This submenu displays the following CPU information as detected by the BIOS. It also allows the user to configure CPU settings. • Processor Socket • Processor ID • Processor Frequency • Processor Max Ratio •...
  • Page 69 Chapter 4: AMI BIOS execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor to damage the system during an attack. This feature is used in conjunction with the items: "Clear MCA," "VMX," "Enable SMX," and "Lock Chipset"...

  • Page 70: Advanced Power Management Configuration

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual DCA Prefetch Delay A DCA Prefetcher is used with a TOE (TCP/IP Offload Engine) adapter to prefetch data in order to shorten execution cycles and maximize data processing efficiency. Prefetching data too frequently can saturate the cache directory and delay neces- sary cache access.
  • Page 71 Chapter 4: AMI BIOS CPU P State Control (Available when Power Technology  is set to Custom) EIST (P-states) EIST (Enhanced Intel SpeedStep Technology) allows the system to automatically adjust processor voltage and core frequency to reduce power consumption and heat dissipation.
  • Page 72 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual CPU T State Control (Available when Power Technology  is set to Custom) ACPI (Advanced Configuration Power Interface) T-States Select Enable to support CPU throttling by the operating system to reduce power consumption. The options are Enable and Disable.

  • Page 73: Chipset Configuration

    Chapter 4: AMI BIOS Short Duration Power Limit This item displays the time period during which short duration power is main- tained. The default setting is 0. Package Clamping Limit2 Use this item to set the limit on power performance states for the processor operating in turbo mode, with P0 being the state with the highest frequency (clock speed) and power (consumption), and P1, a step lower in performance than P0, with its frequency and voltage scaled back a notch.
  • Page 74 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual IOAT (Intel® IO Acceleration) Configuration Enable IOAT Select Enable to enable Intel I/OAT (I/O Acceleration Technology) support, which significantly reduces CPU overhead by leveraging CPU architectural improve- ments and freeing the system resource for other tasks. The options are Enable and Disable.
  • Page 75 Chapter 4: AMI BIOS QPI (Quick Path Interconnect) Configuration QPI Status The following information will display: • Number of CPU • Number of IIO • Current QPI Link Speed • Current QPI Link Frequency • QPI Global MMIO Low Base/Limit •...

  • Page 76: Memory Configuration

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Isoc Mode Select Enabled for Isochronous support to meet QoS (Quality of Service) require- ments. This feature is especially important for Virtualization Technology. The options are Enable and Disable. Memory Configuration Enforce POR Select Enable to enforce POR restrictions on DDR4 frequency and voltage programming.

  • Page 77: Dimm Information

    Chapter 4: AMI BIOS Channel Interleaving Use this item to set DIMM channel interleaving mood. The options are Auto, 1-Way Interleave, 2-Way Interleave, 3-Way Interleave, and 4-Way Interleave. Rank Interleaving Use this item to select a rank memory interleaving mode. The options are Auto, 1-Way, 2-Way, 4-Way, and 8-Way.

  • Page 78: South Bridge Configuration

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Patrol Scrub Interval This feature allows you to decide how many hours the system should wait before the next complete patrol scrub is performed. Use the keyboard to enter a value from 0-24. The Default setting is 24.
  • Page 79 Chapter 4: AMI BIOS USB Mass Storage Driver Support Select Enabled for USB mass storage device support. The options are Disabled and Enabled. Port 60/64 Emulation Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete legacy USB keyboard support for the operating systems that do not sup- port legacy USB devices.

  • Page 80: Sata Configuration

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual SATA Configuration  When this submenu is selected, AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the fol- lowing items: SATA Controller This item enables or disables the onboard SATA controller supported by the Intel PCH chip.
  • Page 81 Chapter 4: AMI BIOS Port 0 ~ Port 5 SATA Device Type Use this item to specify if the SATA port specified by the user should be con- nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

  • Page 82: Ssata Configuration

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Port 0 ~ Port 5 Hot Plug Select Enabled to enable hot-plugging support for a port specified by the user, which will allow the user to replace a SATA disk drive installed on this port without shutting down the system.
  • Page 83 Chapter 4: AMI BIOS • Software Preserve Support sSATA Port 0~ Port 3 Select Enabled to enable an sSATA port specified by the user. The options are Disabled and Enabled. sSATA Port 0 ~ Port 3 Hot Plug Select Enabled to enable hot-plugging support for a port specified by the user, which will allow the user to replace a sSATA disk drive installed on this port without shutting down the system.
  • Page 84 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual sSATA RAID Option ROM/UEFI Driver Select EFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot. The options are Disabled, EFI, and Legacy. SATA/sSATA RAID Boot Select Select SATA Controller to use a device supported by the SATA connector for system boot.
  • Page 85 Chapter 4: AMI BIOS • Operational Firmware Version • Recovery Firmware Version • ME Firmware Features • ME Firmware Status #1 • ME Firmware Status #2 • Current State • Error Code PCIe/PCI/PnP Configuration  The following PCI information will be displayed: •...
  • Page 86 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Maximum Payload Select Auto for the system BIOS to automatically set the maximum payload value for a PCI-E device to enhance system performance. The options are Auto, 128 Bytes, and 256 Bytes. Maximum Read Request Select Auto for the system BIOS to automatically set the maximum size for a read request for a PCI-E device to enhance system performance.

  • Page 87: Super Io Configuration

    Chapter 4: AMI BIOS VGA Priority Use this item to select the graphics device to be used as the primary video display for system boot. The options are Onboard and Offboard. Network Stack Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Uni- fied Extensible Firmware Interface) for network stack support.

  • Page 88: Serial Port Console Redirection

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Serial Port Console Redirection  COM 1 COM 1 Console Redirection Select Enabled to enable COM Port 1 Console Redirection, which will allow a client machine to be connected to a host machine at a remote site for networking. The options are Disabled and Enabled.
  • Page 89 Chapter 4: AMI BIOS Stop Bits A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2. Flow Control Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow.
  • Page 90 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual *If the item above set to Enabled, the following items will become available for user's configuration: SOL/COM2 Console Redirection Settings Use this feature to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.
  • Page 91 Chapter 4: AMI BIOS the receiving buffer is full. Send a "Start" signal to start data-sending when the receiving buffer is empty. The options are None and Hardware RTS/CTS. VT-UTF8 Combo Key Support Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals.
  • Page 92 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual EMS Console Redirection Settings (Available when EMS Console Redirection is enabled) Use this feature to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

  • Page 93: Acpi Settings

    Chapter 4: AMI BIOS port to enhance data integrity and network security. Please reboot the system for a change on this setting to take effect. The options are Enabled and Disabled. TPM State Select Enabled to use TPM (Trusted Platform Module) settings to enhance system data security.

  • Page 94: Event Logs

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Event Logs Use this feature to configure Event Log settings. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.

  • Page 95: View Smbios Event Log

    Chapter 4: AMI BIOS When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately. SMBIOS Event Log Standard Settings Log System Boot Event Select Enabled to log system boot events.

  • Page 96: Ipmi

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. IPMI Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status This item indicates the status of the IPMI firmware installed in your system.

  • Page 97: Bmc Network Configuration

    Chapter 4: AMI BIOS When SEL is Full This feature allows the user to determine what the AMI BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately. Note: After making changes on a setting, be sure to reboot the system for the changes to take effect.

  • Page 98: Security Settings

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Security Settings This menu allows the user to configure the following security settings for the system. Password Check Select Setup for the system to prompt for a password upon entering the BIOS setup utility. Select Always for the system to prompt for a password at bootup and upon entering the BIOS Setup utility.

  • Page 99: Boot Settings

    Chapter 4: AMI BIOS Boot Settings Use this feature to configure Boot Settings: Boot Configuration Setup Prompt Timeout Use this item to indicate how many seconds the system shall wait for the BIOS setup activation key to respond before the system starts to boot. The default setting is 1. Boot Mode Select Use this item to select the type of device to be used for system boot.
  • Page 100 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual • Dual Boot Order #7 • Dual Boot Order #8 • Dual Boot Order #9 • Dual Boot Order #10 • Dual Boot Order #11 • Dual Boot Order #12 • Dual Boot Order #13 •...

  • Page 101: Save & Exit

    Chapter 4: AMI BIOS Save & Exit Select the Save & Exit tab from the BIOS setup screen to configure the settings below. Discard Changes and Exit Select this option to quit the BIOS setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 102 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Restore Defaults To set this feature, select Restore Defaults from the Exit menu and press <Enter>. These are manufacture default settings designed for maximum system performance but not for maximum stability. Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <En- ter>.

  • Page 103: Appendix A Bios Error Beep Codes

    Appendix A: BIOS POST Error Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed at each system boot, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue to boot.
  • Page 104 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual Notes...

  • Page 105: Appendix B Software Installation Instructions

    To install these programs, click the icons to the right of these items. Note: To install the Windows OS, please refer to the instructions posted on our website at http://www.supermicro.com/support/manuals/. X10DRFR(-N/-NT) Driver/Tool Installation Display Screen Note 1: Click the icons showing a hand writing on the paper to view the readme files for each item.

  • Page 106: Configuring Superdoctor 5

    X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual B-2 Configuring SuperDoctor 5 The Supermicro SuperDoctor® 5 is a hardware monitoring program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program monitors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 107: Appendix C Uefi Bios Recovery Instructions

    Appendix C: UEFI BIOS Recovery Appendix C UEFI BIOS Recovery Instructions Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 108 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual 1. Using a different machine, copy the "Super.ROM" binary image file into the disc Root "\" Directory of a USB device or a writeable CD/DVD. Note: If you cannot locate the "Super.ROM" file in your driver disk, visit our website at www.supermicro.com to download the BIOS image into a USB...
  • Page 109 Appendix C: UEFI BIOS Recovery 6. After the process of BIOS Recovery is complete, press any key to reboot the system. 7. Using a different system, extract the BIOS package into a bootable USB flash drive. 8. When a DOS prompt appears, enter FLASH.BAT BIOSname.### at the prompt.
  • Page 110 X10DRFR/X10DRFR-N/X10DRFR-NT Motherboard User’s Manual 9. After seeing the message that BIOS update is completed, unplug the AC pow- er cable from the power supply to clear CMOS, and then plug the AC power cable in the power supply again to power on the system.
  • Page 111 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
