Supero X10DRL-i User Manual

Dual intel e5-2600v3 series
Hide thumbs
Table of Contents

Advertisement

Quick Links

X10DRL-i

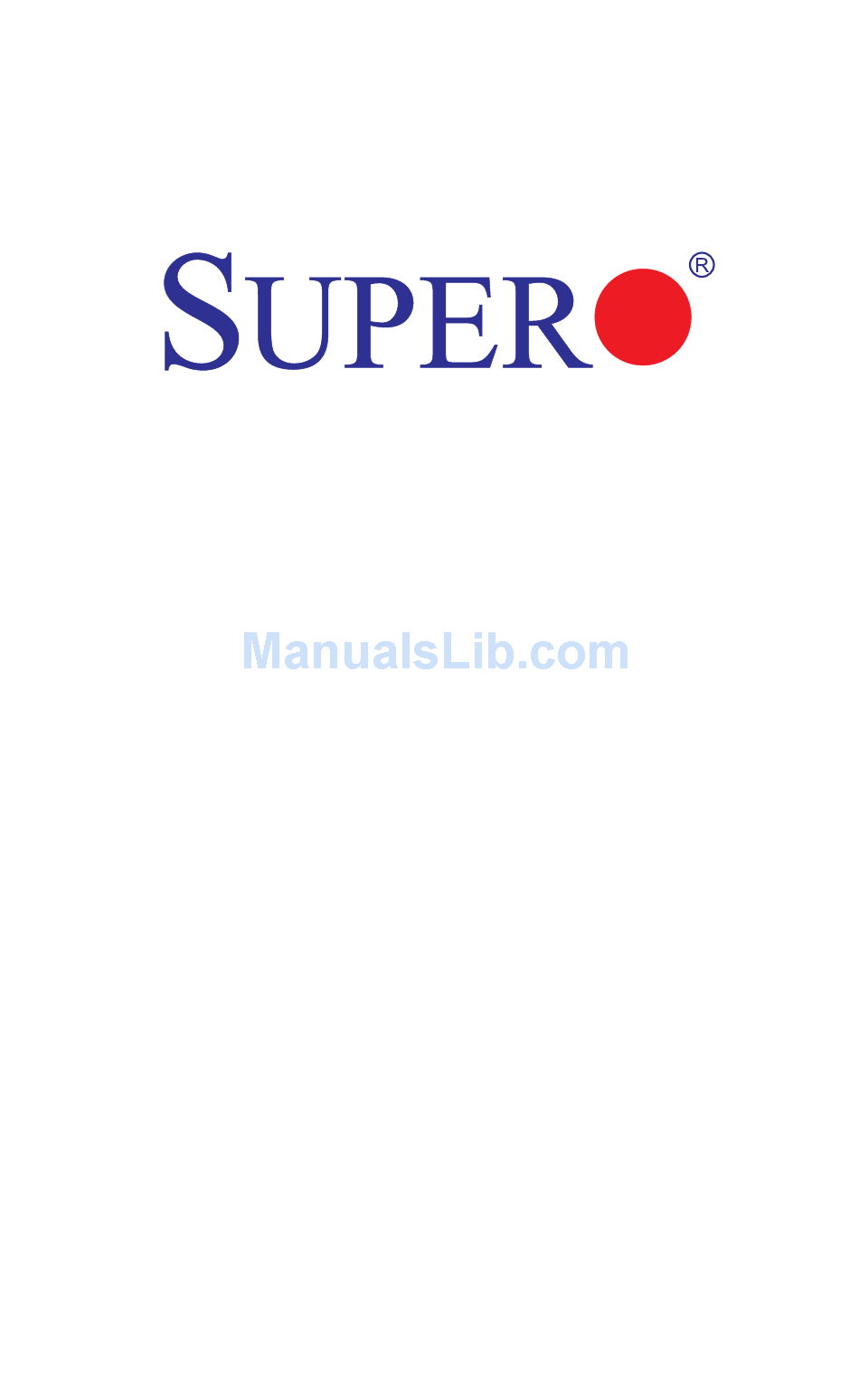

USER'S MANUAL
Revision 1.0b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X10DRL-i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supero X10DRL-i

Summary of Contents for Supero X10DRL-i

  • Page 1 X10DRL-i USER’S MANUAL Revision 1.0b...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

  • Page 3: About This Motherboard

    PC users. It provides information for the installation and use of the X10DRL-i motherboard. About This Motherboard The Super X10DRL-i motherboard supports dual Intel E5-2600V3 Series Proces- sors (Socket R3) that offer new Intel Microarchitecture 22nm Process Technology, delivering the best balanced solution of performance, power efficiency, and features to address the diverse needs of next-generation data centers.

  • Page 4: Conventions Used In The Manual

    X10DRL-i Motherboard User’s Manual Conventions Used in the Manual Pay special attention to the following symbols for proper system installation: Warning: Important information given to ensure proper system installation or to prevent damage to the components or injury to yourself;...

  • Page 5: Contacting Supermicro

    Preface Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...

  • Page 6: Table Of Contents

    X10DRL-i Motherboard User’s Manual Table of Contents Preface Chapter 1 Overview Overview ......................1-1 Processor and Chipset Overview..............1-11 Special Features ................... 1-12 PC Health Monitoring ..................1-12 ACPI Features ....................1-13 Power Supply ....................1-13 Advanced Power Management ..............1-14 Intel Intelligent Power Node Manager (NM) (Available when "Supermicro...
  • Page 7 Table of Contents Power LED ....................2-21 HDD LED/UID Switch ................2-22 NIC1/NIC2 LED Indicators ............... 2-22 Overheat (OH)/Fan Fail/PWR Fail/UID LED ..........2-23 Power Fail LED ..................2-23 Reset Button ................... 2-24 Power Button ................... 2-24 Connecting Cables ..................2-25 Power Connectors ...................
  • Page 8 X10DRL-i Motherboard User’s Manual Frequently Asked Questions ................3-7 Returning Merchandise for Service..............3-8 Chapter 4 BIOS Introduction ...................... 4-1 Main Setup ...................... 4-2 Advanced Setup Configurations..............4-4 Event Logs ....................4-33 IPMI ....................... 4-35 Security Settings ................... 4-37 Boot Settings ....................4-38 Save &...

  • Page 9: Chapter 1 Overview

    Chapter 1: Overview Chapter 1 Overview Overview Checklist Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. Please check that the following items have all been included with your motherboard.
  • Page 10 X10DRL-i Motherboard User’s Manual X10DRL-i Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB Revision available at the time of publishing of the manual. The motherboard you've received may or may not look exactly the same as the graphics...

  • Page 11: Motherboard Layout

    Chapter 1: Overview Motherboard Layout USB0/1 COM1 JUIDB1 JPL1 USB12/13 LAN CTRL (3.0) LAN1 LAN2 JPL2 LEDM1 IPMI_LAN LAN CTRL X10DRL-i Rev. 1.01 CPU2 CLOSE 1st BIOS LICENSE BIOS OPEN 1st CLOSE 1st S-SATA3 S-SATA2 S-SATA1 S-SATA0 JSD1 I-SATA3 OPEN 1st...
  • Page 12 X10DRL-i Motherboard User’s Manual X10DRL-i Quick Reference USB0/1 COM1 JUIDB1 JPL1 USB12/13 LAN CTRL (3.0) LAN1 LAN2 JPL2 LEDM1 IPMI_LAN LAN CTRL X10DRL-i Rev. 1.01 CPU2 CLOSE 1st BIOS LICENSE BIOS OPEN 1st CLOSE 1st S-SATA3 S-SATA2 S-SATA1 S-SATA0 JSD1...
  • Page 13 Chapter 1: Overview X10DRL-i Jumpers Jumper Description Default Setting JBT1 Clear Onboard CMOS Battery/Reset BIOS See Chapter 2 Configuration C1/ JI SMB to PCI-E Slots Pins 2-3 (Disabled) JPB1 BMC Enable Pins 1-2 (Enabled) JPG1 VGA Enable Pins 1-2 (Enabled)
  • Page 14 X10DRL-i Motherboard User’s Manual I-SGPIO1/2 Seria_Link General Purpose I/O Headers 1/2 (I-SGPIO1 for I-SATA0-3, I-SGPIO2 for I-SATA4/5) S-SGPIO Seria_Link General Purpose I/O Header (for S-SATA0-3) Internal Speaker/Buzzer (BP) USB 0/1 Backpanel USB 2.0 Ports 0/1 (BP) USB 12/13 (3.0) Backpanel USB 3.0 Ports 12/13 (FP) USB 2/3 Front-Accessible USB 2.0 Connection Header 2/3...

  • Page 15: Motherboard Features

    Chapter 1: Overview Motherboard Features • Dual Intel E5-2600V3 Series Processors (Socket ® R3-LGA 2011); each processor supports dual full- width Intel QuickPath Interconnect (QPI) links (of up to 9.6 GT/s one direction per QPI) • Memory Integrated memory controller supports: Up to 512 GB of DDR4 (288-pin) Registered (RDIMM)/Load Reduced (LRDIMM) ECC 2133/1866/1600 MHz in 8 slots...

  • Page 16: Peripheral Devices

    X10DRL-i Motherboard User’s Manual Serial (COM) Ports • One (1) Back_panel COM Port (COM1) • One (1) Serial Port Header (COM2) Peripheral USB Devices Devices • Two (2) USB 2.0 ports on the rear I/O panel (USB 0/1), • Two (2) USB 3.0 ports on the rear I/O panel (USB 12/13) •...
  • Page 17 Chapter 1: Overview Fan Control • Fan status monitoring via IPMI connections • Dual Cooling Zone • Low noise fan speed control • Pulse Width Modulation (PWM) fan contorl • System PECI (Platform Environment Configuration Interface) Management 2.0 support • UID (Unit Identification)/Remote UID •...

  • Page 18: System Block Diagram

    X10DRL-i Motherboard User’s Manual #2-4 #1-4 #2-3 #1-3 #2-2 #1-2 #2-1 #1-1 CPU1 CPU2 E5-2600(v3) E5-2600(v3) 9.6G SNB CORE SNB CORE DDR4 DDR4 9.6G #2A #1 DMI2 #1 #2 DMI2 PCI-E X16 G3 PCI-E X8 G3 PCI-E X4 G3 PCI-E X8 G3...

  • Page 19: Processor And Chipset Overview

    Processor and Chipset Overview Built upon the functionality and capability of the Intel E5-2600V3 Series Proces- sors (Socket R3) and the Intel C612 PCH, the X10DRL-i motherboard provides the best balanced solution of performance, power efficiency, and features to address the diverse needs of next-generation computer users.

  • Page 20: Special Features

    X10DRL-i Motherboard User’s Manual Special Features Recovery from AC Power Loss The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off (in which case you must press the power switch to turn it back on), or for it to automatically return to the power-on state.

  • Page 21: Acpi Features

    It is even more important for processors that have high CPU clock rates. The X10DRL-i motherboard accommodates 24-pin ATX power supplies. Although most power supplies generally meet the specifications required by the CPU, some are inadequate. In addition, two 12V 8-pin power connections are also required to ensure adequate power supply to the system.

  • Page 22: Advanced Power Management

    X10DRL-i Motherboard User’s Manual Advanced Power Management The following new advanced power management features are supported by this motherboard: Intel Intelligent Power Node Manager (NM) (Available ® when "Supermicro Power Management (SPM)" is Installed) The Intel Intelligent Power Node Manager 3.0 (IPNM) provides your system with ®...

  • Page 23: Chapter 2 Installation

    Chapter 2: Installation Chapter 2 Installation Standardized Warning Statements The following statements are industry-standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assis- tance.
  • Page 24 X10DRL-i Motherboard User’s Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta.

  • Page 25: Product Disposal

    Chapter 2: Installation Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要が あります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 26: Static-Sensitive Devices

    X10DRL-i Motherboard User’s Manual ‫القىانين واللىائح الىطنية‬ ‫جميع‬ ‫وفقا ل‬ ‫ينبغي التعامل معه‬ ‫هذا المنتج‬ ‫من‬ ‫التخلص النهائي‬ ‫عند‬ 경고! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다. Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.

  • Page 27: Processor And Heatsink Installation

    Chapter 2: Installation Processor and Heatsink Installation Warning: When handling the processor package, avoid placing direct pressure on the label area. Notes: Always connect the power cord last, and always remove it before adding, removing or changing any hardware components. Make sure that you in- stall the processor into the CPU socket before you install the CPU heatsink.
  • Page 28 X10DRL-i Motherboard User’s Manual 2. Press the second load lever labeled 'Close 1st' to release the load plate that covers the CPU socket from its locking position. Pull lever away from Press down on Load the socket Lever 'Close 1st' 3.
  • Page 29 Chapter 2: Installation 4. Use your thumb and the index finger to loosen the lever and open the load plate. 5. Using your thumb and index finger, hold the CPU on its edges. Align the CPU keys, which are semi-circle cutouts, against the socket keys. Socket Keys CPU Keys 6.
  • Page 30 X10DRL-i Motherboard User’s Manual 7. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed. 8. Close the load plate with the CPU inside the socket. Lock the lever labelled 'Close 1st' first, then lock the lever labelled 'Open 1st' second.

  • Page 31: Installing A Passive Cpu Heatsink

    Chapter 2: Installation Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the re- quired amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the Motherboard and the Heatsink Bracket underneath.

  • Page 32: Removing The Heatsink

    X10DRL-i Motherboard User’s Manual Removing the Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to uninstall the heatsink to prevent damage done to the CPU or the CPU socket.

  • Page 33: Installing And Removing The Memory Modules

    DIMM A1. (For best performance, please use the memory modules of the same type and speed in the same bank.) 2. Push the release tabs outwards on both ends of the DIMM slot to unlock it. X10DRL-i Rev. 1.01 Notches Release Tabs 3.
  • Page 34 X10DRL-i Motherboard User’s Manual Memory Support for the X10DRL-i Motherboard The X10DRL-i Motherboard supports up to 512 GB of DDR4 Registered (RDIMM)/ Load Reduced (LRDIMM) ECC 2133/1866/1600 MHz memory modules in eight DIMM slots. Memory speed support is pending on the processors used in the sys- tem.

  • Page 35: Motherboard Installation

    There are eight (8) mounting holes on this motherboard indicated by the arrows. USB0/1 COM1 JUIDB1 JPL1 USB12/13 LAN CTRL (3.0) LAN1 JPL2 LAN2 LEDM1 IPMI_LAN LAN CTRL X10DRL-i Rev. 1.01 CPU2 CLOSE 1st BIOS LICENSE BIOS OPEN 1st CLOSE 1st S-SATA3 S-SATA2 S-SATA1 S-SATA0 JSD1...

  • Page 36: Installing The Motherboard

    X10DRL-i Motherboard User’s Manual Installing the Motherboard 1. Install the I/O shield into the chassis. 2. Locate the mounting holes on the motherboard. 3. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

  • Page 37: Control Panel Connectors And I/O Ports

    Back Panel Connectors and I/O Ports USB0/1 COM1 JUIDB1 JPL1 USB12/13 LAN CTRL (3.0) JPL2 LAN2 LAN1 LEDM1 IPMI_LAN LAN CTRL X10DRL-i Rev. 1.01 CPU2 CLOSE 1st BIOS LICENSE BIOS OPEN 1st CLOSE 1st S-SATA3 S-SATA2 S-SATA1 S-SATA0 JSD1 I-SATA3...

  • Page 38: Serial Ports

    X10DRL-i Motherboard User’s Manual Serial Ports Serial (COM) Ports Pin Definitions Two COM connections (COM1 & Pin # Definition Pin # Definition COM2) are located on the mother- board. COM1 is located on the I/O back panel. COM2, located next to PCH PCI-E Slot1, provides front access support.

  • Page 39: Universal Serial Bus (Usb)

    JUIDB1 JPL1 USB12/13 LAN CTRL (3.0) 6. FP USB 4 (USB2.0) LAN1 LEDM1 JPL2 LAN2 IPMI_LAN LAN CTRL X10DRL-i Rev. 1.01 CPU2 7. FP USB 8/9 (USB 3.0) CLOSE 1st BIOS LICENSE BIOS OPEN 1st CLOSE 1st S-SATA3 S-SATA2 S-SATA1...

  • Page 40: Ethernet Ports

    X10DRL-i Motherboard User’s Manual Ethernet Ports LAN Ports Pin Definition Two Gigabit Ethernet ports (LAN1, Pin# Definition Pin# Definition LAN2) are located on the I/O back Ground TD1+ panel on the motherboard. These TD1- ethernet ports support Gigabit LANs TD4+ Link 1000 LED on the motherboard.

  • Page 41: Unit Identifier Switch/Uid Led Indicator

    COM1 JPL1 USB12/13 LAN CTRL (3.0) LAN1 JPL2 LAN2 LEDM1 IPMI_LAN 2. Rear UID LED LAN CTRL X10DRL-i Rev. 1.01 CPU2 3. Front UID LED CLOSE 1st 4. Front UID Switch BIOS LICENSE BIOS OPEN 1st CLOSE 1st S-SATA3 S-SATA2...

  • Page 42: Front Control Panel

    X10DRL-i Motherboard User’s Manual Front Control Panel JF1 contains header pins for various buttons and indicators that are normally lo- cated on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro's server chassis. See the figure below for the descriptions of the various control panel buttons and LED indicators.

  • Page 43: Front Control Panel Pin Definitions

    Ground COM1 JUIDB1 JPL1 USB12/13 LAN CTRL (3.0) LAN2 LAN1 LEDM1 JPL2 IPMI_LAN LAN CTRL X10DRL-i Rev. 1.01 3.3 V FP PWRLED CPU2 CLOSE 1st UID Switch HDD LED BIOS NIC1 Link LED NIC1 Activity LED LICENSE BIOS OPEN 1st...

  • Page 44: Hdd Led/Uid Switch

    X10DRL-i Motherboard User’s Manual HDD LED/UID Switch HDD LED/UID Switch Pin Definitions (JF1) The HDD LED/UID Switch connection Pin# Definition is located on pins 13 and 14 of JF1. UID Switch Attach a cable to Pin 14 to show HDD HD Active activity status.

  • Page 45: Overheat (Oh)/Fan Fail/Pwr Fail/Uid Led

    Ground COM1 JUIDB1 JPL1 USB12/13 LAN CTRL (3.0) JPL2 LAN2 LAN1 LEDM1 IPMI_LAN LAN CTRL X10DRL-i Rev. 1.01 CPU2 FP PWRLED 3.3 V CLOSE 1st HDD LED UID Switch BIOS NIC1 Link LED NIC1 Activity LED LICENSE BIOS OPEN 1st...

  • Page 46: Reset Button

    X10DRL-i Motherboard User’s Manual Reset Button Reset Button Pin Definitions (JF1) The Reset Button connection is located Pin# Definition on pins 3 and 4 of JF1. Attach it to a Reset hardware reset switch on the computer Ground case. Refer to the table on the right for pin definitions.

  • Page 47: Connecting Cables

    A. J24: 24-pin ATX PWR JPL1 USB12/13 LAN CTRL (3.0) (Req'd) LAN1 JPL2 LAN2 LEDM1 IPMI_LAN LAN CTRL X10DRL-i B. JPWR1: 8-pin Proces- Rev. 1.01 CPU2 sor PWR (Req'd) CLOSE 1st C. JPWR2: 8-pin Proces- sor PWR (Req'd) BIOS LICENSE BIOS OPEN 1st...

  • Page 48: Fan Headers

    X10DRL-i Motherboard User’s Manual Fan Headers Fan Header Pin Definitions This motherboard has eight system/CPU Pin# Definition fan headers (Fan 1-Fan 6, Fan A, and Fan Ground B) on the motherboard. All these 4-pin +12V fans headers are backward compatible Tachometer with the traditional 3-pin fans.

  • Page 49: Internal Speaker

    USB0/1 (Buzzer) COM1 JUIDB1 JPL1 USB12/13 LAN CTRL B. SATA DOM PWR (3.0) LAN1 JPL2 LAN2 LEDM1 IPMI_LAN LAN CTRL X10DRL-i (JSD1) Rev. 1.01 CPU2 CLOSE 1st BIOS LICENSE BIOS OPEN 1st CLOSE 1st S-SATA3 S-SATA2 S-SATA1 S-SATA0 JSD1 I-SATA3...

  • Page 50: Tpm/Port 80 Header

    X10DRL-i Motherboard User’s Manual TPM/Port 80 Header TPM/Port 80 Header Pin Definitions A Trusted Platform Module/Port 80 Pin # Definition Pin # Definition header is located at JTPM1 to provide LCLK TPM support and Port 80 connection. LFRAME# <(KEY)> Use this header to enhance system...

  • Page 51: Power Smb

    A. JPI USB0/1 COM1 JUIDB1 B. JIPMB1 JPL1 USB12/13 LAN CTRL (3.0) LAN1 JPL2 LAN2 LEDM1 IPMI_LAN LAN CTRL X10DRL-i Rev. 1.01 CPU2 CLOSE 1st BIOS LICENSE BIOS OPEN 1st CLOSE 1st S-SATA3 S-SATA2 S-SATA1 S-SATA0 JSD1 I-SATA3 OPEN 1st...

  • Page 52: I-Sgpio1/2 & S-Sgpio Headers

    X10DRL-i Motherboard User’s Manual I-SGPIO1/2 & S-SGPIO Headers I-SGPIO & S-SGPIO Headers Pin Definitions Three SGPIO (Serial Link General Pin# Definition Definition Purpose Input/Output) headers are lo- cated on the motherboard. I-SGPIO1/2 Ground Data support onboard I-SATA0-5, and S- Load...

  • Page 53: Power Led/Speaker

    R_SPKRIN USB0/1 A. PWR LED/Speaker COM1 JUIDB1 JPL1 USB12/13 LAN CTRL (3.0) LAN2 LAN1 LEDM1 JPL2 IPMI_LAN LAN CTRL X10DRL-i Rev. 1.01 CPU2 CLOSE 1st BIOS LICENSE BIOS OPEN 1st CLOSE 1st S-SATA3 S-SATA2 S-SATA1 S-SATA0 JSD1 I-SATA3 OPEN 1st...

  • Page 54: Jumper Settings

    X10DRL-i Motherboard User’s Manual Jumper Settings Explanation of Jumpers Connector Pins To modify the operation of the mother- board, jumpers can be used to choose between optional settings. Jumpers create Jumper shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.

  • Page 55: Cmos Clear

    A. Clear CMOS USB0/1 COM1 JUIDB1 JPL1 B. Watch Dog Enable USB12/13 LAN CTRL (3.0) JPL2 LAN2 LAN1 LEDM1 IPMI_LAN LAN CTRL X10DRL-i Rev. 1.01 CPU2 CLOSE 1st BIOS LICENSE BIOS OPEN 1st CLOSE 1st S-SATA3 S-SATA2 S-SATA1 S-SATA0 JSD1 I-SATA3...

  • Page 56: Vga Enable

    X10DRL-i Motherboard User’s Manual VGA Enable VGA Enable Jumper Settings Jumper JPG1 allows the user to enable Jumper Setting Definition or disable the onboard VGA connector. Enabled (Default) The default setting is 1-2 to enable the Disabled connection. See the table on the right for jumper settings.

  • Page 57: I 2 C Bus To Pci-Exp. Slots

    USB0/1 COM1 JUIDB1 B. JI JPL1 USB12/13 LAN CTRL (3.0) LAN2 LAN1 JPL2 LEDM1 IPMI_LAN C. ME Select LAN CTRL X10DRL-i Rev. 1.01 CPU2 CLOSE 1st BIOS LICENSE BIOS OPEN 1st CLOSE 1st S-SATA3 S-SATA2 S-SATA1 S-SATA0 JSD1 I-SATA3 OPEN 1st...

  • Page 58: Onboard Led Indicators

    X10DRL-i Motherboard User’s Manual LAN 1/LAN 2 LAN 1/LAN 2 Onboard LED Indicators Link LED Activity LED LAN 1/LAN 2 IPMI LAN IPMI LAN LAN1/LAN2 LAN1/LAN2/IPMI_LAN LEDs (X8ST3-F) (X8ST3-F) Link LED Activity LED Two LAN ports (LAN 1/LAN 2), and IPMI_...

  • Page 59: Onboard Power Led

    USB0/1 A. PWR LED COM1 JUIDB1 JPL1 B. BMC LED USB12/13 LAN CTRL (3.0) LAN1 JPL2 LAN2 LEDM1 IPMI_LAN LAN CTRL X10DRL-i Rev. 1.01 CPU2 CLOSE 1st BIOS LICENSE BIOS OPEN 1st CLOSE 1st S-SATA3 S-SATA2 S-SATA1 S-SATA0 JSD1 I-SATA3...

  • Page 60: 2-10 Sata Connections

    X10DRL-i Motherboard User’s Manual 2-10 SATA Connections SATA 3.0 Ports SATA Connectors Pin Definitions Ten SATA 3.0 ports are located on the motherboard. Pin# Signal Six SATA 3.0 ports (I-SATA 0-5) are supported by the Ground Intel PCH C612. The other four SATA ports (S-SATA...

  • Page 61: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter. Note: Always disconnect the power cord before adding, changing or installing any hardware components.

  • Page 62: System Boot Failure

    X10DRL-i Motherboard User’s Manual No Video 1. If the power is on, but you have no video, remove all the add-on cards and cables. 2. Use the speaker to determine if any beep codes exist. Refer to Appendix A for details on beep codes.

  • Page 63: Memory Errors

    Chapter 3: Troubleshooting Memory Errors When a No-Memory Beep Code is issued by the system, check the following: 1. Make sure that the memory modules are compatible with the system and that the DIMM modules are properly and fully installed. (For memory compatibility, refer to the Memory Compatibility Chart posted on our website @ http://www.

  • Page 64: Technical Support Procedures

    X10DRL-i Motherboard User’s Manual within the normal range. Also check the front panel Overheat LED, and make sure that the Overheat LED is not on. 5. Adequate power supply: Make sure that the power supply provides adequate power to the system. Make sure that all power connectors are connected.
  • Page 65 Chapter 3: Troubleshooting troubleshooting services. They should know of any possible problem(s) with the specific system configuration that was sold to you. 1. Please go through the ‘Troubleshooting Procedures’ and 'Frequently Asked Question' (FAQ) sections in this chapter or see the FAQs on our website (http://www.supermicro.com/) before contacting Technical Support.

  • Page 66: Battery Removal And Installation

    X10DRL-i Motherboard User’s Manual Battery Removal and Installation Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Locate the onboard battery as shown below. 3. Using a tool such as a pen or a small screwdriver, push the battery lock out- wards to unlock it.

  • Page 67: Frequently Asked Questions

    Chapter 3: Troubleshooting Frequently Asked Questions Question: What are the various types of memory that my motherboard can support? Answer: The motherboard supports Registered (RDIMM)/Load Reduced (LRDIMM) ECC DDR4 DIMM modules. To enhance memory performance, do not mix memory modules of different speeds and sizes. Please follow all memory installation instruc- tions given on Section 2-4 in Chapter 2.

  • Page 68: Returning Merchandise For Service

    X10DRL-i Motherboard User’s Manual Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your ven- dor for a Returned Merchandise Authorization (RMA) number. When returning the...

  • Page 69: Chapter 4 Bios

    BIOS Introduction This chapter describes the AMI BIOS setup utility for the X10DRL-i. The ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter describes the basic navigation of the AMI BIOS setup utility screens.

  • Page 70: Main Setup

    X10DRL-i Motherboard User’s Manual How to Start the Setup Utility Normally, the only visible Power-On Self-Test (POST) routine is the memory test. As the memory is being tested, press the <Delete> key to enter the main menu of the AMI BIOS setup utility. From the main menu, you can access the other setup screens.
  • Page 71 Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. Supermicro X10DRL-i Version: This item displays the version of the BIOS ROM used in the system. Build Date: This item displays the date when the version of the BIOS ROM used in the system was built.

  • Page 72: Advanced Setup Configurations

    X10DRL-i Motherboard User’s Manual Advanced Setup Configurations Use the arrow keys to select Advanced setup and press <Enter> to access the submenu items: Warning: Take Caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction.

  • Page 73: Power Configuration

    Chapter 4: AMI BIOS Wait For 'F1' If Error Select Enabled to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. INT19 (Interrupt 19) Trap Response Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture"...

  • Page 74: Cpu Configuration

    X10DRL-i Motherboard User’s Manual CPU Configuration  This submenu displays the following CPU information as detected by the BIOS. It also allows the user to configure CPU settings. Processor 1/Processor 2  This submenu displays the following information of the CPU installed in Socket 1 and Socket 2.
  • Page 75 Chapter 4: AMI BIOS codes to overwhelm the processor to damage the system during an attack. This feature is used in conjunction with the items: "Clear MCA," "VMX," "Enable SMX," and "Lock Chipset" for Virtualization media support. The options are Enable and Disable.

  • Page 76: Advanced Power Management Configuration

    X10DRL-i Motherboard User’s Manual DCA Prefetch Delay A DCA Prefetcher is used with a TOE (TCP/IP Offload Engine) adapter to prefetch data in order to shorten execution cycles and maximize data processing efficiency. Prefetching data too frequently can saturate the cache directory and delay neces- sary cache access.
  • Page 77 Chapter 4: AMI BIOS CPU P State Control (Available when Power Technology  is set to Custom) EIST (P-states) EIST (Enhanced Intel SpeedStep Technology) allows the system to automatically adjust processor voltage and core frequency to reduce power consumption and heat dissipation.
  • Page 78 X10DRL-i Motherboard User’s Manual CPU T State Control (Available when Power Technology  is set to Custom) ACPI (Advanced Configuration Power Interface) T-States Select Enable to support CPU throttling by the operating system to reduce power consumption. The options are Enable and Disable.

  • Page 79: Chipset Configuration

    Chapter 4: AMI BIOS than P0, with its frequency and voltage scaled back a notch. The options are Between P1/P0 and Below P1. Chipset Configuration  Warning! Please set the correct settings for the items below. A wrong configuration setting may cause the system to become malfunction. North Bridge This feature allows the user to configure the settings for the Intel North Bridge.
  • Page 80 X10DRL-i Motherboard User’s Manual IOAT (Intel® IO Acceleration) Configuration Enable IOAT Select Enable to enable Intel I/OAT (I/O Acceleration Technology) support, which significantly reduces CPU overhead by leveraging CPU architectural improve- ments and freeing the system resource for other tasks. The options are Enable and Disable.
  • Page 81 Chapter 4: AMI BIOS QPI (Quick Path Interconnect) Configuration QPI Status The following information will display: • Number of CPU • Number of IIO • Current QPI Link Speed • Current QPI Link Frequency • QPI Global MMIO Low Base/Limit •...
  • Page 82 X10DRL-i Motherboard User’s Manual Isoc Mode Select Enabled for Isochronous support to meet QoS (Quality of Service) require- ments. This feature is especially important for Virtualization Technology. The options are Enable and Disable. 4-14...

  • Page 83: Memory Configuration

    Chapter 4: AMI BIOS Memory Configuration Enforce POR Select Enable to enforce POR restrictions on DDR4 frequency and voltage programming. The options are Enabled and Disabled. Memory Frequency Use this feature to set the maximum memory frequency for onboard memory modules.

  • Page 84: Dimm Information

    X10DRL-i Motherboard User’s Manual A7 Mode Select Enabled to support the A7 (Addressing) mode to improve memory per- formance. The options are Enable and Disable. DIMM Information This item displays the status of a DIMM module specified by the user.

  • Page 85: South Bridge Configuration

    Chapter 4: AMI BIOS Patrol Scrub Interval This feature allows you to decide how many hours the system should wait before the next complete patrol scrub is performed. Use the keyboard to enter a value from 0-24. The Default setting is 24. Demand Scrub Demand Scrubbing is a process that allows the CPU to correct correctable memory errors found on a memory module.
  • Page 86 X10DRL-i Motherboard User’s Manual USB Mass Storage Driver Support Select Enabled for USB mass storage device support. The options are Disabled and Enabled. Port 60/64 Emulation Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete legacy USB keyboard support for the operating systems that do not support legacy USB devices.

  • Page 87: Sata Configuration

    Chapter 4: AMI BIOS SATA Configuration  When this submenu is selected, AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the fol- lowing items: SATA Controller This item enables or disables the onboard SATA controller supported by the Intel PCH chip.
  • Page 88 X10DRL-i Motherboard User’s Manual Port 0 ~ Port 5 SATA Device Type Use this item to specify if the SATA port specified by the user should be con- nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

  • Page 89: Ssata Configuration

    Chapter 4: AMI BIOS Port 0 ~ Port 5 Hot Plug Select Enabled to enable hot-plugging support for a port specified by the user, which will allow the user to replace a SATA disk drive installed on this port without shutting down the system.
  • Page 90 X10DRL-i Motherboard User’s Manual • Software Preserve Support sSATA Port 0~ Port 3 Select Enabled to enable an sSATA port specified by the user. The options are Disabled and Enabled. sSATA Port 0 ~ Port 3 Hot Plug Select Enabled to enable hot-plugging support for a port specified by the user, which will allow the user to replace a sSATA disk drive installed on this port without shutting down the system.
  • Page 91 Chapter 4: AMI BIOS sSATA RAID Option ROM/UEFI Driver Select EFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot. The options are Disabled, EFI, and Legacy. sSATA Port 0~ Port 3 This item displays the information detected on the installed sSATA drives on the particular sSATA port.
  • Page 92 X10DRL-i Motherboard User’s Manual • ME Firmware Status #2 • Current State • Error Code PCIe/PCI/PnP Configuration  The following PCI information will be displayed: • PCI Bus Driver Version PCI Latency Timer Use this item to configure the PCI latency timer for a device installed on a PCI bus.
  • Page 93 Chapter 4: AMI BIOS Maximum Read Request Select Auto for the system BIOS to automatically set the maximum size for a read request for a PCI-E device to enhance system performance. The options are Auto, 128 Bytes, 256 Bytes, 512 Bytes, 1024 Bytes, 2048 Bytes, and 4096 Bytes. ASPM Support Use this item to set the Active State Power Management (ASPM) level for a PCI-E device.

  • Page 94: Super Io Configuration

    X10DRL-i Motherboard User’s Manual Network Stack Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Uni- fied Extensible Firmware Interface) for network stack support. The options are Enabled and Disabled. Super IO Configuration  Super IO Chip AST2400 ...

  • Page 95: Com1 Console Redirection Settings

    Chapter 4: AMI BIOS *If the item above set to Enabled, the following items will become available for configuration: COM1 Console Redirection Settings Terminal Type This feature allows the user to select the target terminal emulation type for Con- sole Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support.
  • Page 96 X10DRL-i Motherboard User’s Manual VT-UTF8 Combo Key Support Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Enabled and Disabled. Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server.
  • Page 97 Chapter 4: AMI BIOS Terminal Type Use this feature to select the target terminal emulation type for Console Redirec- tion. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes.
  • Page 98 X10DRL-i Motherboard User’s Manual Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled. Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Dis- abled and Enabled.
  • Page 99 Chapter 4: AMI BIOS Terminal Type Use this feature to select the target terminal emulation type for Console Redirec- tion. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes.

  • Page 100: Acpi Settings

    X10DRL-i Motherboard User’s Manual Pending Operation Use this item to schedule a TPM-related operation to be performed by a security device for system data integrity. Your system will reboot to carry out a pending TPM operation. The options are 0, Enable Take Ownership, Disable Take Ownership, and TPM Clear.

  • Page 101: Event Logs

    Chapter 4: AMI BIOS Event Logs Use this feature to configure Event Log settings. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.

  • Page 102: View Smbios Event Log

    X10DRL-i Motherboard User’s Manual SMBIOS Event Log Standard Settings Log System Boot Event Select Enabled to log system boot events. The options are Disabled and Enabled. MECI (Multiple Event Count Increment) Enter the increment value for the multiple event counter. Enter a number between 1 to 255.

  • Page 103: Ipmi

    Chapter 4: AMI BIOS IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. IPMI Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status This item indicates the status of the IPMI firmware installed in your system. System Event Log ...

  • Page 104: Bmc Network Configuration

    X10DRL-i Motherboard User’s Manual When SEL is Full This feature allows the user to determine what the BIOS should do when the sys- tem event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately.

  • Page 105: Security Settings

    Chapter 4: AMI BIOS Security Settings This menu allows the user to configure the following security settings for the system. Password Check Select Setup for the system to prompt for a password at Setup. Select Always for the system to prompt for a password at bootup and upon entering the BIOS Setup utility.

  • Page 106: Boot Settings

    X10DRL-i Motherboard User’s Manual Boot Settings Use this feature to configure Boot Settings: Boot Configuration Setup Prompt Timeout Use this item to indicate how many seconds the system shall wait for the BIOS setup activation key to respond before the system starts to boot. The default setting is 1.
  • Page 107 Chapter 4: AMI BIOS • Dual Boot Order #7 • Dual Boot Order #8 • Dual Boot Order #9 • Dual Boot Order #10 • Dual Boot Order #11 • Dual Boot Order #12 • Dual Boot Order #13 • Dual Boot Order #14 •...
  • Page 108 X10DRL-i Motherboard User’s Manual  Network Drive BBS Priorities • Legacy Boot Order #1  UEFI Application Boot Priorities • UEFI Boot Order #1 4-40...

  • Page 109: Save & Exit

    Chapter 4: AMI BIOS Save & Exit Select the Save & Exit tab from the BIOS setup screen to configure the settings below. Discard Changes and Exit Select this option to quit the BIOS setup without making any permanent changes to the system configuration, and reboot the computer.
  • Page 110 X10DRL-i Motherboard User’s Manual Restore Defaults To set this feature, select Restore Defaults from the Exit menu and press <Enter>. These are manufacture default settings designed for maximum system performance but not for maximum stability. Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <En- ter>.

  • Page 111: Appendix A Bios Error Beep Codes

    Appendix A: BIOS POST Error Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed at each system boot, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue to boot.
  • Page 112 X10DRL-i Motherboard User’s Manual Notes...

  • Page 113: Appendix B Software Installation Instructions

    Appendix B: Software Installation Instructions Appendix B Software Installation Instructions B-1 Installing Software Programs The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO file for your motherboard.

  • Page 114: B-2 Installing Superdoctor5

    X10DRL-i Motherboard User’s Manual B-2 Installing SuperDoctor5 The Supermicro SuperDoctor® 5 is a hardware monitoring program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program monitors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 115: Appendix C Uefi Bios Recovery Instructions

    Appendix C: UEFI BIOS Recovery Appendix C UEFI BIOS Recovery Instructions Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.
  • Page 116 X10DRL-i Motherboard User’s Manual To perform UEFI BIOS recovery using a USB-attached device, follow the instruc- tions below. 1. Using a different machine, copy the "Super.ROM" binary image file into the disc Root "\" Directory of a USB device or a writeable CD/DVD.
  • Page 117 Appendix C: UEFI BIOS Recovery 4. After locating the new BIOS binary image, the system will enter the BIOS Recovery menu as shown below. Note: At this point, you may decide if you want to start with BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below. 5.
  • Page 118 X10DRL-i Motherboard User’s Manual 6. After the process of BIOS recovery is completed, press any key to reboot the system. 7. Using a different system, extract the BIOS package into a bootable USB flash drive. 8. When a DOS prompt appears, enter FLASH.BAT BIOSname.### at the prompt.
  • Page 119 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.

Table of Contents
