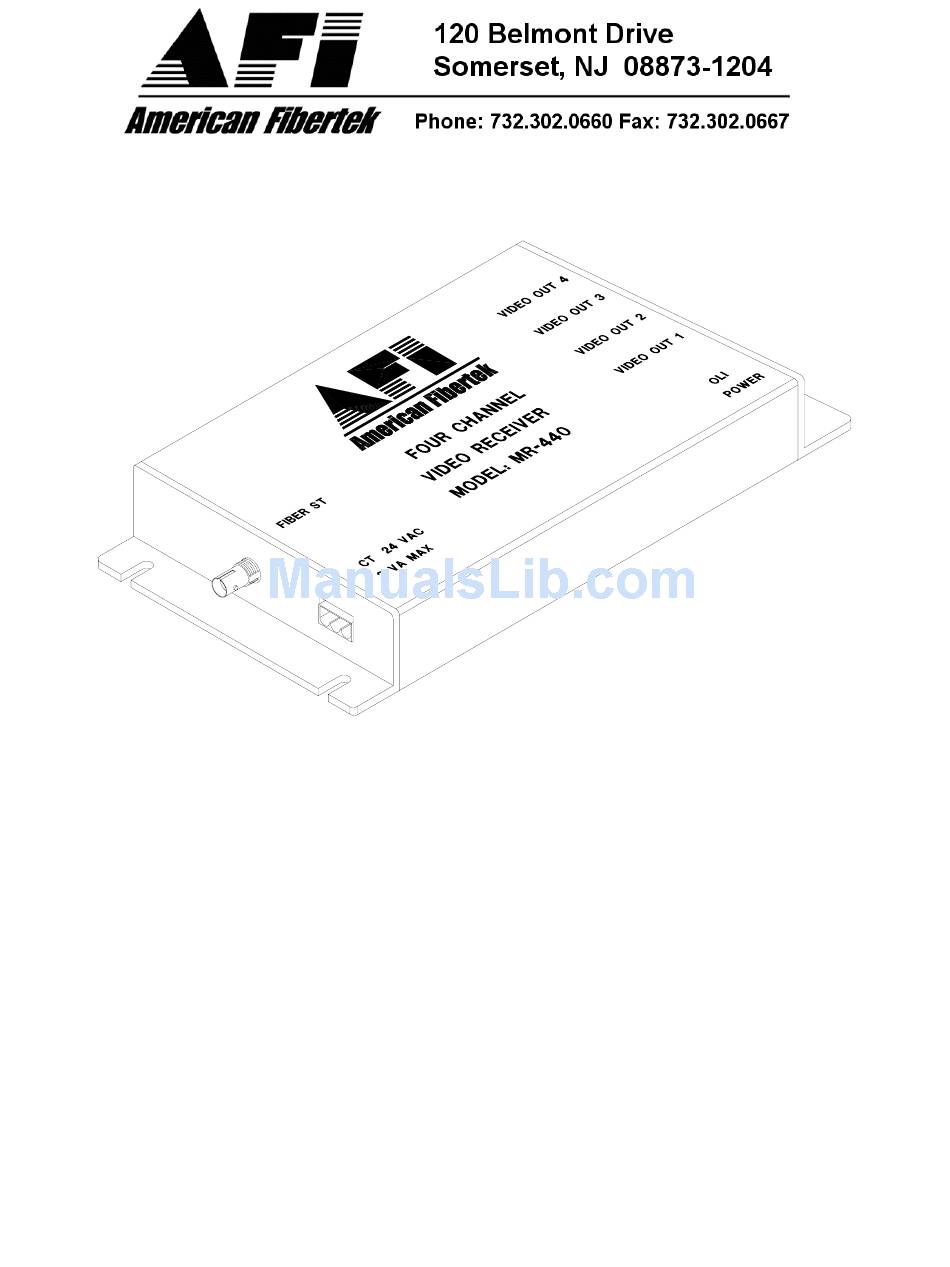

- Page 1 Instruction Manual MR-440 Four Channel Video Receiver © Copyright 2003, American Fibertek, Inc. 0630JD...
- Page 2 FUNCTIONAL DESCRIPTION The MR-440 operates as half of a transmitter / receiver pair for the transmission of four simultaneous, real time, baseband NTSC, PAL, RS170, or RS343 video signals over a single multimode fiber optic cable. It is designed to operate with the MT-440 or RT-440 four channel video transmitter.
- Page 3 Voltage Present Voltage Not Present A green LED indicator monitors the power of the optical signal that is being received at the MR-440 from the MT-440 or RT-440. Optical input status associated with this LED is summarized below. Optical Level Indicator...
- Page 4 LIFETIME WARRANTY INFORMATION American Fibertek, Inc warrants that at the time of delivery the products delivered will be free of defects in materials and workmanship. Defective products will be repaired or replaced at the exclusive option of American Fibertek. A Return Material Authorization (RMA) number is required to send the products back in case of return.
