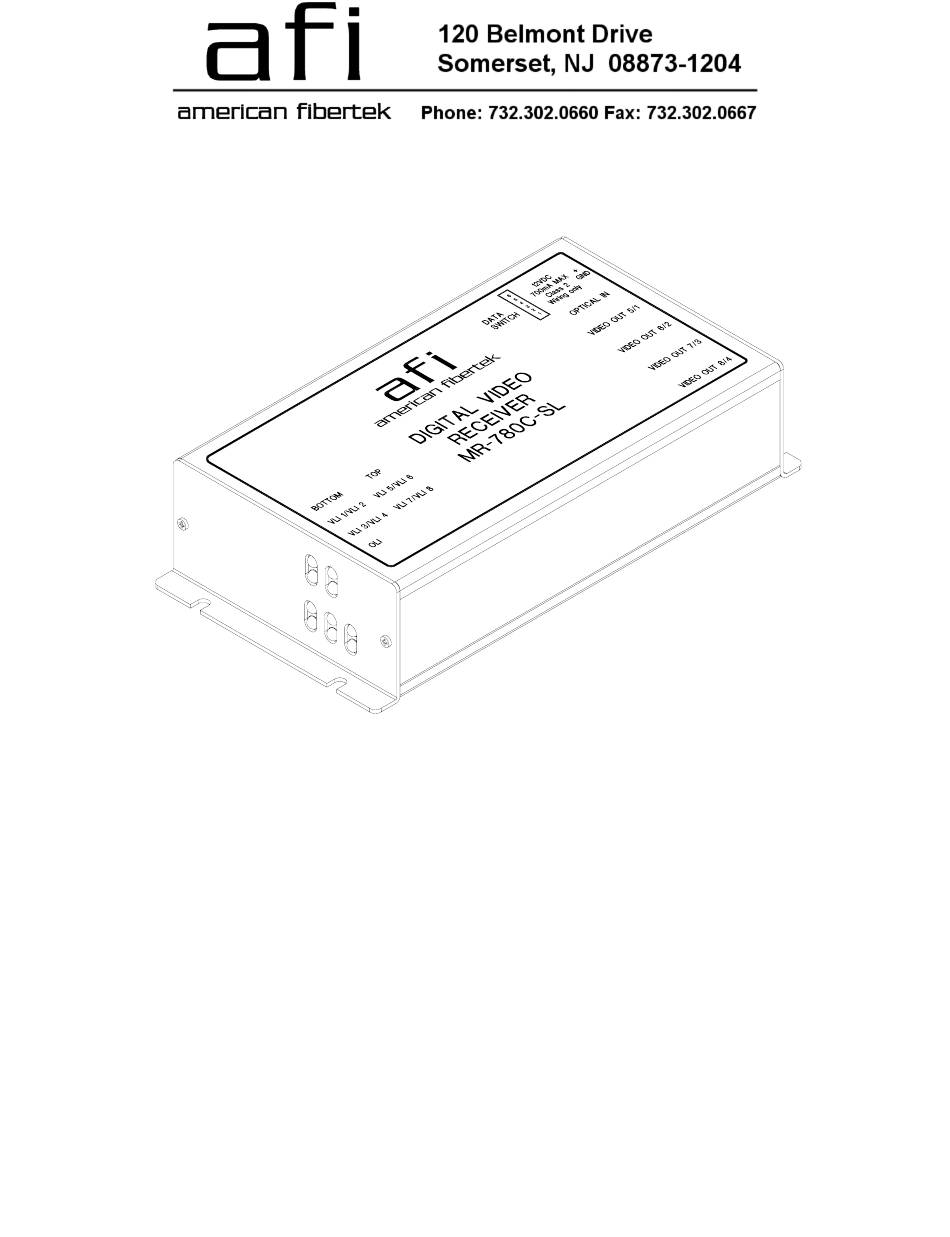

- Page 1 Instruction Manual MR-780C-SL Eight Channel Video Receiver © Copyright 2004, American Fibertek, Inc. 1001JD...
- Page 2 FUNCTIONAL DESCRIPTION The MR-780C-SL operates as half of a transmitter / receiver pair for the transmission of eight channels of high performance digital NTSC, PAL, RS170, or RS343 video signals. The MR- 780C-SL is designed to operate with the MT-780C-SL or RT-780C-SL video transmitter over one singlemode fiber optic cable.
- Page 3 VLI 1 THROUGH VLI 8 A bi-color LED indicator is provided for each of the eight video outputs of the MR-780C-SL. DC power and video status associated with each of these LED’s are summarized below. Video Presence LED...
- Page 4 LIFETIME WARRANTY INFORMATION American Fibertek, Inc warrants that at the time of delivery the products delivered will be free of defects in materials and workmanship. Defective products will be repaired or replaced at the exclusive option of American Fibertek. A Return Material Authorization (RMA) number is required to send the products back in case of return.
