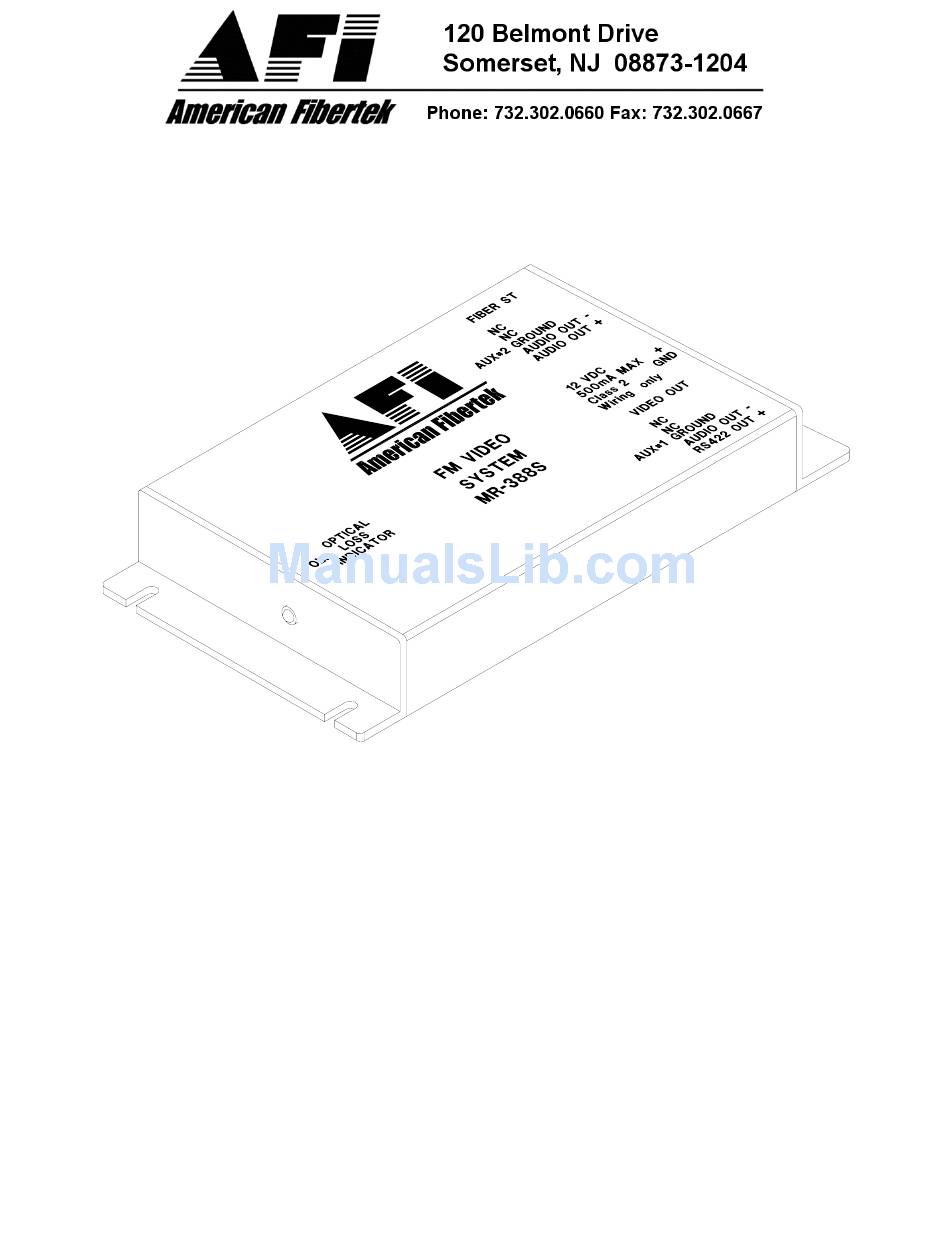

- Page 1 Instruction Manual MR-388S Video Receiver With Two Channels of Audio © Copyright 2007, American Fibertek, Inc. 0502JD...
- Page 2 1300 nm wavelength detector. The 388S Series product is designed to operate over an optical loss budget range of 0 to 16 dB. The MR-388S operates on 9 um singlemode fiber. Refer to the data sheets for detailed performance specifications.
- Page 3 Please note that Audio In on the MR-388S becomes Audio Out on the MT-388S or RT-388S after going across the fiber. For optimum performance the audio cables should be the shortest length of wire...
- Page 4 A bi-color LED indicator monitors the optical input power of the video/audio signal that is being received at the MR-388S from the MT-388S or the RT-388S. Internal DC power and optical input status associated with this LED are summarized below.
