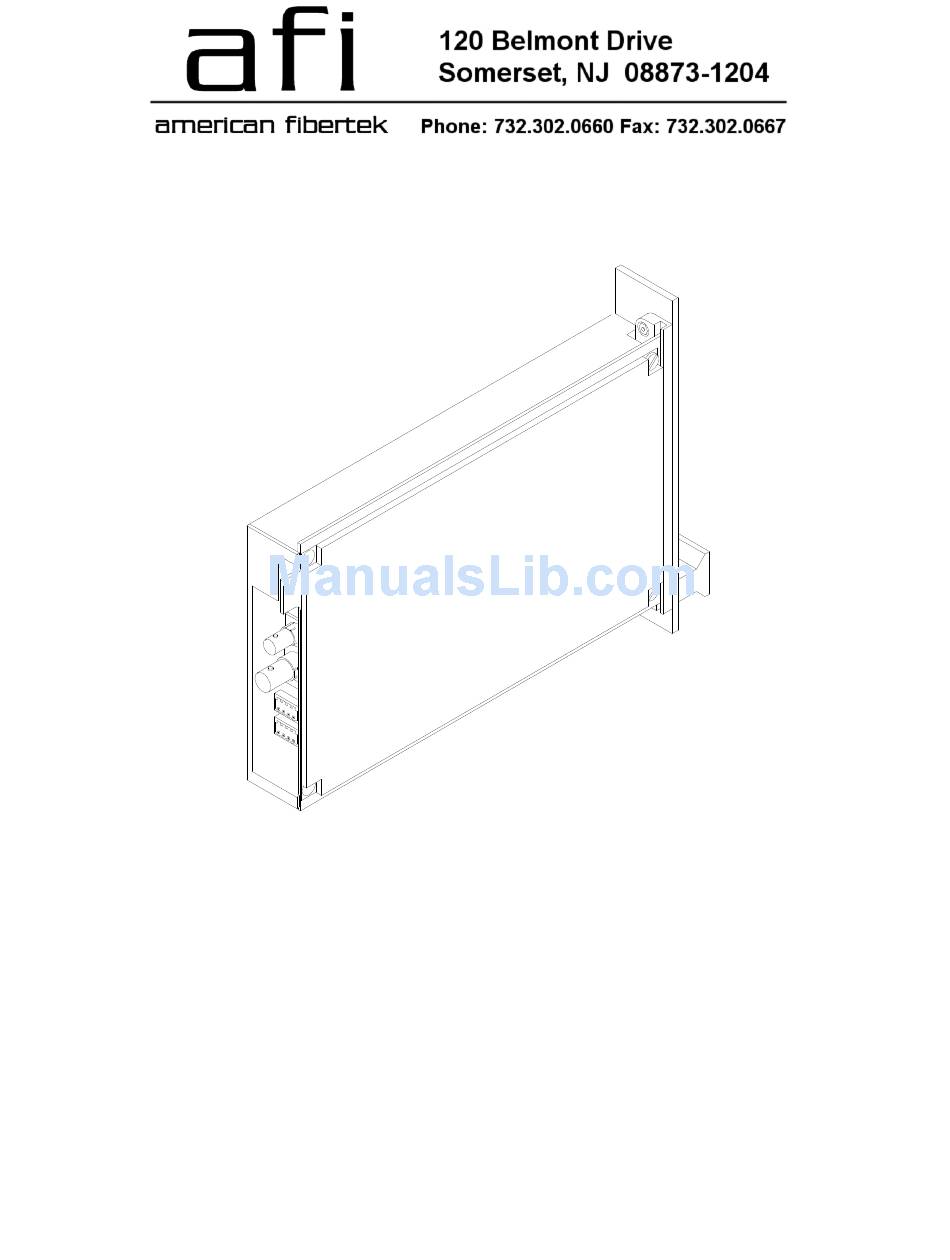

- Page 1 Instruction Manual RR-915C-SL Video Receiver With Bi-directional Multi-Protocol Data And Bi-directional Contact Closure © Copyright 2011, American Fibertek, Inc. 0812JPK...
- Page 2 The RR-915C-SL is designed to operate with the MT-915C-SL or RT-915C-SL video transmitter with bi- directional data over one multimode fiber optic cable. The RR-915C-SL multiplexes up to two data signals into a high speed serial data stream. This serial data stream modulates a laser at 1550 nm wavelength. The RR-915C-SL also detects and demultiplexes a return optical serial data stream signal containing a single video input signal along with up to two data channels at 1310 nm wavelength.
- Page 3 Power to the unit is supplied by the subrack. Please refer to the SR-20/SR20D and PSR-2 instructions for further details. POWER CONNECTION Power is supplied to the unit via a four finger backplane connector. The RR-915C-SL can be inserted into the subrack or removed from the subrack with power applied to the backplane. FIBER CONNECTION The fiber optic connection is made via a ST connector located on the back of the unit.
- Page 4 Correspondingly, the receiver of an electronic signal is labeled RX or Data In. Following this standard, the Data Out of the copper device is connected to the Data In of the RR-915C-SL. The plus terminal of the copper device is connected to the plus terminal of the RR-915C-SL and the minus is connected to the minus.
- Page 5 In order to reconfigure the RS485/422 channel, the rack card cover needs to be removed. To open the RR-915C-SL, remove the two screws at the left rear of unit near data and fiber connections. Also remove the two screws at the right front of unit (top of cover). The configuration switch banks are located at the lower right corner of PCB next to the data terminals (See drawing below).
- Page 6 A green LED indicator is provided to monitor the data coming in from the electrical interface, through the RR-915C-SL, and out onto the fiber. The intensity of this indicator will vary with input data patterns, however in typical applications it will cycle on and off as data is transmitted. Data transmitted status associated with this LED is summarized below.
- Page 7 A bi-color LED indicator is provided for the video output of the RR-915C-SL. DC power and video status associated with this LED is summarized below. Video Presence LED DC Power Status Video Status Green Proper Output Video Present Output Video Not Detected...
- Page 8 LIFETIME WARRANTY INFORMATION American Fibertek, Inc warrants that at the time of delivery the products delivered will be free of defects in materials and workmanship. Defective products will be repaired or replaced at the exclusive option of American Fibertek. A Return Material Authorization (RMA) number is required to send the products back in case of return.
