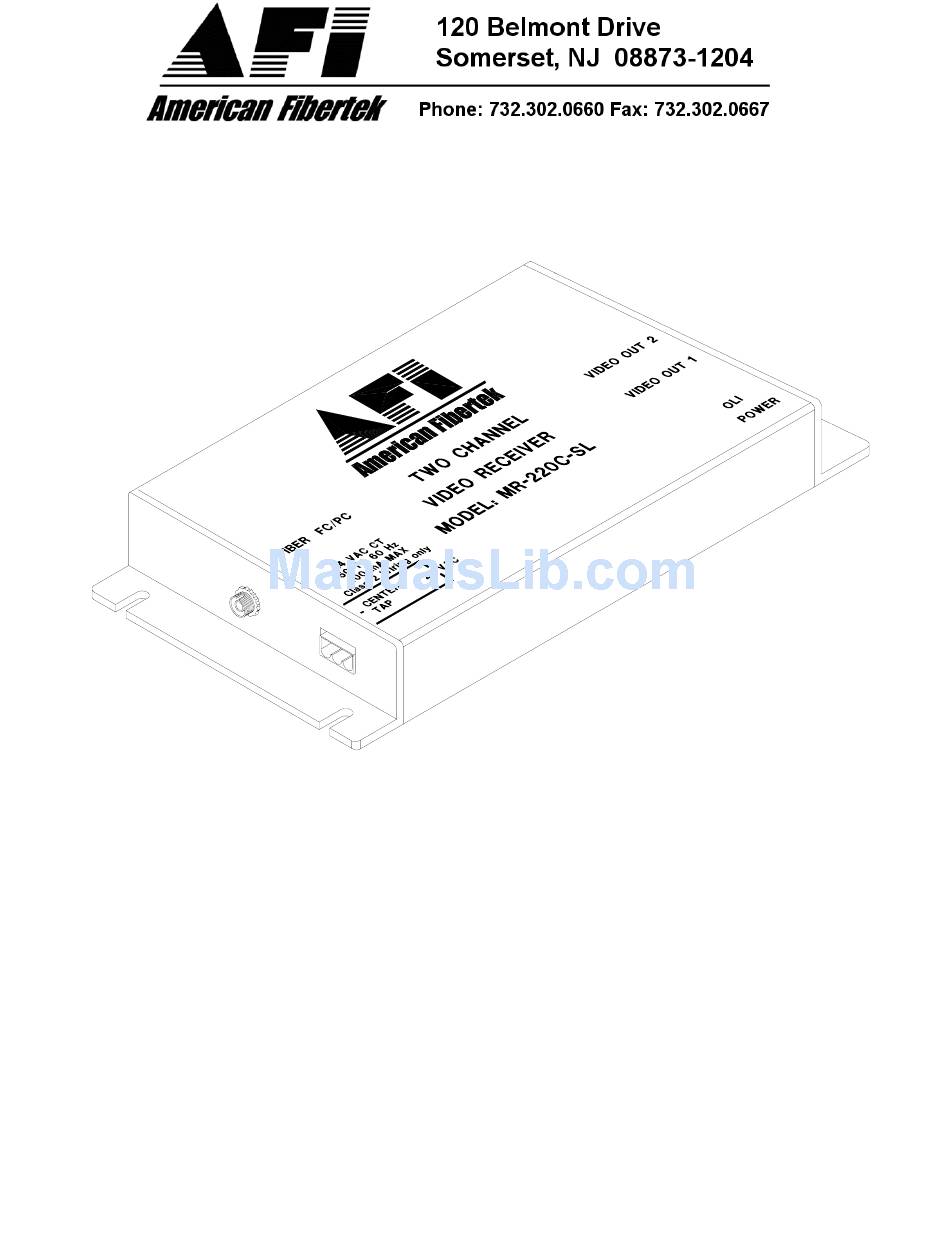

- Page 1 Instruction Manual MR-220C-SL Two Channel Video Receiver © Copyright 2005, American Fibertek, Inc. 0920JD...
- Page 2 FUNCTIONAL DESCRIPTION The MR-220C-SL operates as half of a transmitter / receiver pair for the transmission of two simultaneous, real time, baseband NTSC, PAL, RS170, or RS343 video signals. The MR-220C- SL is designed to operate with the MT-220C-SL or RT-220C-SL video transmitter over one singlemode fiber optic cable.
- Page 3 POWER SOURCE THIS PRODUCT SHALL BE POWERED BY A LISTED CLASS 2 POWER SUPPLY ONLY. Power to the unit must be within the specifications listed. A 24VAC center tap transformer rated at 400mA is required. In the USA and in Canada an American Fibertek PS-24CT-T is supplied with this unit.
- Page 4 MR-220C-SL STATUS INDICATORS The MR-220C-SL receiver provides the following LED status indicators to aid in installation and troubleshooting: A green LED indicator monitors the power of the optical signal that is being received at the MR- 220C-SL from the MT-220C-SL or RT-220C-SL. Optical input status associated with this LED is summarized below.
