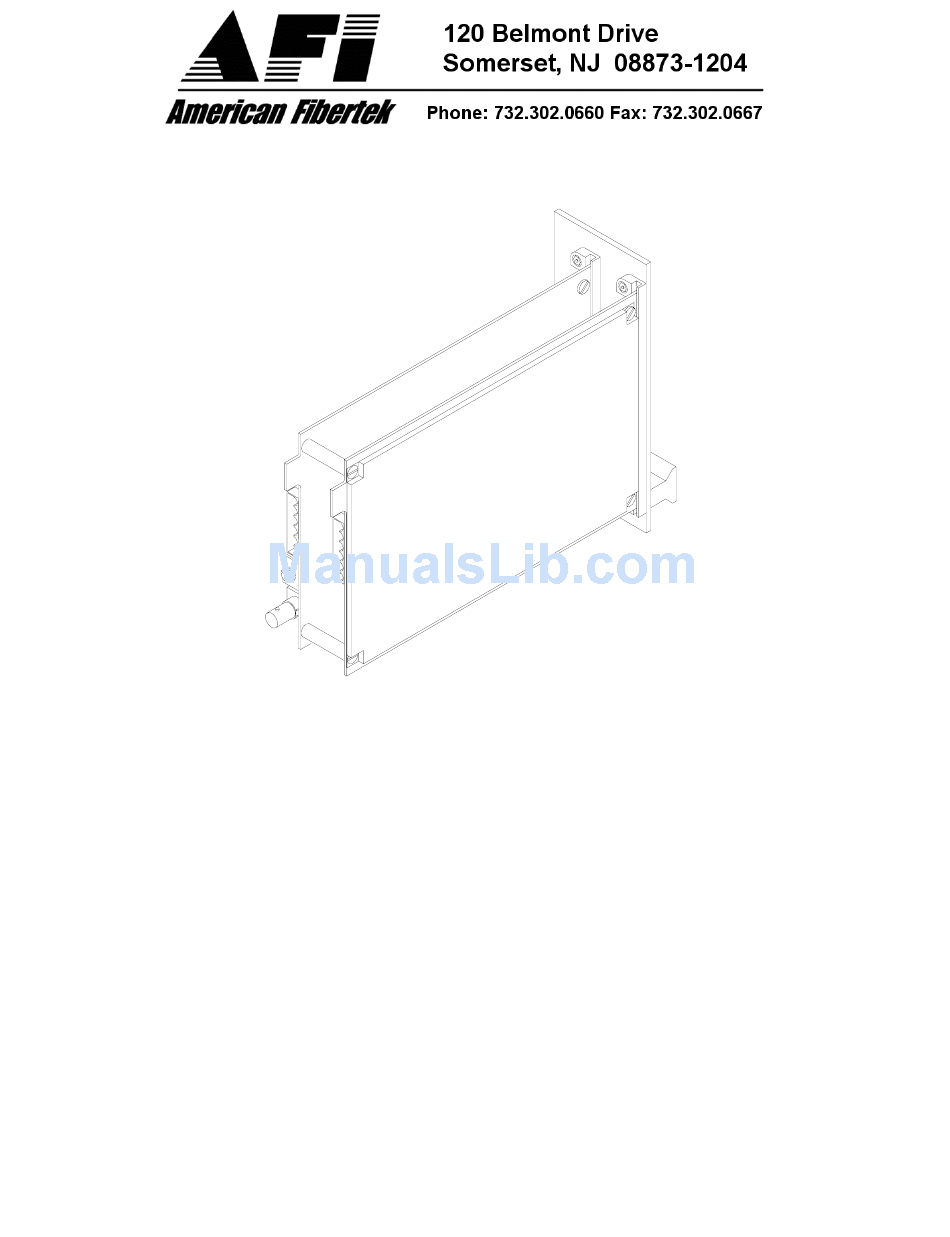

- Page 1 Instruction Manual RR-3340 Video Receiver With Bi-directional RS232 And Bi-directional RS422 © Copyright 2007, American Fibertek, Inc. 0501JD...
- Page 2 RS232 data output, and a RS422 data output using a 1310 nm wavelength detector. The 3340 Series product is designed to operate over an optical loss budget range of 0 to 21 dB. The RR-3340 operates on 9 um singlemode fiber.
- Page 3 (data out) wires and which two wires are the receive (data in) wires. Please note that Data In on the RR-3340 becomes Data Out on the MT-3340-12VDC after going across the fiber. The reverse flow follows the same orientation.
- Page 4 A bi-color LED indicator monitors the optical input power of the RS232 / RS422 data signal that is being received at the RR-3340 from the MT-3340-12VDC or the RT-3340. Internal DC power and optical input status associated with this LED are summarized below.
