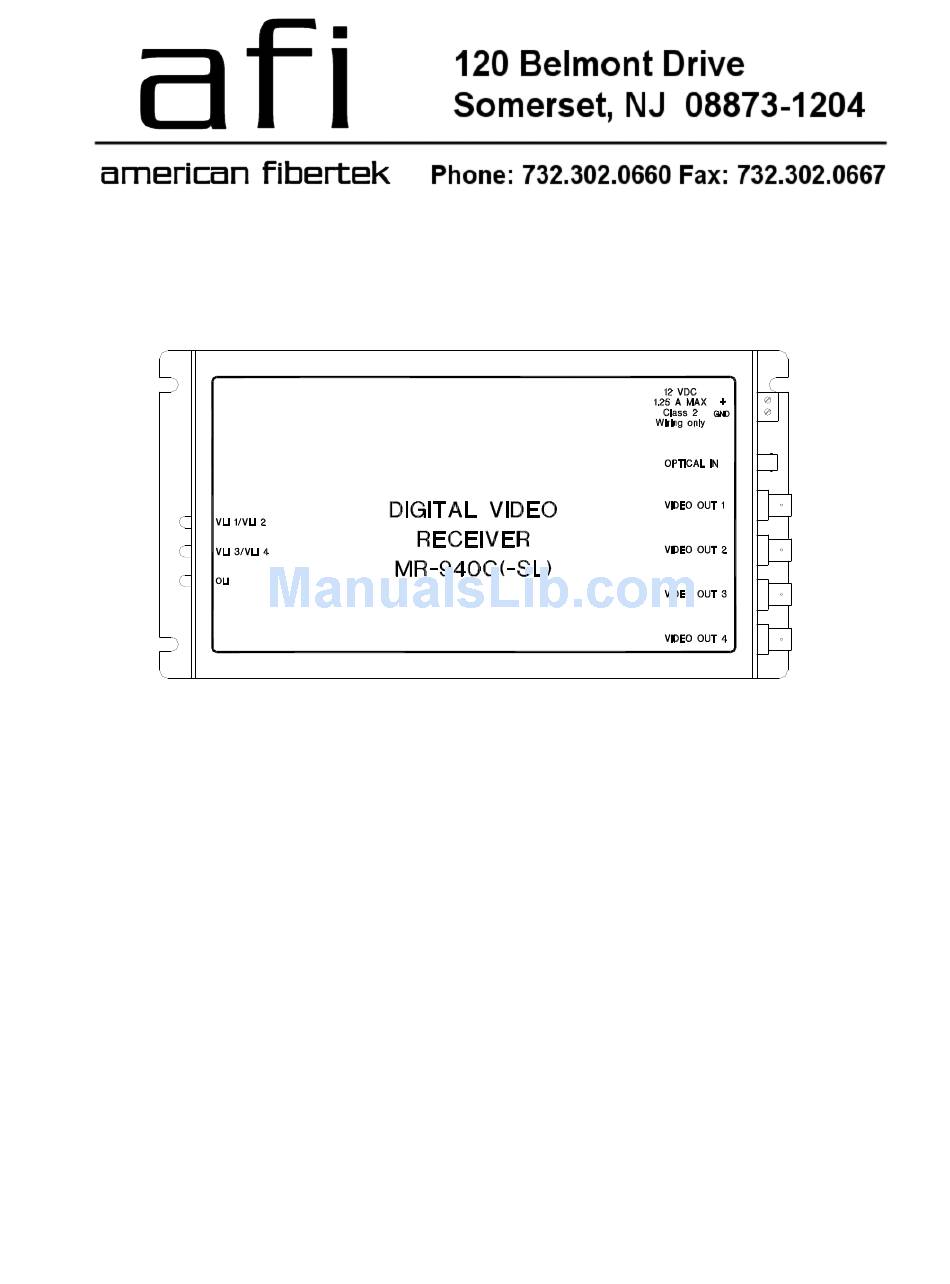

- Page 1 Instruction Manual MR-940C-SL Four Channel Video Receiver 10/30/2012 JPK...
- Page 2 FUNCTIONAL DESCRIPTION The MR-940C-SL operates as half of a transmitter / receiver pair for the transmission of four channels of high performance digital NTSC, PAL, RS170, or RS343 video signals. The MR- 940C-SL is designed to operate with the MT-940C-SL or RT-940C-SL video transmitter over one singlemode fiber optic cable.
- Page 3 VLI 1 THROUGH VLI 4 A bi-color LED indicator is provided for each of the four video inputs to the MR-940C-SL. DC power and video status associated with each of these LED’s are summarized below.
- Page 4 A bi-color LED indicator monitors the optical input power of the data signal that is being received at the MR-940C from the MT-940C or the RT-940C. DC power and optical input status associated with this LED are summarized below. Optical Level Indicator DC Power Status Optical Status Green...
