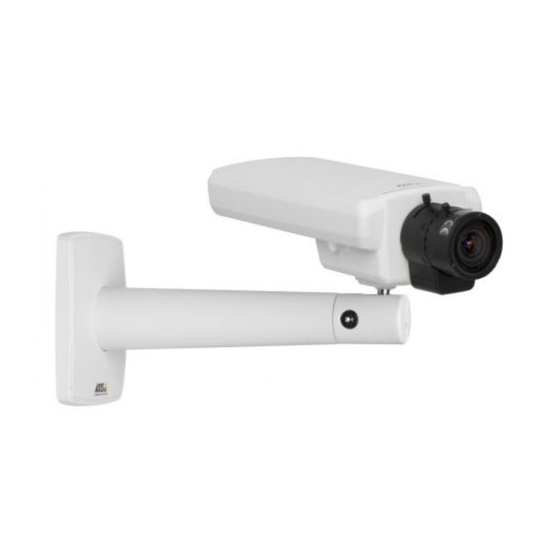

AXIS P1357 Network Camera

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1357 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis P1357

Summary of Contents for Axis P1357

  • Page 1: User Manual

    AXIS P1357 Network Camera User Manual...
  • Page 2 About this document Electromagnetic Compatibility (EMC) This equipment has been designed and tested to fulfill applicable This manual is intended for administrators and users of the AXIS P1357 standards for: Network Camera, and is applicable to firmware 5.70 and later. It includes instructions for using and managing the product on your •...
  • Page 3 • find answers to resolved problems in the FAQ database. Search by product, category, or phrase • report problems to Axis support staff by logging in to your private support area • chat with Axis support staff •...

  • Page 4: Safety Information

    AXIS P1357 Network Camera Safety Information Safety Information Hazard Levels DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

  • Page 5: Table Of Contents

    AXIS Media Control (AMC) ........
  • Page 6 AXIS P1357 Network Camera Table of Contents Languages ..........

  • Page 7: Hardware Overview

    AXIS P1357 Network Camera Hardware Overview Hardware Overview 1 2 3 4 5 6 7 8 Focus puller Zoom puller Internal microphone LED indicator SD card slot (microSD) Audio in Audio out Network connector PoE Power LED 10 Network LED...

  • Page 8: Connectors And Buttons

    ≤100 W or a rated output current limited to ≤5 A. Audio Connector The Axis product has the following audio connectors: • Audio in (pink) – 3.5 mm input for a mono microphone, or a line-in mono signal.

  • Page 9: Led Indicators

    Resetting the product to factory default settings. See page 62. • Connecting to an AXIS Video Hosting System service. See page 54. To connect, press and hold the button for about 3 seconds until the Status LED flashes green. •...

  • Page 10: Status Led Behavior For Focus Assistant

    The camera has been moved, or an object has been placed in front of the lens. Exit and restart the Focus Assistant. The lens is poorly adjusted. Replace the Lens It is possible to use optional lenses for the Axis product. To replace the lens: 1. Disconnect the iris cable. 2. Unscrew the standard lens.

  • Page 11: Access The Product

    To view streaming video in Internet Explorer, allow installation of AXIS Media Control (AMC) when prompted. The Axis product includes one (1) H.264 decoder license for viewing video streams and one (1) AAC audio license. The licenses are automatically installed with AMC. The administrator can disable the installation of the decoders, to prevent installation of unlicensed copies.

  • Page 12: Set The Root Password

    3. Click OK. The password has now been configured. Set Power Line Frequency Power line frequency is set the first time the Axis product is accessed and can only be changed from Plain Config (see page 62) or by resetting the product to factory default.

  • Page 13: Axis Media Control Viewer Toolbar

    2. Under Action Buttons, select Show manual trigger button. AXIS Media Control viewer toolbar The AXIS Media Control viewer toolbar is available in Internet Explorer only. See AXIS Media Control (AMC) on page 16 for more information. The toolbar displays the following buttons:...
  • Page 14 Microphone button – Click to mute or unmute the microphone. In Simplex - speaker only mode, the Microphone and Talk buttons must both be active to send audio to the Axis product. Click either button to stop audio transmission. Use the slider to control the volume of the speakers and the microphone.
  • Page 15 AXIS P1357 Network Camera Access the Product Click the Ctrl panel button to open the PTZ control panel which provides additional PTZ controls. User-defined buttons can also appear in the Control panel. See Controls on page 35. To view a specific view area or preset position, select it from the Source list.

  • Page 16: Media Streams

    Note also that all multicast viewers count as one unicast viewer in the maximum total of 20 simultaneous connections. AXIS Media Control negotiates with the Axis product to determine the transport protocol to use. The order of priority, listed in the AMC Control Panel, can be changed and the options disabled, to suit specific requirements.

  • Page 17: Alternative Methods Of Accessing The Video Stream

    AXIS P1357 Network Camera Media Streams The AMC Control Panel can be used to configure various video and audio settings. Please see the AXIS Media Control User’s Manual for more information. The AMC Control Panel is automatically installed on first use, after which it can be configured. Open the AMC Control Panel from: •...

  • Page 18: Access Audio Streams

    • The Axis product supports QuickTime 6.5.1 and later. • QuickTime may add latency to the video stream. • It may be possible to use other players to view the H.264 stream using the paths above, although Axis does not guarantee this.

  • Page 19: Set Up The Product

    Set Up the Product Set Up the Product The Axis product can be configured by users with administrator or operator rights. To open the product’s Setup pages, click Setup in the top right-hand corner of the Live View page. •...

  • Page 20: Focus Assistant

    AXIS P1357 Network Camera Set Up the Product 7. On the Focus page, click Fine-tune focus automatically and wait until automatic fine tuning is completed. 8. Click Enable iris. If the button is inactive the iris is already enabled. 9. If needed, make further adjustments under the Advanced tab. See the online help for more information.

  • Page 21: Video And Audio

    Width and Height fields and click Apply. • When accessing the Live View page in Internet Explorer with AXIS Media Control (AMC) in Windows. Right-click in the image and select Pixel counter. Use the mouse to move and resize the rectangle.
  • Page 22 Maximum frame rate. To avoid bandwidth problems, the frame rate allowed to each viewer can be Limited to a fixed amount. Alternatively, the frame rate can be set as Unlimited, which means the Axis product always delivers the highest frame rate possible under the current conditions.

  • Page 23: Stream Profiles

    To select a default stream profile for the Live View page, go to Setup > Live View Config. Camera Settings The Video & Audio > Camera Settings page provides access to advanced image settings for the Axis product. Capture Mode...

  • Page 24: White Balance

    To change this setting go to Setup > Video & Audio > Camera Settings White balance is used to make colors in the image appear the same regardless of the color temperature of the light source. The Axis product can be set to automatically identify the light source and compensate for its color. Alternatively, select the type of light source from the drop-down list.
  • Page 25 AXIS P1357 Network Camera Video and Audio • Auto to set the shutter speed automatically. If required, use Max shutter to limit the shutter speed to prevent the frame rate from being reduced. For example, to get 30 fps, set Max shutter to 1/30.

  • Page 26: View Area

    To modify a view area, select the view area in the list and modify the settings as required. Click Save. To remove a view area, select the view area and click Remove. Note The PTZ functionality is useful during installation of the Axis product. Use a view area to crop out a specific part of the full view. Overlay Overlays are used to provide extra information, such as forensic video analysis or during product installation and configuration.

  • Page 27: Video And Audio 20

    For more information about privacy masks, see Privacy Mask on page 28. To use an overlay image, the image must first be uploaded to the Axis product. The uploaded image should be a Windows 24-bit BMP image with maximum 250 colors. The image width and height, in pixels, must be exactly divisible by 4 and cannot be larger than the maximum image resolution.

  • Page 28: Privacy Mask

    Privacy masks cannot be bypassed using the VAPIX® application programming interface (API). The Privacy Mask List (Video & Audio > Privacy Mask) shows all the masks that are currently configured in the Axis product and indicates if they are enabled.

  • Page 29: Focus

    Focus You can focus the Axis product under Video & Audio > Focus. For most applications, the adjustments on the Basic tab are sufficient. If required, additional adjustments can be made on the Advanced tab. Before focusing, always click Open iris to open the iris to its maximum.

  • Page 30: Audio Input

    AXIS P1357 Network Camera Video and Audio Audio Input An external microphone or a line source can be connected to the Audio-in connector. Configure the audio input settings under Video & Audio > Audio Settings. Note The internal microphone is used by default; the external microphone is used when connected. It is possible to disable the internal microphone by connecting a plug to the mic input.

  • Page 31: Audio Clips

    To add, download, modify or remove audio clips, go to Video & Audio > Audio Clips. For more information see the online help To configure the Axis product to play audio clips when an event occurs, an action rule must be set up. For more information, see Events on page 42.

  • Page 32: Configure The Live View Page

    Viewer Settings To configure options for the viewer, go to Live View Config > Viewer Settings. • Select Show viewer toolbar to display the AXIS Media Control (AMC) or the QuickTime viewer toolbar under the video image in your browser. •...
  • Page 33 Defining the link as a web link will open the link in a new window. Output Buttons External I/O devices connected to the Axis product’s output ports can be controlled directly from the Live View page. To display output buttons in the Live View page: 1.

  • Page 34: Ptz (Pan Tilt Zoom)

    Each view area has its own preset positions. Install PTZ Driver This Axis product supports several PTZ devices. Please see www.axis.com for a complete list of supported devices, and to obtain the correct driver. To install a PTZ device you need to install the PTZ driver.

  • Page 35: Advanced

    60 seconds after the last PTZ control command. 2. Event — The Axis product can be configured to go to a preset position when triggered by an alarm (see Events on page 42). The event will immediately be placed first in the queue except when an administrator is in control.
  • Page 36 AXIS P1357 Network Camera PTZ (Pan Tilt Zoom) 3. Operator — Same as administrator but with lower priority 4. Guard Tour — A guard tour (see page 34) has PTZ control for an indefinite period of time. It may be overridden by an operator, event or administrator.

  • Page 37: Detectors

    Motion Detection Parameters on page 38. Once motion detection windows are configured, the Axis product can be configured to perform actions when motion is detected. Possible actions include uploading images and start recording. For more information, see Set Up Action Rules on page 42.
  • Page 38 AXIS P1357 Network Camera Detectors Note • Using the motion detection feature may decrease the product’s overall performance. • The position of the Motion Detection Window is relative to the orientation of the Camera. Changing the orientation of the camera will also change the position of the Motion Detection Window.

  • Page 39: Audio Detection

    Audio Detection The Axis product can be configured to generate an alarm when audio rises above or falls below the threshold value. The threshold value can be set in the range 0–100 where 0 is the most sensitive and 100 the least sensitive.

  • Page 40: Applications

    Manual installation — obtain the license key from the application vendor and upload the key to the Axis product To request a license, the Axis product serial number (S/N) is required. The serial number can be found on the product label and under System Options >...
  • Page 41 AXIS P1357 Network Camera Applications If the Axis product is reset to factory default, uploaded applications and their settings are removed. For information about factory default, see Reset to Factory Default Settings.

  • Page 42: Events

    Convert Event Types to Action Rules If the Axis product is upgraded to firmware version 5.40 or later, it is recommended to convert Event Types to Action Rules. The legacy user Event Types in the camera will continue to work but will not be visible in the user interface of the camera. The Event Types need to be converted to Action rules to become visible in the user interface.
  • Page 43 Recording – Triggers the rule when the Axis product records to the storage device. The recording status trigger can be used to notify the operator, for example by flashing LED lights, if the product has started or stopped to record to the storage device.

  • Page 44: Add Recipients

    AXIS P1357 Network Camera Events System Ready – Trigger the rule when the product has been started and all services are running. This can for example be used to send a notification when the product restarts. • Time Recurrence – Trigger the rule periodically. See Set Up Recurrences on page 46. This can for example be used to upload an image every 5 minutes.
  • Page 45 Secure (HTTPS). Send Notification Specify login information for the HTTPS server and validate Send Video Clip the server’s certificate. If there is a proxy between the Axis product and the HTTPS server, also specify the proxy settings. Network Share Send Images A network share can also be used as a storage device for recorded video.

  • Page 46: Create Schedules

    AXIS P1357 Network Camera Events certificate can be validated using the certificates available in the Axis product. For information on how to upload certificates, see Certificates on page 51. Create Schedules Schedules can be used as action rule triggers or as additional conditions, for example to record video if motion is detected outside office hours.

  • Page 47: Recordings

    Note The recording’s start date and time is set according to the Axis product’s date and time settings. If the Axis product is configured to use a time zone different from the local time zone, make sure to configure the Recording time filters according to the product’s time zone.

  • Page 48: Export Video Clip

    Continuous Recording The Axis product can be configured to continuously save video to a storage device. For information about storage devices, see Storage on page 58. To prevent the disk from becoming full, it is recommended to configure the disk to automatically remove old recordings.

  • Page 49: Languages

    Languages Multiple languages can be installed in the Axis product. All web pages including the online help will be displayed in the selected language. To switch languages, go to Setup > Languages and first upload the new language file. Browse and locate the file and click the Upload Language button.

  • Page 50: System Options

    IP address filtering is enabled on the System Options > Security > IP Address Filter page. Once enabled, the listed IP address are allowed or denied access to the Axis product. Select Allow or Deny from the list and click Apply to enable IP address filtering.
  • Page 51 4. Set the HTTPS Connection Policy for the different user groups. 5. Click Save to enable the settings. To access the Axis product via the desired protocol, in the address field in a browser, enter https:// for the HTTPS protocol and http:// for the HTTP protocol.

  • Page 52: Date & Time

    2. Click Install certificate and upload the certificate. Audio Support Select Enable audio support to allow clients to retrieve audio streams from the Axis product. For information on how to configure audio settings, see Set Up Audio on page 29.

  • Page 53: Network

    IPv4 Address Configuration By default, the Axis product is set to use IPv4 (IP version 4) and to obtain the IP address automatically via DHCP. The IPv4 settings are configured under System Options > Network > TCP/IP > Basic.
  • Page 54 5. Close the command prompt when the product responds with Reply from 192.168.0.125:... or similar. 6. Open a browser and type http://<IP address> in the Location/Address field. For other methods of assigning the IP address, see the document Assign an IP Address and Access the Video Stream on Axis Support web at www.axis.com/techsup Note •...
  • Page 55 Host Name Configuration The Axis product can be accessed using a host name instead of an IP address. The host name is usually the same as the assigned DNS name. The host name is configured under System Options > Network > TCP/IP > Advanced.
  • Page 56 (LAN) from the public network (Internet). Use NAT traversal when the Axis product is located on an intranet (LAN) and you wish to make it available from the other (WAN) side of a NAT router.
  • Page 57 Note All AXIS Video MIB traps are enabled when SNMP v1/v2c traps are enabled. It is not possible to turn on or off specific traps. SNMP v3 provides encryption and secure passwords. To use traps with SNMP v3, an SNMP v3 management application is required.

  • Page 58: Storage

    To prevent corruption of recordings, the SD card should always be unmounted before it is ejected. The SD card is automatically mounted when the card is inserted into the Axis product or when the product is started. A manual mount is only required if the card has been unmounted and not ejected and re-inserted.

  • Page 59: Network Share

    Formatting the SD card will remove all data and recordings stored on the card. The Axis product can be configured to automatically format SD cards that are inserted into the product. If autoformat is enabled and an SD card is inserted, the product will check if the SD card has the ext4 file system. If the card has a different file system, the card will automatically be formatted to ext4.

  • Page 60: Ports & Devices

    The Axis product provides several maintenance functions. These are available under System Options > Maintenance. Click Restart to perform a correct restart if the Axis product is not behaving as expected. This will not affect any of the current settings.

  • Page 61: Support

    Click Default to reset all settings, including the IP address, to the factory default values. This button should be used with caution. The Axis product can also be reset to factory default using the control button, see Reset to Factory Default Settings on page 62.

  • Page 62: Reset To Factory Default Settings

    For more information, see www.axis.com/developer File Upload Files, for example webpages and images, can be uploaded to the Axis product and used as custom settings. To upload a file, go to System Options > Advanced > File Upload. Uploaded files are accessed through http://<ip address>/local/<user>/<file name> where <user> is the selected user group (viewer, operator or administrator) for the uploaded file.

  • Page 63: Troubleshooting

    To upgrade the product’s firmware: 1. Save the firmware file to your computer. The latest version of the firmware is available free of charge from Axis website at www.axis.com/techsup 2. Go to Setup > System Options > Maintenance in the product’s webpages.

  • Page 64: Symptoms, Possible Causes And Remedial Actions

    Troubleshooting 5. Reinstall the product, referring to the Installation Guide. If the emergency recovery procedure does not get the product up and running again, contact Axis support at www.axis.com/techsup/ Symptoms, Possible Causes and Remedial Actions Problems setting the IP address Try the installation again.
  • Page 65 Check in the AMC Control Panel (H.264 tag) that video processing is NOT set to Decode only key frames. Lower the image resolution. The maximum frames per second is dependent on the utility frequency (60/50 Hz) of the Axis product. See Technical Specifications on page 67. Status and Network indicator LEDs are flashing red rapidly Hardware failure Contact your Axis reseller.
  • Page 66 AXIS P1357 Network Camera Troubleshooting No audio Incorrect setup Check the sound card in the computer. Ensure that mute is not selected and that the volume settings are correct. Check that Enable audio support is selected under Setup > System Options > Security > Audio Support.

  • Page 67: Technical Specifications

    AXIS P1357 Network Camera Technical Specifications Technical Specifications Item Specifications Function/group Camera Model AXIS P1357 Image sensor Progressive scan RGB CMOS 1/3.2” Lens Varifocal 2.8 - 8 mm, F1.2, P-iris, IR corrected, CS-mount Horizontal angle of view 92°-32° Vertical angle of view 66°-24°...
  • Page 68 Open API for software integration, including the ONVIF specification available at Integration Programming www.onvif.org, as well as VAPIX® and AXIS Camera Application Platform from Axis Interface Communications, specifications available at www.axis.com Support for AXIS Video Hosting System (AVHS) with One-Click Camera connection...
  • Page 69 0.6 kg (1.3 lb.) Included Stand accessories Connector kit Installation Guide Windows decoder 1-user license Video AXIS Camera Companion, AXIS Camera Station, Video management software from Axis’ management Application Development Partners available on www.axis.com/products/video/software software Optional AXIS T90B Illuminators accessories Lenses For more accessories, see www.axis.com...

  • Page 70: Connectors

    AXIS P1357 Network Camera Technical Specifications Connectors I/O Connector 4–pin terminal block For an example diagram, see Connection Diagrams on page 71. Function Notes Specifications 0 V DC (-) DC output Can be used to power auxiliary equipment. 3.3 V DC Note: This pin can only be used as power out.

  • Page 71: Connection Diagrams

    AXIS P1357 Network Camera Technical Specifications RS485/422 Connector Two 2-pin terminal blocks for RS485/RS422 serial interface. The serial port can be configured to support: • Two-wire RS485 half duplex • Four-wire RS485 full duplex RX/TX • Two-wire RS422 simplex • Four-wire RS422 full duplex point to point communication...
  • Page 72 Heavy network utilization due to poor infrastructure. Bandwidth affected. • Viewing on poorly performing client computers lowers perceived performance. Frame rate affected. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.
  • Page 73 User Manual Ver. M2.10 AXIS P1357 Network Camera Date: June 2015 © Axis Communications AB, 2013–2015 Part No. 1465567...
