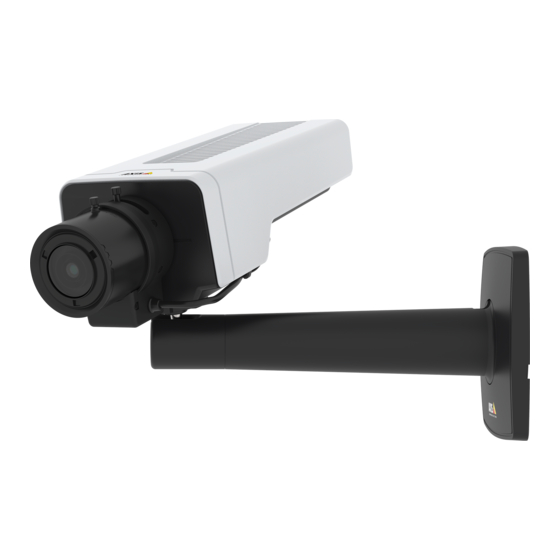

AXIS P1375 Network Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1375 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis P1375

Summary of Contents for Axis P1375

  • Page 1 AXIS P1375 Network Camera User Manual...

  • Page 2: Table Of Contents

    AXIS P1375 Network Camera Table of Contents Product overview ......... . .

  • Page 3: Product Overview

    AXIS P1375 Network Camera Product overview Product overview microSD card slot Status LED Built-in microphone Zoom puller Lock screw for focus ring Focus ring Power connector (DC) T92G20 connector Control button 10 RS485/422 connector 11 I/O connector 12 i-CS connector (compatible with P-iris and DC-iris)

  • Page 4: Find The Device On The Network

    Find the device on the network Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support For more information about how to find and assign IP addresses, see the document How to assign an IP address and access your device on the device page at axis.com...
  • Page 5 AXIS P1375 Network Camera Find the device on the network 3. Click Create login. The password has now been configured.

  • Page 6: Setup

    AXIS P1375 Network Camera Setup Setup About the product's built-in help You can access the built-in help from the product’s webpage. The help provides more detailed information on the product’s features and their settings. Replace the lens 1. Stop all recordings and disconnect power from the product.

  • Page 7: Reduce Noise In Low-Light Conditions

    AXIS P1375 Network Camera Setup Reduce noise in low-light conditions To reduce noise in low-light conditions, you can adjust one or more of the following settings: • Make sure that the exposure mode is automatic. Note Increasing the max shutter value can result in motion blur.

  • Page 8: Improve Facial Recognition

    AXIS P1375 Network Camera Setup 1. Depending on your product, turn the camera or the 3-axis lens in the camera 90° or 270°. Find out more at axis.com/axis-corridor-format Improve facial recognition To better recognize the face of a person passing by the camera, you can set the optimal pixel resolution with the camera’s pixel counter.

  • Page 9: Handle Scenes With Strong Backlight

    Note WDR may cause artifacts in the image. Find out more about WDR and how to use it at axis.com/web-articles/wdr About overlays Overlays are superimposed over the video stream. They are used to provide extra information during recordings, such as a timestamp, or during product installation and configuration.

  • Page 10: Choose Video Compression Format

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. Installing additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard.

  • Page 11: Reduce Bandwidth And Storage

    H.265 or MPEG-H Part 2/HEVC Note H.265 is licensed technology. The Axis product includes one H.265 viewing client license. Installing additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. Reduce bandwidth and storage Important If you reduce the bandwidth it can result in loss of details in the picture.

  • Page 12: Record And Watch Video

    1. Go to Settings > System > Events and add an action rule. 2. Type a name for the action rule. 3. From the list of triggers, select Applications and then select AXIS Video Motion Detection (VMD). 4. From the list of actions, select Record video.

  • Page 13: Applications

    10. Click Ok. Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications To find the user manuals for Axis applications, go to axis.com...

  • Page 14: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 15: Upgrade The Firmware

    Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 16: Performance Considerations

    IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).
  • Page 17 Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.

  • Page 18: Specifications

    AXIS P1375 Network Camera Specifications Specifications To find the latest version of the product’s datasheet, go to the product page at axis.com and locate Support & Documentation. LED Indicators Note • The Status LED can be configured to be unlit during normal operation. To configure, go to Settings > System > Plain config.

  • Page 19: Buttons

    Resetting the product to factory default settings. See Reset to factory default settings on page 14. • Connecting to an AXIS Video Hosting System service. To connect, press and hold the button for about 3 seconds until the status LED flashes green.
  • Page 20 AXIS P1375 Network Camera Specifications Digital output - For connecting external devices such as relays and LEDs. Connected devices can be activated by the VAPIX® Application Programming Interface or from the product’s webpage. Function Notes Specifications DC ground 0 V DC DC output Can be used to power auxiliary equipment.
  • Page 21 Important The maximum cable length is 30 m (98 ft). T92G20 connector Use this connector when you mount the camera in an AXIS T92G20 Outdoor Housing. The connector supplies power to the heater and the IR illumination in the housing.
  • Page 22 User Manual Ver. M1.9 AXIS P1375 Network Camera Date: March 2019 © Axis Communications AB, 2019 Part No. T10135685...
